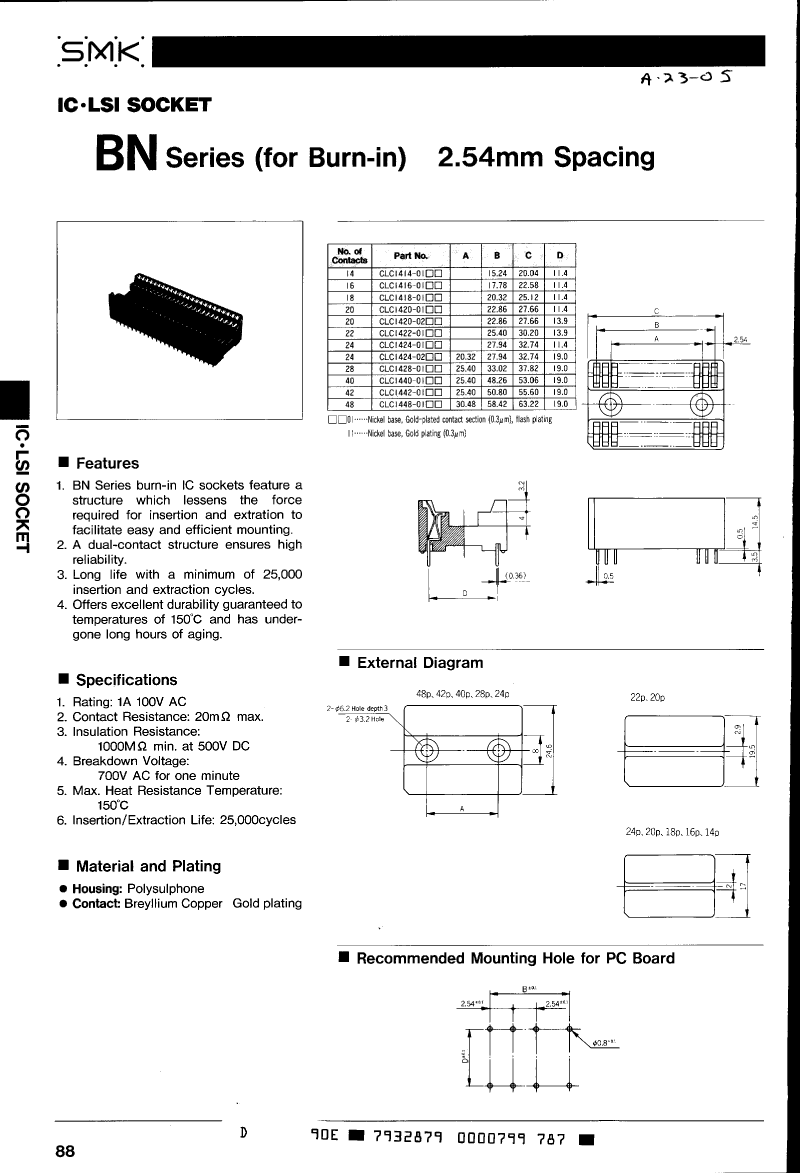

CLC1428-0101: DescriptionIC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,; CategoryThe connector socket; File Size76KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

CLC1428-0101 Overview

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,

CLC1428-0101 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknow
body width	0.968 inch
subject depth	0.571 inch
body length	1.489 inch
Contact to complete cooperation	AU ON NI
Contact material	BE-CU
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP28
Dielectric withstand voltage	500VDC V
Shell material	POLYSULFONE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BN
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	150 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.748 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

CLC1428-0101 Related Products

	CLC1428-0101	CLC1428-0111	CLC1424-0111	CLC1424-0211	CLC1420-0111	CLC1420-0101	RK73G2ARTTDD8450D	CLC1420-0201	CLC1448-0111
Description	IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,	IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.45inch Row Spacing, Solder,	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.45inch Row Spacing, Solder,	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.45inch Row Spacing, Solder,	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 845ohm, 150V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.547inch Row Spacing, Solder,	IC Socket, DIP48, 48 Contact(s), 2.54mm Term Pitch, 0.748inch Row Spacing, Solder,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown	compliant	unknown	unknown
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	155 °C	150 °C	150 °C
Maker	SMK	SMK	SMK	SMK	-	SMK	-	-	SMK
body width	0.968 inch	0.968 inch	0.968 inch	0.968 inch	0.968 inch	0.968 inch	-	0.968 inch	0.968 inch
subject depth	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	-	0.571 inch	0.571 inch
body length	1.489 inch	1.489 inch	1.289 inch	1.289 inch	1.089 inch	1.089 inch	-	1.089 inch	2.489 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	-	BE-CU	BE-CU
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A	1 A	-	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	-	IC SOCKET	IC SOCKET
Type of equipment used	DIP28	DIP28	DIP24	DIP24	DIP20	DIP20	-	DIP20	DIP48
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	-	500VDC V	500VDC V
Shell material	POLYSULFONE	POLYSULFONE	POLYSULFONE	POLYSULFONE	POLYSULFONE	POLYSULFONE	-	POLYSULFONE	POLYSULFONE
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	BN	BN	BN	BN	BN	BN	-	BN	BN
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
Number of contacts	28	28	24	24	20	20	-	20	48
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.748 mm	0.748 mm	0.45 mm	0.748 mm	0.45 mm	0.45 mm	-	0.547 mm	0.748 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	-	1	1
