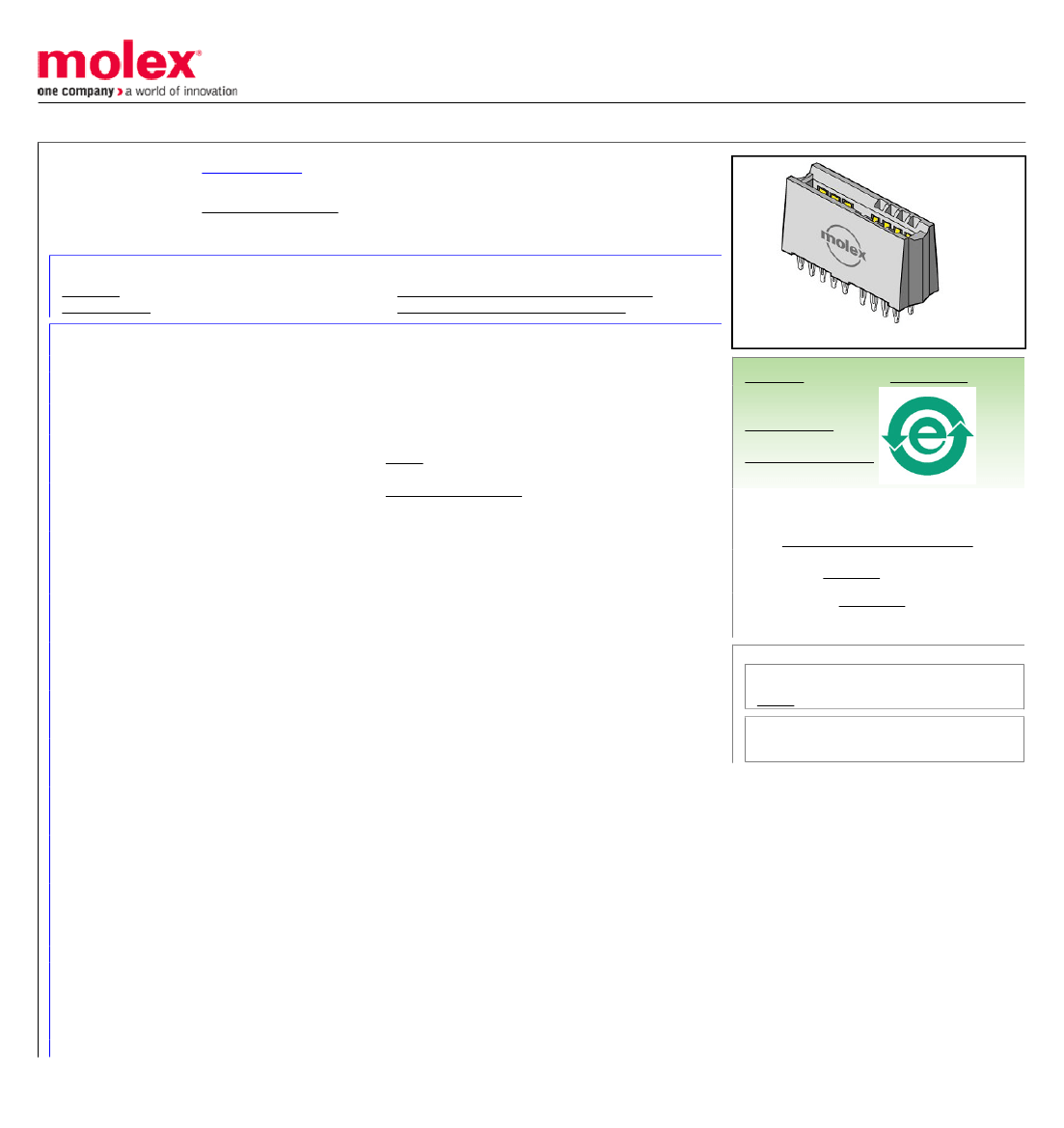

standard card edge connectors power edge assy powe y power / signal cpi
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | POWER EDGE, TERMINAL PITCH FOR POWER CONTACTS : 12.90 MM, PANEL MOUNTABLE |
| Board mount options | COMPLIANT BOARDLOCK |
| body width | 0.354 inch |
| subject depth | 0.591 inch |
| body length | 2.071 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (30) |
| Contact completed and terminated | TIN (150) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 15 mΩ |
| Contact style | HYBRID |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VDC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.39 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 45912 |
| Mixed contacts | YES |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.169 inch |
| Terminal pitch | 2.5 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 20 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
