97-3102A-16-10P(946) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 97-3102A-16-10P(946)

97-3102A-16-10P(946): Descriptioncircular mil spec connector 3P Sz 16 box mount pin recept solder; CategoryThe connector The connector; File Size596KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

97-3102A-16-10P(946) Overview

circular mil spec connector 3P Sz 16 box mount pin recept solder

97-3102A-16-10P(946) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Factory Lead Time	14 weeks
Other features	STANDARD: MIL-C-5015
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC ALLOY PLATED
Shell material	ALUMINUM ALLOY
Housing size	16
Termination type	SOLDER
Total number of contacts	3

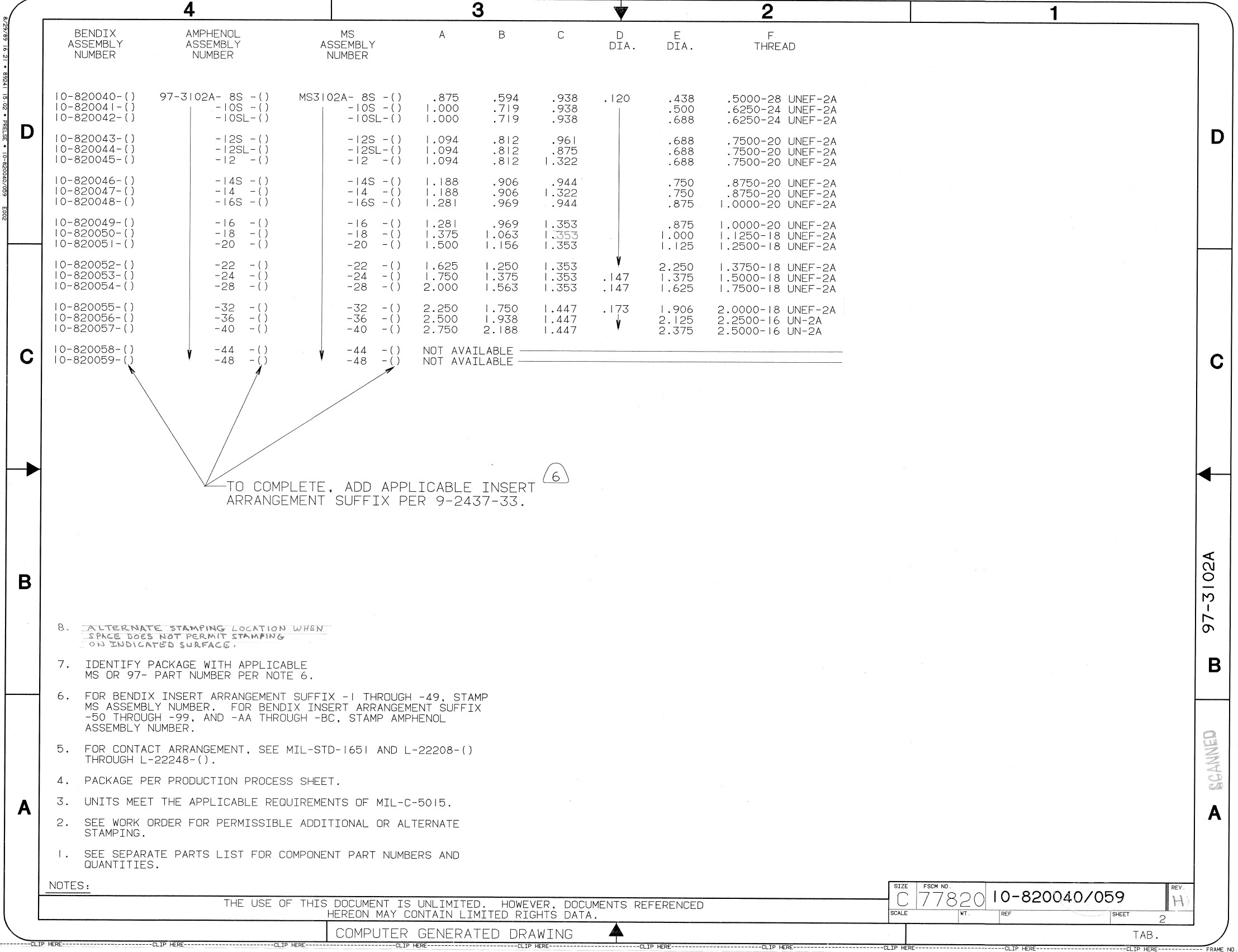

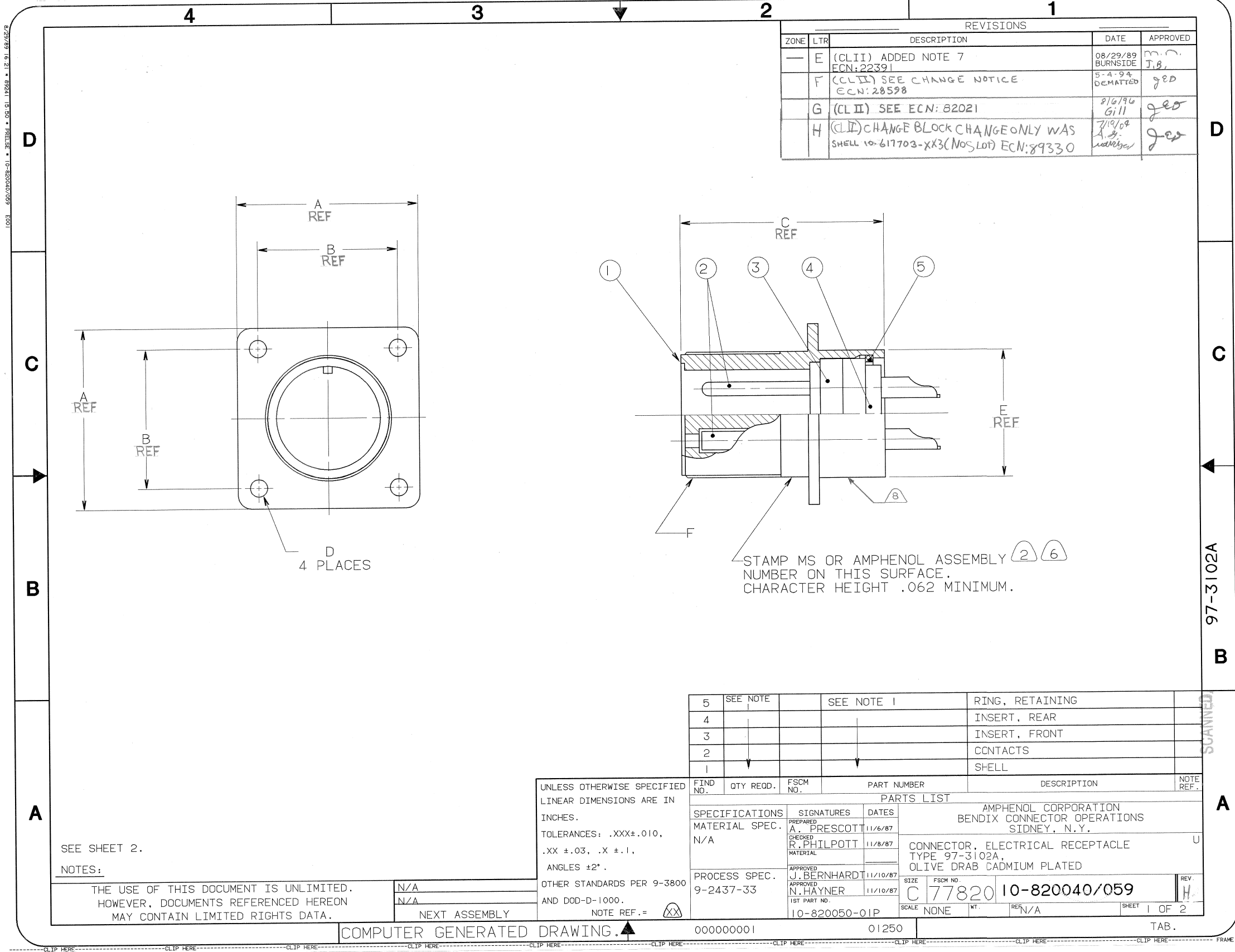

Preview

Download Datasheet

View All

97 series solder type

how to order

Example of part number for solder type connectors is given below.

–

3101

A – 28 – 21

Y (847) (639)

Series Number

97 - Like MS but

Amphenol

Shell Type

3100 Wall Receptacle

3101 Cable Receptacle

3102 Box Receptacle

3106 Straight Plug

3107 Quick Disconnect Plug

3108 Angle Plug

Shell Finish Suffix

Omit for standard O.D.

cadmium finish

(604) Gray anodized

(608) Black anodized

(621) Black zinc alloy

(624) Green zinc alloy

(639) Clear cadmium

(640) Conductive black zinc alloy

(689) Electroless nickel

RoHS Compliant

oHS

Suffix

(946) Black zinc alloy

002

plating plus solder

contact less pre-filled cup

mpheno

Shell Construction

A - Solid Backshell

B - Split Backshell

Shell Size

8S, 10SL, 12S, 14S, 14, 16S, 16

18, 20, 22, 24, 28, 32, 36

Insert Configuration Number

See insert availability listing - pages 4 & 5,

and see insert arrangement illustrations -

pages 6-11.

Deviation from standard A&B

construction

Omit this suffix if standard construction is

desired

(115) Small flange receptacle

(426) Gold over silver plating on contacts

(438) Construction for potting (see page 30

for additional deviations)

(936) Connector plug with safety wire holes

in coupling nut

Consult Amphenol, Sidney, NY for

other deviations.

Alternate Insert Positions

Omit for standard position

W, X, Y or Z for alternate positions, depend-

ing on insert (see page 12 for positions

available)

Note: Accessories for 97 Series Connectors

should be ordered with matching connec-

tor plating. See accessory pages 33-39.

Contact Type

P = Pin

S = Socket
