ACVX1240-FREQ-I-R-N20-Q10 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ACVX1240-FREQ-I-R-N20-Q10

ACVX1240-FREQ-I-R-N20-Q10: DescriptionSine Output Oscillator, 8MHz Min, 200MHz Max, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size945KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ACVX1240-FREQ-I-R-N20-Q10 Overview

Sine Output Oscillator, 8MHz Min, 200MHz Max, ROHS COMPLIANT, DIP-14/4

ACVX1240-FREQ-I-R-N20-Q10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1075536488
Reach Compliance Code	compliant
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	200 ppm
frequency stability	25%
linearity	10%
Manufacturer's serial number	ACVX1240
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	200 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	50 Ω
Output level	1 V
physical size	20.8mm x 13.2mm x 6.8mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

5.0Vdc SINE WAVE FULL-SIZE DIP VOLTAGE

CONTROLLED CRYSTAL OSCILLATOR

ACVX1240

FEATURES:

• Sine wave output into 50Ω

• Reduced EMI

• Available extended temperature range -40°C ~ +85°C

• Available wide pulling option ±150ppm

APPLICATIONS:

• Phase locked loops (PLL) circuit

• Synthesizers

• EMI reductions meet FCC requirements

RoHS

Compliant

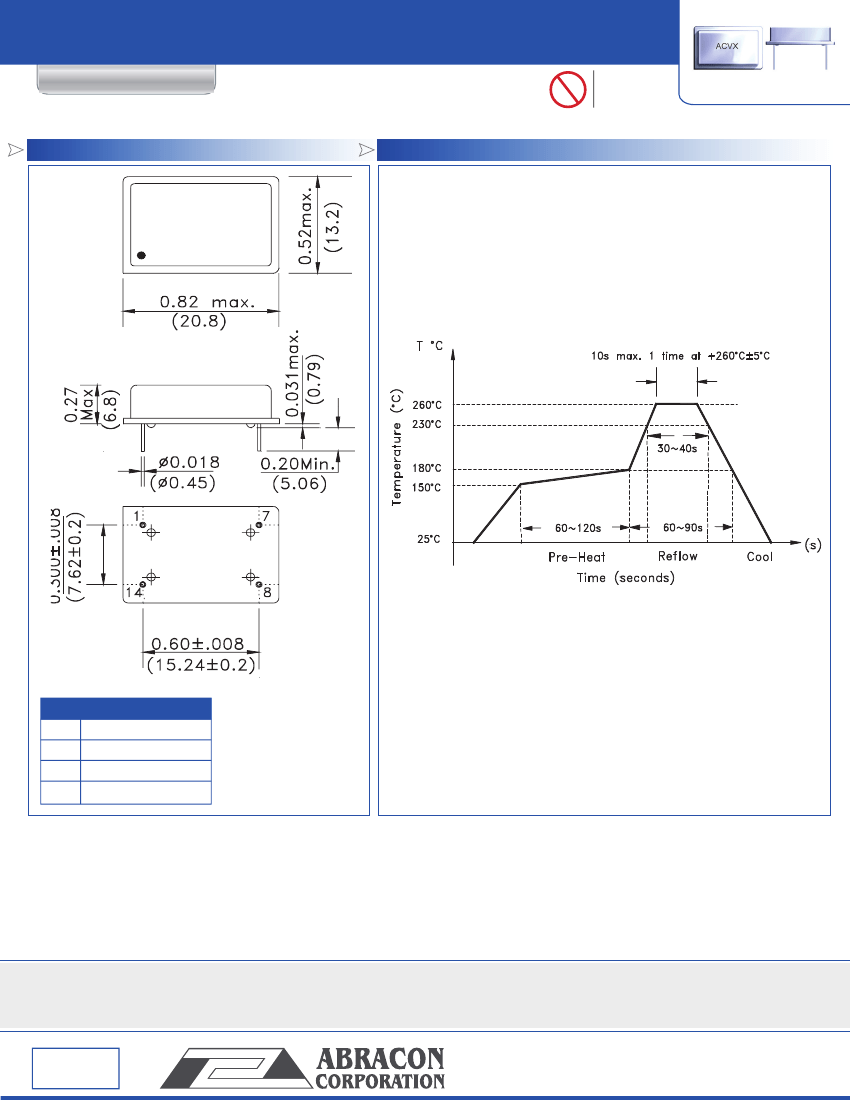

20.8 x 13.2 x 6.8mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

Parameters

Frequency Range

Operating Temperature:

Storage Temperature:

Overall Frequency Stability:

Supply Voltage (Vdd):

Minimum

-55

-50

+4.75

-----

Supply Current (Idd):

-----

Start-up time:

Output Load:

Output Level

Control Voltage (Vc):

Frequency Pull Range:

Linearity:

RMS Jitter:

Harmonics:

Spurious Level:

Aging (first year):

-----

1.0

0.5

±100

-10

-----

-3

Typical

-----

5.00

-----

0.2

- ----

-----

Maximum

200

+70

+125

+50

+5.25

10.0

-----

4.5

-----

+10

0.5

-30

-60

Units

MHz

°C

ppm

Ω

Vp-p

Vdc

ppm

dBc

ppm

See options

8 – 20MHz

21 – 40MHz

41 – 80MHz

81 – 100MHz

101 – 150MHz

151 – 200MHz

See options

Notes

(Left blank if standard)

OPTIONS & PART IDENTIFICATION:

ACVX1240 -

Operating Temp.

I: 0°C ~ +50°C

D: -10°C ~ +60°C

E: -20°C ~ +70°C

F: -30°C ~ +70°C

N: -30°C ~ +85°C

L: -40°C ~ +85°C

MHz -

Freq. Stability

J*: ±20ppm

R: ±25ppm

K: ±30ppm

H: ±35ppm

* Temp. option I,D,E

and 0°C ~ +70°C only

Trimmed Lead

G: Gull Wing

Q45: 0.45 (11.43)

Q40: 0.40 (10.16)

Q35: 0.35 (8.89)

Q30: 0.30 (7.62)

Q25: 0.25 (6.35)

Q20: 0.20 (5.08)

Q15: 0.15 (3.81)

Q10: 0.10 (2.54)

Frequency in MHz

Please specify the

frequency in MHz.

e.g. 14.31818MHz

Pulling

Blank: ±100ppm

N05: ±50ppm

N07: ±75ppm

N15: ±150ppm

N20: ±200ppm

N25: ±250ppm

N30: ±300ppm

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 09.28.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
