FUSE BLOCKS
SCREW TERMINAL BLOCKS

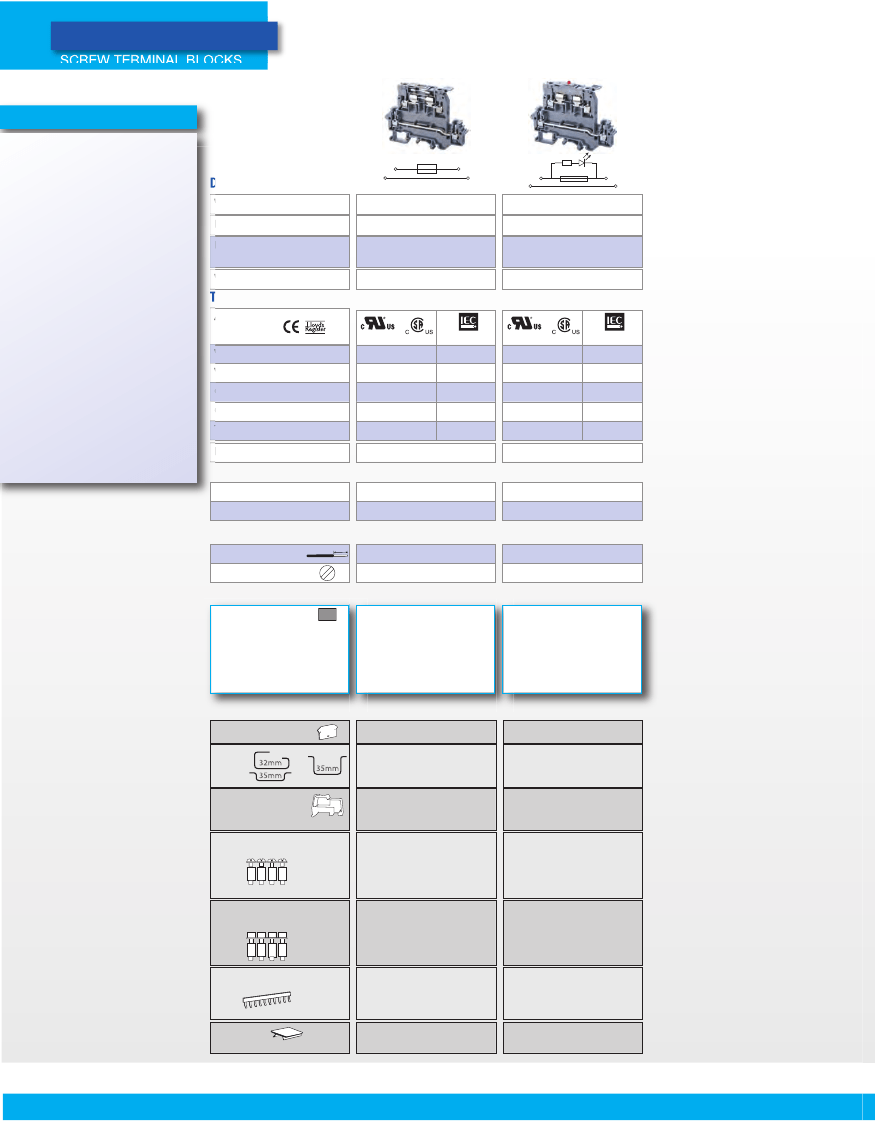

DOUBLE LEVEL FUSE BLOCKS, 5 x 20 / 5 x 25 mm
DDFL4U
DDFL4U(E)/XX
HIGHLIGHTS
FEATURES
•
Top Level fuse link for
•
Bottom Level Feed
through terminal
5x20mm/ 5x25mm fuse
types
Dimensions & Weight
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
Weight per piece
8 mm
88 mm
67.4 mm
74.3 mm
28.0 g
8 mm
88 mm
67.4 mm
74.3 mm
27.0 g
•
DDFL4U(E)
version with
•
Blocks can be used in AC
& DC applications
LED for blown fuse
indication in various
voltages
Technical Data/Ratings
Approvals
Wire Size (solid / stranded)
Voltage Rating
E220514
60947-7-1
E220514
60947-7-1
22-10 AWG
600 V
6.3 A
35 A
7 lb-in
0.2-4 mm
2
800 V AC/DC
6.3 A
32 A
0.5 Nm
22-10 AWG
600 V
6.3 A
35 A
7 lb-in
0.2-4 mm
2
800 V AC/DC
6.3 A
32 A
0.5 Nm
APPLICATIONS
•
Tight space fuse
applications
Current Rating (top)
Current Rating (bottom)
Torque
Insulation Material
•
No need for additional
Feed through terminal
Polyamide 66
Polyamide 66
Fuse Specifications
Fuse Type
LED Indicator Voltage
5x20 mm / 5 x 25 mm
-
5x20 mm / 5 x 25 mm
24V, 48V, 110V, 220V, 440V
Installation Instructions
Wire Stripping Length
Screwdriver
9.5 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
DDFL4U
Std. Pk.
20
DDFL4U(E)/24
DDFL4U(E)/48
DDFL4U(E)/110
DDFL4U(E)/220
DDFL4U(E)/440
Cat. No.
EPDDFL4U
2511120
CA701-15/S
2511160
CA702
CA802
CA202
2 pole
3 pole
4 pole
10 pole
2 pole
3 pole
4 pole
10 pole
2 pole
3 pole
4 pole
10 pole
on terminal
on lever
9.5 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
Std. Pk.
20
20
20
20
20
Std. Pk.
50
20
20
10
50
50
25
100
50
50
10
100
50
50
10
100
50
50
20
1 Pk. (100 tags)
1 Pk. (100 tags)
Terminal Blocks
Grey
LED Voltage 24V AC/DC
LED Voltage 48V AC/DC
LED Voltage 110V AC/DC
LED Voltage 220V AC/DC
LED Voltage 440V AC
Accessories
End Plate
DIN Rail
Std. Pk.
50
20
20
10
50
50
25
100
50
50
10
100
50
50
10
100
50
50
20
1 Pk. (100 tags)
1 Pk. (100 tags)
Cat. No.
EPDDFL4U
2511120
CA701-15/S
2511160
CA702
CA802
CA202
CA729/2
CA729/3
CA729/4
CA729/10
CA749/2
CA749/3
CA749/4
CA749/10
CA711/2
CA711/3
CA711/4
CA711/10
MT8
MT2
End Stop
Internal Jumper
CA729/2
CA729/3
CA729/4
CA729/10
CA749/2
CA749/3
CA749/4
CA749/10
CA711/2
CA711/3
CA711/4
CA711/10
MT8
MT2
Insulated
Internal Jumper
External Jumper
Marking Tag
20
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490

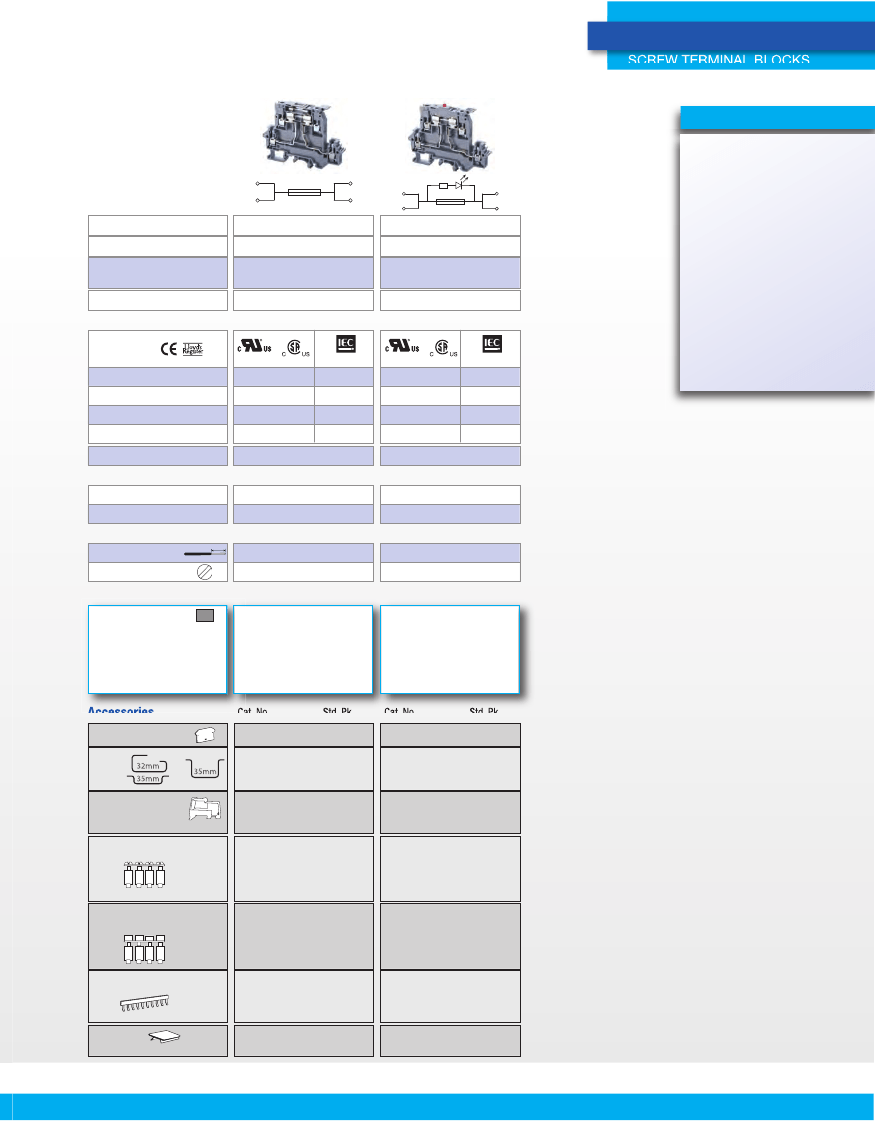

DOUBLE LEVEL FUSE BLOCKS, 5 x 20 / 5 x 25 mm
WITH 2 CONNECTION POINTS
DDFL4ULR
DDFL4U(E)LR/XX
FUSE BLOCKS
SCREW TERMINAL BLOCKS
HIGHLIGHTS
FEATURES
•
Modified version of
8 mm
88 mm
67.4 mm
74.3 mm
24.5 g
8 mm
88 mm
67.4 mm
74.3 mm
27.0 g
Dimensions & Weight
Width
Length
Height w DIN Rail 35 x 7.5 mm
35 x 15 mm
Weight per piece
•
DDFL4U(E)
version with
DC applications
DDFL4U
with 2
equipotential
•
Blocks can be used in AC &
LED for blown fuse indica-
tion in various voltages
Technical Data/Ratings
Approvals
Wire Size (solid / stranded)
Voltage Rating
Current Rating (top)
Torque
Insulation Material
E220514
60947-7-1
E220514
60947-7-1
22-10 AWG
600 V
6.3 A
7 lb-in
0.2-4 mm
2
800 V AC/DC
6.3 A
0.5 Nm
22-10 AWG
600 V
6.3 A
7 lb-in
0.2-4 mm
2
800 V AC/DC
6.3 A
0.5 Nm
APPLICATIONS
•
Control Circuits with multi
wire fuse application
Polyamide 66
Polyamide 66
Fuse Specifications
Fuse Type
LED Indicator Voltage
5x20 mm / 5 x 25 mm
-
5x20 mm / 5 x 25 mm
24V, 48V, 110V, 220V, 440V
Installation Instructions
Wire Stripping Length
Screwdriver
9.5 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
DDFL4ULR
Std. Pk.
20
DDFL4U(E)LR/24
DDFL4U(E)LR/48
DDFL4U(E)LR/110
DDFL4U(E)LR/220
DDFL4U(E)LR/440
Cat. No.
EPDDFL4U
2511120
CA701-15/S
2511160
CA702
CA802
CA202
2 pole
3 pole
4 pole
10 pole
2 pole
3 pole
4 pole
10 pole
2 pole
3 pole
4 pole
10 pole
on terminal
on lever
9.5 mm
Flat Head 0.6 x 3.5 mm
Cat. No.
Std. Pk.
20
20
20
20
20
Std. Pk.
50
20
20
10
50
50
25
100
50
50
10
100
50
50
10
100
50
50
20
1 Pk. (100 tags)
1 Pk. (100 tags)
21
Terminal Blocks
Grey
LED Voltage 24V AC/DC
LED Voltage 48V AC/DC
LED Voltage 110V AC/DC
LED Voltage 220V AC/DC
LED Voltage 440V AC
Accessories
End Plate
DIN Rail
Std. Pk.
50
20
20
10
50
50
25
100
50
50
10
100
50
50
10
100
50
50
20
1 Pk. (100 tags)
1 Pk. (100 tags)
Cat. No.
EPDDFL4U
2511120
CA701-15/S
2511160
CA702
CA802
CA202
CA729/2
CA729/3
CA729/4
CA729/10
CA749/2
CA749/3
CA749/4
CA749/10
CA711/2
CA711/3
CA711/4
CA711/10
MT8
MT2
End Stop
Internal Jumper
CA729/2
CA729/3
CA729/4
CA729/10
CA749/2
CA749/3
CA749/4
CA749/10
CA711/2
CA711/3
CA711/4
CA711/10
MT8
MT2
Insulated
Internal Jumper
External Jumper
Marking Tag
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490
