BPH-1-13-SD-SG30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BPH-1-13-SD-SG30

Preview

BPH-1-13-SD-SG30: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BPH-1-13-SD-SG30 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

BPH-1-13-SD-SG30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166981811
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	8.7
Other features	ROHS COMPLIANT
body width	0.068 inch
subject depth	0.079 inch
body length	1.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

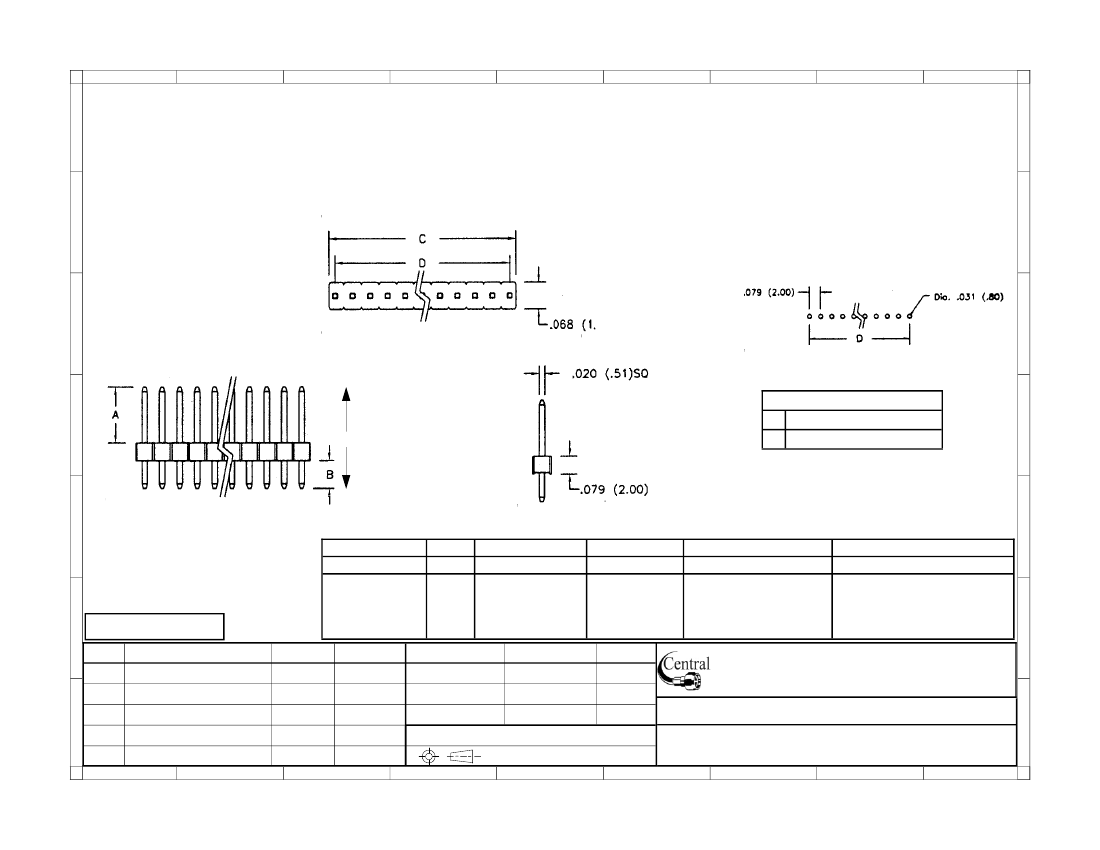

SPECIFICATIONS

Current rating:

Operating voltage:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

3 amps

250VAC

Phosphor bronze

Tin, gold or duplex

10 milliohms max.

PBT, glass reinforced, UL94V-0

1,000 megohms min

1,000VAC for 1 min.

-55˚C to +125˚C

A

PC Board Layout

B

C

D

E

Standard lengths:

A=4.0mm (.157”)

B=2.8mm (.110”)

E=8.8mm (.346)

Dimensions

C 0.079” x No. of positions

D 0.079” x No. of spaces

D

E

Series

BHD

2mm unshrouded

pin header

F

Rows

X

1-2

RoHS compliant

Rev.

Description

Date

Approved

Type

Contacts

Contact length

Plating

XX

[blank]=Straight

Single row: 1-40 SD=Standard (.157”)

GDXX=Gold

RA=Right angle

Double row: 2-80 CSL(A/E) for custom length SGXX=Duplex

SM-=Surface mount

TN=Tin

XX=Flash if blank; 15, 30, 50µ”

Date

08/10/99

08/10/99 Part No.:

F

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

BPH-1-XX-SD-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Pin header, 2mm pitch, unshrouded

G

1

2

3

4
