Closed End Type
Without Polarizing Tabs
Closed End Type
With Polarizing Tabs
B
SPECIFICATIONS
Voltage rating:
250VAC max.
Current rating:
3 amps AC/DC
Contact Material: Tin, Phosphor Bronze Plating
Contact resistance: 10 milliohms max. initial
20 milliohms max. after env. Testing
Insul. Material:
Nylon UL94V-2/0
Insul. Resistance: 1000 megohms min.
Withstanding:
1500VAC/min.
Operating Temp: -40ºC to 105ºC
A
B
C
Feed-Thru Type
Without Polarizing Tabs
Feed-Thru Type
With Polarizing Tabs

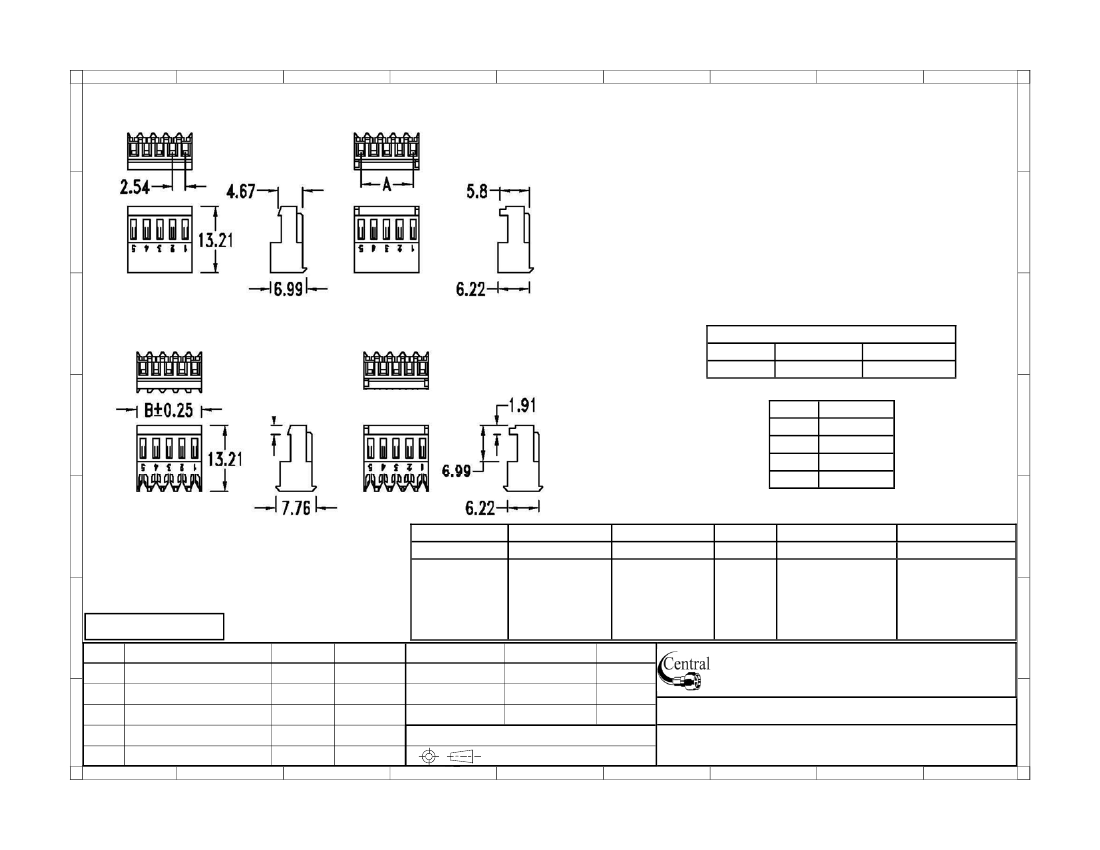

Dimension Information (mm)
Circuits
A
B
XX
2.54 x (XX-1)
2.54 x (XX)
Color
Red
White
Blue
Green
Wire Size
#22
#24
#26
#28
C
D
D
E
Series
Type
Wire Size
CMT-WM
254
XX
Mass termination 396=3.96mm pitch 22,24,26,28
connector
254=2.54mm
Pitch
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Positions
Plating
XX
XX
02-24
TN=Tin
SGXX=Selective gold
XX=Flash if blank,
5,10,15,30
Options
XX
[blank]=Locking ramp
NL=No locking ramp
P=Polarizing rib
S=Feed Through
V0=UL94V-0
E
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CMT-WM-254-XX-XX-XX
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Mass termination connector
