SIDE ENTRY SINGLE ROW PCB SOCKET SMT
2452 SERIES.
2.54 mm. (0.100”). For PCB Solder
Features
Available in 2 through 40 circuits
Mates with dual row 2.54 mm. And 0.64 mm square pin
Material : Nylon 6T UL 94V-0
Phosphor bronze terminal with different plating options
Dual iron strap contact wi th low force of insertion
Bottom entry
Low profil (Lenght 3.90 mm)

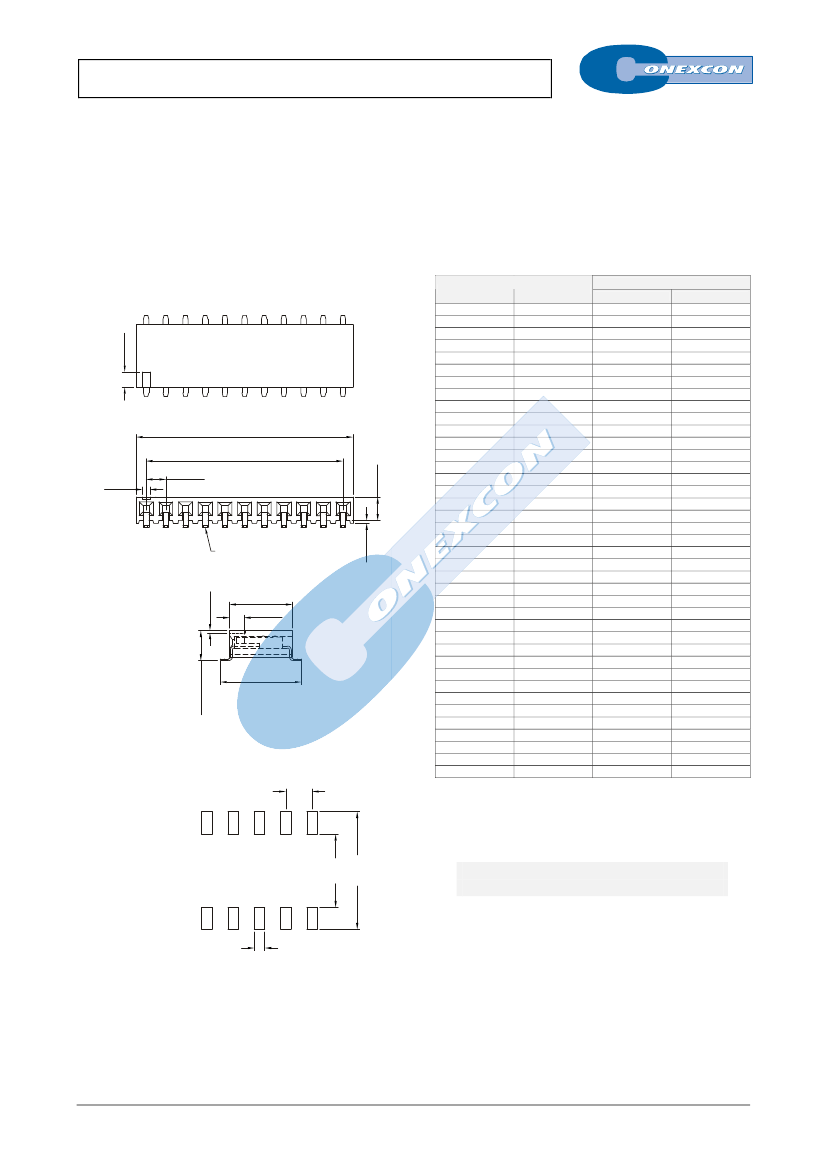

Dimensional Information
Ordering and Dimensional Information:
Dimensions
A
2.54(0.100)
5.08(0.200)
7,62(0,300)
10,16(0,400)
12,70(0,500)
15,24(0,600)
17,78(0,700)
20,32(0,800)
22,86(0,900)
25,40(1,000)
27,94(1,100)
30,48(1,200)
33,02(1,300)
35,56(1,400)
38,10(1,500)
40,64(1,600)
43,18(1,700)
45,72(1,800)
48,26(1,900)
50,80(2,000)
53,34(2,100)
55,88(2,200)
58,42(2,300)
60,96(2,400)
63,50(2,500)
66,04(2,600)
68,58(2,700)
71,12(2,800)
73,66(2,900)
76,20(3,000)
78,74(3,100)
81,28(3,200)
83,82(3,300)
86,36(3,400)
88,90(3,500)
91,44(3,600)
93,98(3,700)
96,52(3,800)
99,06(3,900)
B
5.08(0.200)
7,62(0,300)
10,16(0,400)
12,70(0,500)
15,24(0,600)
17,78(0,700)
20,32(0,800)
22,86(0,900)
25,40(1,000)
27,94(1,100)
30,48(1,200)
33,02(1,300)
35,56(1,400)
38,10(1,500)
40,64(1,600)
43,18(1,700)
45,72(1,800)
48,26(1,900)
50,80(2,000)
53,34(2,100)
55,88(2,200)
58,42(2,300)
60,96(2,400)
63,50(2,500)
66,04(2,600)
68,58(2,700)
71,12(2,800)
73,66(2,900)
76,20(3,000)
78,74(3,100)
81,28(3,200)
83,82(3,300)
86,36(3,400)
88,90(3,500)
91,44(3,600)
93,98(3,700)
96,52(3,800)
99,06(3,900)
101,60(4,000)
Circuit Size
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part Number
2452-T021E
2452-T031E
2452-T041E
2452-T051E
2452-T061E
2452-T071E
2452-T081E
2452-T091E
2452-T101E
2452-T111E
2452-T121E
2452-T131E
2452-T141E
2452-T151E
2452-T161E
2452-T171E
2452-T181E
2452-T191E
2452-T201E
2452-T211E
2452-T221E
2452-T231E
2452-T241E
2452-T251E
2452-T261E
2452-T271E
2452-T281E
2452-T291E
2452-T301E
2452-T311E
2452-T321E
2452-T331E
2452-T341E
2452-T351E
2452-T361E
2452-T371E
2452-T381E
2452-T391E
2452-T401E
2.00
B
±0.25
A
±0.25
1.00
2.54
3.00
Pin 0.70x0.25
8.10
1.90
0.30
10.50±0.30
2.54
0.40
RECOMMENDED PCB LAYOUT
3.90±0.25
T = Contact Plating
11.40
7.08
T =
2.
Tin-plated.
T =
3.
Gold flash over 1.27 µ Ni.
RECOMMENDED FINISH
T =
5.
0.38 µ Gold over 1.27 µ Ni.
T =
6.
0.75 µ Gold over 1.27 µ Ni.
1.02
E = Conector Packaging
E =
1.
Tube + Plastic Pad
E =
2.
Reel + Plastic Pad
E-42
FULL LINE CATALOGUE
