3972-2-0611: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3972-2-0611 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Plug

3972-2-0611 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307348677
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.46 inch
subject depth	0.448 inch
body length	0.935 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	3972
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.141 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	1.4734 N

Preview

Download Datasheet

View All

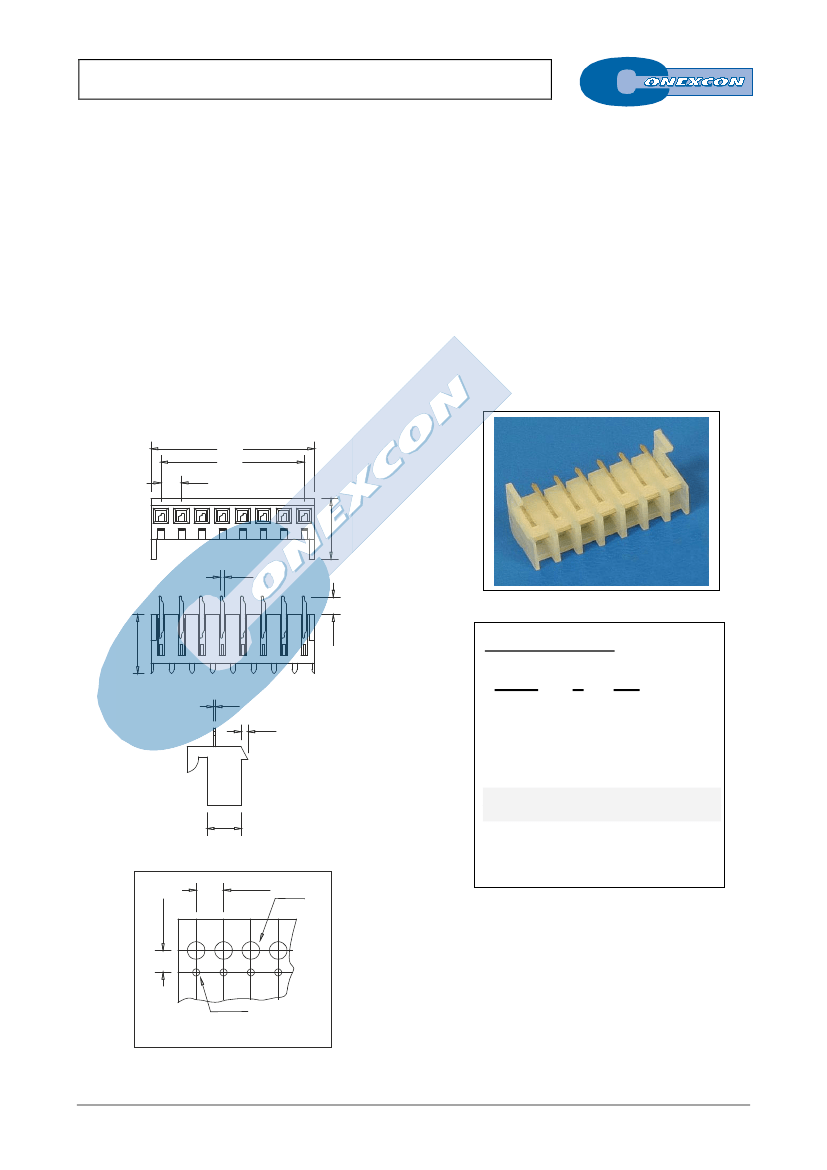

BOARD TO BOARD BOTTOM ENTRY CONECT.

3972 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 circuits through 25 circuits



Mates with 3.96 mm pin header 1.14 mm square/round

pin 3986, 3987, 3988, 3917, 3918, 3919 and 3920 Series



Flex contact PCB female terminal

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-2

Contact: Tin plated brass

Operating temperature: -25ºC to +125ºC

RoHS compliant



Contact retention force to insulator: > 1.00 Kgf

Insertion force to header: < 1.00 Kgf/pin

Withdrawal force from header: < 0.15 Kgf/pin

Durability: 25 cycles

Dimension Information

Dim.B

Dim.A

3.96

.156

11.70

0.86

.033

3.60

.141

.460

11.40

Ordering Information:

.448

3972 -

0.26

.010

1.30

.051

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

6.50

.256

Recommended Finish

3. (XX) Number of circuits



Available in 2 through 25 circuits

3.96±0.10

3.18±0.10

.125±.004

.156±.004

Ø2.54

ø.100

Dimensions:

(In mm.)

= 3.96 x (XX*-1)

= 3.96 x (XX)-0.06

Ø1.02

ø.040

RECOMMENDED HOLE PATTERN

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE
