1250R-08TW-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1250R-08TW-U

1250R-08TW-U: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size235KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

1250R-08TW-U Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Receptacle

1250R-08TW-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305346971
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.126 inch
subject depth	0.185 inch
body length	0.463 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	1250
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.2446 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

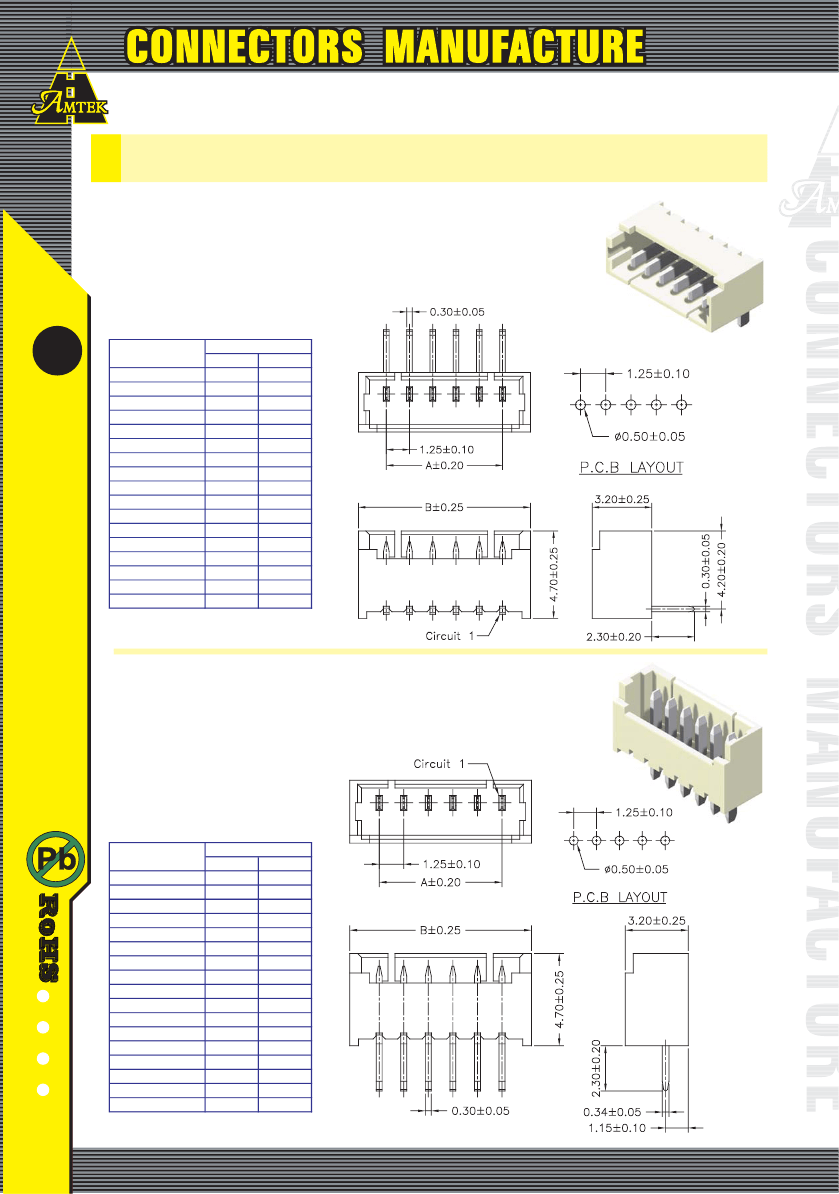

1.25mm Wafer Right Angle / Straight Type

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 100M

Min

Withstanding Voltage: 500V AC/minute

Terminal: Phosphor Bronze / Tin Plated

Material:Nylon 6T,UL94V-0

ousing wafer Terminal

Part No.

1250R-02TW-U

1250R-03TW-U

1250R-04TW-U

1250R-05TW-U

1250R-06TW-U

1250R-07TW-U

1250R-08TW-U

1250R-09TW-U

1250R-10TW-U

1250R-11TW-U

1250R-12TW-U

1250R-13TW-U

1250R-14TW-U

1250R-15TW-U

1250R-16TW-U

1250R-17TW-U

1250R-18TW-U

Dimensions

1.25

4.25

2.50

5.50

3.75

6.75

5.00

8.00

6.25

9.25

7.50

10.50

8.75

11.75

10.00

13.00

11.25

14.25

12.50

15.50

13.75

16.75

15.00

18.00

16.25

19.25

17.50

20.50

18.75

21.75

20.00

23.00

21.25

24.25

Part No.:1250R-XXTW-U

Specifications

Current Rating: 1A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 100M

Min

Withstanding Voltage: 500V AC/minute

Terminal: Phosphor Bronze / Tin Plated

Material:Nylon 6T,UL94V-0

Part No.

1250S-02TW-U

1250S-03TW-U

1250S-04TW-U

1250S-05TW-U

1250S-06TW-U

1250S-07TW-U

1250S-08TW-U

1250S-09TW-U

1250S-10TW-U

1250S-11TW-U

1250S-12TW-U

1250S-13TW-U

1250S-14TW-U

1250S-15TW-U

1250S-16TW-U

1250S-17TW-U

1250S-18TW-U

Dimensions

1.25

4.25

2.50

5.50

3.75

6.75

5.00

8.00

6.25

9.25

7.50

10.50

8.75

11.75

10.00

13.00

11.25

14.25

12.50

15.50

13.75

16.75

15.00

18.00

16.25

19.25

17.50

20.50

18.75

21.75

20.00

23.00

21.25

24.25

3-13

Part No.:1250S-XXTW-U

www.amtek-co.com.tw
