USB1025-GF-P-B: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size210KB，2 Pages; ManufacturerGlobal Connector Technology

Download Datasheet Parametric View All

USB1025-GF-P-B Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

USB1025-GF-P-B Parametric

Parameter Name	Attribute value
Objectid	1384800142
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.543 inch
subject depth	0.758 inch
body length	0.285 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VAC V
Durability	1500 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	4

USB1025-GF-P-B Preview

1

2

3

4

5

6

7

8

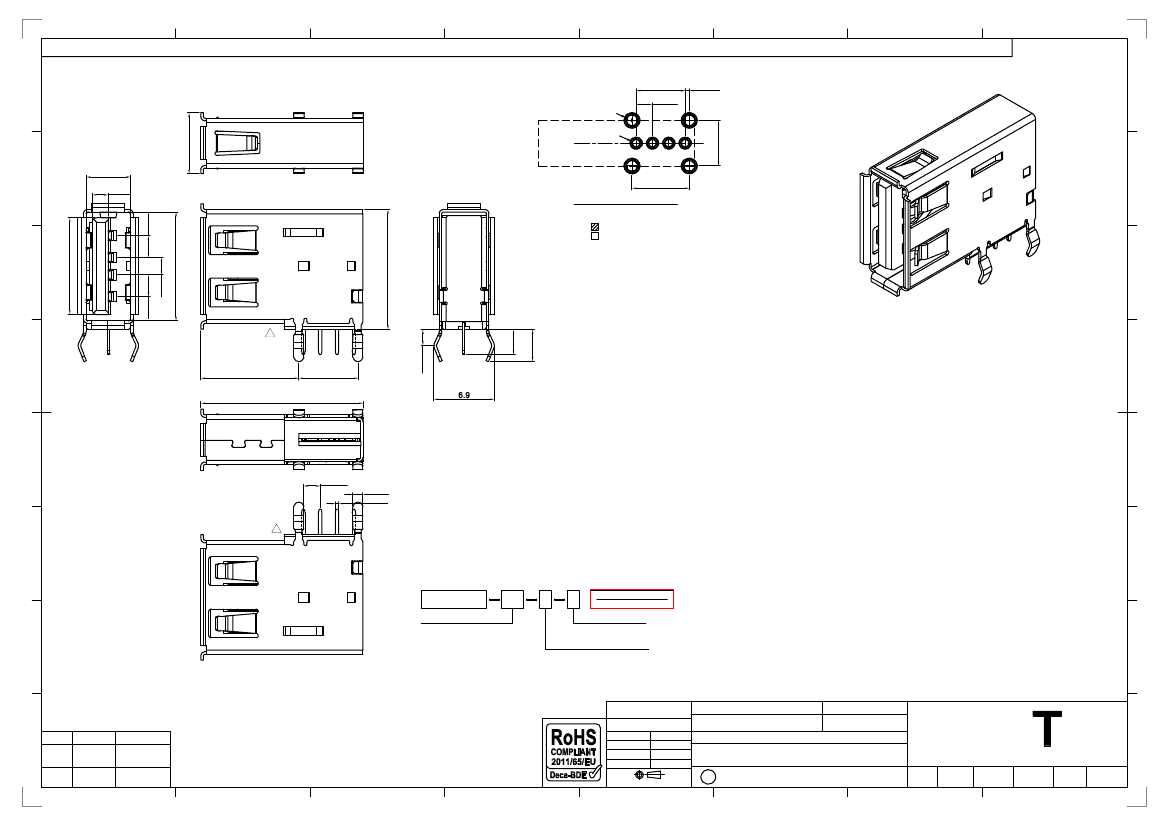

Global Connector Technology Ltd. - USB1025:USB Receptacle, Type A, 4 Pin, Through Hole, Upright, With Kinked Shell Stakes, Standard (left) insulator orientation

A

4xØ

1 .3

5

6.00

2.00

0.50

A

7.25

C

L

1

2

3

4

B

5.12

7.00

1.84

5.70

4xØ

0.9

2

B

Recommended P.C.B Layout

2.50

Thickness: 1.2mm General Tolerance: ±0.05

as Viewed from Component Side

Solder Area

Component Outline

4

11.10

12.50

C

3

13.80

C

2.50

1

2.00

2

2.90

B

3.60

Specifications

规格

:

Materials & Plating

物料与电镀

:

Plastic Housing

塑胶外壳

: Thermoplastic, Glass Fibre Filled, UL94V-0, Black

热塑性塑料

, PBT;

玻纤填充，

UL94V-0;

黑色

Contact Terminal

接触端子

: Phosphor Bronze

磷青铜

Metallic Shell

金属外壳

: Brass

黄铜

Metallic Shell Rear

金属外壳后

: SPCC

Finish

表面处理

:

Underplating

底层电镀

: 50µ" Nickel 50µ"

镍

Plating

电镀

:

Contact Area: Gold Flash or 30µ" Gold

闪金或

30µ"

金

Solder Tails

焊接末端

: 50µ" Tin 50µ"

锡

Metallic Shell

金属外壳

: Nickel

镍

Electrical

电气规格

:

Voltage Rating

电压额定值

: 30V

Current Rating

电流额定值

: 1.5A

Operating Temperature

工½温度

: -40°C to +85°C

Contact Resistance

接触电阻值

: 30m



Max.

Insulating Resistance

绝缘电阻值

: 1000M



Min.

Dielectric Withstand Voltage

耐电压

: 500V AC

Mechanical

机械性规格

:

Mating Force

插入力

: 35N (3.57Kgf) Max.

Unmating Force

拨出力

: 10N (1.02Kgf) Min.

Durability

耐久性

: 1,500 Cycles 1500

次插拨

Part Number:-

Date:-

D

11.65

7.00

1.85

D

19.25

E

2.00

1.20

0.40

E

B

F

Ordering Grid

F

USB1025

G

XX

P

B

REQUEST SAMPLES

AND QUOTATION

Contact Plating

GF = Gold Flash

(Standard)

30 = 30µ" Gold

Packing Options

B = Tray

(100 per tray)

Insulator Material

P = PBT

G

Tolerances

(Except as noted)

Dimensions in mm

USB1025

Description:-

14 FEB 11

H

By

SA

AJO

X.X ± 0.35

X.XX ± 0.25

X.° ±1°

X.X° ±0.5°

DRAWING PCN USB1025

DETAIL

RELEASE

-001

REV

DATE

A

14/02/11

B

16/12/13

Third Angle Projection

USB RECEPTACLE, TYPE A, 4 PIN, THROUGH HOLE,

UPRIGHT, WITH KINKED SHELL STAKES

GC

Scale

NTS

H

www.gct.co

Drawn by

SA

E & OE

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

A

Material

See Note

Sheet No.

1/2

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Global Connector Technology Ltd. - USB1025:USB Receptacle, Type A, 4 Pin, Through Hole, Upright, With Kinked Shell Stakes, Standard (left) insulator orientation

A

1

3

珍珠棉

A

标签

PE袋

Products P/N

USB1025-XX-P-B

PCS/Tray Trays/Carton PCS/Carton

100

10

1000

B

下蓋

C

4

2

D

上蓋

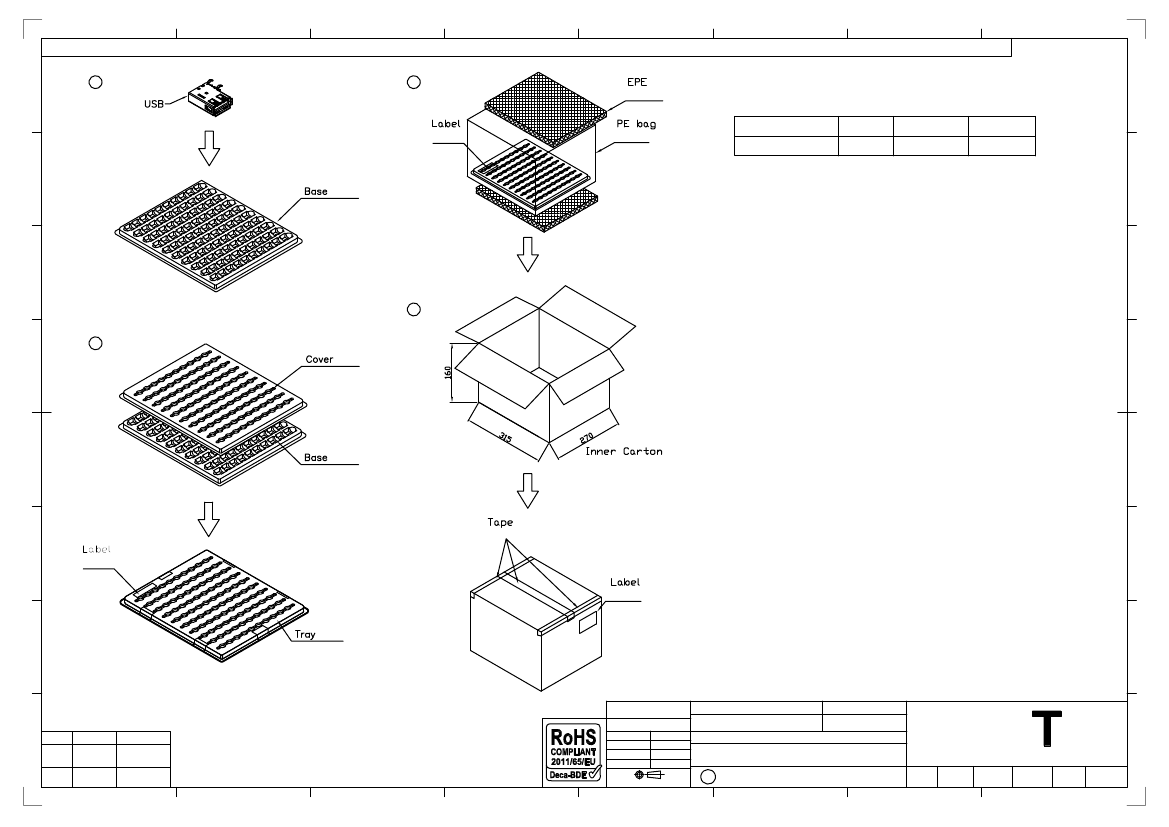

Packing Rules
