SLV-103M25GEC-622.080M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SLV-103M25GEC-622.080M

SLV-103M25GEC-622.080M: DescriptionLVDS Output Clock Oscillator,; CategoryPassive components oscillator; File Size369KB，4 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SLV-103M25GEC-622.080M Overview

LVDS Output Clock Oscillator,

SLV-103M25GEC-622.080M Parametric

Parameter Name	Attribute value
Objectid	7010844355
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; BULK
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	25%
linearity	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	622.08 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	1 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

VCXO

LVDS TYPE

SLV-10 M

7×5 mm Industrial Standard Package

Multiplied

Low RMS phase jitter(12 kHz to 20 MHz)

3.3 V Supply Voltage

LVDS Output

Voltage Controlled Crystal Oscillator

Tri-state Function Available

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Input Current

Output Voltage Logic High(V

)

Output Voltage Logic Low(V

)

Differential Output Voltage(V

)

Offset Voltage(V

)

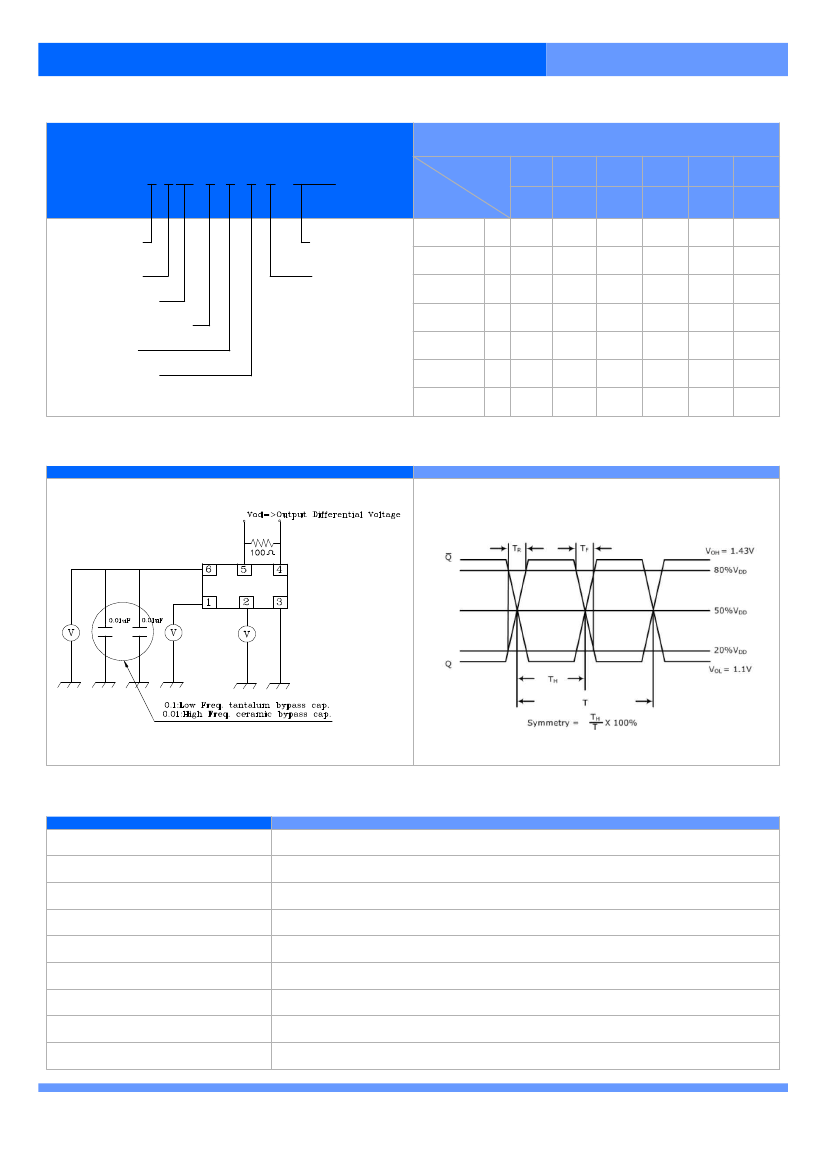

Rise / Fall Time

Duty Cycle

Start-up Time

Output Load Condition(LVDS)

Frequency Deviation

Control Voltage(Vc)

Linearity

Output Enable Function

and V

)

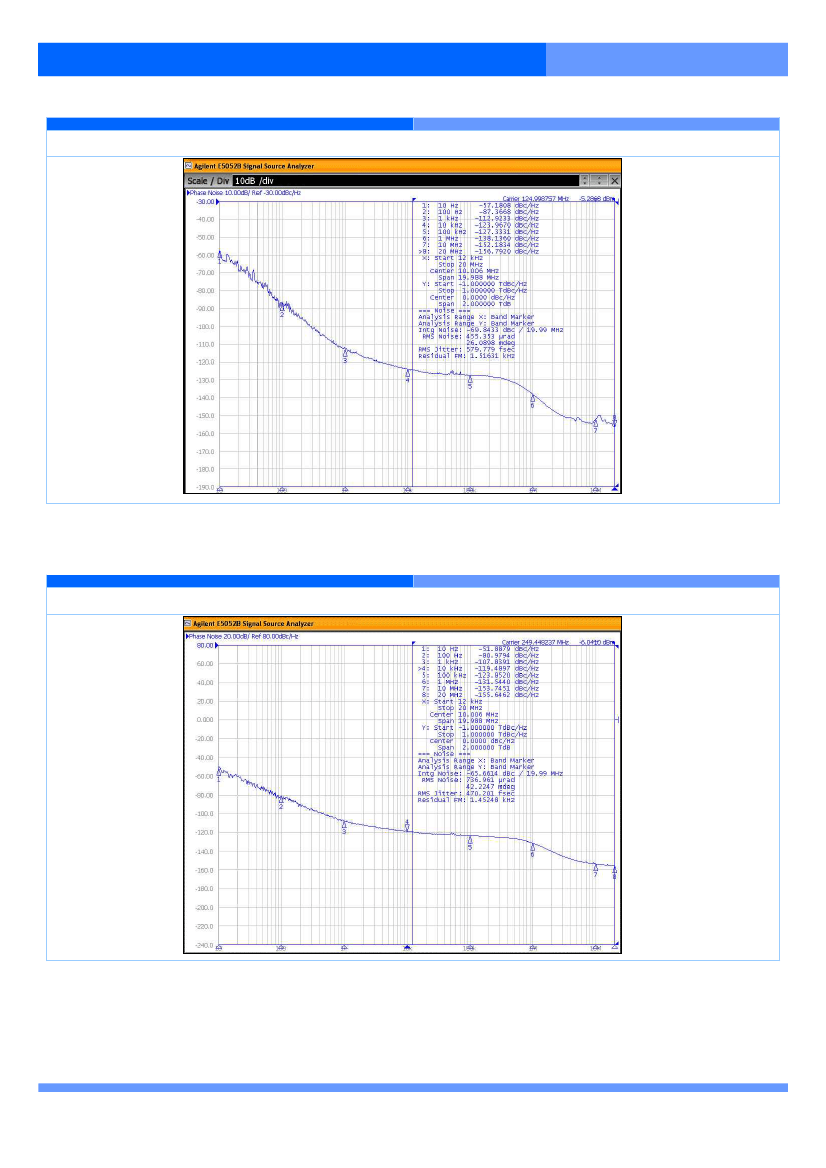

RMS Phase Jitter

Frequency Aging

LVDS

80.000 MHz to 622.080 MHz

3.3 V

±5 %

-20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±25 ppm, ±50 ppm, ±100 ppm Max.

80 mA Max. at 3.3 V

1.43 V Typ., 1.60 V Max.

1.10 V Typ., 0.90 V Min.

247 mV Min., 330 mV Typ., 454 mV Max.

1.125 V Min., 1.250 V Typ., 1.375 V Max.

0.4 ns Typ., 1 ns Max.

45 to 55 %, 40 to 60 %

10 ms Max.

100 Ω

±50 ppm, ±80 ppm, ±100 ppm Min.

1.65 ±1.35 V, 1.65 ±1.65 V

15 %, 20 % Max.

70 % of V

min. to Enable Output

30 % of V

max. to Disable Output

4 ps Max.

±3 ppm Max.

High Impedance

BW : 12 kHz to 20 MHz

25 ℃, First year

Between Output and

Complementary Output

Over Vc range

Please specify

Measured over

20 % to 80 % of waveform

Measured at 50 % of waveform

Over operating temperature

range

With Load

Value

Multiplied

Remarks

LVDS VCXO

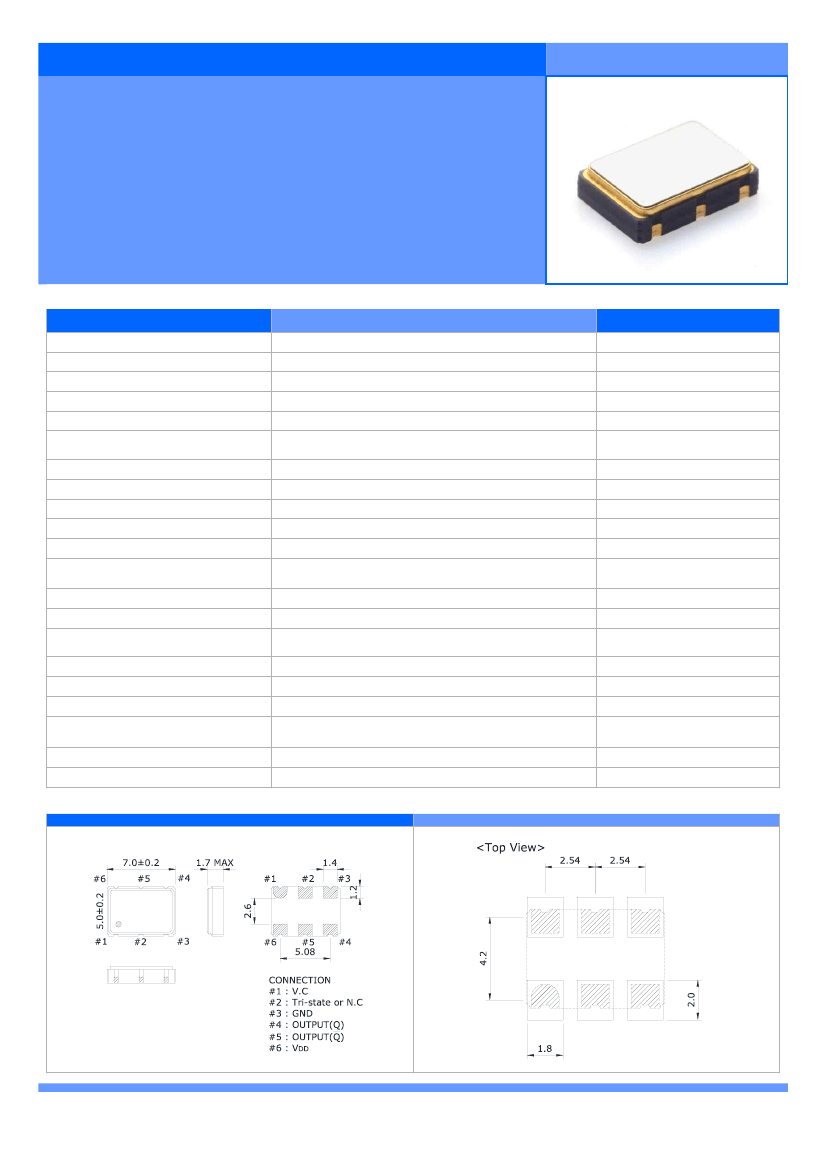

■ MECHANICAL DIMENSIONS

(mm)

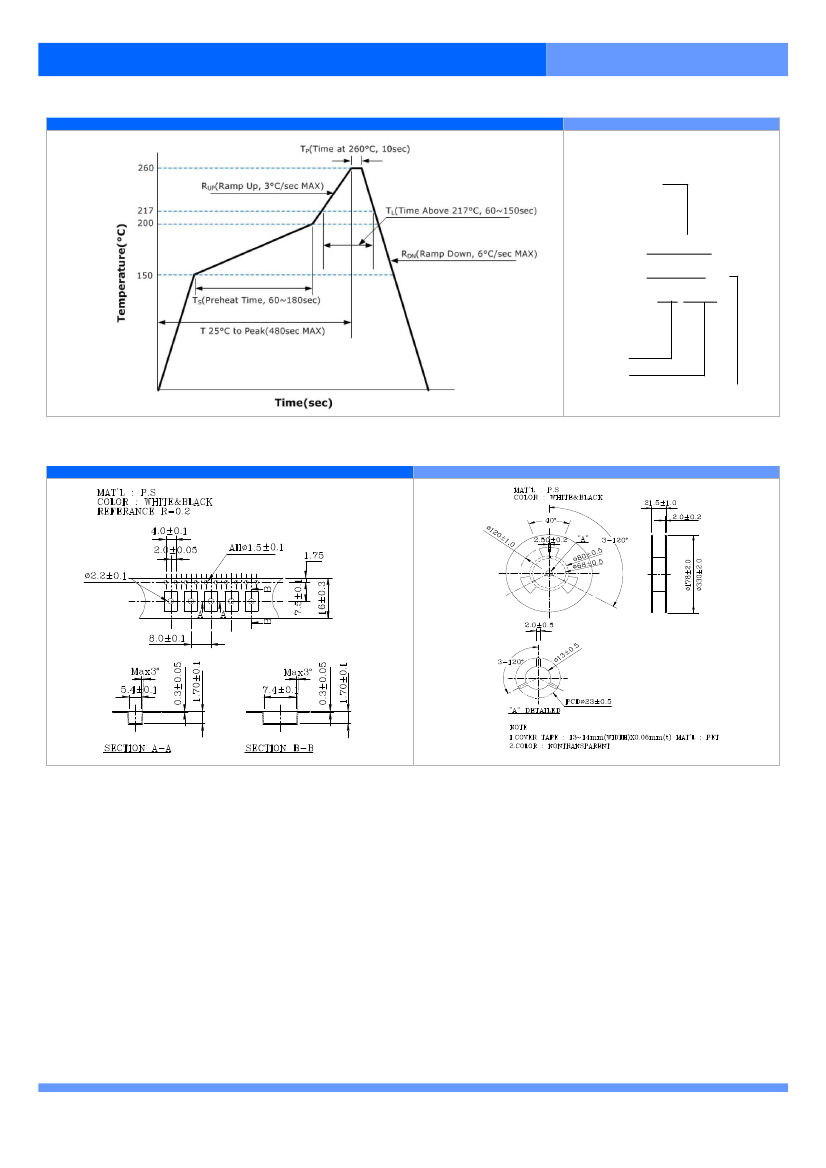

■ LAND PATTERN

(mm)

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP

Recommended Resources

Wireless microphone circuit

Multipurpose AC electronic switch circuit

Low-pass filter circuit composed of op amp

Pen acidity meter circuit

Adjustable output integrated regulated power supply with temperature compensation

Ordinary thyristor borrows anode voltage to trigger circuit
