TOM-1545S-C33-R Overview

microphones 2.2kohm x 4mm

TOM-1545S-C33-R Parametric

Parameter Name	Attribute value
Manufacture	PUI Audi
Product Category	Microphones
RoHS	Yes
Directional Properties	Omnidirectional
Impedance	2.2 kOhms
Operating Voltage	2 VDC
Sensitivity	- 45 dB +/- 3 dB
Length	4 mm
Width	4 mm
Depth	1.5 mm
Diamete	4 mm
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

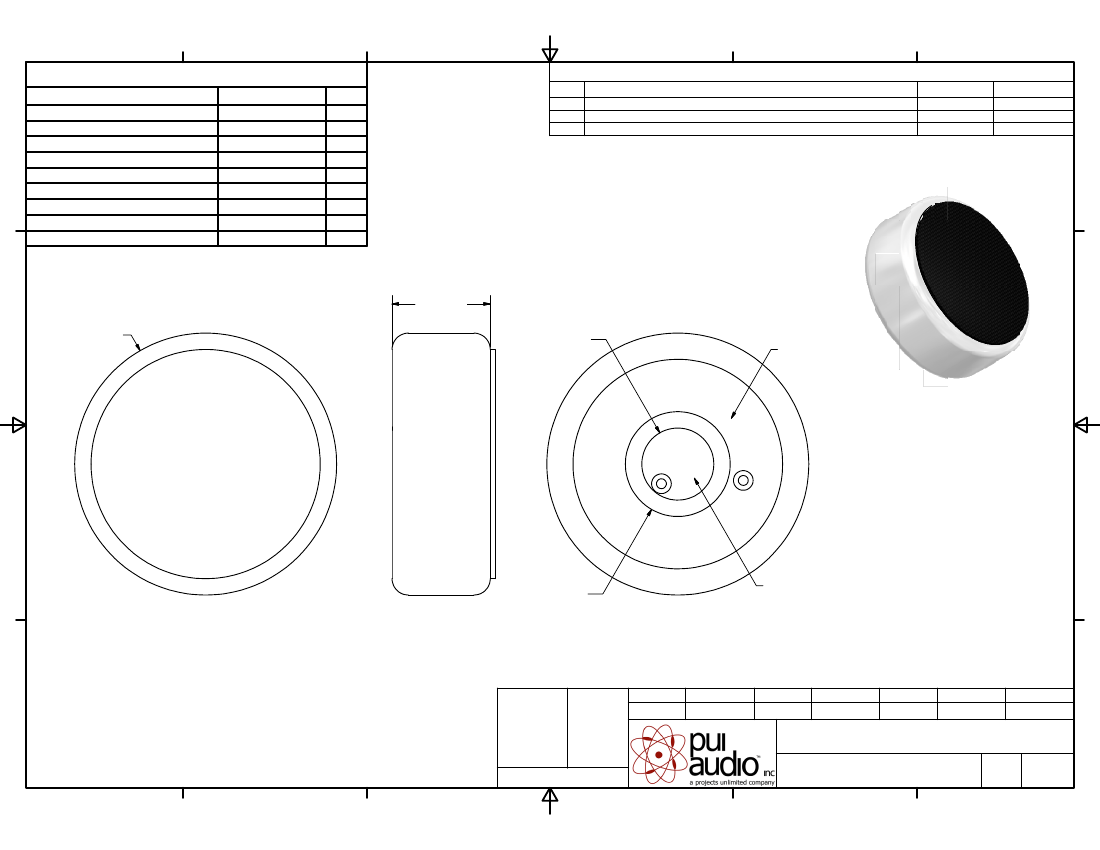

SPECIFICATIONS

PARAMETERS

DIRECTIVITY

SENSITIVTY

STANDARD OPERATING VOLTAGE

MAX OPERATING VOLTAGE

CURRENT CONSUMPTION (MAX)

IMPEDANCE

SIGNAL TO NOISE RATIO (MIN.)

TERMINAL

INTERNAL CAPACITOR

VALUES

OMINI

-45 ± 3

2

10

0.5

2.2

60

SOLDER PADS

33

UNIT

-

dB

Vdc

mA

KOhm

dB

-

pF

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

REVISION HISTORY

LTR

-

A

B

DESCRIPTION

RELEASED FROM ENGINEERING

ADDED TERMINAL POLARITY

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

DATE

1/24/2006

2/5/2007

10/27/2010

APPROVED

D.F.

B.R.

1.5

`

0.2

n

4

`

0.1

n

1.1

TERM 2 (-)

n

1.6

TERM 1 (+)

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

Designed by

Date

Checked by

Date

Approved by

Date

Drawn Date

SIZE

J.A.F.

1/24/2006

E.P.

1/24/2006

B.R.

1/24/2006 10/27/2010

A3

TOM-1545S-C33-R

Microphone

Edition

Sheet

TOM-1545S-C33-R.idw

-

1/1
