50506-0191N-S01 datasheet, PDF

50506-0191N-S01: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

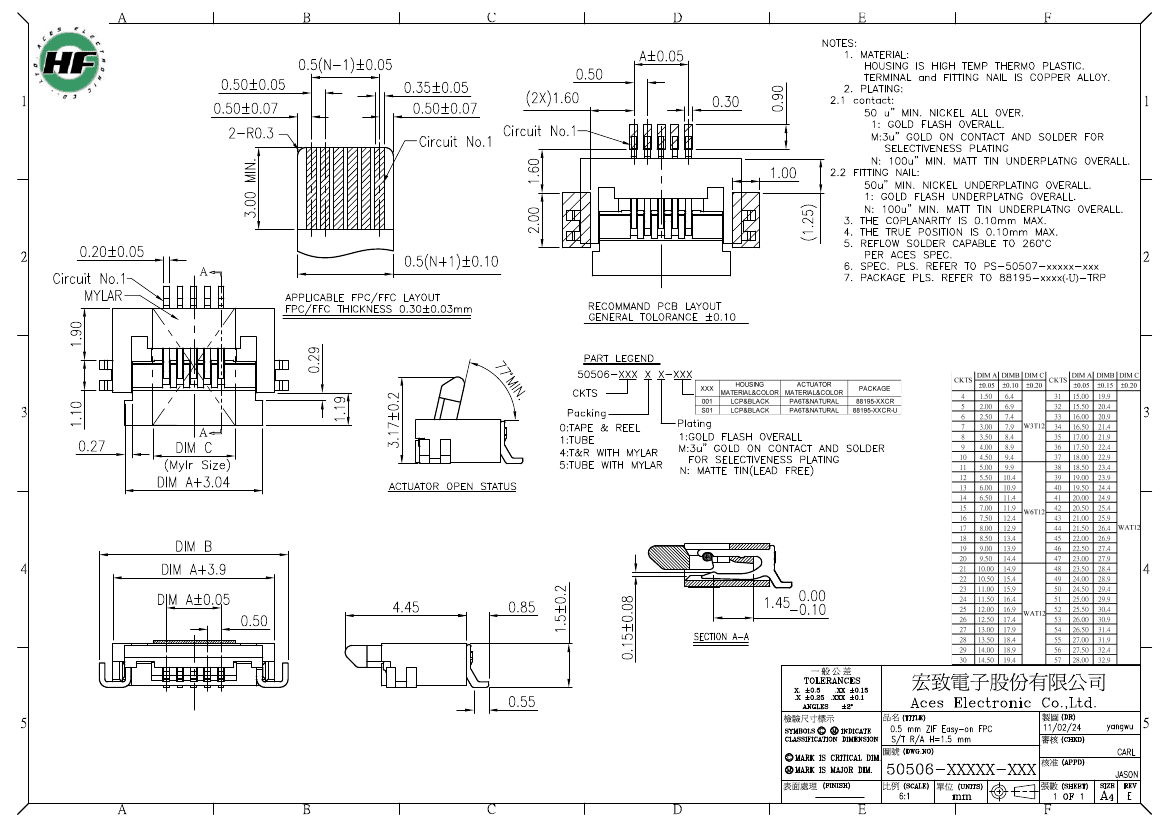

50506-0191N-S01 Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305574246
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.059 inch
body length	0.547 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	500VAC V
Durability	20 Cycles
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation option 2	SLIDE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
