BL22-43D1TT-74U datasheet, PDF

Datasheet> All Categories > The connector> The connector> BL22-43D1TT-74U

BL22-43D1TT-74U: DescriptionBoard Connector, 74 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

BL22-43D1TT-74U Overview

Board Connector, 74 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

BL22-43D1TT-74U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304288155
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.181 inch
subject depth	0.169 inch
body length	2.933 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	501
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.0038 mm
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	74

Preview

Download Datasheet

View All

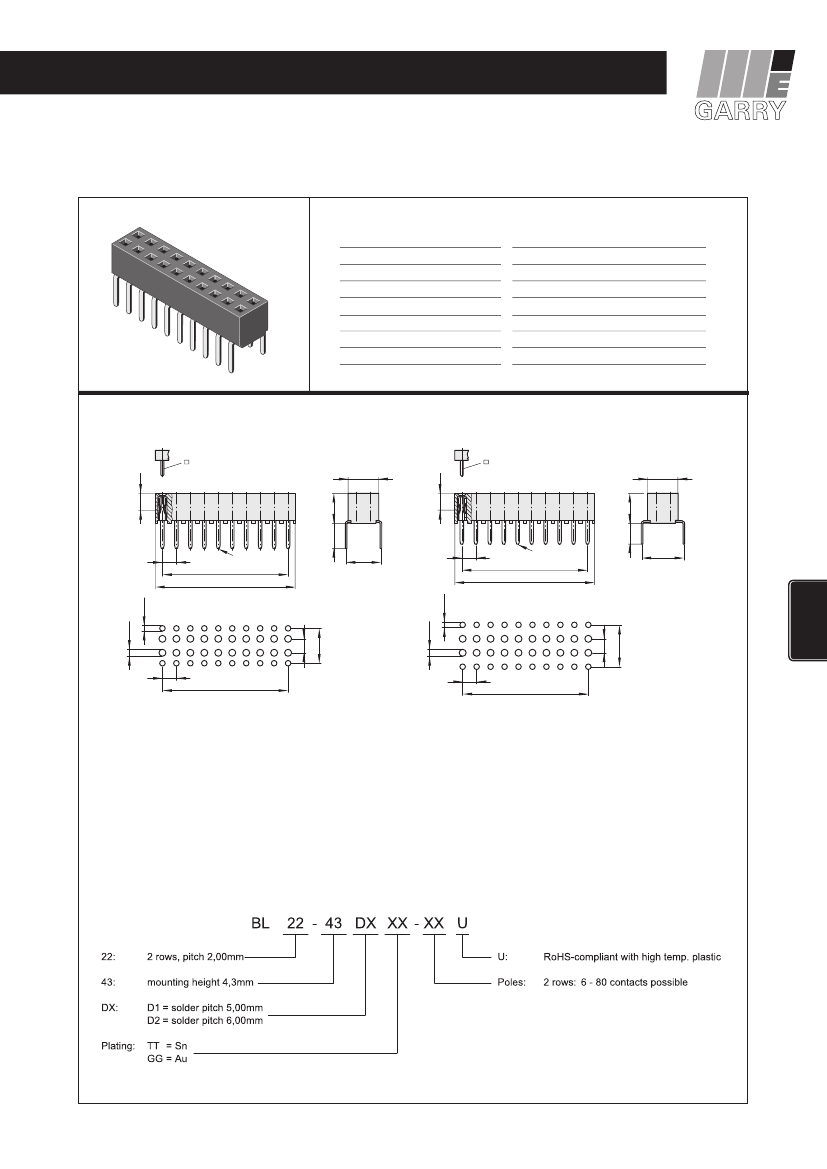

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

FEMALE HEADER 2,00 mm Dual entry

ID: 157

BL 22-43D

Series 501

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

2,00 mm

high temp. thermoplast UL94V-0

phosphor bronze

1,5 Amp.

100 V

RMS

/150 V

500 V

for one minute

-40°C to +105°C

260°C for 10 seconds

0,5

4,6

1,3

0,5

4,6

4,3

3,6

2,0

PIN 0,5 x 0,2

(n/2-1) x 2,0

n/2 x 2,0 + 0,5

5,0

2,0

PIN 0,5 x 0,2

(n/2-1) x 2,0

n/2 x 2,0 + 0,5

3,0

4,3

6,0

P.C.B. Layout

2,0

5,0

2,0

(n/2-1) x 2,0

2,0

(n/2-1) x 2,0

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

6,0

191

| 2,00 mm

0,8

1,0

0,8
