M85049/62-12W: Descriptioncircular mil spec strain reliefs & adapters shrink boot adapter; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/62-12W Overview

circular mil spec strain reliefs & adapters shrink boot adapter

M85049/62-12W Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknow
Factory Lead Time	8 weeks
Connector type	RF CONNECTOR ADAPTER
Manufacturer's serial number	M85049/62

Preview

Download Datasheet

View All

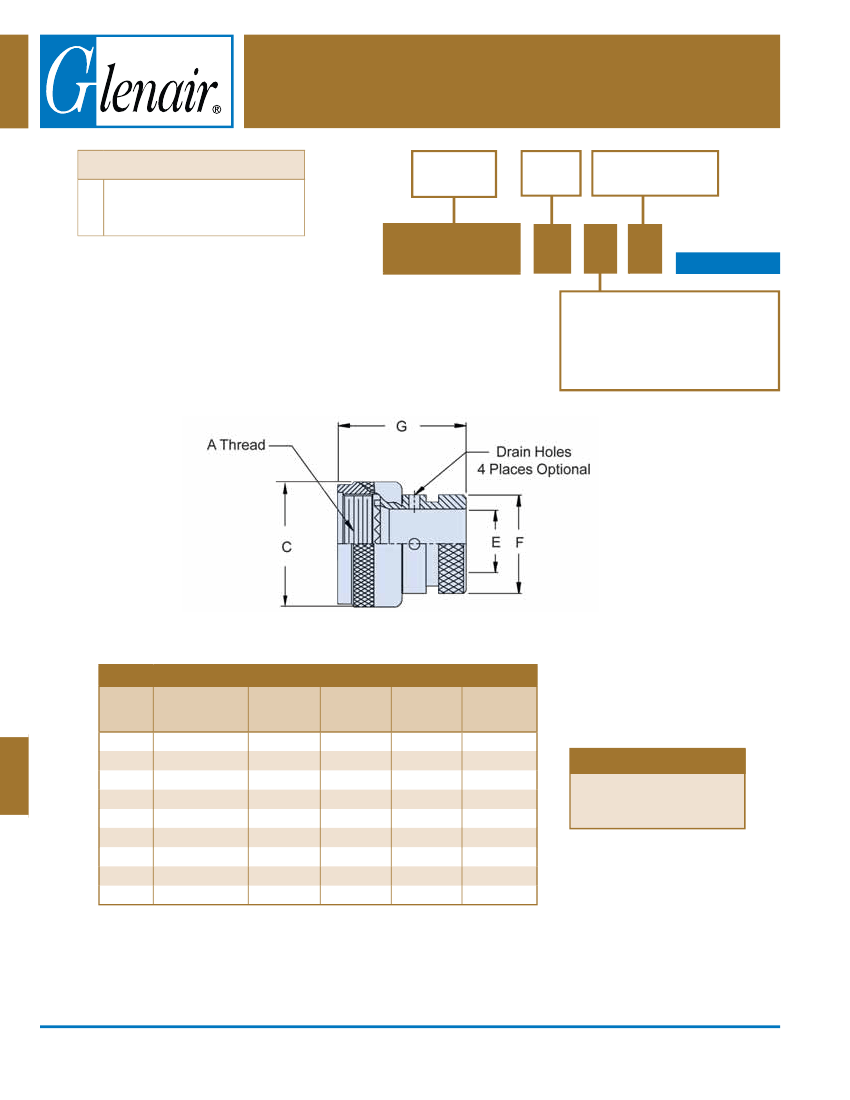

H

Adapters

CONNECTOR DESIGNATOR:

AS85049/62 and MS38999/2

Series 310 Straight Shrink Boot Adapter

F

MIL-DTL-38999 Series I & II,

40M38277, PAN 6433-1,

PATT 614, PATT 616,

NFC93422 Series HE308 & HE309

Basic

Part Number

Shell

Size

Drain Hole Option

(Omit for None)

M85049/62

-

10

W

D

Order Boot Separately

Finish

A

= Black Anodize

N

= Electroless Nickel

W

= 500 Hr. Cadmium Olive Drab over

Electroless Nickel

TABLE I: Shell Size and Dimensions

Shell

Size

08

10

12

14

16

18

20

22

24

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

C

Max

.750 (19.1)

.850 (21.6)

1.000 (25.4)

1.100 (27.9)

1.250 (31.8)

1.400 (35.6)

1.500 (38.1)

1.650 (41.9)

1.750 (44.5)

E

Dia

Min

.250 (6.4)

.375 (9.5)

.500 (12.7)

.625 (15.9)

.750 (19.1)

F

Dia

Min

.533 (13.5)

.605 (15.4)

.774 (19.7)

.838 (21.3)

.963 (24.5)

G

Max

1.000 (25.4)

1.

APPLICATION NOTES

For complete dimensions

see the applicable Military

Speciﬁcation.

.812 (20.6) 1.042 (26.5)

.937 (23.8) 1.217 (30.9)

1.062 (27.0) 1.355 (34.4)

1.188 (30.2) 1.443 (36.7)

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

H-22
