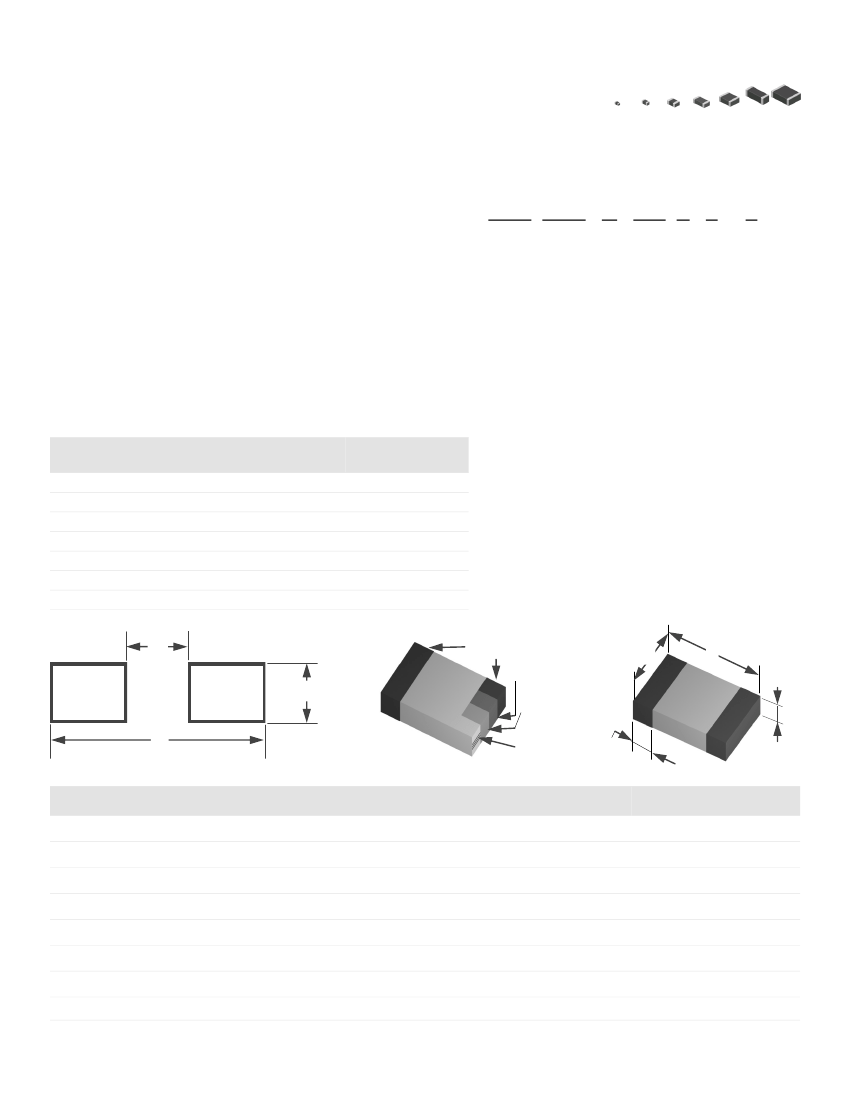

Multilayer Ferrite Chip Beads
Features
Monolithic structure for closed magnetic path and high reliability
Standard EIA/EIAJ chip sizes such as 0402/1005, 0603/1608,
0805/2012, and 1206/3216
A complete set of ferrite and electrode materials providing a wide
range of electrical properties
Superior termination bonding strength
Nickel barrier with solder overplated termination offering excellent
solderability and solder leach resistance, suitable for both wave and
reflow soldering processes
RoHS compliant when -T option is specified
Operating Temperature
-55º — +125º
C
C
Product Identification
MCB 0805 G 101 P T - T
(1) (2) (3) (4) (5) (6) (7)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Series code:
MCB: Multilayer Ferrite Chip Bead
Dimensions: L x W inches
The first two digits: L (length)
The last two digits: W (width)
Characteristic code: F, G
Value code: Impedance (ohms at 100 MHz)
The first two digits are significant. The last
digit specifies the number of zeros to follow.
Tolerance code:
P= ±
25%
Other tolerances may be available upon request.
Package code:
T = Tape & Reel
B = Bulk
Termination type code:
T = 100% Sn plating
Applications
Noise suppression in computers and peripherals
Noise suppression in telecommunications
Noise suppression in data communications
Recommended PC Board Land Patterns
CHIP SIZE
EIA/EIAJ
0402(1005)
0603(1608)
0805(2012)
1206(3216)
1210(3225)
1806(4516)
1812(4532)
L
INCH (mm)
0.063 (1.60)
0.102 (2.60)
0.118 (3.00)
0.173 (4.40)
0.173 (4.40)
0.217 (5.50)
0.217 (5.50)
G
INCH (mm)
0.016 (0.40)
0.022 (0.55)
0.026 (0.66)
0.059 (1.50)
0.059 (1.50)
0.110 (2.80)
0.110 (2.80)
H
INCH (mm)
0.024 (0.60)
0.037 (0.94)
0.057 (1.45)
0.071 (1.80)
0.106 (2.70)
0.071 (1.80)
0.134 (3.40)
Shape and Dimensions
SOLDER
W
NICKEL
L
G
H
SILVER
METALLIZATION
T
L
ELECTRODE
BW
CHIP SIZE
EIA/EIAJ
0402/1005
0603/1608
0805/2012
1206/3216
1210/3225
1806/4516
1812/4532
LENGTH (L)
INCH (mm)
0.039 ± 0.004
(1.00 ± 0.10)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
0.177 ± 0.010
(4.50 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
WIDTH (W)
INCH (mm)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.098 ± 0.008
(2.50 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
THICKNESS (T)
INCH (mm)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
0.051 ± 0.008
(1.30 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.059 ± 0.008
(1.50 ± 0.20)
TERMINATION (BW)
INCH (mm)
0.010 ± 0.004
(0.25 ± 0.10)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
0.020 ± 0.012
(0.51 ± 0.30)
Other sizes and values may be available upon customer’s request.
1
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
MCB Series (General Use)
AEM Part
Number
MCB1206F190
MCB1206F300
MCB1206F500
MCB1206F600
MCB1206F101
MCB1206F121
MCB1206F151
MCB1206F201
MCB1206F301
MCB1206F601
MCB1206G102
MCB1206G152
Z@100MHz
Tolerance
P
P
P
P
P
P
P
P
P
P
P
P
Max. R
DC
Max. I
A
0.80
0.80
0.60
0.60
0.60
0.60
0.60
0.50
0.50
0.40
0.30
0.30
19
30
50
60
100
120
150
200
300
600
1000
1500@50MHz
0.05
0.05
0.10
0.10
0.15
0.15
0.15
0.20
0.20
0.30
0.40
0.40
Please add tolerance, packaging and termination type codes when ordering.
3
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
Electrical Characteristics
(Curves not listed are available upon request)
MCB0402G121
1000
1000
MCB0402G221
100
|Z|, XL, R (Ohm)
100
|Z|
10
XL
R
1
|Z|,XL,R (Ohm)
10
|Z|
XL
R
1
0.1
1
10
100
1000
FREQUENCY (MHz)
0.1
1
10
100
1000
FREQUENCY (MHz)
M CB 0 603G 300
1 000
100 0
M CB 0 603G 600
100
|Z |, X L , R ( O hm )
|Z |, X L , R (O h m )
10 0
|Z |
10
XL
R
|Z |
10
XL
R
1
1
0.1
1
10
10 0
100 0
0 .1
1
10
100
1 000
FR E Q U E NC Y (M H z )
FR E Q U E NC Y (M H z )
M CB 0 603G 800
10 00
1 000
M CB 0 603G 900
1 00
|Z |, X L , R ( O hm )
|Z |, X L , R ( O h m )
100
|Z |
10
XL
R
|Z |
10
XL
R
1
1
0.1
1
10
100
100 0
0.1
1
10
10 0
100 0
F R EQ U E NC Y (M H z)
FR E Q U E NC Y (M H z )
4
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
Electrical Characteristics
(Curves not listed are available upon request)
M CB 0 603G 101
100 0
100 0
M CB 0 603G 121
10 0
|Z |, X L , R (O h m )
10 0
|Z |, X L , R (O h m )
|Z |
10
XL
R
|Z |
10
XL
R
1
1
0 .1
1
10
100
1 000
0 .1
1
10
10 0
100 0
FR E Q U E NC Y (M H z )
FR E Q U E NC Y (M H z )
M C B 0603G 181
1000
(O h m )
M CB 0 603G 301
100 0
100
|Z |
10
XL
R
|Z |, X L , R (O h m )
10 0
R
X L ,
|Z |
10
XL
R
|Z |,
1
1
0 .1
1
10
100
1000
0 .1
1
10
10 0
100 0
FR E Q U E N C Y (M H z )
FR E Q U E NC Y (M H z )
M CB 0 603G 601
100 0
100 00
M CB 0 603G 102
10 00
10 0
|Z |, X L , R (O h m )
|Z |, X L , R (O h m )
|Z |
10
XL
R
1 00
|Z |
XL
10
R
1
1
0 .1
1
10
10 0
100 0
0.1
1
10
100
100 0
FR E Q U E NC Y (M H z )
F R E Q U E NC Y (M H z)
5
