RCR100CL20A2404F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RCR100CL20A2404F

RCR100CL20A2404F: DescriptionRES,AXIAL,METAL GLAZE,2.4M OHMS,5KWV,1% +/-TOL,-200,200PPM TC; CategoryPassive components The resistor; File Size551KB，2 Pages; ManufacturerKOA

Download Datasheet Parametric View All

RCR100CL20A2404F Overview

RES,AXIAL,METAL GLAZE,2.4M OHMS,5KWV,1% +/-TOL,-200,200PPM TC

RCR100CL20A2404F Parametric

Parameter Name	Attribute value
Objectid	1224769649
package instruction	Axial,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.8
Other features	FLAME PROOF
structure	Tubular
JESD-609 code	e2
Lead diameter	0.8 mm
Lead length	20 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	6 mm
Package length	15.5 mm
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
method of packing	Bulk
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	2400000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	5000 V

Preview

Download Datasheet

View All

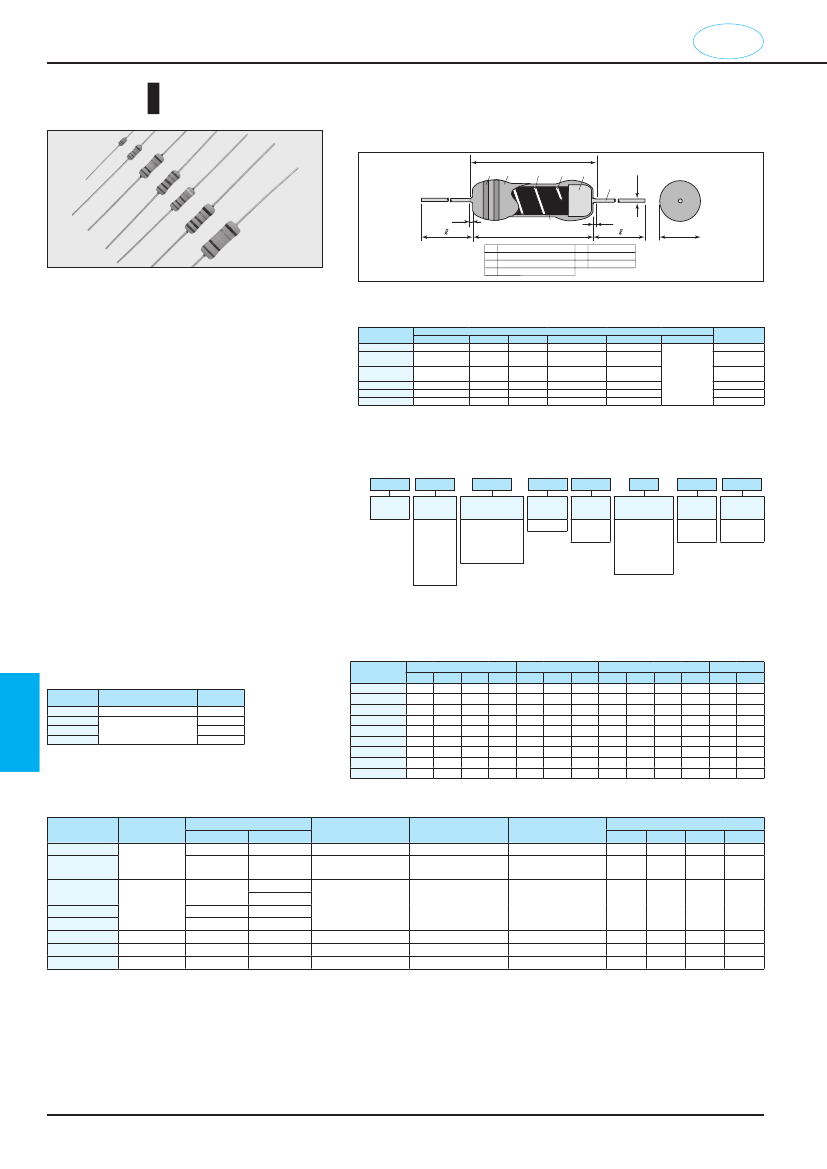

DISCHARGE PATH RESISTOR

RoHS

RCR

Coat-Insulated Fixed Anti Surge Resistors

■Construction

①

②

③

④

⑤

⑥

⑦

⑤ Electrode cap

⑥ Lead wire

⑦ Resistive ﬁlm

Coating color：Blue gray

※1

Marking：Excluding RCR16…4 line color codes＋5th color code

RCR16…4 line color codes

※1 RCR50＋, RCR50EN

（1MΩ∼12MΩ）

：Green, RCR60：White, Others：Black

Please confirm contents on technical specifications about the color code of F grade product.

① Marking

② Flame retardant coating

③ Trimming line

④ Ceramic core

■Dimensions

Type

RCR16

RCR25

RCR25EN

RCR50

（＋）

RCR50EN

RCR60

RCR75

RCR100

3.2±0.2

6.3±0.5

9.5±1.0

9.5

＋1.0

－0.2

12.0±1.0

15.5±1.0

C Max.

3.4

7.1

—

Dimensions（mm）

t Max.

—

1.7

＋0.2

－0.1

—

3.0

2.5±0.5

3.5±0.4

4.0±0.5

6.0

＋1.0

－0.4

d（Nominal）

0.45

0.60

0.70

0.80

20min.

ℓ

※2

Weight（g）

（1000pcs）

150

240

520

800

1400

■Features

・

Excellent anti-surge characteristics.

・

Stable characteristics of moisture resistance up to high

resistance range.

・

RCR50＋(1MΩ∼12MΩ), RCR50EN (1MΩ∼12MΩ) and

RCR60 (1MΩ∼12MΩ) are conductive-path and Discharge-

path Resistors recognized by UL1676 and c-UL (CSA-

C22.2 No.1-M94).

・

RCR25EN (100kΩ∼33MΩ), RCR50EN (100kΩ∼33MΩ)

and RCR60 (100kΩ∼56MΩ) is approved by EN62368-1

G.10 safety.

・

Products meet EU-RoHS requirement. EU-RoHS regulation

is not intended for Pb-glass contained in resistor element.

・

Automatic mounting machine is applicable by surface mounted

device style lead forming.

※2 Lead length changes depending on taping and forming type.

■Type Designation

Example

RCR

Product

Code

Power

Rating

16:0.25W

25:0.25W

50:0.5W

60:1W

75:2W

100:3W

T52

φd

106

Resistance

Tolerance

F:±1％

J:±5％

Safty Approvals Terminal Taping &

Marking

Surface Material Forming

C:SnCu See table

＋：RCR50＋

EN：RCR25EN,

below

　　RCR50EN

Nil：Others

■Applications

Packaging

Nominal

Forming

Resistance

A:AMMO

F:4 digits

R:REEL

J:3 digits

TEB・TEG:Plastic

embossed (N forming)

Nil:BOX

・

Copy machines

・

LBP

・

Switching power supplies

・

AC adapters

Contact us when you have control request for environmental hazardous material other than the substance specified by EU-RoHS.

For further information on taping and forming, please refer to APPENDIX C on the back pages.

■Taping & Forming Matrix

Type

RCR16

RCR25

RCR25EN

RCR50

RCR50＋

RCR50EN

RCR60

RCR75

RCR100

T26

○

—

Axial Taping

L Forming

T52 T521 T631 L15A L20A L25A

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

—

○

M Forming

N Forming

M10 M15 M20 N17 N20

M5F

—

— M10F —

—

— M10F —

—

— M15F —

—

— M15F —

—

— M15F —

—

— M15F —

—

○

—

— M20E —

○

High Voltage Type Resistors

■Approvals Awarded

UL1676 & c-UL

EN62368-1

（CSA-C22.2 No.1-M94）

G.10

RCR25EN

－

○

RCR50+

－

RCR50EN

○

（1MΩ½12MΩ）

○

RCR60

○

Type

■Ratings

Type

RCR16

RCR25

RCR25EN

RCR50

RCR50＋

RCR50EN

RCR60

RCR75

RCR100

0.5W

Power

Rating

0.25W

Resistance Range

（Ω）

F:±1%

（E24・E96） J:±5%

（E24）

100k½5.1M 100k½5.1M

100k½9.1M

3.3Ω½910k

1M½9.1M

100k½9.1M

100k½33M

3.3½910k

13M½33M

1M½12M

100k½33M

100k½56M

100k½100M

100k½51M

Max. Working

Voltage

500V

D.C. 1600V

A.C. 1150V

2000V

4000V

5000V

Max. Overload

Voltage

1000V

D.C. 2000V

A.C. 1500V

2500V

5000V

Dielectric Withstanding

Voltage

300V

700V

Taping & Q'ty/AMMO

（pcs）

T26

T52

T521

T631

5000

3000

—

2000

—

700V

1000V

—

2000

1000

—

500

—

1000

Rated Ambient Temperature：＋70℃

Operating Temperature Range：−55℃∼＋155℃

Rated voltage＝

√￣￣￣￣￣￣￣￣￣￣￣￣

or Max. working voltage, whichever is lower.

Power Rating×Resistance value

150

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

Contact our sales representatives before you use our products for applications including automotives, medical equipment and aerospace equipment.

Malfunction or failure of the products in such applications may cause loss of human life or serious damage.

Oct. 2020

Oct. 2021

www.koaglobal.com
