ROHS COMPLIANT

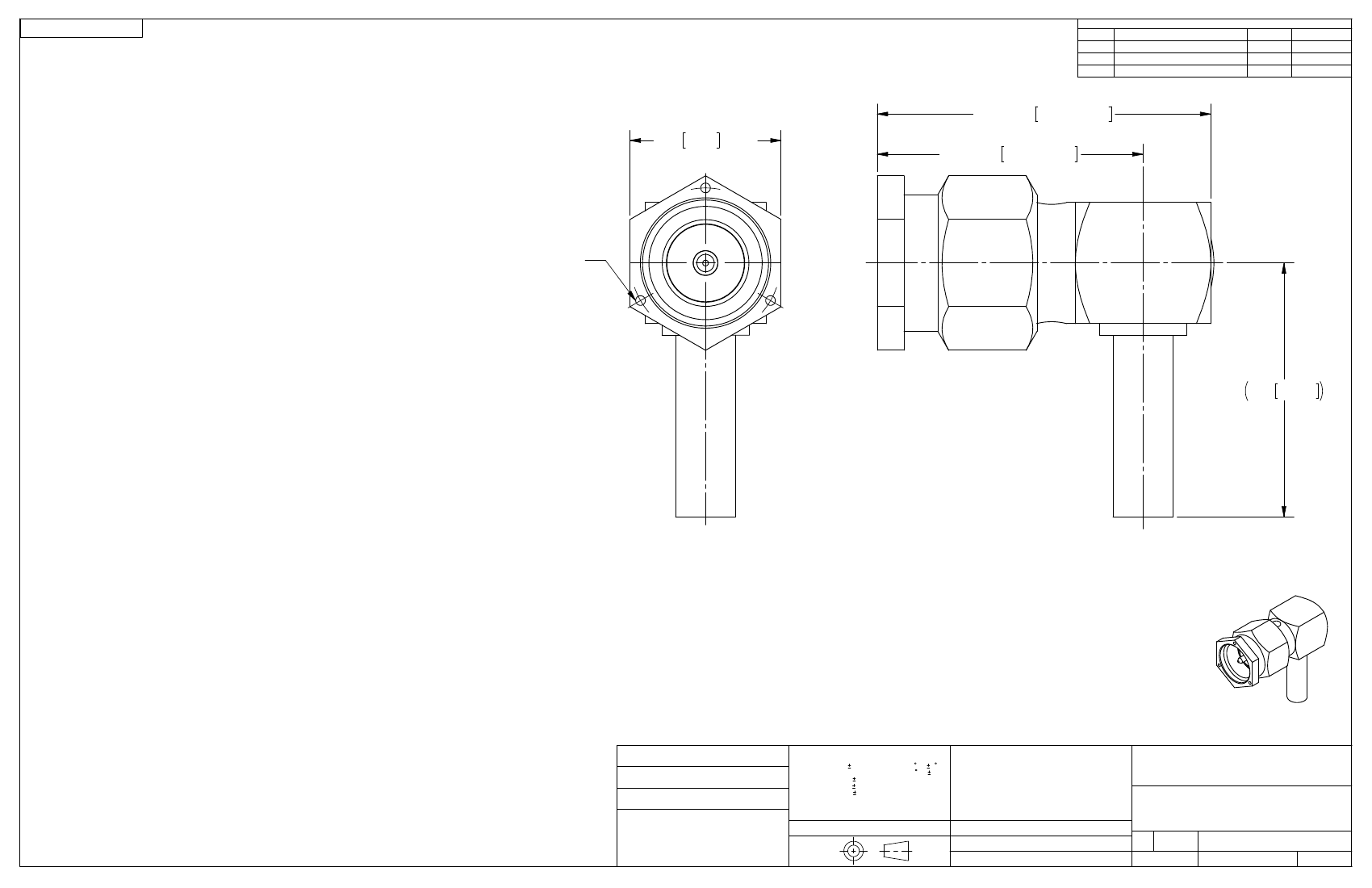

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
REL. DCN 40119
10/09/13
STW
.738 MAX 18.75 MAX
.312 7.92 HEX.
.575 MAX 14.61 MAX
3X Ø.016 MIN[0.41 MIN]
LOCKWIRE HOLE
MATERIAL:
BODY &
COUPLING NUT:
LOCK RING
CONTACT &
CRIMP RING:
INSULATOR:
GASKET:
PRESS CAP:
SHRINK TUBING
(NOT SHOWN)
F
FINISH:
BODY,
PRESS CAP &
COUPLING NUT:
CONTACT:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
BRASS PER ASTM B16, ALLOY UNS No. C36000
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER
A-A-59588,
CLASS 2B, GRADE 50/60
304 STAINLESS STEEL
M25053/4 CLASS 1
.524 13.31
PASSIVATED PER AMS-2700.
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
NICKEL PER QQ-N-290, .00005" MIN.
MATERIAL:
CRIMP RING:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
50 OHMS
DC TO 12.4 GHz
1.20 + .03F(F IN GHz), 0.5 TO 12.4 GHz
OR APPROXIMATELY 80% OF THE CUT OFF FREQUENCY
OF THE CABLE, WHICHEVER IS LOWER
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
FINISH:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JMC 10/09/13
STW 10/09/13
STW 10/09/13
SMA PLUG R/A
CRIMP ATTACHMENT
FOR RG-178 CABLE
95077
SIZE CAGE CODE DWG. NO.
B
M39012/56B3019
SHEET 1 OF 1
SCALE: 4:1
