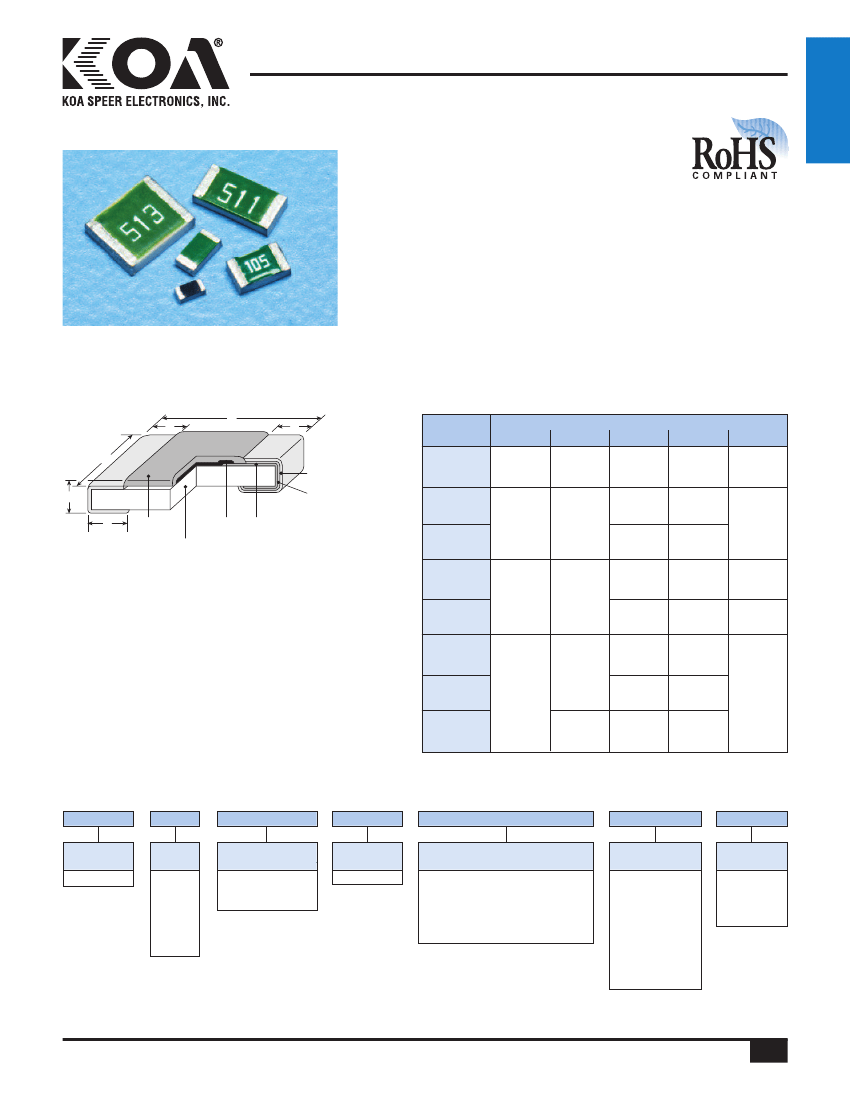

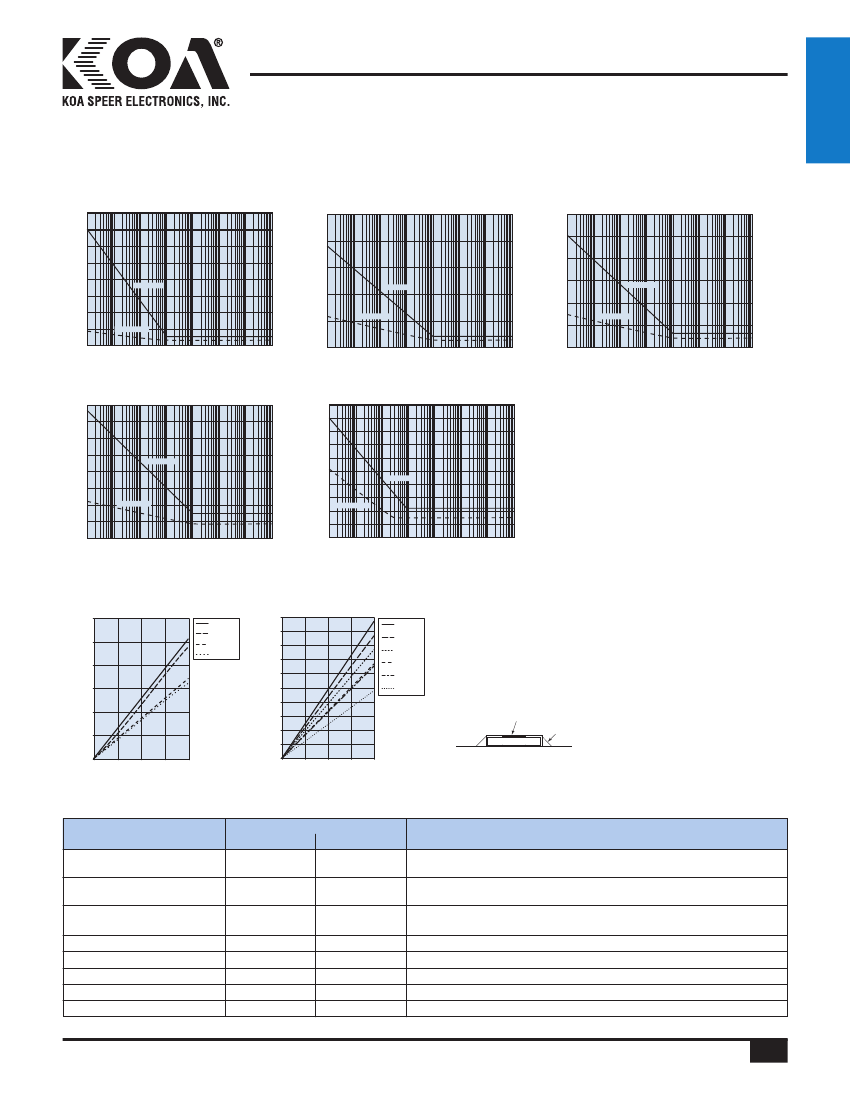

anti-surge endured surge voltage
thick film chip resistor
EU
features
•
Superior to RK73B/RK73H series in
surge withstanding voltage and high power
•
ESD withstanding; down to ±0.5% tolerance
•
Products with lead-free terminations meet EU RoHS
requirements. EU RoHS regulation is not intended for
Pb-glass contained in electrode, resistor element and glass.
•
AEC-Q200 Tested
dimensions and construction
c
L
c
Type
(Inch Size Code)
L
.039
+.004
-.002
+0.1
(1.0
-0.05
)
Dimensions
inches
(mm)
W
c
d
.02±.002 .006±.004
(0.5±0.05) (0.15±0.1)
.010
+.002
-.004
+0.05
(0.25
-0.1
)
t
.014±.002
(0.35±0.05)
W
Sn
Plating
t
d
Protective
Coating
Resistive Inner
Film
Electrode
Ni
Plating
SG73S1E
(0402)
SG73S1J
(0603)
SG73S1J AT
(0603)
SG73S2A
(0805)
SG73S2A AT
(0805)
SG73S2B
(1206)
.063±.008 .031±.004
(1.6±0.2)
(0.8±0.1)
.012±.004 .012±.004
(0.3±0.1)
(0.3±0.1)
.014±.006 .02±.008
(0.35±0.15) (0.5±0.2)
.012
+.008
-.004
+0.2
)
-0.1
.018±.004
(0.45±0.1)
Ceramic
Substrate
.012
(0.3
.079±.008 .049±.004
(2.0±0.2) (1.25±0.1)
(0.3
+.008
-.004
+0.2
)
-0.1
.02±.004
(0.5±0.1)
.018±.010 .024±.008 .022±.004
(0.45±0.25) (0.6±0.2) (0.55±0.1)
.016
+.008
-.004
+0.2
)
-0.1
.016
(0.4
SG73S2B AT
.126±.008
(1203)
(3.2±0.2)
SG73S2E
SG73S2E1
(1210)
.063±.008
(1.6±0.2)
(0.4
+.008
-.004
+0.2
)
-0.1
.022±.014 .031±.008 .024±.004
(0.6±0.1)
(0.55±0.35) (0.8±0.2)
.016
(0.4
+.008
-.004
+0.2
-0.1
)
.102±.008
(2.6±0.2)
.016
(0.4
+.008
-.004
+0.2
-0.1
)
ordering information
SG73S
Type
SG73S
2B
Size
1E
1J
2A
2B
2E
2E1
T
Characteristic
Nil: Standard
New
A: Heat
shock resistance *
1
TD
Packaging
TP: 0402, 0603, 0805: 7" 2mm pitch
punch paper
TD: 0603, 0805, 1206, 1210:
7" 4mm pitch punched paper
TE: 0805, 1206, 1210: 7" 4mm
embossed plastic
102
Nominal
Resistance
±0.5%, ±1%: 3
significant figures
+ 1 multiplier “R”
indicates decimal
on value <100Ω
±2%, ±5%: 2
significant figures
+ 1 multiplier “R”
indicates decimal
on value <10Ω
K
Tolerance
D:
F:
G:
J:
±0.5%
±1%
±2%
±5%
Termination
Material
T: Sn
*1 With type A, only T is available as the terminal surface material.
Contact us when you have control request for environmental hazardous
material other than the substance specified by EU RoHS.
For further information on packaging, please refer to Appendix A
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
6/23/21
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
41
resistors
SG73S
SG73S
anti-surge endured surge voltage
thick film chip resistor
applications and ratings
Part
Designation
SG73S1E
(0402)
Power
Rating
0.125W
70°C
0.2W*
2
0.2W
SG73S1J
(0603)
0.33W*
2
SG73S2A
(0805)
SG73S2B
(1206)
SG73S2E
(1210)
SG73S2E1
(1210)
0.25W
0.5W*
2
% Rated Power
% Rated Power
% Rated Power
resistors
Rated
Ambient
Temp.
Rated
Terminal
Part
Temp.
125°C
105°C
T.C.R.
(ppm/°C)
Max.
±200
±100
Resistance Range (Ω)
(E-24)/E-96
(D±0.5%)
10 - 1M
510 - 576k
10 - 499
590k - 1M
510 - 576k
10 - 499
590k - 1M
10 - 1M
(E-24)/E-96
(F±1%)
1 - 1M
510 - 576k
1 - 499
590k - 1M
510 - 576k
1 - 499
590k - 1M
1 - 1M
Maximum
Working
(E-24)
(G±2%, J±5%) Voltage
1 - 10M
510 - 560k
1 - 470
620k - 10M
510 - 560k
1 - 470
620k - 10M
1 - 10M
75V
Maximum Operating
Temp.
Overload
Range
Voltage
100V
70°C
135°C
±100*
1
±100
150V
200V
70°C
125°C
125°C
±100*
1
±200
70°C
400V
100°C
125°C
70°C
105°C
125°C
70°C
70°C
±200
110°C
95°C
±200
10 - 1M
1 - 1M
1 - 10M
10 - 1M
1 - 1M
1 - 10M
200V
200V
±200
10 - 1M
1 - 1M
1 - 10M
200V
600V
(800V)*
3
400V
-55°C
to
+155°C
0.33W
0.75W*
2
0.5W
0.75W*
2
1W
400V
400V
Parentheses indicate EIA package size codes.
*
1
Cold T.C.R. (-55°C ~ +25°C) is +150 x 10
-6
/K
Rated voltage =
√Power
rating x resistance value or max. working voltage, whichever is lower
Please contact KOA Speer for how to handle a specific surge/pulse
If any questions should arise whether to use the “Rated Ambient Temperature” or the “Rated Terminal Part Temperature,” please give priority to the
“Rated Terminal Part Temperature.” Prior to use and for more details refer to “Introduction of the derating curves on the terminal part temperature”
in the beginning of the catalog. *
2
If you want to use the rated power of *
2
, *
3
please reference below. *
3
Applies when power rating is 0.4W or lower.
environmental applications
Derating Curve
100
80
60
40
20
0
-60 -40 -20
-55
100
80
60
1J/0.2W (135°C)
1E/0.125W (125°C)
2A/0.25W (125°C)
2B/0.33W (125°C)
2E/0.5W (125°C)
100
80
60
40
20
0
-60 -40 -20
-55
2E1/1W (95°C)
2A/0.5W (100°C)
1E/0.2W,
2B/0.75W (105°C)
2E/0.75W (110°C)
1J/0.33W (125°C)
40
20
0
-60 -40 -20
-55
0
20
40
60
80 100 120 140
70
Ambient Temperature
(°C)
160
155
0
140 160
100 120
125 135 155
Terminal Part Temperature
(°C)
20
80
40
60
0
100 120 140 160
95 105 110 125
155
Terminal Part Temperature
(°C)
20
40
60 80
For resistors operated at an ambient temperature
of 70°C or above, a power rating shall be derated
in accordance with the derating curve.
For resistors operated at a terminal part temperature of described for each size or above,
a power rating shall be derated in accordance with the derating curve.
Please refer to “Introduction of the derating curve based on the terminal part temperature”
in the beginning of our catalog before use.
If you want to use the rated power of *
2
,*
3
please use the derating curve based
on the terminal part temperature on the right hand side.
Additional environmental applications can also be found at www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
3/26/20
42
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
anti-surge endured surge voltage
thick film chip resistor
environmental applications
(continued)
ESD Limiting Voltage
SG73S 1E
8
ESD Limiting Voltage (kV)
SG73S 1J
10
ESD Limiting Voltage (kV)
ESD Limiting Voltage (kV)
SG73S 2A
12
10
8
6
4
Machine model
7
6
5
4
Human model
8
6
Human model
Human model
3
2
1
0
1
10
100
1k
10k
100k
1M
10M
Nominal Resistance
(Ω)
Machine model
4
2
0
1
10
100
1k
10k
100k
1M
10M
Nominal Resistance
(Ω)
Machine model
2
0
1
10
100
1k
10k
100k
1M
10M
Nominal Resistance
(Ω)
SG73S 2B
16
ESD Limiting Voltage (kV)
ESD Limiting Voltage (kV)
SG73S 2E, 2E1
20
18
16
14
12
10
8
6
4
2
0
1
Machine model
Human model
14
12
10
Human model
8
6
4
2
0
1
10
100
1k
10k
100k
1M
10M
Machine model
10
100
1k
10k
100k
1M
10M
Nominal Resistance
(Ω)
Nominal Resistance
(Ω)
Temperature Rise
SG73S 1E-1J
120
Temperature Rise (°C)
100
80
60
40
20
0
0
25
50 75 100
Power Rating (%)
1J 0.33W）
（
①
1E
（0.2W）
①
1J 0.33W）
（
②
（0.2W）
②
1E
SG73S 2A-2E
200
180
2B
（0.75W）
①
2E
（1W）
①
2B
（0.75W）
②
2E
（1W）
②
2A
（0.5W）
①
2A
（0.5W）
②
Temperature Rise (°C)
160
140
120
100
80
60
40
20
0
0
25
50 75 100
Power Rating (%)
Regarding the temperature rise, the value of the temperature
varies per conditions and board for use since the temperature
is measured under our measuring conditions.
Measurement condition
Room temperature: 25°C
PCB: FR-4t = 1.6mm
Cu foil thickness: 35µm
①:
Hot spot
②:
Terminal
Performance Characteristics
Parameter
Resistance
T.C.R.
Overload (Short time)
Resistance to Solder Heat
Rapid Change of Temperature
Moisture Resistance
Endurance at 70°C
High Temperature Exposure
Requirement
∆
R ±(%+0.1Ω)
Limit
Typical
Within specified
—
tolerance
Within specified
—
T.C.R.
±2%
±1%
±0.5%
±3%
±3%
±1%
±0.5%
±0.75%
±0.3%
±0.75%
±0.75%
±0.3%
Test Method
25°C
+25°C/-55°C and +25°C/+125°C
Rated Voltage x 2.5 for 5 seconds (2A: 0.4W, 0.5W; 2B: 0.75W; 2E: 0.75W;
2E1: 1W rated power x 2 for 5 seconds)
260°C ± 5°C, 10 seconds ± 1 second
-55°C (30 minutes), +125°C (30 minutes), 100 cycles
40°C ± 2°C, 90%~95%RH, 1000 hours; 1.5 hr ON, 0.5 hr OFF cycle
70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
+155°C, 1000 hours
10/21/20
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
43
resistors
SG73S
