M80-4T12242FC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M80-4T12242FC

Preview

M80-4T12242FC: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-4T12242FC Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

M80-4T12242FC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1274746861
Reach Compliance Code	compliant
body width	0.219 inch
subject depth	0.205 inch
body length	1.26 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

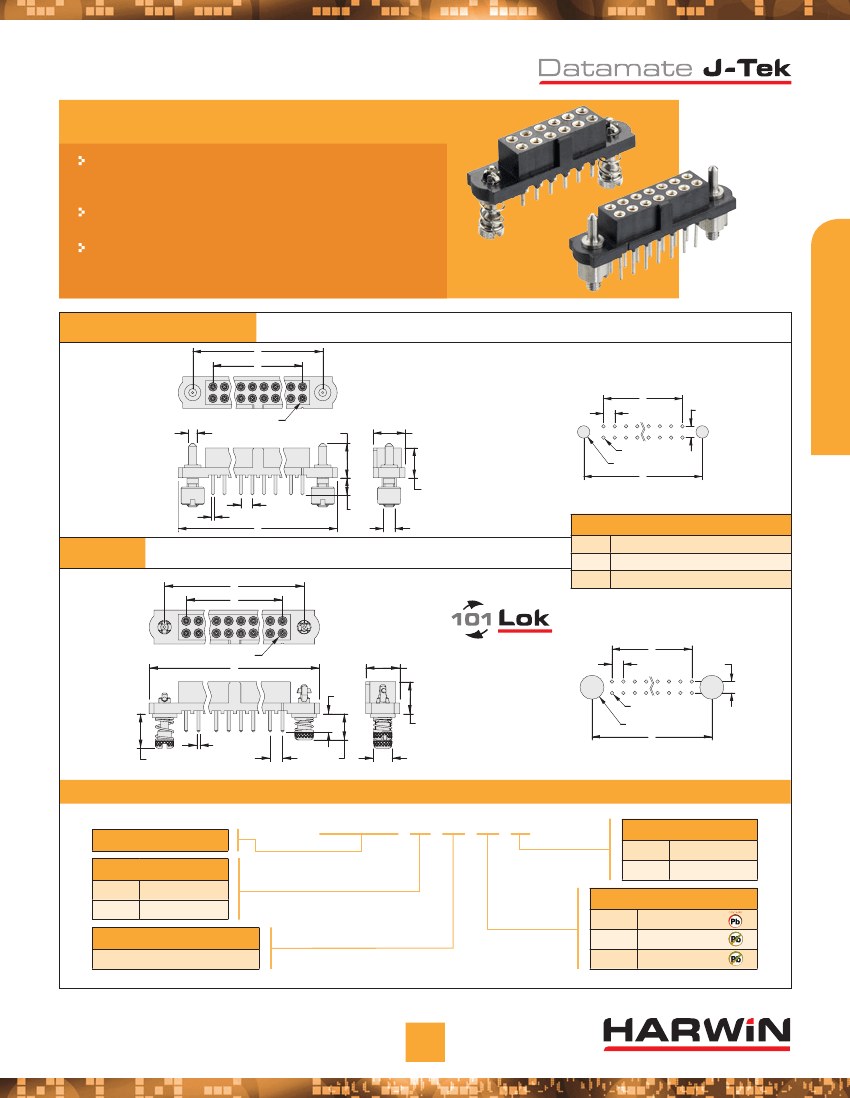

Datamate Connectors

Female Vertical PC Tail guide Pin, 101Lok

101Lok fixing gives secure, fast and simple mating; no special

tooling required. Just a simple 101-degree turn is required to

fix the connectors together.

101Lok style mates with male connectors shown on pages 53,

55, 57, 59 and 61.

Guide pin style includes board mount fixing, and mates with

male connectors with Jackscrews, shown on pages 52, 54, 56,

58, 60, 63 and 64.

guIDE PIN JACKSCrEwS

C

B

No. 1 contact

Ø1.40

2.00

6.00

5.55

Ø0.65

min

Ø2.20

min

C

5.20

2.00

Ø0.50

recommended PC Board Pattern

Tail

M2

A

CALCULAtion

A

B

C

B + 12

Total no. of contacts - 2

B+7

101LOK

C

B

No. 1 contact

A

Tail

5.20

Ø0.50

B

5.55

2.00

Ø0.65

min

Ø4.20

min

C

5.60

Relaxed

2.00

4.25

Locked

Ø3.00

recommended PC Board Pattern

HOw TO OrDEr

seRies CoDe

tyPe

t1

t2

3mm Tails

4.5mm Tails

M80 - 4 tX XX XX FX

JACksCReW

F3

FC

Guide Pin

101Lok

Finish

01

05

42

Gold + Tin/Lead

Gold

Gold + Tin

totAL no. oF ContACts

04 to 50

Even numbers only

All dimensions in mm.

www.harwin.com

39
