MDMV-9SL1B datasheet, PDF - EEWORLD Datasheet

MDMV-9SL1B: DescriptionCONNECTOR,D-SHELL,CABLE MNT,RECEPT,9 CONTACTS,PIN,0.05 PITCH,SOLDER TERMINAL,HOLE .087-.098; CategoryThe connector The connector; File Size1MB，9 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

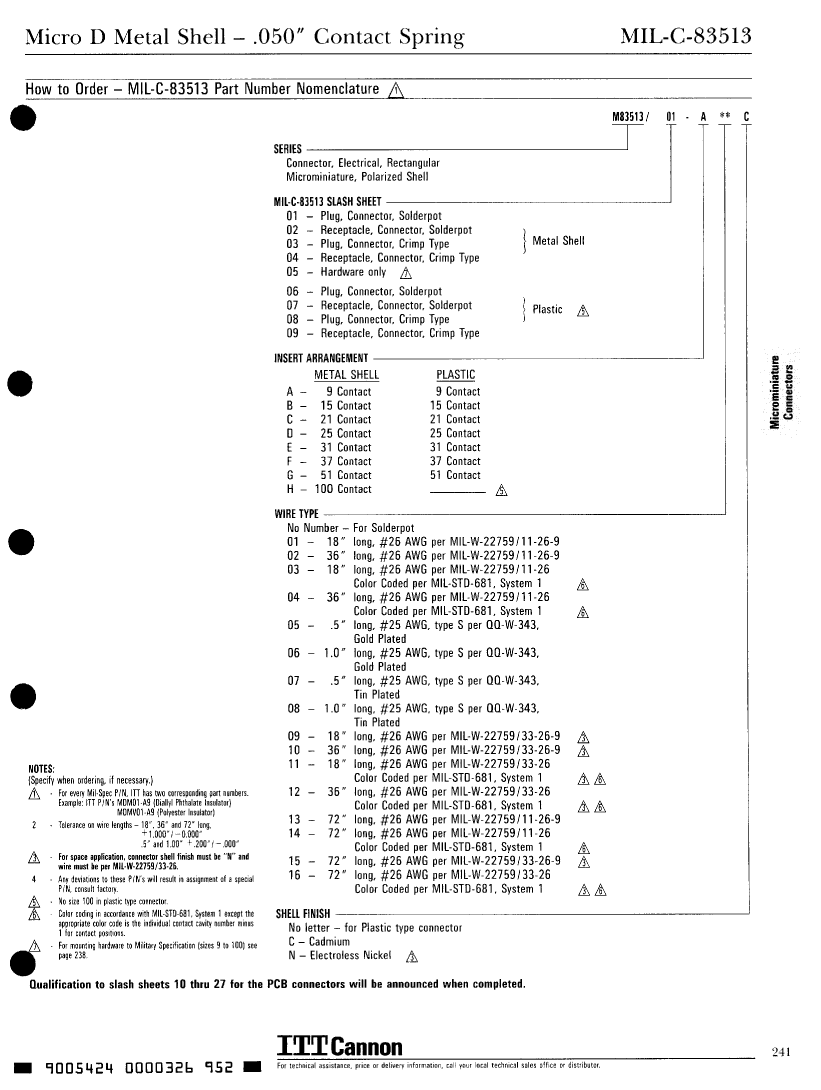

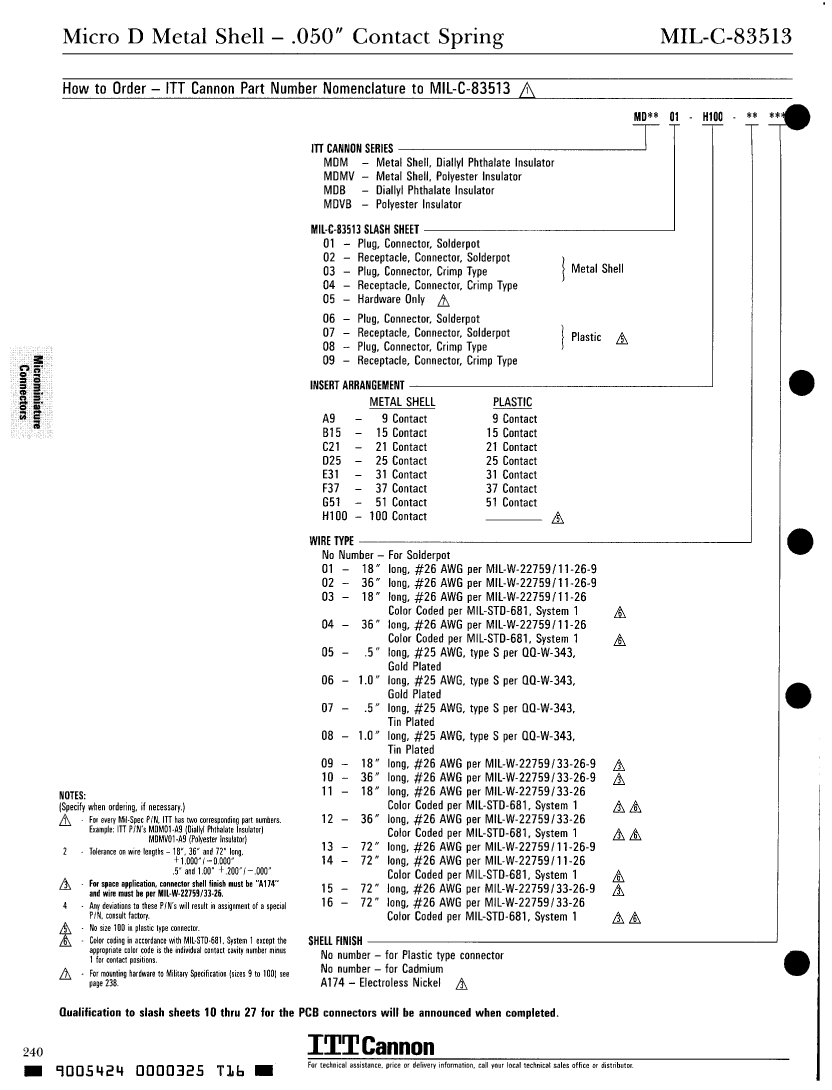

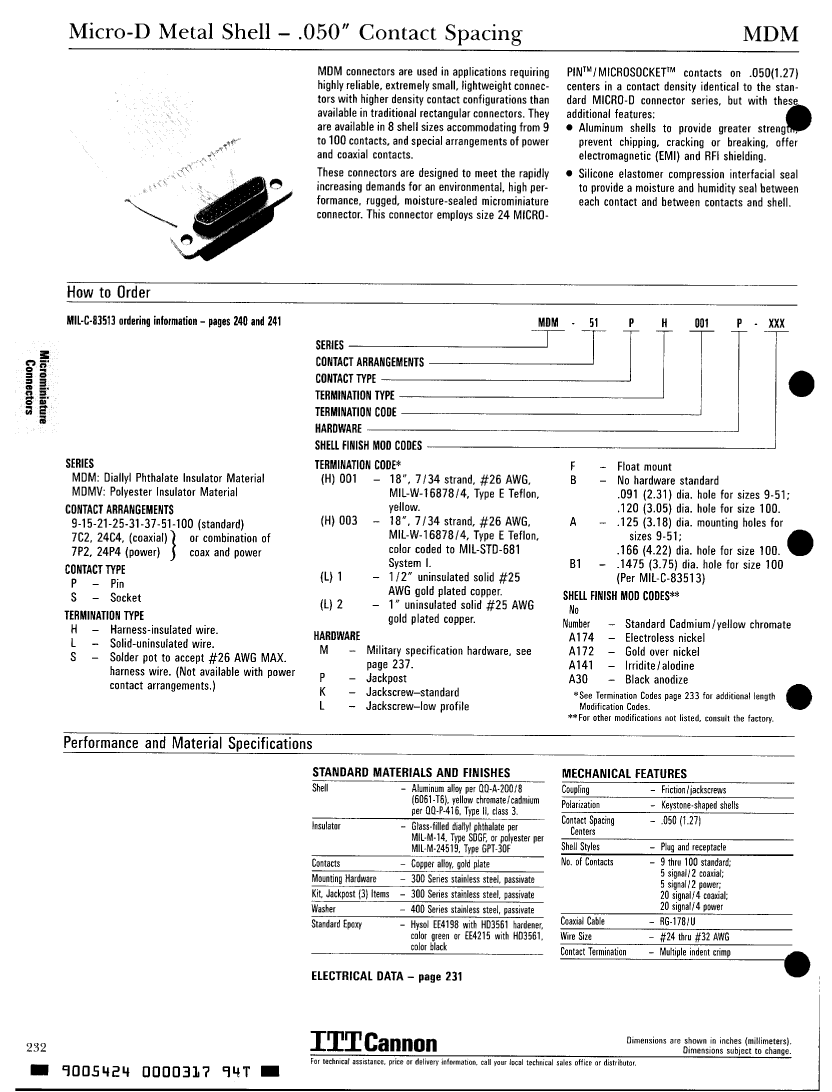

MDMV-9SL1B Overview

CONNECTOR,D-SHELL,CABLE MNT,RECEPT,9 CONTACTS,PIN,0.05 PITCH,SOLDER TERMINAL,HOLE .087-.098

Parameter Name	Attribute value
Objectid	1149725856
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	NO HARDWARE, STANDARD
body width	0.308 inch
subject depth	0.23 inch
body length	0.785 inch
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED

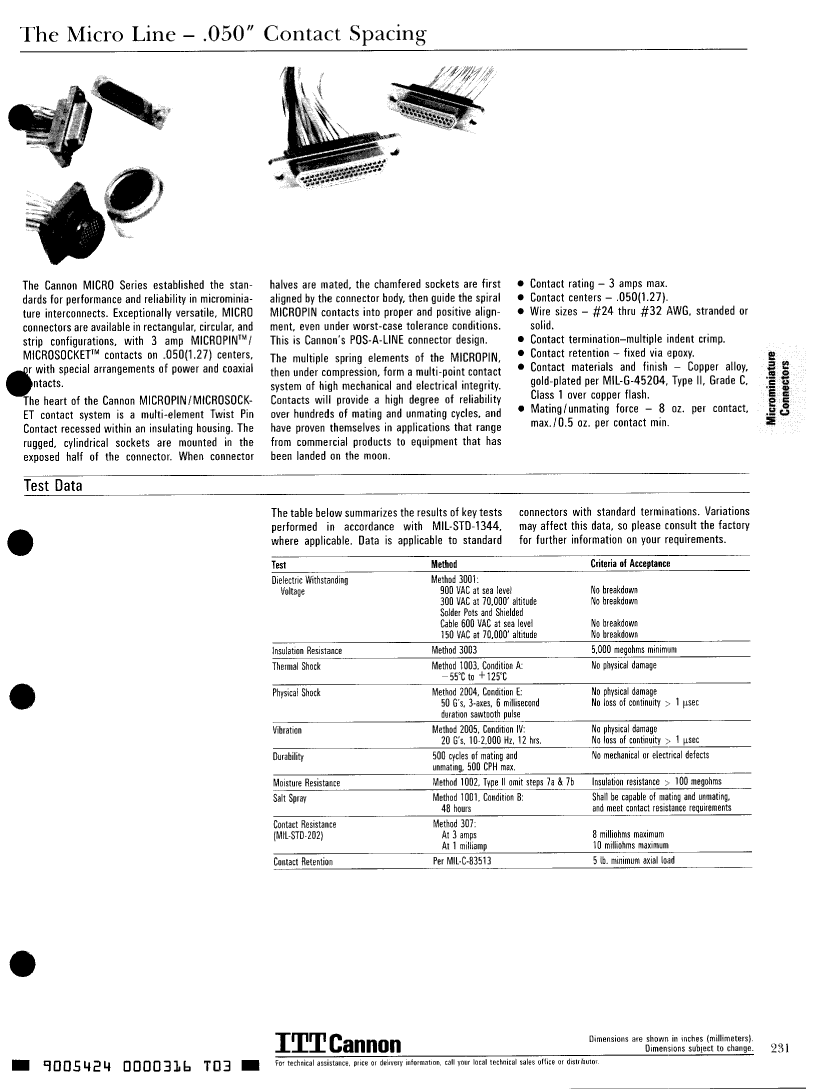

Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
empty shell	NO
Filter function	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.05 inch
Match contact row spacing	0.043 inch
Mixed contacts	NO

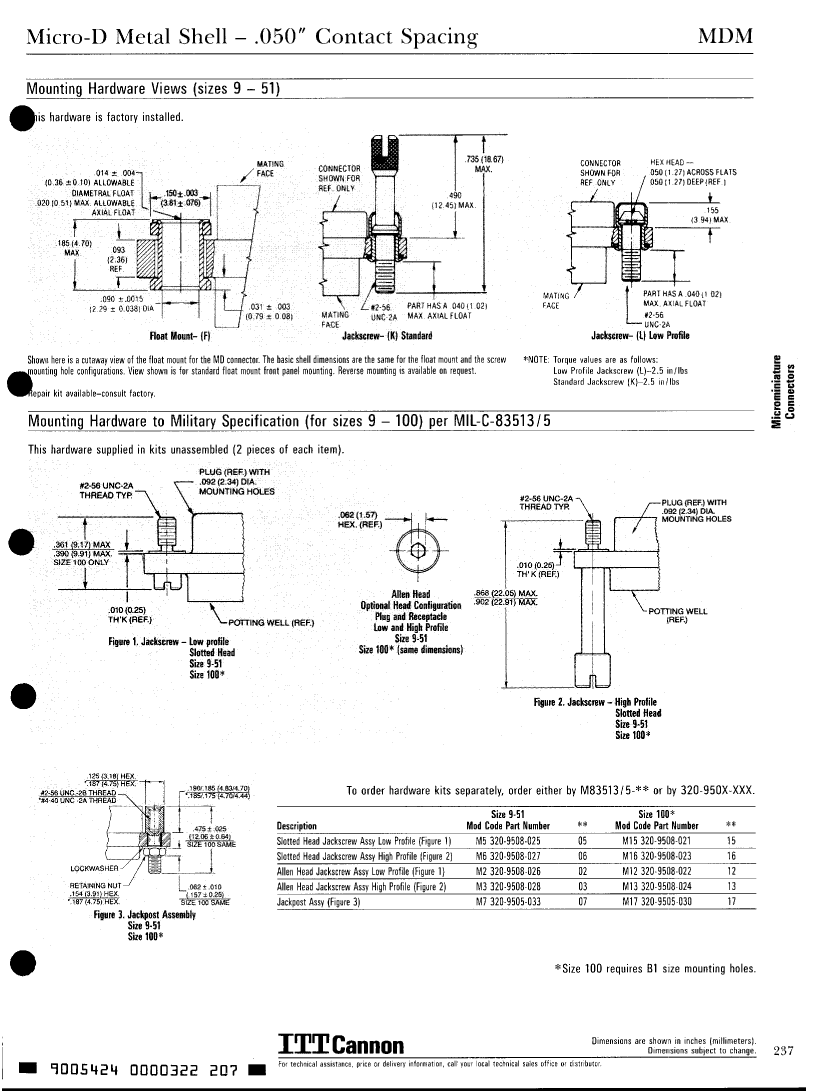

Installation option 1	HOLE .091
Installation option 2	LOCKING
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of rows loaded	2
PCB contact pattern	STAGGERED
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	CADMIUM/YELLOW CHROMATE
Housing size	A
Terminal length	0.11 inch
Termination type	CRIMP
Total number of contacts	9
Maximum wire diameter	25 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.139 N
