Q24.9990-JXG75P4-12-30/100-T2-FU-AEC datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q24.9990-JXG75P4-12-30/100-T2-FU-AEC

Q24.9990-JXG75P4-12-30/100-T2-FU-AEC: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size2MB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/

Download Datasheet Parametric View All

Q24.9990-JXG75P4-12-30/100-T2-FU-AEC Overview

Parallel - Fundamental Quartz Crystal,

Q24.9990-JXG75P4-12-30/100-T2-FU-AEC Parametric

Parameter Name	Attribute value
Objectid	7301668944
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	.4
Other features	AEC-Q200; AT-CUT; TR, 8 INCH
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	30 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	24.999 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.8 (mm)/L0.276XB0.197XH0.071 (inch)
Series resistance	20 Ω
surface mount	YES

Preview

Download Datasheet

View All

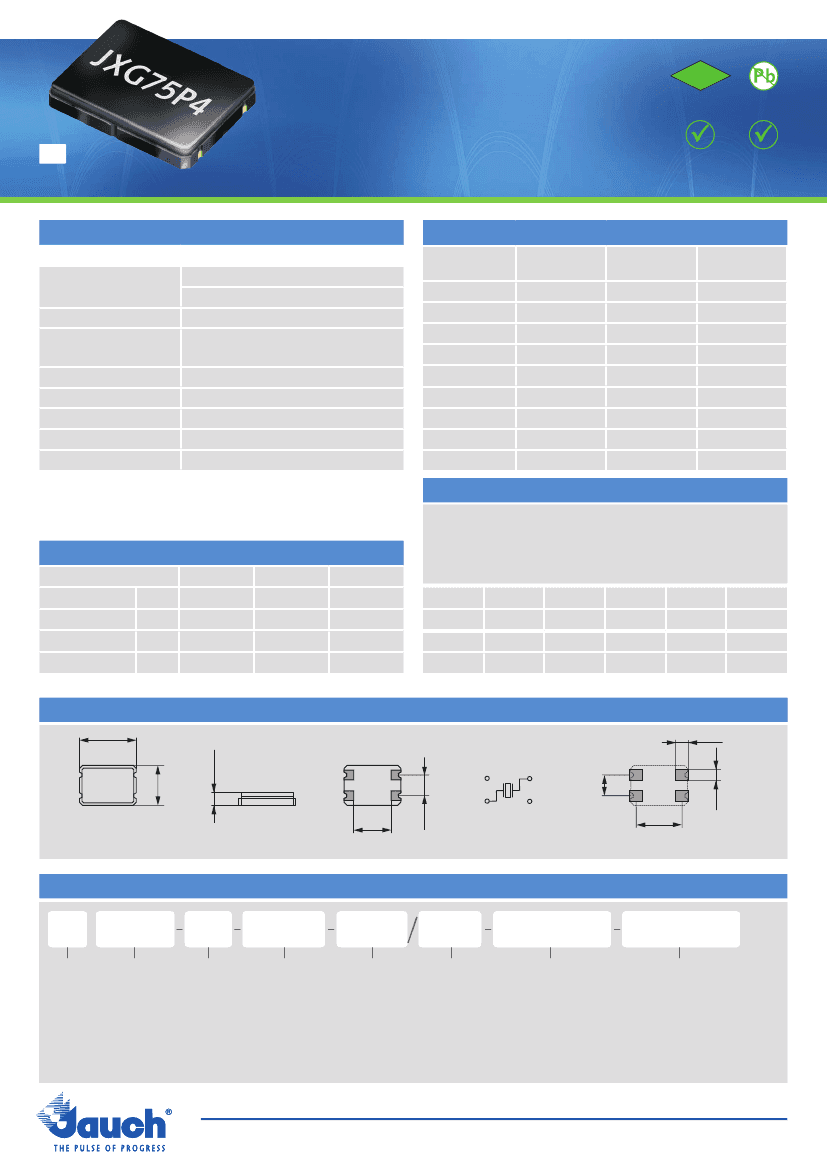

Automotive SMD Crystal · JXG75P4

- 4 Pad Version, 7.0 x 5.0 mm

- glass sealed ceramic package

- all versions are AEC-Q200 qualified

- HMR version with extended shock & vibration immunity

- RKE version withstands 100x drop test from 150 cm

2011/65/EC

RoHS

RoHS compliant

Pb free

actual size

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

shock resistance

drive level max.

aging

JXG75P4

5.0 ~ 50.0 MHz

30.0 ~ 70.0 MHz

±30 ppm, ±50 ppm

12 pF standard

(option: 10 pF ~ 30.0 pF / series)

< 7 pF

-40 °C ~ +125 °C

> 100 g

100 µW

(half sine pulse, 6.0 ms)*

(10 µW recommended)

(fund. AT-cut)

(3rd OT AT-cut)

ESR (SERIES RESISTANCE RS)

frequency

in MHz

5.0 ~ 5.999

6.0 ~ 6.999

7.0 ~ 9.999

10.0 ~ 15.999

16.0 ~ 21.999

22.0 ~ 24.999

25.0 ~ 50.000

30.0 ~ 44.999

45.0 ~ 70.000

MARKING

vibration

mode

fund. - AT

3rd OT-AT

ESR max.

in ½

200

100

ESR typ.

in ½

130

< ±3 ppm first year

* optional HMR version: 3000G / half sine pulse / 0.3 ms

frequency with load capacitance code

company code / date code / internal code

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

±30 ppm

±50 ppm



±100 ppm



date code: year/month; A ~ M: Jan. - Dec.; example 9A = 2019 January

9: 2019

0: 2020

1: 2021

2: 2022

3: 2023

4: 2024

Jan.

July

Febr.

Aug.

Mar.

Sept.

Apr.

Oct.

May

Nov.

June

Dec.

-20 °C ~ +70 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C



available

STD.



DIMENSIONS

7.0

±0.2

5.0

±0.2

1.8 max.

1.6

±0.1

2.54

±0.1

2.54

±0.1

4.6

±0.1

5.8

±0.1

top view

ORDER INFORMATION

side view

bottom view

crystal connection

pad layout

1.4

±0.1

in mm

Quartz

frequency

5.0 ~ 70.0 MHz

type

JXG75P4

load capacitance

12 pF standard

10 pF ~ 30 pF

S for series

tolerance

at 25 °C

30 = ±30 ppm

50 = ±50 ppm

stability vs.

temp. range

30 = ±30 ppm

50 = ±50 ppm

100 = ±100 ppm

option 1

option 2

AEC = AEC-Q200 qualified

blank = -20 °C ~ +70 °C

HMR = high mechanical reliability

T1 = -40 °C ~ +85 °C

(3000g/half sine wave/0.3ms)

T2 = -40 °C ~ +105 °C

RKE = for remote keyless entry

T3 = -40 °C ~ +125 °C

(drop 100x / 150 cm)

FU = for fundamental

frequencies ≥ 20 MHz

3OT =3rd overtone

Example: Q 28.0-JXG75P4-12-30/30-T1-FU-AEC-LF

(Suffix LF = RoHS compliant / Pb free)

27032019

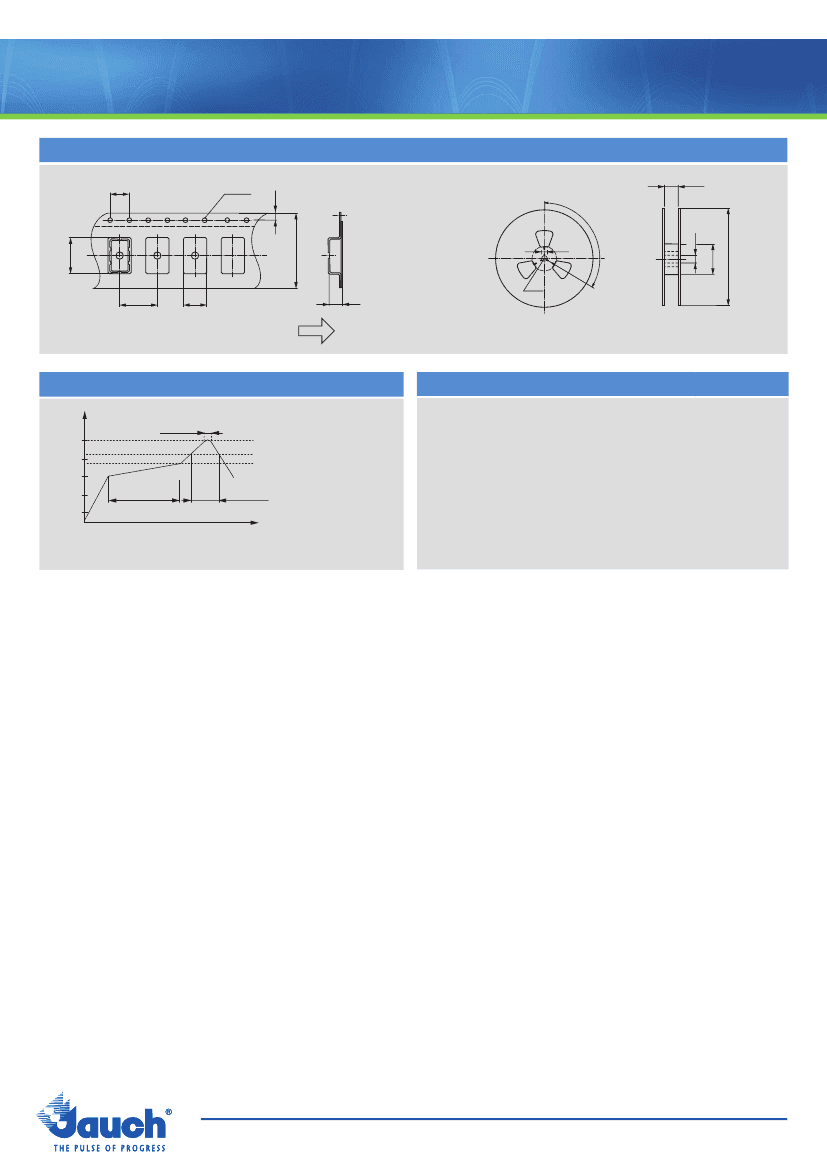

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

info@jauch.com

full found under: www.jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
