METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
Typical applications:
blocking, coupling, decoupling,
by-passing, interference suppression in low voltage
applications (i.e.:Automotive)
PRoDUCT CoDe:
JSP
Pitch Box thickness (B)
(mm)
(mm)
22.5
27.5
37.5
All
All
All
Maximum dimensions (mm)
B max
H max
L max
B +0.2
B +0.2
B +0.3
H +0.1
H +0.1
H +0.1
L +0.3
L +0.3
L +0.3
MKT Series
JSP
Ød ±0.05
p = 22.5÷27.5
0.8
p = 37.5
1.0
All dimensions are in mm.
PRODUCT CODE SYSTEM
The part number, comprising 14 digits, is formed as follows:
1
2
3
4
5
6
7
8
9
10 11
12
13
14
GENERAL TECHNICAL DATA
Dielectric:
Plates:
polyester film (polyethylene terephthalate).
aluminium layer deposited by evaporation
under vacuum.
non-inductive type.
J S P
Digit 1 to 3
Digit 4
-
Series code.
d.c. rated voltage
D = 63Vdc; e = 100Vdc; G = 160Vdc;
I = 250Vdc;
Digit 5
Pitch: N=22.5mm R=27.5mm W=37.5mm
Digit 6 to 9
Digits 7-8-9 indicate the first three digits of
Capacitance value and the 6
th
digit indicates
the number of zeros that must be added to
optain the rated Capacitance in pF.
Digit 10 to 11 Mechanical version and/or packaging (table 1)
Digit 12
Identifies the dimension and electrical
characteristics.
Digit 13
Internal use.
Digit 14
Capacitance Tolerance:
K=
±
10%;
M=
±
20%;
J=
±
5%;
Winding:
Construction:
Stacked technology.
Leads:
Protection:
tinned wire.
plastic case,thermosetting resin filled.
Box material is solvent resistant and
flame retardant according to UL94 V0.
Manufacturer’s logo, series , capacitance,
tolerance, D.C. rated voltage, manufacturing
date code.
Marking:
Climatic category:
55/105/56 IeC 60068-1
Operating temperature range:
-55°C up to +125°C
Table 1
Standard
packaging style
Lead
length
(mm)
AMMo-PACK
ReeL
Ø
500mm
Loose, short leads
Loose, long leads
4
+2
25
-1/+2
30
-0/+5
P
2
(mm)
19.05
19.05
Taping style
Fig.
(No.)
2
2
Pitch
(mm)
22.5
22.5/27.5
Ordering code
(Digit 10 to 11)
DQ
CK
AA
50
40
Related documents:
IeC 60384-2
Winding scheme
single sided metallized
polyester film
Note: Ammo-pack is the preferred packaging for taped version.
49
09/2008
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
PRoDUCT CoDe:
JSP
Rated
Cap.
B
4.7
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
33
µF
39
µF
47
µF
15
µF
18
µF
22
µF
27
µF
33
µF
39
µF
47
µF
56
µF
68
µF
82
µF
100
µF
120
µF
33
µF
39
µF
47
µF
56
µF
68
µF
82
µF
100
µF
120
µF
150
µF
180
µF
220
µF
270
µF
330
µF
390
µF
470
µF
7.0
7.0
7.0
7.0
7.0
7.0
7.0
8.5
8.5
11.0
11.0
13.0
13.0
9.0
9.0
9.0
9.0
11.0
11.0
13.0
13.0
14.0
14.0
18.0
18.0
11.0
11.0
11.0
11.0
13.0
13.0
16.0
16.0
19.0
19.0
20.0
24.0
24.0
30.0
30.0
H
16.0
16.0
16.0
16.0
16.0
16.0
16.0
17.0
17.0
20.0
20.0
22.0
22.0
17.0
17.0
17.0
17.0
20.0
20.0
25.0
25.0
28.0
28.0
33.0
33.0
22.0
22.0
22.0
22.0
24.0
24.0
28.5
28.5
32.0
32.0
40.0
44.0
44.0
45.0
45.0
63Vdc / 40 Vac
Std dimensions
Max
dv/dt
L
P
(V/µs)
26.5 22.5
25.0
26.5 22.5
25.0
25.0
26.5 22.5
25.0
26.5 22.5
25.0
26.5 22.5
25.0
26.5 22.5
25.0
26.5 22.5
25.0
26.5 22.5
25.0
26.5 22.5
26.5 22.5
25.0
26.5 22.5
25.0
25.0
26.5 22.5
25.0
26.5 22.5
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
32.0 27.5
20.0
32.0 27.5
20.0
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
20.0
32.0 27.5
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
15.0
41.5 37.5
Part number
Max K
0
(V
2
/µs)
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
3.15 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
2.52 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
1.89 e3
JSP DN4470--0--
JSP DN4560--0--
JSP DN4680--0--
JSP DN4820--0--
JSP DN5100--0--
JSP DN5120--0--
JSP DN5150--0--
JSP DN5180--0--
JSP DN5220--0--
JSP DN5270--0--
JSP DN5330--0--
JSP DN5390--0--
JSP DN5470--0--
JSP DR5150--0--
JSP DR5180--0--
JSP DR5220--0--
JSP DR5270--0--
JSP DR5330--0--
JSP DR5390--0--
JSP DR5470--0--
JSP DR5560--0--
JSP DR5680--0--
JSP DR5820--0--
JSP DR6100--0--
JSP DR6120--0--
JSP DW5330--0--
JSP DW5390--0--
JSP DW5470--0--
JSP DW5560--0--
JSP DW5680--0--
JSP DW5820--0--
JSP DW6100--0--
JSP DW6120--0--
JSP DW6150--0--
JSP DW6180--0--
JSP DW6220--0--
JSP DW6270--0--
JSP DW6330--0--
JSP DW6390--0--
JSP DW6470--0--
3.3
µF
3.9
µF
4.7
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
33
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
33
µF
39
µF
47
µF
56
µF
68
µF
82
µF
22
µF
27
µF
33
µF
39
µF
47
µF
56
µF
68
µF
82
µF
100
µF
120
µF
150
µF
180
µF
220
µF
Rated
Cap.
B
7.0
7.0
7.0
7.0
7.0
7.0
8.5
8.5
8.5
11.0
11.0
13.0
13.0
9.0
9.0
9.0
9.0
11.0
11.0
13.0
13.0
14.0
14.0
18.0
18.0
11.0
11.0
11.0
11.0
13.0
13.0
16.0
16.0
19.0
19.0
20.0
24.0
30.0
H
16.0
16.0
16.0
16.0
16.0
16.0
17.0
17.0
17.0
20.0
20.0
22.0
22.0
17.0
17.0
17.0
17.0
20.0
20.0
25.0
25.0
28.0
28.0
33.0
33.0
22.0
22.0
22.0
22.0
24.0
24.0
28.5
28.5
32.0
32.0
40.0
44.0
45.0
100Vdc / 63 Vac
Std dimensions
Max
dv/dt
L
P
(V/µs)
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
26.5 22.5
27.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
32.0 27.5
22.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
41.5 37.5
17.0
MKT Series
JSP
Part number
Max K
0
(V
2
/µs)
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
5.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
4.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
3.4 e3
JSP eN4330--0--
JSP eN4390--0--
JSP eN4470--0--
JSP eN4560--0--
JSP eN4680--0--
JSP eN4820--0--
JSP eN5100--0--
JSP eN5120--0--
JSP eN5150--0--
JSP eN5180--0--
JSP eN5220--0--
JSP eN5270--0--
JSP eN5330--0--
JSP eR5100--0--
JSP eR5120--0--
JSP eR5150--0--
JSP eR5180--0--
JSP eR5220--0--
JSP eR5270--0--
JSP eR5330--0--
JSP eR5390--0--
JSP eR5470--0--
JSP eR5560--0--
JSP eR5680--0--
JSP eR5820--0--
JSP eW5220--0--
JSP eW5270--0--
JSP eW5330--0--
JSP eW5390--0--
JSP eW5470--0--
JSP eW5560--0--
JSP eW5680--0--
JSP eW5820--0--
JSP eW6100--0--
JSP eW6120--0--
JSP eW6150--0--
JSP eW6180--0--
JSP eW6220--0--
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%);M (±20%)
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%);M (±20%)
09/2008
50
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
PRoDUCT CoDe:
JSP
MKT Series
JSP
Rated
Cap.
B
2.2
µF
2.7
µF
3.3
µF
3.9
µF
4.7
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
3.3
µF
3.9
µF
4.7
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
33
µF
39
µF
47
µF
56
µF
68
µF
82
µF
100
µF
7.0
7.0
7.0
7.0
8.5
8.5
11.0
11.0
13.0
13.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
13.0
13.0
14.0
18.0
18.0
11.0
11.0
11.0
13.0
16.0
16.0
19.0
19.0
20.0
20.0
24.0
24.0
30.0
H
16.0
16.0
16.0
16.0
17.0
17.0
20.0
20.0
22.0
22.0
17.0
17.0
17.0
17.0
17.0
20.0
20.0
25.0
25.0
28.0
33.0
33.0
22.0
22.0
22.0
24.0
28.5
28.5
32.0
32.0
40.0
40.0
44.0
44.0
45.0
160Vdc / 90 Vac
Std dimensions
Max
dv/dt
L
P
(V/µs)
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
26.5 22.5
35.0
32.0 27.5
30.0
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
30.0
32.0 27.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
25.0
41.5 37.5
Part number
Max K
0
(V
2
/µs)
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
11.2 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
9.6 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
8.0 e3
JSP GN4220--0--
JSP GN4270--0--
JSP GN4330--0--
JSP GN4390--0--
JSP GN4470--0--
JSP GN4560--0--
JSP GN4680--0--
JSP GN4820--0--
JSP GN5100--0--
JSP GN5120--0--
JSP GR4330--0--
JSP GR4390--0--
JSP GR4470--0--
JSP GR4560--0--
JSP GR4680--0--
JSP GR4820--0--
JSP GR5100--0--
JSP GR5120--0--
JSP GR5150--0--
JSP GR5180--0--
JSP GR5220--0--
JSP GR5270--0--
JSP GW5100--0--
JSP GW5120--0--
JSP GW5150--0--
JSP GW5180--0--
JSP GW5220--0--
JSP GW5270--0--
JSP GW5330--0--
JSP GW5390--0--
JSP GW5470--0--
JSP GW5560--0--
JSP GW5680--0--
JSP GW5820--0--
JSP GW6100--0--
Rated
Cap.
B
1
µF
1.2
µF
1.5
µF
1.8
µF
2.2
µF
2.7
µF
3.3
µF
3.9
µF
4.7
µF
5.6
µF
6.8
µF
2.2
µF
2.7
µF
3.3
µF
3.9
µF
4.7
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
15
µF
18
µF
5.6
µF
6.8
µF
8.2
µF
10
µF
12
µF
15
µF
18
µF
22
µF
27
µF
33
µF
39
µF
47
µF
56
µF
7.0
7.0
7.0
7.0
7.0
8.5
8.5
11.0
11.0
13.0
13.0
9.0
9.0
9.0
9.0
11.0
11.0
13.0
13.0
14.0
18.0
18.0
18.0
11.0
11.0
11.0
13.0
13.0
16.0
16.0
19.0
19.0
20.0
24.0
30.0
30.0
H
16.0
16.0
16.0
16.0
16.0
17.0
17.0
20.0
20.0
22.0
22.0
17.0
17.0
17.0
17.0
20.0
20.0
25.0
25.0
28.0
33.0
33.0
33.0
22.0
22.0
22.0
24.0
24.0
28.5
28.5
32.0
32.0
40.0
44.0
45.0
45.0
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%);M (±20%)
250Vdc / 160 Vac
Std dimensions
Max
dv/dt
L
P
(V/µs)
26.5 22.5
40.0
26.5 22.5
40.0
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
40.0
26.5 22.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
35.0
32.0 27.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
30.0
41.5 37.5
Part number
Max K
0
(V
2
/µs)
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
20.0 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
17.5 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
15.0 e3
JSP IN4100--0--
JSP IN4120--0--
JSP IN4150--0--
JSP IN4180--0--
JSP IN4220--0--
JSP IN4270--0--
JSP IN4330--0--
JSP IN4390--0--
JSP IN4470--0--
JSP IN4560--0--
JSP IN4680--0--
JSP IR4220--0--
JSP IR4270--0--
JSP IR4330--0--
JSP IR4390--0--
JSP IR4470--0--
JSP IR4560--0--
JSP IR4680--0--
JSP IR4820--0--
JSP IR5100--0--
JSP IR5120--0--
JSP IR5150--0--
JSP IR5180--0--
JSP IW4560--0--
JSP IW4680--0--
JSP IW4820--0--
JSP IW5100--0--
JSP IW5120--0--
JSP IW5150--0--
JSP IW5180--0--
JSP IW5220--0--
JSP IW5270--0--
JSP IW5330--0--
JSP IW5390--0--
JSP IW5470--0--
JSP IW5560--0--
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%);M (±20%)
51
09/2008
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
PRoDUCT CoDe:
JSP
ELECTRICAL CHARACTERISTICS
Rated voltage (V
R
):
Rated temperature:
63Vdc, 100Vdc, 160Vdc, 250Vdc,
400Vdc.
+85°C.
Temperature derated voltage:
for temperatures between
+85°C and the upper operating
temperature a decreasing factor of 1.25% per degree °C on
the rated
V
R
(d.c.
and a.c.) has to be applied.
Capacitance range:
Capacitance values:
0.33µF to 470µF.
e12 series (IeC 60063 Norm).
TEST METHOD AND PERFORMANCE
Damp heat, steady state:
Test conditions 1
Temperature:
Relative humidity(RH):
Test duration:
+40°C±2°C
93%±2°C
56 days
MKT Series
JSP
Performance
Capacitance change |∆C/C|:
≤
5%
DF change (∆tgδ):
≤ 50x10
-4
at 1kHz
Insulation resistance:
≥ 50% of limit
Endurance:
Test conditions 1
st
Temperature:
Test duration:
Voltage applied:
Test conditions 2
st
Temperature:
Test duration:
Voltage applied:
105°C ±2°C
2000 h
1.25xV
R
Capacitance tolerance (measured at 1kHz):
±5%; ±10%; ±20%
Total self-indurance (L):
(lead length
∼
2 mm)
Pitch (mm)
L(nH)
22.5
18
27.5
18
37.5
22
Dissipation factor (DF):
tgδx10
-4
at +25°C ±5°C
kHz
1
10
C<0.1
µ
F
≤100
≤150
C>0.1
µ
F
≤100
-
125°C ±2°C
1000 h
1.25xV
R
.
Insulation Resistance:
Test conditions
Temperature:
+25°C±5°C
Voltage charge time: 1 min
Voltage charge:
50Vdc for V
R
<
100Vdc
100Vdc for V
R
≥ 100Vdc
Performance
For V
R
≤ 100 Vdc
≥ 3750 MΩ
for C≤0.33
µ
F (50000
MΩ)∗
≥ 1250 s
for C
>
0.33
µ
F (5000 s)*
For V
R
>
100 Vdc
≥30000 MΩ
for C≤0.33
µ
F (50000
MΩ)∗
≥10000 s
for C
>
0.33
µ
F (17000 s)*
*Typical value.
Test voltage between terminations:
1.6 x V
R
for 2s at +25°C ±5°C
Performance
Capacitance change |∆C/C|:
≤
5%
DF change (∆tgδ):
≤
50x10
-4
at 10kHz for C≤
1
µ
F
≤
30x10
-4
at 1kHz for C
>1
µ
F
Insulation resistance:
≥ 50% of initial limit
Resistance to soldering heat:
Test conditions
Solder bath temperature:
+260°C ±5°C
Dipping time (with heat screen): 10 s ± 1 s
Performance
Capacitance change |∆C/C|:
≤
2%
DF change (∆tgδ):
≤
50x10
-4
at 10kHz for C≤
1
µ
F
≤
30x10
-4
at 1kHz for C
>1
µ
F
Insulation resistance:
≥ initial limit
Long term stability
(after two years):
Storage:
standard environmental conditions (see page
12 of DC film capacity catalogue).
Performance
Capacitance change |∆C/C|:
≤
2%
09/2008
52
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
MKT Series
JSP

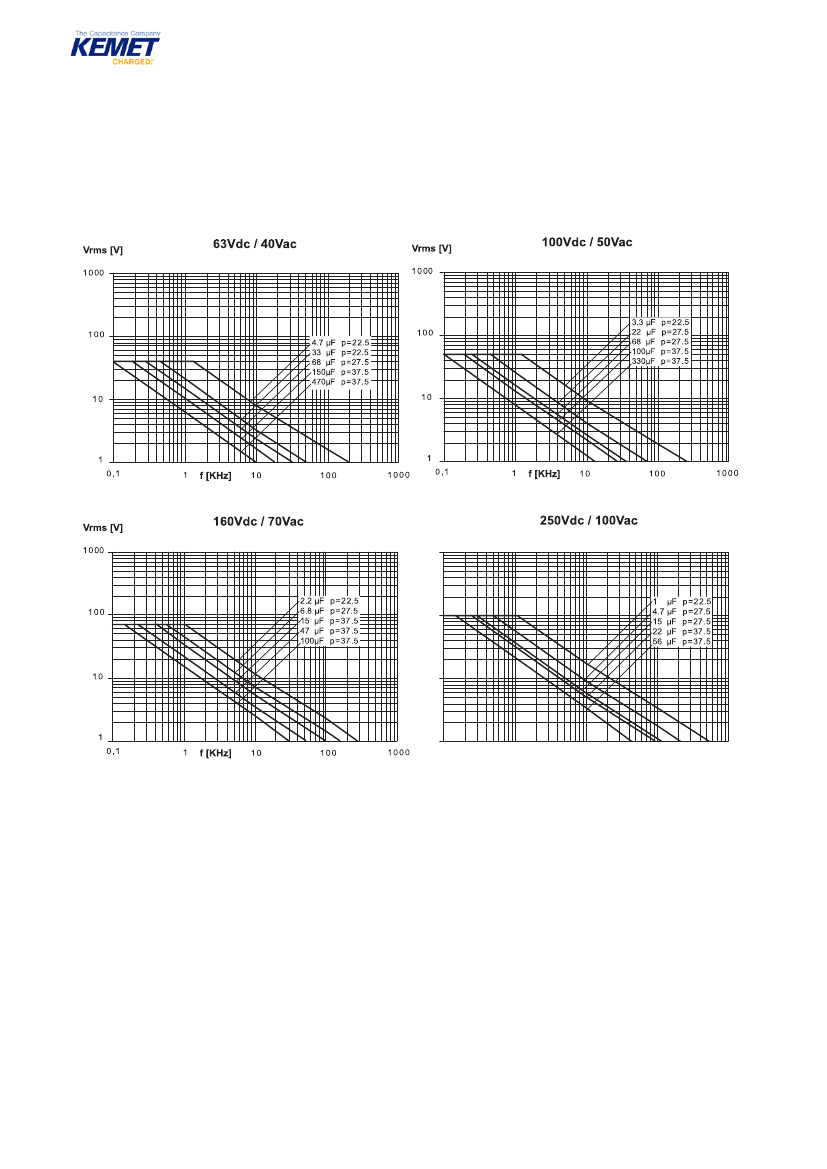

MAX. VoLTAGe (Vr.m.s.) VeRSUS FReQUeNCY (sinusoidal wave-form / T
h
= 80°C)
Vrms [V]
1 0 00
100
10
1
0 ,1
1
f [KHz]
10
100
1000
Note: *Th= max. ambient temperature surrounding the capacitor or hottest contact point (i.e. tracks ), whichever is higher, in
the worst operation conditions in °C
53
09/2008
京公网安备 11010802033920号
EEWORLD
