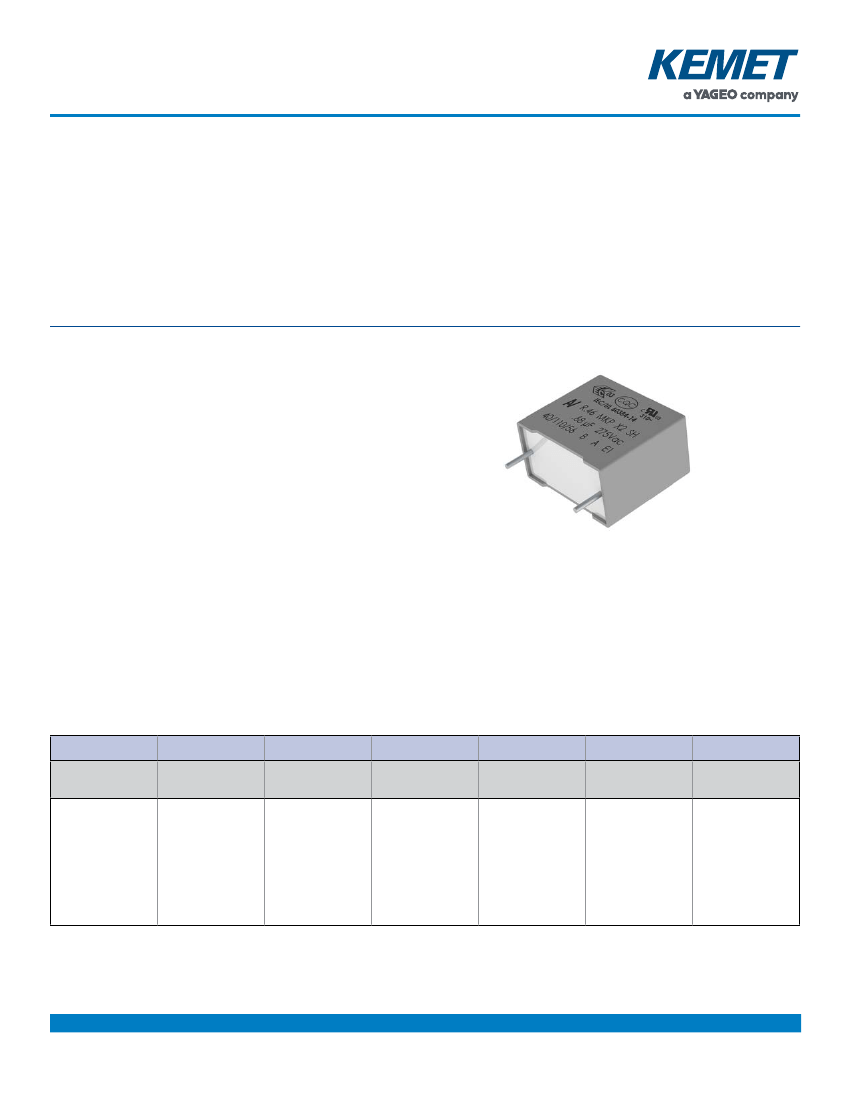

Metallized Polypropylene Film EMI Suppression Capacitors
R46, Class X2, 275 VAC, 110°C
Overview
Applications
For worldwide use in electromagnetic interference (EMI)
suppression in across-the-line applications that require X2
safety classification. Intended for use in situations in which
capacitor failure would not result in exposure to electric
shock. Not for use in "series with mains" type applications.
The R46 series is constructed of metallized polypropylene
film encapsulated with self-extinguishing resin in a box of
material that meets the requirements of UL 94 V–0.
Benefits
• Approvals: ENEC, UL, cUL, CQC
• X2 CLASS (IEC 60384-14)
• Rated voltage: 275 VAC 50/60 Hz
• Capacitance range: 0.01 – 10 µF
• Lead spacing: 10.0 – 37.5 mm
• Capacitance tolerance: ±20%, ±10%
• Climatic category 40/110/56, IEC 60068-1
• Tape & Reel in accordance with IEC 60286-2
• RoHS compliant and lead-free terminations
• Operating temperature range of −40°C to +110°C
• 100% screening factory test at 2,200 VDC/1,500 VAC
• Self healing properties
Part Number System
R46
Series
X2, Metallized
Polypropylene
K
Rated Voltage
(VAC)
K = 275
I
Lead Spacing
(mm)
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
2100
Capacitance
Code (pF)
The last three
digits represent
significant figures.
The first digit
specifies number
of zeros to be
added.
00
Packaging
See Ordering
Options Table
01
Internal Use
01
02
L2
M1
M2
N0
N1
N2
M
Capacitance
Tolerance
K = ±10%
M = ±20%
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3093_R46_X2_275_110C • 1/13/2022
1
Metallized Polypropylene Film EMI Suppression Capacitors
R46, Class X2, 275 VAC, 110°C
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Bag)
2
– Short Leads
Lead Length
(mm)
4 +2/-0
H
0
= 18.5 ±0.5
H
0
= 18.5 ±0.5
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
30 +5/−0 (sp 8 ±2)
150 ±5 (sp 8 ±2)
Lead and
Packaging
Code
00
DQ
CK
JA
JB
JE
JH
JM
40
50
51
52
10
15
22.5
Bulk (Bag)
2
– Short Leads
Bulk (Bag)
2
– Short Leads
Bulk (Bag)
2
– Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Tape & Reel (Large Reel)
Other Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
4 +2/−0
H
0
= 18.5 ±0.5
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
30 +5/−0 (sp 8 ±2)
150 ±5 (sp 8 ±2)
4 +2/−0
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
30 +5/−0 (sp 8 ±2)
150 ±5 (sp 8 ±2)
00
CK
1
JA
JB
JE
JH
JM
40
50
51
52
00
JA
JB
JE
JH
JM
40
50
51
52
27.5
37.5
1
2
Not for all sizes, see "Packaging Quantities" table.
For lead spacing 22.5 case sizes ≥8.5*17*26.5 the parts are packed in a Pizza box 335*320*34 mm
F3093_R46_X2_275_110C • 1/13/2022
2
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Metallized Polypropylene Film EMI Suppression Capacitors
R46, Class X2, 275 VAC, 110°C
Dimensions – Millimeters
Loose
FRONT VIEW
L
SIDE VIEW
T
Insulated Rigid Leads
FRONT VIEW
L
SIDE VIEW
T
Insulated Flexible Leads 0.5 mm
2
FRONT VIEW
L
SIDE VIEW
T
H
H
H
S
F
LL
35 +0/−5
150 ±5
8 ±2
F
S
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
4.0
5.0
6.0
5.0
6.0
6.0
7.5
7.5
8.5
9.0
10.0
11.0
13.0
6.0
7.0
10.0
11.0
13.0
9.0
11.0
13.0
13.0
14.0
18.0
22.0
T
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
9.0
11.0
12.0
11.0
12.0
17.5
13.5
18.5
14.5
12.5
16.0
19.0
12.0
15.0
16.0
18.5
20.0
22.0
17.0
20.0
22.0
25.0
28.0
33.0
37.0
H
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
L
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.5/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
F
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3093_R46_X2_275_110C • 1/13/2022
8 ±2
3
Metallized Polypropylene Film EMI Suppression Capacitors
R46, Class X2, 275 VAC, 110°C
Dimensions – Millimeters cont.
Loose
FRONT VIEW
L
SIDE VIEW
T
Insulated Rigid Leads
FRONT VIEW
L
SIDE VIEW
T
Insulated Flexible Leads 0.5 mm
2
FRONT VIEW
L
SIDE VIEW
T
H
H
H
S
F
LL
35 +0/−5
150 ±5
8 ±2
F
S
37.5
37.5
37.5
37.5
37.5
37.5
37.5
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
± 0.4
11.0
13.0
16.0
19.0
20.0
24.0
30.0
T
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
22.0
24.0
28.5
32.0
40.0
44.0
45.0
H
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
41.5
41.5
41.5
41.5
41.5
41.5
41.5
L
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
F
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3093_R46_X2_275_110C • 1/13/2022
8 ±2
4
Metallized Polypropylene Film EMI Suppression Capacitors
R46, Class X2, 275 VAC, 110°C
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Rated Voltage V
R
Recommended
DC Voltage
Capacitance Range
Capacitance Values
Capacitance Tolerance
Temperature Range
Climatic Category
Polypropylene film
Metal layer deposited by evaporation under vacuum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384–14, EN 60384–14
275 VAC (50/60 Hz)
≤ 560 VDC
0.010 – 10 µF
E6 series (IEC 60063) measured at 1 kHz and +20±1°C
±10%, ±20%
−40°C to +110°C
40/110/56 IEC 60068-1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent
Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Approvals
Dissipation Factor
(tanδ)
Test Voltage Between
Terminals
ENEC, UL, cUL, CQC
≤ 0.1% (0.06%*) at 1 kHz, +25°C ±5°C (* typical value)
The 100% screening factory test is carried out at 2,200 VDC/1,500 VAC. The voltage level is selected to meet the
requirements in applicable equipment standards. All electrical characteristics are checked after the test. This test
cannot be repeated, as there is a risk of damaging the capacitor. KEMET is not liable in such cases for any failures.
Measured at +25°C ±5°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
Voltage Charge
100 VDC
Voltage Charge Time
1 minute
C ≤ 0.33 μF
≥ 1 • 10
5
MΩ
( ≥ 5 • 10
5
MΩ )*
C > 0.33 μF
≥ 30,000 MΩ • µF
( ≥ 150,000 MΩ • µF )*
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3093_R46_X2_275_110C • 1/13/2022
5
