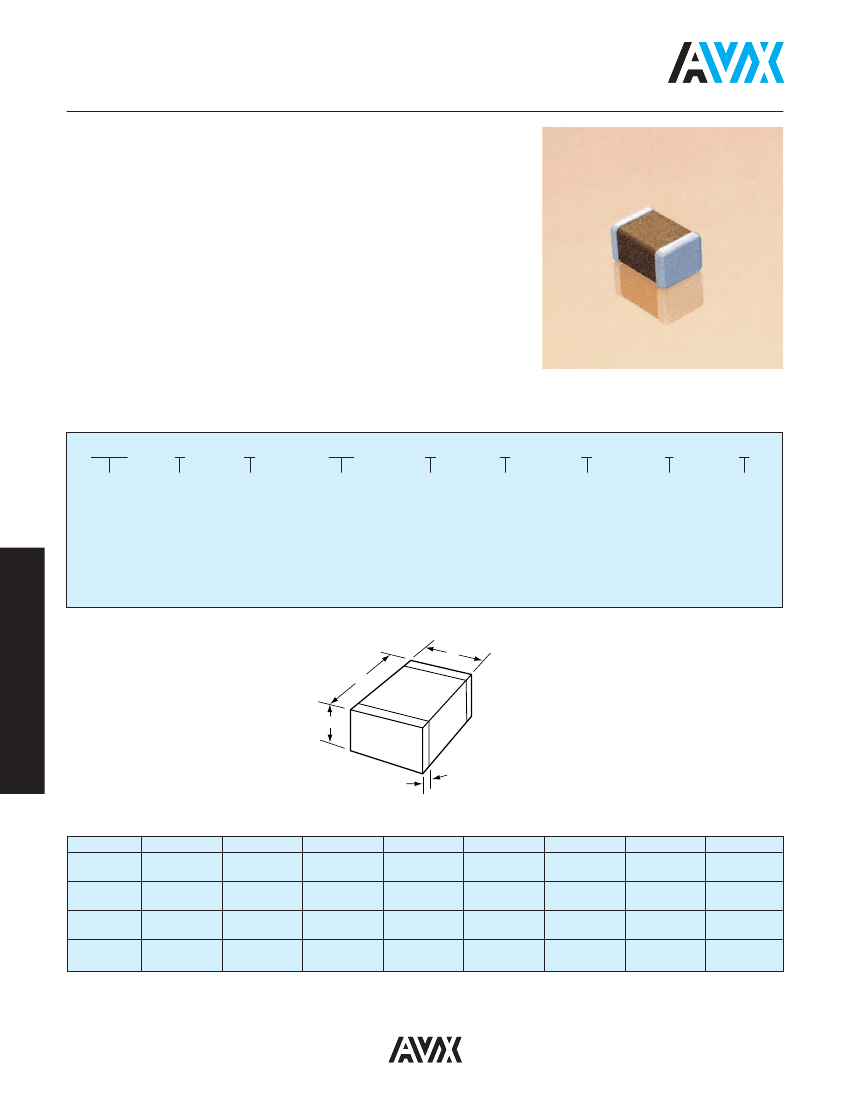

Tip & Ring Tin/Lead Termination “B”
Multilayer Ceramic Chip Capacitors
AVX Corporation will support customers for commercial and military Multilayer
Ceramic Capacitors with a termination consisting of 5% minimum lead. This
termination is indicated by the use of a “B” in the 12th position of the AVX
Catalog Part Number. This fulfills AVX’s commitment to providing a full range of
products to our customers. AVX has provided in the following pages, a full range
of values that we are offering in this “B” termination.
AVX “Tip & Ring” or “ring detector” Multilayer Ceramic Chip Capacitors are
designed as a standard telecom filter to block -48 Volts DC telephone line volt-
age and pass subscriber’s AC signal pulse (16 to 25Hz, 70 to 90 VRMS). The
typical ringing signal is seen on figure on page 103. The ringer capacitors
replace large leaded film capacitors and are ideal for telecom/modem applica-
tions. Using AVX “Tip and Ring” capacitors not only saves valuable real estate
on the board and reduces the weight of the overall product, but also features
standard surface mounting capabilities, so critical to new and compact designs.
The AVX “Tip & Ring” capacitors are offered in standard EIA sizes and
standard values. They offer excellent high frequency performance, low ESR
and improved temperature performance over film capacitors.
HOW TO ORDER
LD12
AVX
Style
LD05 - 0805
LD06 - 1206
LD10 - 1210
LD08 - 1808
LD12 - 1812
LD13 - 1825
LD20 - 2220
LD14 - 2225
P
Voltage
250 VDC
Telco
Rating
C
Temperature
Coefficient
X7R
104
Capacitance Code
(2 significant digits
+ no. of zeros)
Examples:
1,000 pF = 102
22,000 pF = 223
220,000 pF = 224
1 μF = 105
K
Capacitance
Tolerance
K = ±10%
M = ±20%
A
B
1
Packaging
1 = 7" Reel
3 = 13" Reel
9 = Bulk
A
Special Code
A = Standard
Test
Termination
Level
B = 5% Min Pb
A = Standard X = FLEXITERM
®
5% min. Pb
Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.
W
L
T
t
DIMENSIONS
STYLE (SIZE)
LD05 (0805)
LD06 (1206)
LD10* (1210)
LD08* (1808)
LD12* (1812)
LD13* (1825)
millimeters (inches)
LD20* (2220)
LD14* (2225)
(L) Length
(W)Width
(T) Thickness
(t) terminal
2.01 ± 0.20
3.20 ± 0.20
3.2 ± 0.20
4.57 ± 0.25
4.50 ± 0.30
4.50 ± 0.30
5.60 ± 0.30
5.60 ± 0.25
(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.220 ± 0.012) (0.220 ± 0.010)
1.25 ± 0.20
1.60 ± 0.20
2.50 ± 0.20
2.03 ± 0.25
3.2 ± 0.20
6.34 ± 0.30
5.10 ± 0.40
6.35 ± 0.25
(0.049 ± 0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.200 ± 0.016) (0.250 ± 0.010)
1.30 max.
(0.051 max.)
1.50 max.
(0.059 max.)
1.78 max.
(0.070 max.)
1.78 max.
(0.070 max.)
2.00 max.
(0.080 max.)
2.00max.
(0.080 max.)
2.00 max.
(0.080 max.)
2.00 max.
(0.080 max.)
0.50 ± 0.25
0.50 ± 0.25
0.50 ± 0.25
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
0.63 ± 0.38
(0.020 ± 0.010) (0.020 ± 0.010) (0.020 ± 0.010) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015)
*Reflow Soldering Only
102
Tip & Ring Tin/Lead Termination “B”
Multilayer Ceramic Chip Capacitors
CAPACITANCE RANGE (μF)
STYLE (SIZE)
min.
max.
LD05 (0805)
0.0010
0.027
LD06 (1206)
0.0010
0.082
LD10 (1210)
0.0010
0.22
LD08 (1808)
0.010
0.27
LD12 (1812)
0.10
0.47
LD13 (1825)
0.33
1.0
LD20 (2220)
0.47
1.0
LD14 (2225)
0.47
1.2
“TIP & RING” GRAPH
250V
Tip & Ring
0
-48V
-250V
-400ms
200ms/div
1.6s
PERFORMANCE CHARACTERISTICS
Capacitance Range
Capacitance Tolerances
Dissipation Factor
Operating Temperature Range
Temperature Characteristic
Voltage Rating
Insulation Resistance
Dielectric Strength
1000 pF to 1.2 μF
±10%, ±20%
2.5% max. (25°C, 1.0 ±0.2 Vrms at 1kHz)
-55°C to +125°C
X7R ±15% (0 VDC)
250 VDC Telco rating
1000 megohm-microfarad min.
Minimum 200% rated voltage for 5 seconds at 50 mA max. current
(25°C, 1.0 ±0.2 Vrms at 1kHz)
103
