LD30014BG

Description
3.00 inch Single Digit 7 Segment big assembly LED Display
File Size76KB,3 Pages
ManufacturerLightKey
Websitehttp://www.display-leds.com
Download Datasheet View All

LD30014BG Overview

3.00 inch Single Digit 7 Segment big assembly LED Display

LightKey
Datasheet of 3.00 inch Single Digit 7 Segment LED Display
LD30014A/B Series – 3.00 inch Single Digit 7 Segment big assembly LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
78.00 mm (3.00 inch) digit high
Excellent digit appearance
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White segment, black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative face and segment color
Alternative font
Both CA and CC versions are available
Cropped terminal pins

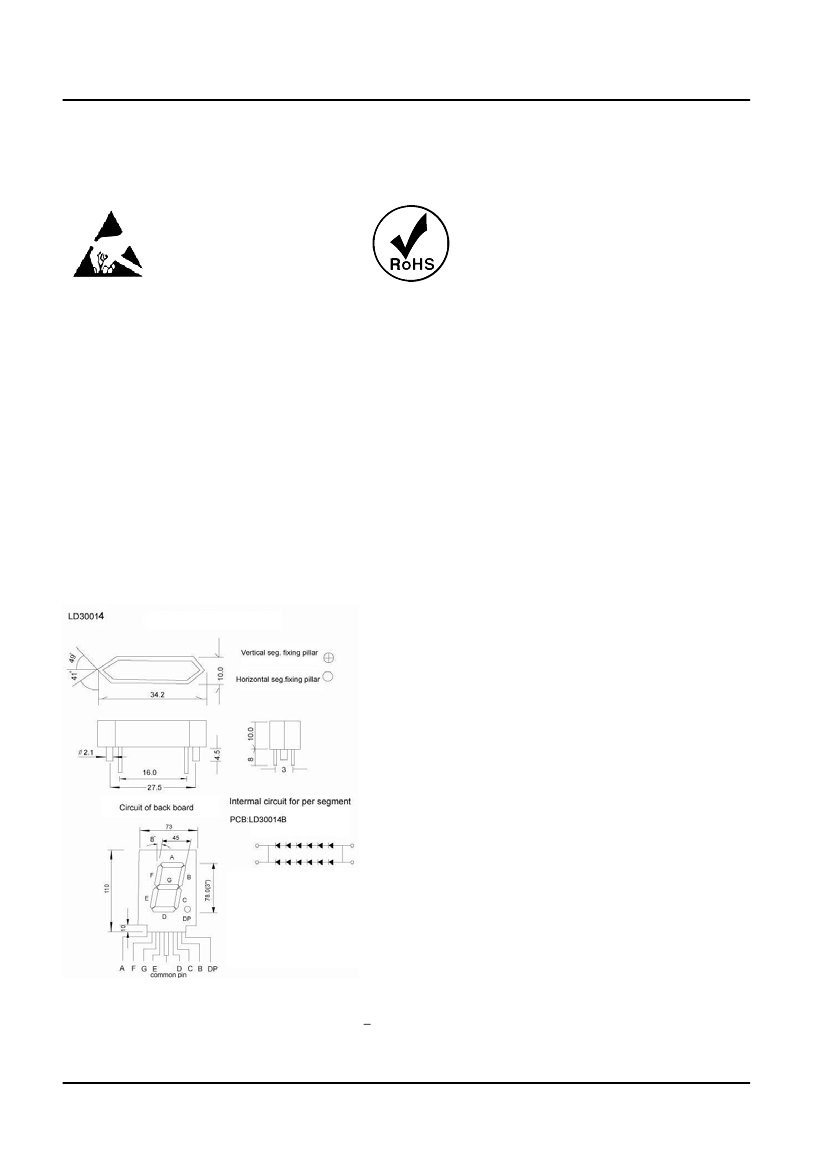

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121753
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
