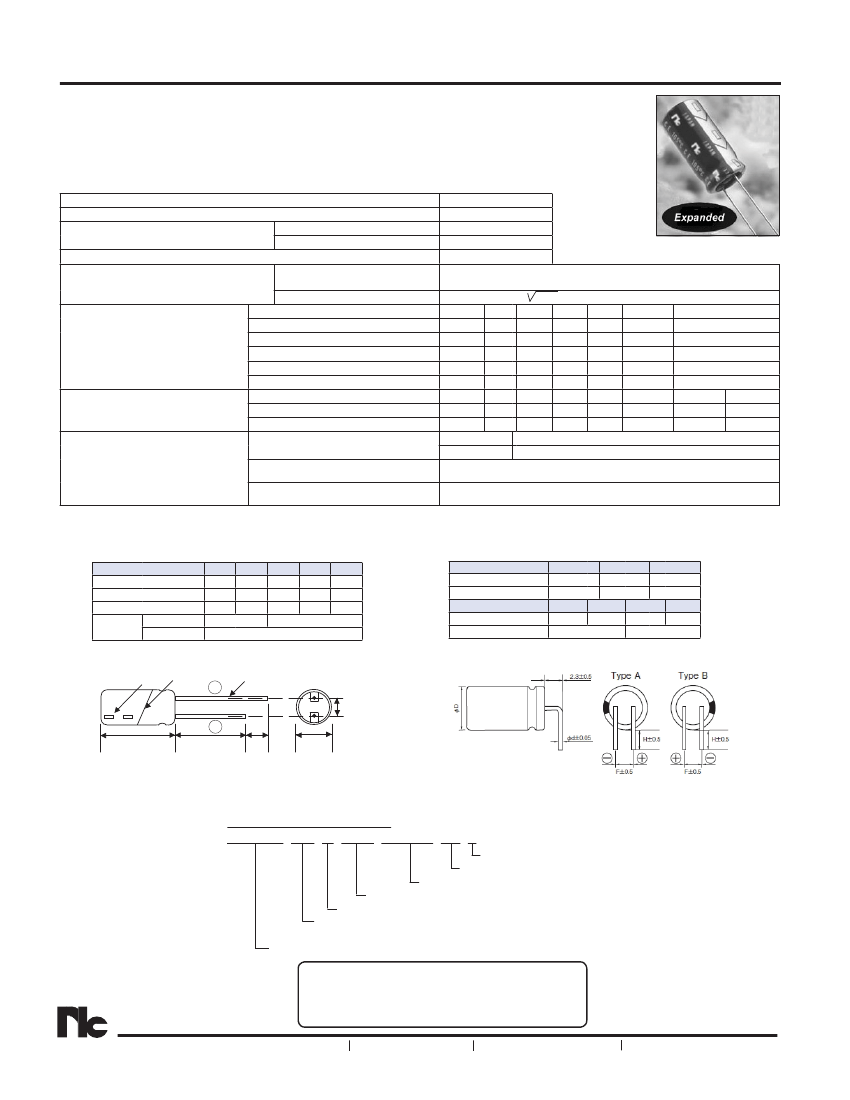

Miniature Aluminum Electrolytic Capacitors
HIGH TEMPERATURE, EXTENDED LOAD LIFE, RADIAL LEADS, POLARIZED
FEATURES
• HIGH RIPPLE CURRENT
• LONG LIFE AT HIGH TEMPERATURE (10,000 Hours @ +105°C)
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Maximum Leakage Current @ +20°C
35V ~ 100V
160V ~ 450V
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
W.V. (Vdc)
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Δ
Capacitance
Load Life at W.V. & 105°C
8 ~ 18mm: 10,000 Hours
Δ
Tan
δ
Δ
LC
35V ~ 100V
160V ~ 450V
NRB-XW Series
Max. Tan
δ
at 120Hz/20°C
Low Temperature Stability
Impedance Ratio @ 120Hz
35 ~ 450VDC
12 ~ 1,800μF
-40°C ~ +105°C
-40°C
~ +105°C
±20% (M)
0.01CV or 3μA whichever is greater
after 2 minutes at rated voltage
3x CV after 5 minute at rated voltage
35
50
63
80
100
160
200
44
63
80
100 125
200
250
0.12
0.10 0.09 0.08 0.08
0.20
0.20
220
250 350
400 420
450
-
270
300 400
450 470
500
-
0.20
0.20 0.20 0.20 0.25
0.25
-
160~250
350~400
420~450
35
50
63
80
100
2
2
2
2
2
3
5
6
3
3
3
3
3
-
-
-
35V ~ 100V
Within ±25% of initial measured value
160V ~ 450V
Within ±20% of initial measured value
Less than 200% of specified value
Less than specified value
LEAD SPACING AND DIAMETER (mm)
Case Dia. (Dφ)
8
10
Lead Dia. (Dφ)
0.6 0.6
Lead Spacing (F)
3.5 5.0
Dim.
α
0.5 0.5
35 ~ 100V
2.0
Dim.
β
160 ~ 450V
12.5
0.6
5.0
0.5
2.5
16
0.8
7.5
0.5
-
18
0.8
7.5
0.5
HORIZONTAL MOUNT LEAD FORMING (mm)
Case Dia. (Dφ)
Lead Dia. (φd)
Lead Space (F)
Forming Code
Form Type
Lead Length (H)
8
10 & 12 16 & 18
0.6
0.6
0.8
3.5
5.0
7.5
RI
RK
RX
SG
A
B
A
B
4.0
3.5
DIMENSIONS (mm)
Polarity Marking
Sleeve
+
dφ ± 0.05
F ± 0.5
-
L +
β
max.
15mm Min.
4mm
Min.
Dφ ±
α
Drawing is representative of parts as supplied in bulk or
straight lead format, please see taping specification for
details on taped format packaging.
PART NUMBER SYSTEM
NRB-XW 101 M 250V 12.5X30 RK F
.
RoHS Compliant
Optional Horizontal Mount Lead Forming
Case Size (DφxL)
Working Voltage (Vdc)
Tolerance Code (M=20%)
Capacitance Code: First 2 characters
significant, third character is multiplier
Series
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
