NRSZC151M10V5x11F datasheet, PDF

Datasheet> All Categories > NRSZC151M10V5x11F

Preview

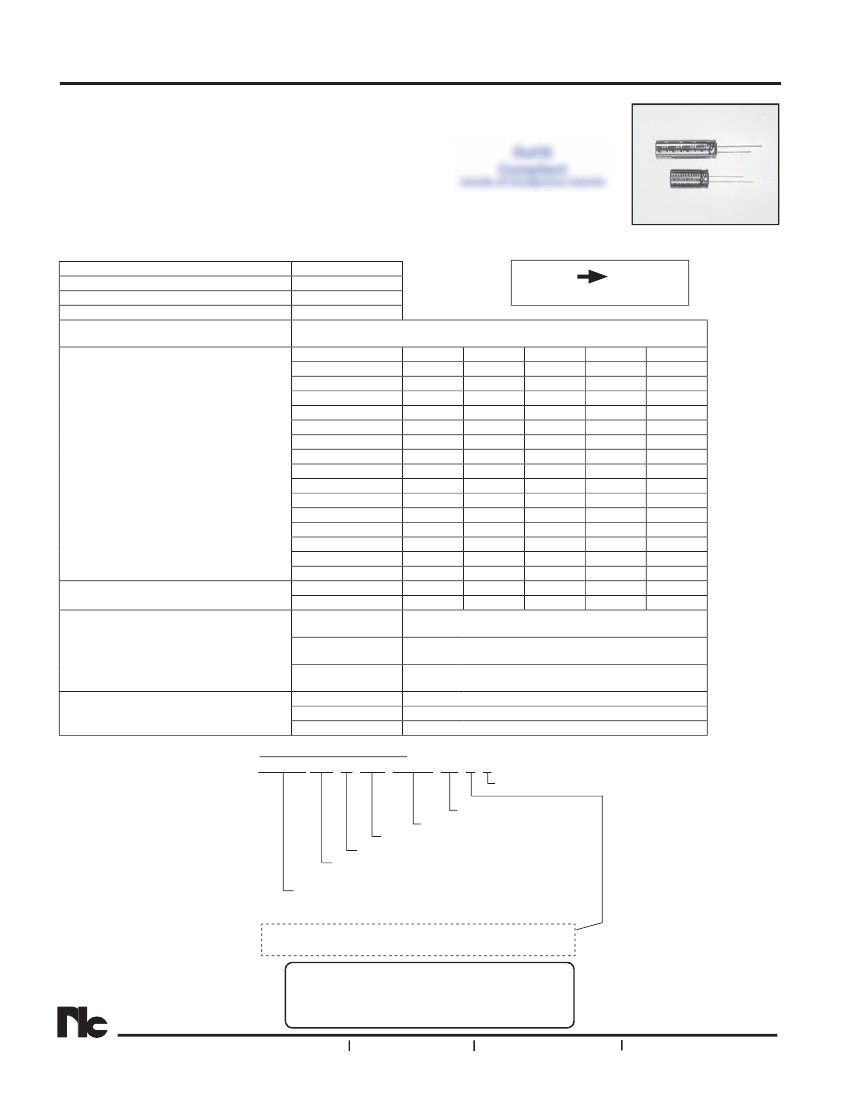

NRSZC151M10V5x11F: DescriptionMiniature Aluminum Electrolytic Ca pac i tors; File Size124KB，5 Pages; ManufacturerNIC; Websitehttps://www.niccomp.com

Download Datasheet View All

NRSZC151M10V5x11F Overview

Miniature Aluminum Electrolytic Ca pac i tors

Preview

Download Datasheet

View All

Miniature Aluminum Electrolytic Capacitors

VERY LOW IMPEDANCE(LOWER THAN NRSZ) AT HIGH FREQUENCY

RADIAL LEADS, POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

RoHS

• VERY LOW IMPEDANCE

Compliant

• LONG LIFE AT 105°C (2000 ~ 7000 hrs.)

includes all homogeneous materials

• HIGH STABILITY AT LOW TEMPERATURE

*See P N b S

Part Number System f D il

for Details

• IDEALLY FOR SWITCHING POWER SUPPLIES

• MEETS THE REQUIREMENTS OF AEC-Q200*

*Contact NIC for supporting test data

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current @ 20°C

after 2 min.

6.3 ~ 35VDC

47 ~ 18,000μF

-55 ~ +105°C

±20% (M)

0.01CV

W.V. (VDC)

S.V. (VDC)

C < 1,000μF

C = 1,800μF

C = 2,200μF

C = 2,700μF

C = 3,300μF

C = 3,900μF

C = 4,700μF

C = 5,600μF

C = 6,800μF

C = 8,200μF

C = 10,000μF

C = 12,000μF

C = 15,000μF

C = 18,000μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.36

0.40

0.44

0.50

0.56

0.19

0.21

0.23

0.26

0.27

0.29

0.33

0.37

0.41

0.47

0.16

0.18

0.20

0.22

0.24

0.26

0.30

0.34

0.14

0.16

0.18

0.22

0.24

NRSZC Series

NRSZ

(today’s standard)

(for new designs)

NRSZC

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

7,000 Hours: 16 ~ 18φ

5,000 hours: 12.5φ

4,000 hours: 10φ

3,000 hours: 8φ

2,000 hours: 5 ~ 6.3φ

Shelf Life Test

105°C for 1,000 hours

No Load

0.12

0.14

0.16

0.18

Within ±25% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

NRSZC 102 M 16V 10X16 TB Y F...

RoHS Compliant

TB = Tape & Box*

Case Size (Dφ x L)

Working Voltage (Vdc)

Tolerance Code (M=20%)

Capacitance Code: First 2 characters

signiﬁcant, third character is multiplier

Series

*see taping speciﬁcations for details

Optional: For automotive equipment, sourced to special

production and inspection at TS-16949 certiﬁed production site

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process

details with NIC’s technical support personnel:

tpmg@niccomp.com

PART NUMBER SYSTEM

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
