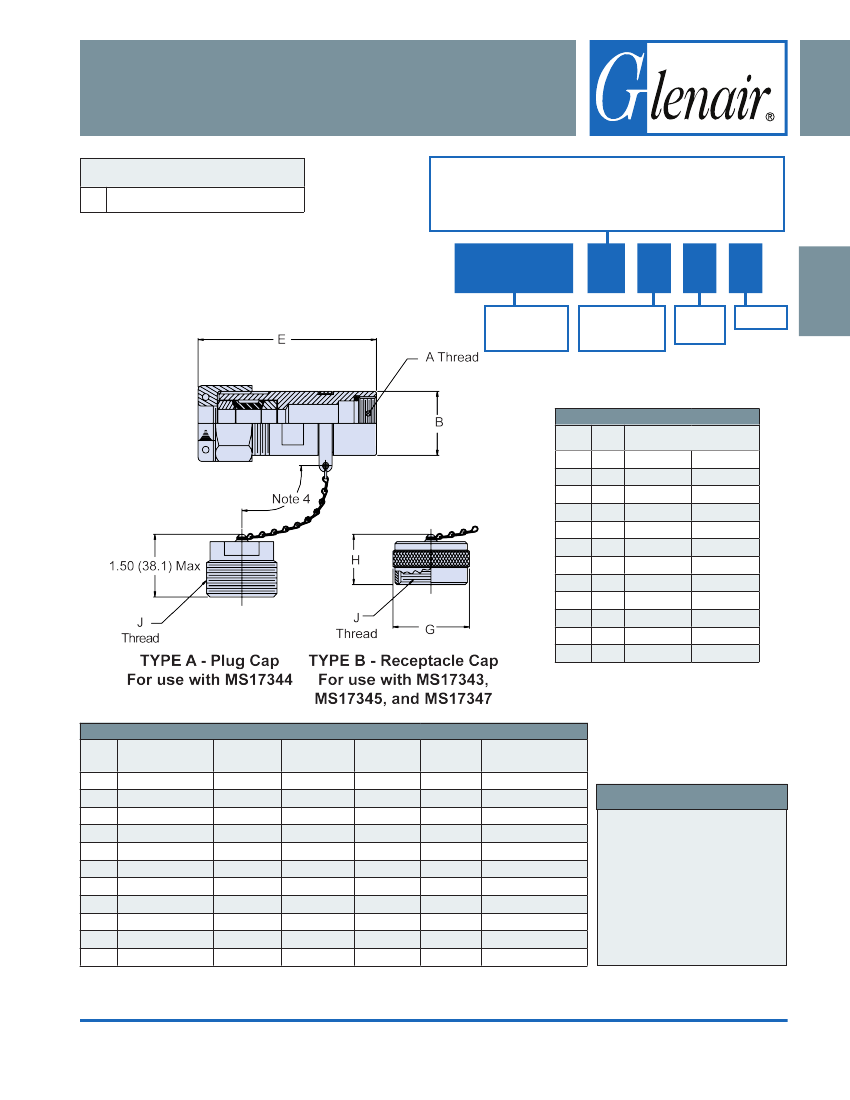

AS85049/3 Style 2
Straight Environmental Backshell
Finish
X
= Nickel Fluorocarbon Polymer
Z
= Zinc Nickel
CONNECTOR DESIGNATOR:
C
MIL-DTL-22992 Classes C, J and R
A
= Black Anodize
W
= Cadmium, Olive Drab
Y
= Pure Dense
Electrodeposited Aluminum
M85049/3
Basic
Part Number
W
10
A
Type
A
or
B
2
Style 2
B
Dash Number
(Table II)
TABLE II: Dash No. and Cable Range
Dash
No.
Shell
Size
Cable Range
Min
Max
1
2
3
4
5
6
7
8
9
10
11
12
12
14
16
18
20
22
24
28
28
32
36
40
.246 (6.2)
.321 (8.2)
.446 (11.3)
.565 (14.4)
.690 (17.5)
.396 (10.1)
.521 (13.2)
.646 (16.4)
.765 (19.4)
.890 (22.6)
.815 (20.7) 1.015 (25.8)
.980 (24.9) 1.180 (30.0)
1.230 (31.2) 1.430 (36.3)
1.030 (26.2) 1.230 (31.2)
1.430 (36.3) 1.670 (42.4)
1.660 (42.2) 1.860 (47.2)
1.860 (47.2) 2.110 (53.6)
TABLE I: Shell Size and Dimensions
Shell
Size
12
14
16
18
20
22
24
28
32
36
40
A Thread
Class 2B-LH
.7500 - 20 UNEF
B Dia
±.015 (0.4)
E
Max
G Dia
Max
H
Max
J Thread (Plated)
Class 2 (A or B)
.933 (23.7) 4.000 (101.6) 1.094 (27.8) .765 (19.4) 0.875-0.1P-0.2L-DS
1.
2.
3.
.8750 - 20 UNEF 1.057 (26.8) 4.100 (104.1) 1.219 (31.0) .765 (19.4) 1.000-0.1P-0.2L-DS
1.0000 - 20 UNEF 1.183 (30.0) 4.400 (111.8) 1.344 (34.1) .980 (24.9) 1.125-0.1P-0.2L-DS
1.1250 - 18 UNEF 1.307 (33.2) 4.900 (124.5) 1.469 (37.3) .980 (24.9) 1.250-0.1P-0.2L-DS
1.2500 - 18 UNEF 1.433 (36.4) 4.900 (124.5) 1.562 (39.7) .980 (24.9) 1.375-0.1P-0.2L-DS
1.3750 - 18 UNEF 1.557 (39.5) 4.900 (124.5) 1.688 (42.9) .980 (24.9) 1.500-0.1P-0.2L-DS
1.6250 - 18 UNEF 1.807 (45.9) 5.000 (127.0) 1.938 (49.2) .980 (24.9) 1.750-0.1P-0.2L-DS
1.8750 - 16 UN 2.057 (52.2) 5.300 (134.6) 2.219 (56.4) .980 (24.9) 2.000-0.1P-0.2L-DS
2.0625 - 16 UNS 2.307 (58.6) 5.600 (142.2) 2.469 (62.7) .980 (24.9) 2.250-0.1P-0.2L-DS
2.3125 - 16 UNS 2.557 (64.9) 5.600 (142.2) 2.719 (69.1) .980 (24.9) 2.500-0.1P-0.2L-DS
2.6250 - 16 UN 2.870 (72.9) 5.725 (145.4) 2.969 (75.4) .980 (24.9) 2.750-0.1P-0.2L-DS
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
4.
APPLICATION NOTES
For complete dimensions see the
applicable Military Specification.
Metric dimensions (mm) are in
parentheses.
Cable Range is defined as the
accommodation range for the wire
bundle or cable. Dimensions shown
are not intended for inspection
criteria.
Approximate chain lengths: Dash
No. 01-12 = 5.0 (127.0); Dash No.
13-29 = 6.0 (152.4).
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-5
E-Mail: sales@glenair.com
AS85049
