P2KU-xxxxELF
PMA-SERIES
Rev.11-2008
0.25 Watt
Unregulated
Single
Output
DIP8
Case
3 kV
DC I/O Isolation
Low Ripple and Noise
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PMA series P2KU-xxxxELF is a family of cost effective 0.25 W single
output DC/DC converters. These converters are in an ultra miniature DIP8
case. Devices are encapsulated. High performance features: 3000VDC
input/output isolation, high efficiency operation, output voltage accuracy of
±3% maximum, input range of ±10% tolerance and low output ripple and
noise.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
(20% - 100%)
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
General Specifications
Efficiency
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
± 10%
Capacitor
20 mA pk-pk
± 3%
Short Term
± 1.2% / 1% Vin Change
± 10% (3.3Vout Models: ± 20%)
100 mV pk-pk
± 0.02% / °
C
See Table
3000 VDC
60 pF, typ.
1000 MOhm
80 kHz
(Variable)
95% rel H
> 1.121 Mhrs
Non Conductive Black Plastic
(UL94V-0 rated)
Epoxy
(UL94V-0 rated)
~ 1.8g, typ.
-40 to +85°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
Soldering 260° max.
(1.5mm from case 10s.)
C,
PMA-Series – P2KU-xxxxELF – Single Output – DIP8 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/3
Selection Guide
Single
Output
)
)
A)
mA
(mA ad (m
ad (
)
d
ll Lo
Lo
DC
F)²
C)
Loa
t Fu
d (u
(VD
e (V
No
Full
a
rren
(%)
ltag
rent
rent
r Lo
tage
t Vo
t Cu
ncy
Vol
Cur
Cur
cito
t
t
t
a
pu
pu
cie
Inpu
Inpu
Inpu
Out
Out
Effi
Cap
Order #
SINGLE OUTPUT
P2KU-053R3ELF
P2KU-0505ELF
P2KU-057R2ELF
P2KU-0509ELF
P2KU-0512ELF
P2KU-0515ELF
P2KU-0518ELF
P2KU-0524ELF
P2KU-123R3ELF
P2KU-1205ELF
P2KU-127R2ELF
P2KU-1209ELF
P2KU-1212ELF
P2KU-1215ELF
P2KU-1218ELF
P2KU-1224ELF
P2KU-243R3ELF
P2KU-2405ELF
P2KU-247R2ELF
P2KU-2409ELF
P2KU-2412ELF
P2KU-2415ELF
P2KU-2418ELF
P2KU-2424ELF
5
5
5
5
5
5
5
5
12
12
12
12
12
12
12
12
24
24
24
24
24
24
24
24
20
20
20
20
20
20
20
20
15
15
15
15
15
15
15
15
8
8
8
8
8
8
8
8
75
75
75
73
73
73
73
71
31
31
30
30
30
30
29
28
15
15
15
15
15
15
15
15
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
75.7
50
34.72
27.77
20.83
16.67
13.88
10.41
75.7
50
34.72
27.77
20.83
16.67
13.88
10.41
75.7
50
34.72
27.77
20.83
16.67
13.88
10.41
66
66
66
68
68
68
68
70
66
67
68
68
68
69
70
72
67
67
67
69
69
69
69
69
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
If you need other specifications, please enquire.
Notes:
PMA-Series – P2KU-xxxxELF – Single Output – DIP8 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/3

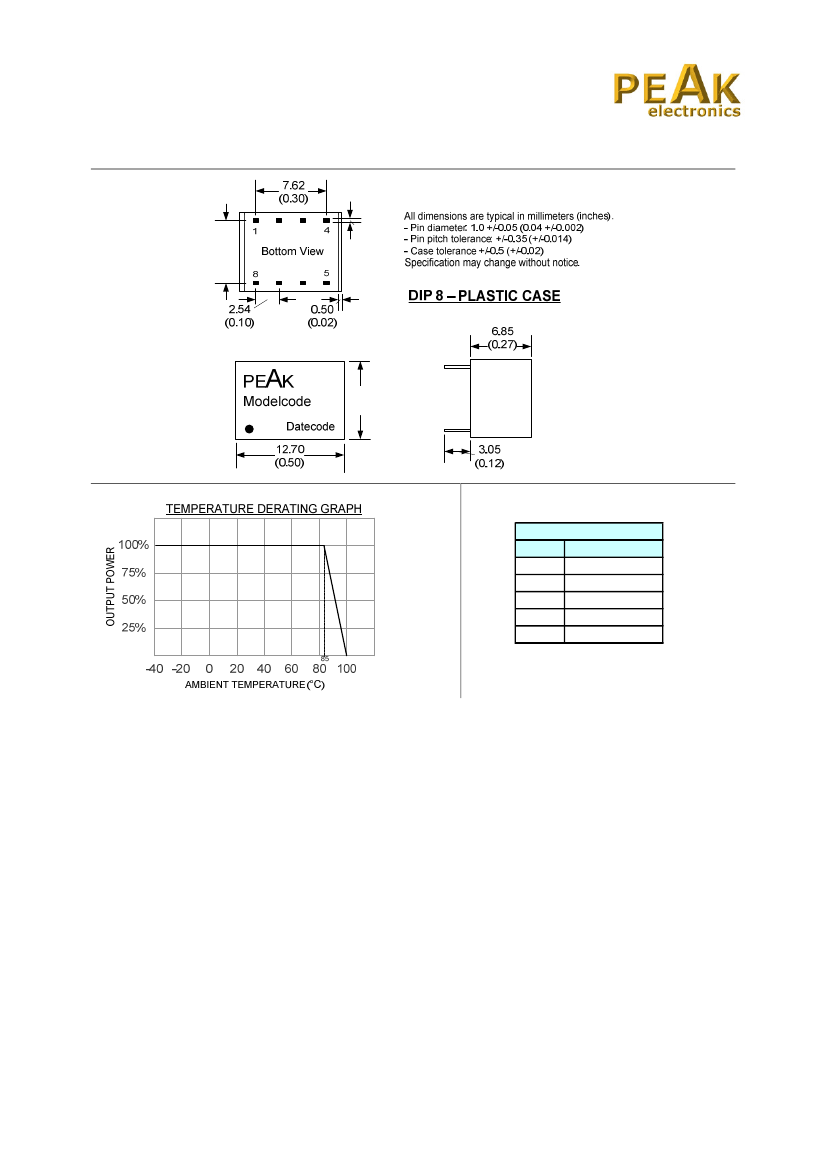

Package / Pinning / Derating
7.62
(0.30)
10.16
(0.40)
0.50
(0.02)
PIN CONNECTIONS
#
SINGLE
1
- Vin
4
+Vin
5
+Vout
7
- Vout
Others Omitted
App Notes:
¹ =
Measured Input reflected ripple current with a simulated source inductance of 12uH.
² =
Tested by minimal Vin and constant resistive load.
- Operation under no-load conditions will not damage these devices, but they will not observe the listed specifications.
PMA-Series – P2KU-xxxxELF – Single Output – DIP8 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/3
