P44TG-xxxxE/Z2:1MLF
PMU-SERIES
Rev.11-2008
12 Watt
Regulated
DIP24
Metal Case
1.5 kV
DC I/O Isolation
Single
and
Dual
Output
Continuous Short Circuit Prot.
Remote On / Off
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current
Output Specifications
Voltage Accuracy
Short Circuit Protection
Over Current Protection
Line Regulation
Load Regulation
(0% - 100%)
Cross Regulation (Dual Output)
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
Transient Recovery Time¹
Transient Response Deviation¹
General Specifications
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
(typical)
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PMU series are cost effective 12 W single & dual output DC/DC
converters. These converters are encapsulated in nickel-coated copper
DIP24 case with high performance features: Synchronous rectification, high
efficiency and tight line / load regulation.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
2:1 Wide Input
Pi Type
20 mA pk-pk
± 1.2%
Indefinite
(hiccup / automatic recovery)
150% of FL, typ.
± 0.5%, max.
± 0.5%, max.
(Single)
/ ± 1%, max.
(Dual)
± 5%
85 mV pk-pk
± 0.02% / °
C
250us, typ.
± 3%, max.
1500 VDC
1200 pF, typ.
1000 M Ohm
330 kHz, typ.
95% rel H
> 1 Mhrs
Nickel Coated Copper
Epoxy
(UL94V-0 rated)
~ 18.0g, typ.
-40 to +60°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
Soldering 260° max.
(1.5mm from case 10s.)
C,
Page 1/3
PMU-Series – P44TG-xxxxE/Z2:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Selection Guide
Single/Dual
Output
)
)
mA)
m A)
(mA ad (mA
ad (
ad (
o
d
ll Lo
Lo
F )²
DC)
n. L
C)
Loa
t Fu
t Mi
d (u
(V D
No
e (V
F u ll
n
)
n
a
g
age
rent
rent
u rre
urre
o lta
y ( % c ito r L o
Volt
Cur ut Cur
ut V
ut C
enc
ut C
t
t
i
a
p
p
p
Inpu
Inpu
In p
Out
O ut
Out
E ffic
Ca p
Order #
SINGLE OUTPUT
P44TG-122R5E2:1MLF
P44TG-123R3E2:1MLF
P44TG-1205E2:1MLF
P44TG-1212E2:1MLF
P44TG-1215E2:1MLF
P44TG-242R5E2:1MLF
P44TG-243R3E2:1MLF
P44TG-2405E2:1MLF
P44TG-2412E2:1MLF
P44TG-2415E2:1MLF
P44TG-482R5E2:1MLF
P44TG-483R3E2:1MLF
P44TG-4805E2:1MLF
P44TG-4812E2:1MLF
P44TG-4815E2:1MLF
DUAL OUTPUT
P44TG-1212Z2:1MLF
P44TG-1215Z2:1MLF
P44TG-2412Z2:1MLF
P44TG-2415Z2:1MLF
P44TG-4812Z2:1MLF
P44TG-4815Z2:1MLF
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
889
1146
1163
1149
1149
445
573
581
575
575
225
283
291
294
291
2.5
3.3
5
12
15
2.5
3.3
5
12
15
2.5
3.3
5
12
15
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3500
3500
2400
1000
800
3500
3500
2400
1000
800
3500
3500
2400
1000
800
85
87
89
90
90
85
87
89
90
90
84
88
89
88
89
2000
2000
2000
430
300
2000
2000
2000
430
300
2000
2000
2000
430
300
9-18
9-18
18-36
18-36
36-75
36-75
15
15
15
15
15
15
1149
1136
575
562
294
291
± 12
± 15
± 12
± 15
± 12
± 15
0
0
0
0
0
0
± 500
± 400
± 500
± 400
± 500
± 400
90
91
90
91
88
89
± 200
± 120
± 200
± 120
± 200
± 120
If you need other specifications, please enquire.
PMU-Series – P44TG-xxxxE/Z2:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/3

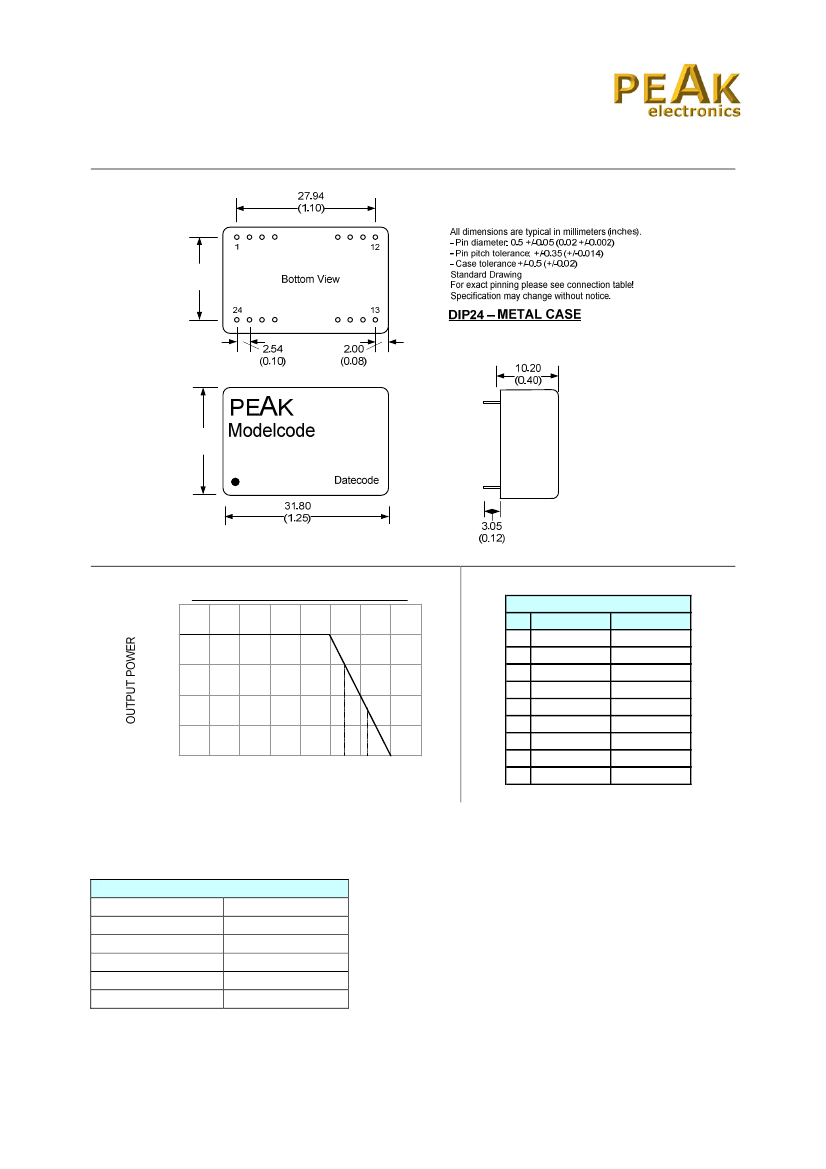

Package / Pinning / Derating
20.30
(0.80)
15.24
(0.60)
TEMPERATURE DERATING GRAPH
100%
75%
50%
25%
71
85
-40 -20
0
20
40
60
80 100
#
1
2
3
9
11
14
16
22
23
PIN CONNECTIONS
SINGLE
DUAL
Ctrl. On/Off Ctrl. On/Off
- Vin
- Vin
- Vin
- Vin
Omitted
Common
N.C.
- Vout
+Vout
+Vout
- Vout
Common
+Vin
+Vin
+Vin
+Vin
AMBIENT TEMPERATURE (°C)
App Notes:
¹ = Tested by nominal Vin and 75% - 25% load, 25% load step change.
² =
Tested by minimal Vin and constant resistive load.
Over Voltage Protection (Zender diode clamp)
2.5 Vout, 3.3 Vout:
5 Vout
12 Vout
15 Vout
± 12 Vout
± 15 Vout
3.9 V
6.2 V
15 V
18 V
± 15 V
± 18 V
The Remote on/off controll:
ON:
3.0 … 12.0 VDC or open circuit
OFF:
0 - 1.2 VDC or short circuit PIN 1 and PIN 2 / 3
OFF idle current: 5.0 mA, typ.
PMU-Series – P44TG-xxxxE/Z2:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/3
