AS85049/76

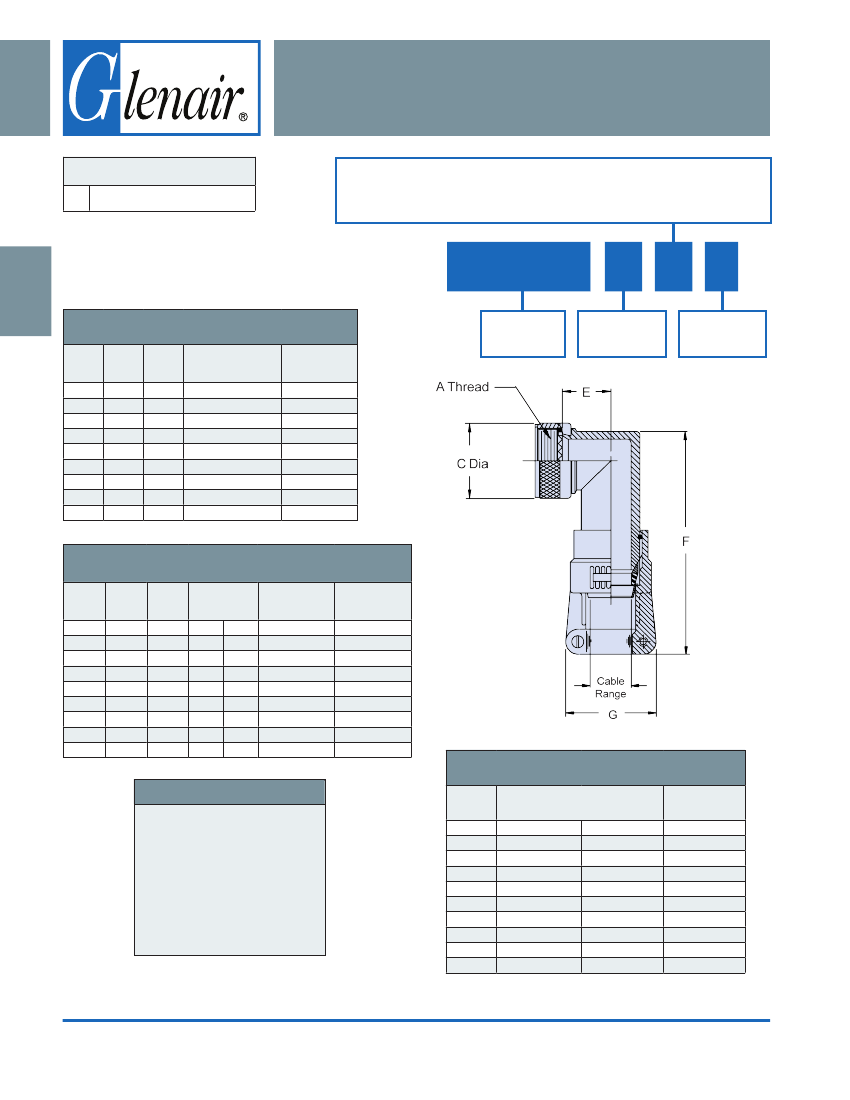

90° EMI/RFI Environmental Backshell
B
Dash
No.
08
10
12
14
16
18
20
22
24
09
11
13
15
17
19
21
23
25
AS85049
CONNECTOR DESIGNATOR:
F
MIL-DTL-38999 Series I and II
N
= Electroless Nickel
W
= 1,000 Hr. Cadmium Olive Drab
over Electroless Nickel
Finish
X
= Aluminum, Nickel Flurocarbon Polymer
Z
= Aluminum, Zinc-Nickel, Black
M85049/76
-
10
TABLE I: Shell Size,
Thread and Dimensions
Series I
W
01
Clamp Size
(Tables II & III)
Shell
Size
Series II
Shell
Size
08
10
12
14
16
18
20
22
24
A Thread
Class 2B
.438 - 28 UNEF
.562 - 24 UNEF
.688 - 24 UNEF
.813 - 20 UNEF
.938 - 20 UNEF
1.063 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
C Dia
Max
.750
.850
1.000
1.150
1.250
1.400
1.550
1.650
1.850
(19.1)
(21.6)
(25.4)
(29.2)
(31.8)
(35.6)
(39.4)
(41.9)
(47.0)
Basic
Part Number
Dash Number
(Table I)
TABLE II: Shell Size, Series 1 Reference,
Clamp Size and Dimensions
Dash
No.
08
10
12
14
16
18
20
22
24
Series I
Shell
Size
09
11
13
15
17
19
21
23
25
Series II
Shell
Size
08
10
12
14
16
18
20
22
24
Clamp Size
Min Max
01
01
02
02
02
03
03
03
04
02
03
04
05
06
07
08
09
10
E
± .156 (4.0)
.532
.627
.642
.719
.774
.854
.899
1.009
1.024
(13.5)
(15.9)
(16.3)
(18.3)
(19.7)
(21.7)
(22.8)
(25.6)
(26.0)
F
± .188 (4.8)
3.267
3.387
3.407
3.477
3.567
3.737
3.737
3.847
3.847
(83.0)
(86.0)
(86.5)
(88.3)
(90.6)
(94.9)
(94.9)
(97.7)
(97.7)
APPLICATION NOTES
1.
2.
3.
For complete dimensions
see the applicable Military
Specification.
Metric dimensions (mm) are in
parentheses.
Cable Range is defined as
the accommodation range
for the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
TABLE III: Clamp Size,
Cable Range and Dimensions
Clamp
Size
01
02
03
04
05
06
07
08
09
10
Cable Range
Min
Max
.062
.125
.250
.375
.500
.625
.750
.875
1.000
1.125
(1.6)
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
.125
.250
.375
.500
.625
.750
.875
1.000
1.125
1.250
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
(31.8)
G
Max
.800
1.000
1.100
1.200
1.250
1.400
1.500
1.650
1.750
1.900
(20.3)
(25.4)
(27.9)
(30.5)
(31.8)
(35.6)
(38.1)
(41.9)
(44.5)
(48.3)
