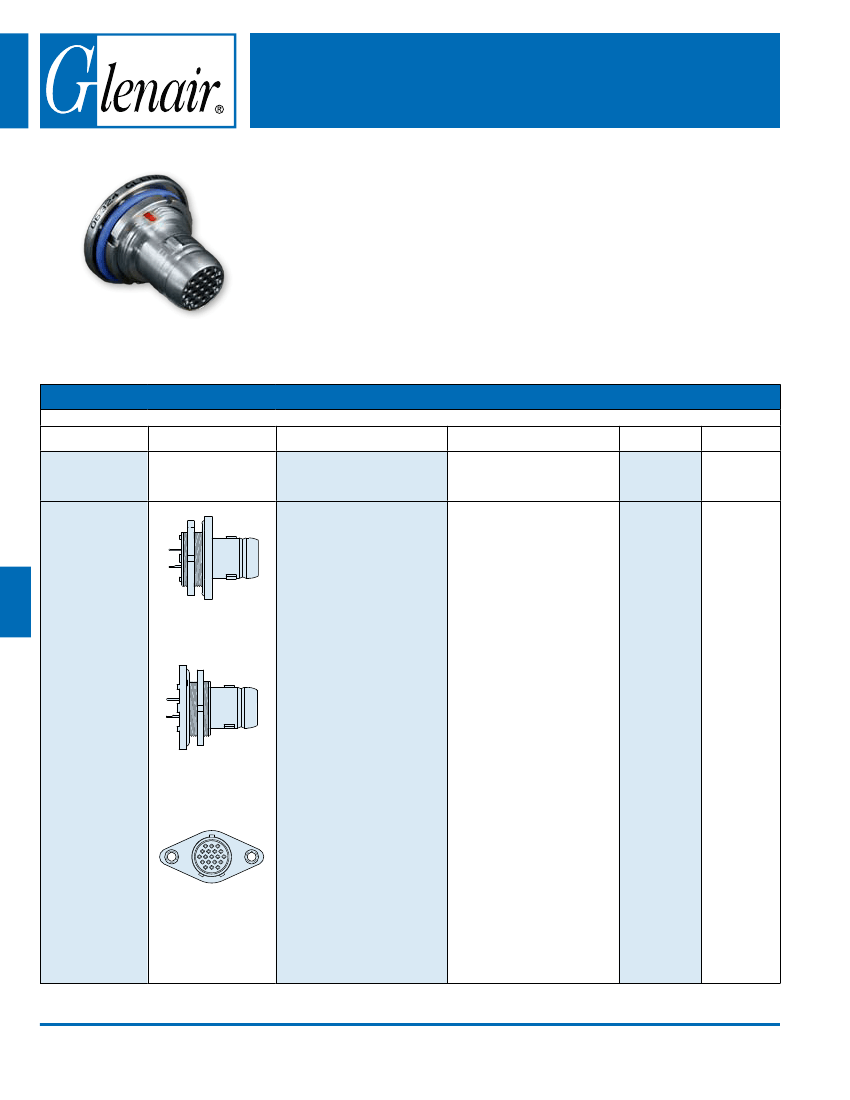

Series 804 Push-Pull Mighty Mouse
Panel Mount Plug Ordering Information
804-009, 804-020
A
B
A
C
E
F
G
G
J
K
L
M
© 2010 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
Series 804
B
#6-32 THREADED
LOCKNUT (2 PL)
øG
Panel Mount Plugs
save space inside the box compared to Series 804 receptacles.
Factory-installed non-removable contacts. Solder cup or printed circuit board terminals.
Available in front or rear panel mount versions.
Ingress Protection, Unmated
Specify
804-009
connectors for applications where open face water immersion is not
a requirement. For IP67 ingress protection and MIL-STD-810 Method 512 immersion
.950 (24.13) MAX
.050 (1.27)
requirements, specify
804-021
watertight connectors certified to meet one atmosphere
.720 (18.29
KEY
pressure differential in open face condition from -40° to +70°C.
"Push-Pull" Quick-Disconnect
øD øE øF
Canted spring securely retains the mating plug.
.560(14.22)
Series 804 Panel Mount Plug
(Style 07 shown)
øC
.025 (0.64)
TYP
.125 (3.18)
MIN
HOW TO ORDER SERIES 804 PANEL MOUNT PLUGS
Sample Part Number
.125 (3.18) MAX
PANEL THK
804-009
Series
A
FLAT
.275 (6.99)
C THREAD
-07
NF
10-26
E
Contact
Type
P
Shell Key
Position
Omit
ØG
KEY
øH
øD
Shell Style
Shell Material / Finish
øE
øF
Shell Size- Insert
Arrangement
SEE
Panel Mount Plug,
ø
Solder Cup or
B .025 (0.64)
TYP
PCB Termination,
With Standard
.125 (3.18)
MIN
Epoxy Potting
804-009
.560
(14.22)
.950 (24.13)
MAX
Aluminum / Black Anodize
(Non-Conductive)
RoHS Compliant
Aluminum / Electroless
Nickel
RoHS Compliant
Aluminum / Cadmium with
Olive Drab Chromate
Aluminum / Zinc-Nickel with
Olive Drab Chromate
C
CONTACT
ARRANGEMENTS
PAGE G-2
Pin,
PC Tail
for Single
Master Key
Panel Mount Plug,
Solder Cup or
PCB Termination,
With Resilient
Silicone Potting
For Watertight
Seal from -40°
to +70°C (15
PSI Pressure
Differential)
804-021
Jam Nut, Front
Panel
- 00
M
Socket,
PC Tail
S
Pos. A
(Normal)
A
NF
ZN
Pin,
Solder Cup
E
Pos. B
B
C
D
- 07
Jam Nut, Rear
Panel
Aluminum / Zinc-Nickel with
Black Chromate
Aluminum / Nickel-PTFE
RoHS Compliant
Stainless Steel / Passivated
RoHS Compliant
ZNU
MT
Z1
Socket,
Solder Cup
F
Pos. C
Pos. D
- 02
Flange Mount, Rear
Panel
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
Rev. 01-JANUARY-2010
G-14
E-Mail: sales@glenair.com
804-009-07, 804-021-07
.125 (3.18) MAX
PANEL THK
C THREAD
øA
øG
KEY
øD øE
F
FLAT
øB
.025 (0.64)
TYP
.125 (3.18) TYP
MIN
.275
(6.99)
.560(14.22)
.950 (24.13) MAX

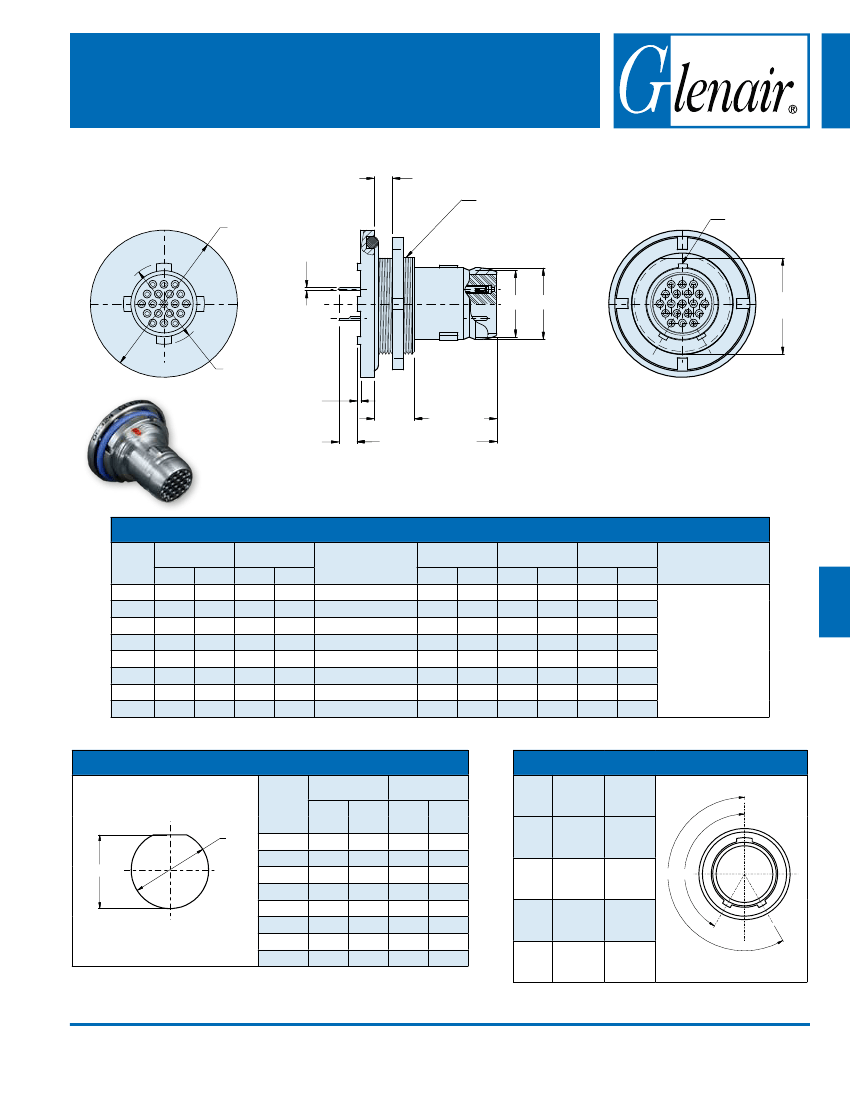

DIMENSIONS
Shell
Size
5
6
7
8
9
10
12
14
ØA
In.
mm.
.790
.830
.910
.955
1.000
1.085
1.180
1.325
20.07
21.08
23.11
24.26
25.40
27.56
29.97
33.66
ØB
In.
mm.
.244
.330
.432
.493
.551
.620
.703
.863
6.20
8.38
10.97
12.52
14.00
15.75
C Threads
.4375-32 UN-2A
.5000-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
ØD
In.
mm.
.219
.282
.351
.398
.454
.529
.646
.768
5.56
7.16
8.92
10.11
11.53
13.44
16.41
19.51
ØE
In.
mm.
.250
.313
.383
.429
.486
.563
.676
.800
6.35
7.95
9.73
10.90
12.34
14.30
17.17
20.32
F Flat
In.
mm.
.415
.467
.594
.594
.655
.721
.843
.968
ØG
Tail Dia.
10.54
#23
11.86 .018/.022 (0.46/0.56)
15.09
#20
15.09 .024/.028 (0.61/0.71)
16.64
#16
18.31 .060/.064 (1.52/1.63)
#12
21.41
24.59 .092/.096 (2.34/2.44)
G
17.86
.8750-28 UN-2A
21.92 1.0000-28 UN-2A
JAM NUT PANEL CUTOUT
A Flat
øB
A FLAT
SERIES 804 PLUG kEY POSITIONS
Ø
B
In.
mm.
A
B
C
D
Shell
Size
5
6
7
8
9
10
12
14
± .002 ± 0.05 ± .005 ± 0.13
.423
.475
.588
.602
.663
.729
.851
.976
10.74
12.07
14.94
15.29
16.84
18.82
21.62
24.79
.448
.510
.635
.635
.698
.760
.885
1.010
11.38
12.95
16.13
16.13
17.73
19.30
22.48
25.65
In.
mm.
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
B° A°
© 2010 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
G-15
Rev. 01-JANUARY-2010
Series 804
Series 804 Push-Pull Mighty Mouse
Jam Nut Panel Mount Plug Dimensions
series 804 Push-Pull Mighty Mouse
Jam Nut Front Panel Mount Plug Dimensions
804-009-00, 804-021-00
.275 (6.99)
C THREAD
.125 (3.18) MAX
PANEL THK
ØF
KEY
A
B
C
øB
E
F
G
G
J
K
L
M
© 2010 Glenair, Inc.
Series 804
A
FLAT
øG
øD øE
.025 (0.64)
TYP
.125 (3.18)
MIN
.560
(14.22)
.950 (24.13)
MAX

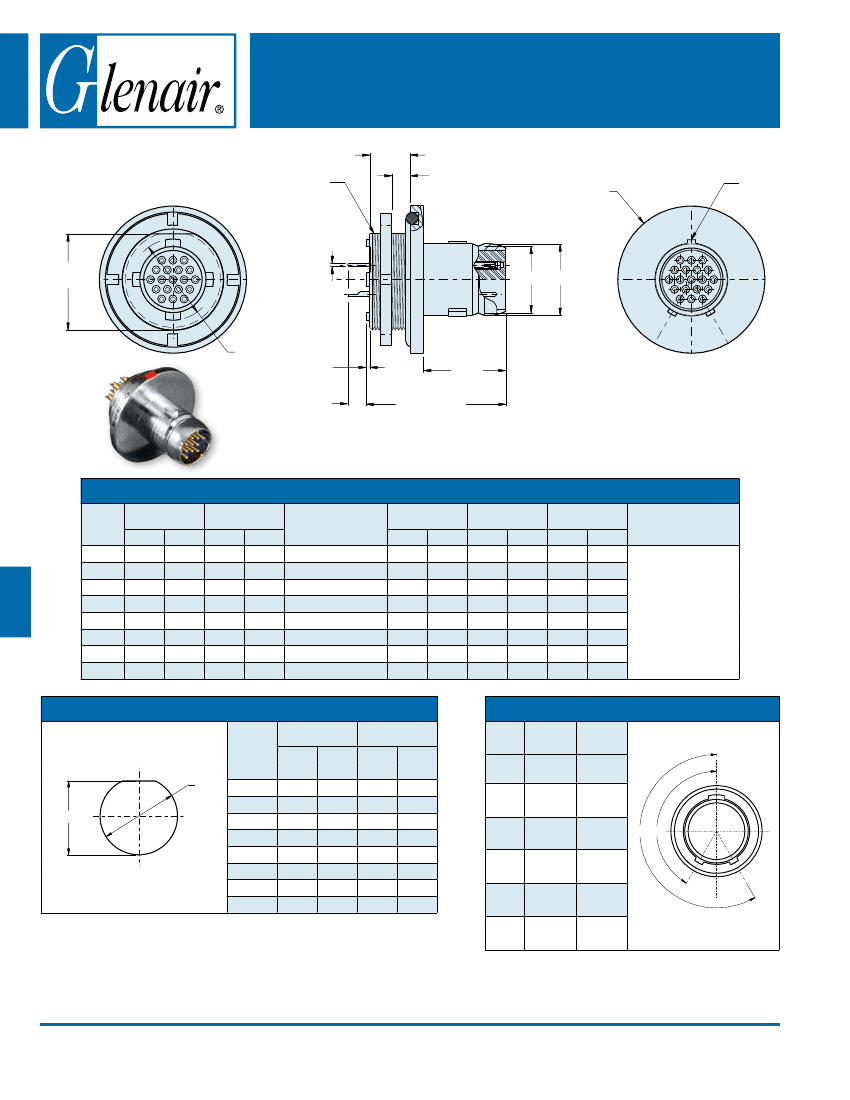

DIMENsIoNs
Shell
Size
5
6
7
8
9
10
12
14
A Flat
In.
mm.
.415
.467
.594
.594
.655
.721
.843
.968
10.54
11.86
15.09
15.09
16.64
18.31
21.41
24.59
ØB
In.
mm.
.244
.330
.432
.493
.551
.620
.703
.863
6.20
8.38
10.97
12.52
14.00
15.75
C Threads
.4375-32 UN-2A
.5000-32 UN-2A
.6250-28 UN-2A
.6250-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
ØD
In.
mm.
.219
.282
.351
.398
.454
.529
.646
.768
5.56
7.16
8.92
10.11
11.53
13.44
16.41
19.51
ØE
In.
mm.
.250
.313
.383
.429
.486
.563
.676
.800
6.35
7.95
9.73
ØF
In.
mm.
.790
.830
.910
ØG
Tail Dia.
10.90
.955
12.34 1.000
14.30 1.085
17.17 1.180
20.32 1.325
20.07
#23
21.08 .018/.022 (0.46/0.56)
23.11
#20
24.26 .024/.028 (0.61/0.71)
25.40
#16
.060/.064 (1.52/1.63)
27.56
#12
29.97
.092/.096 (2.34/2.44)
33.66
17.86
.8750-28 UN-2A
21.92 1.0000-28 UN-2A
JAM NUT PANEL CUToUT
A Flat
øB
A FLAT
sERIEs 804 PLUG kEY PosITIoNs
Ø
B
In.
mm.
A
B
C
D
E
F
Shell
Size
5
6
7
8
9
10
12
14
± .002 ± 0.05 ± .005 ± 0.13
.423
.475
.588
.602
.663
.729
.851
.976
10.74
12.07
14.94
15.29
16.84
18.82
.448
.510
.635
.635
.698
.760
11.38
12.95
16.13
16.13
17.73
19.30
22.48
25.65
In.
mm.
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
B° A°
21.62
.885
24.79 1.010
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
Rev. 17-MARCH-2010
Rev. 01-JANUARY-2010
G-16
E-Mail: sales@glenair.com
804-009-02, 804-021-02
A
B
#6-32 THREADED
#4-40 THREADED
LOCKNUT (2 PL)
LOCKNUT (2 PL)
øG
.950 (24.13) MAX
.050 (1.27)
.720 (18.29
KEY
øD øE øF
øC
.025 (0.64)
TYP
.125 (3.18)
MIN
.560(14.22)

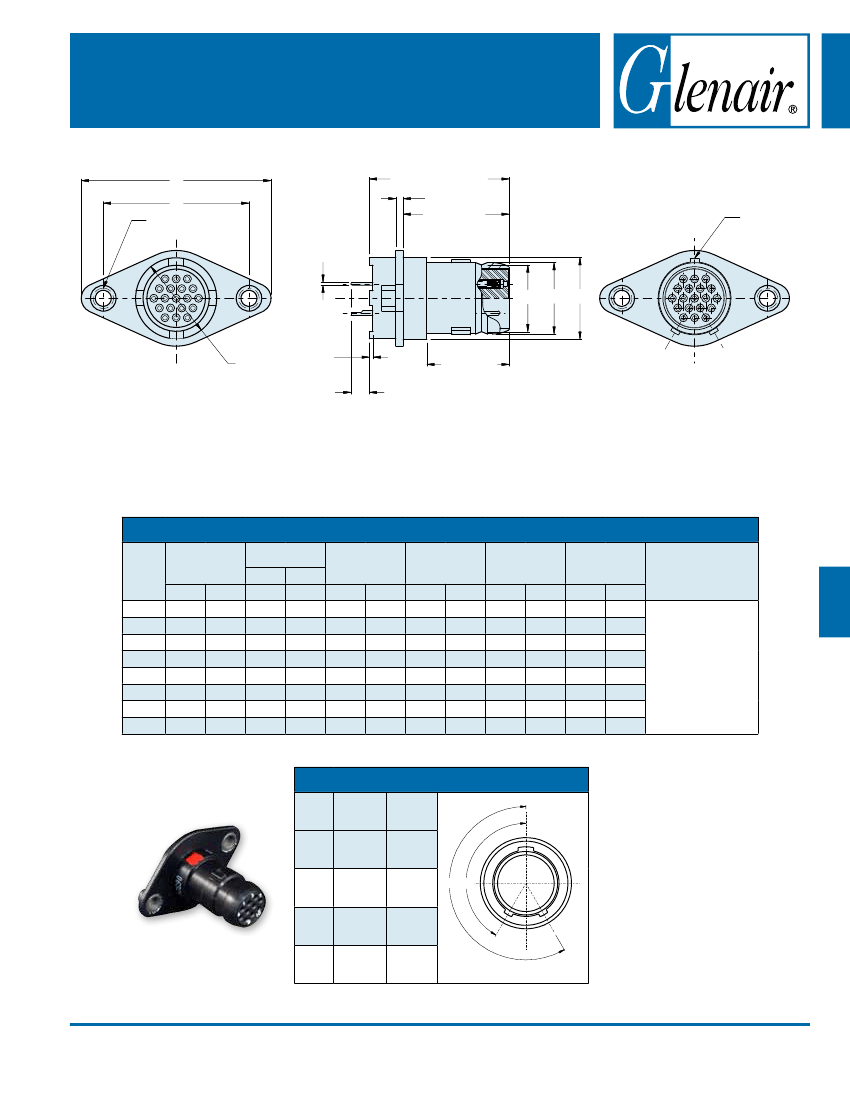

DIMENSIoNS
Shell
Size
5
6
7
8
9
10
12
14
A
In.
1.055
1.120
1.185
1.230
1.290
1.360
1.485
1.600
B
In.
mm.
mm. ±.005
±0.13
26.80
28.45
30.10
31.24
32.77
.755
.820
.885
.930
.990
19.18
20.83
22.48
23.62
25.15
26.92
30.10
33.02
ØC
In.
mm.
.244
.330
.432
.493
.551
.620
.703
.863
6.20
8.38
10.97
12.52
14.00
15.75
17.86
21.92
ØD
In.
mm.
.219
.282
.351
.398
.454
.529
.646
.768
5.56
7.16
8.92
10.11
11.53
13.44
16.41
19.51
ØE
In.
mm.
.250
.313
.383
.429
.486
.563
.676
.800
6.35
7.95
9.73
10.90
12.34
14.30
17.17
20.32
ØF
In.
mm.
.320
.385
.450
.495
.555
.625
.750
.865
ØG
Tail Dia.
8.13
#23
9.78 .018/.022 (0.46/0.56)
11.43
#20
12.57 .024/.028 (0.61/0.71)
14.10
#16
15.88 .060/.064 (1.52/1.63)
#12
19.05
.092/.096 (2.34/2.44)
21.97
34.54 1.060
37.72 1.185
40.64 1.300
SERIES 804 PLUG KEY PoSITIoNS
A°
A
B
C
D
150°
75°
95°
140°
B°
210°
210°
230°
275°
B° A°
© 2010 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
Rev. 9-MAY-2010
Rev. 01-JANUARY-2010
G-17
Series 804
Series 804 Push-Pull Mighty Mouse
Flanged Panel Mount Plug Dimensions
A
B
C
E
F
G
G
J
K
L
M
