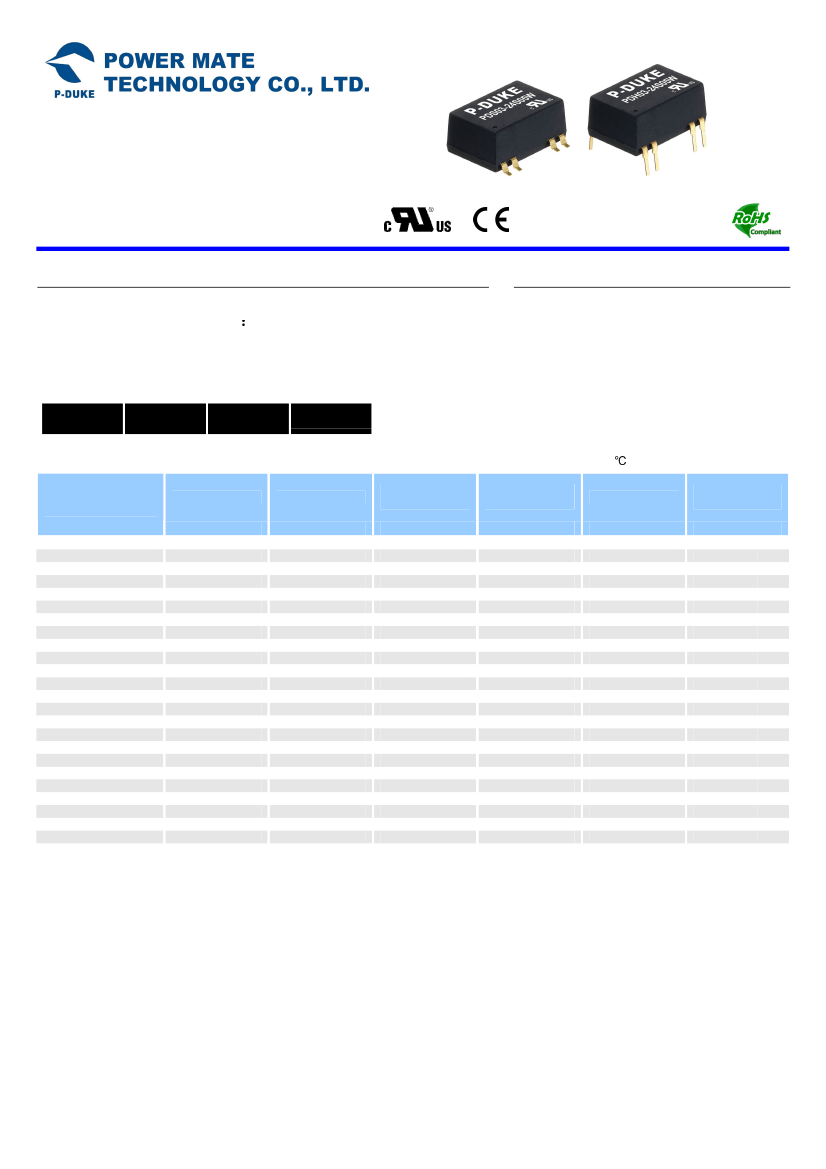

PDS03W
PDH03W
SERIES
DC-DC CONVERTER
4:1 ULTRA WIDE INPUT RANGE
UP TO 3 Watts
FEATURES
•
NO MINIMUM LOAD REQUIRED
•
UP TO 3000VDC INPUT TO OUTPUT ISOLATION
•
SMALL SIZE AND LOW PROFILE 0.74 X 0.50 X 0.33 INCH
•
LOW OUTPUT RIPPLE AND NOISE
•
UL60950-1, EN60950-1, & IEC60950-1 SAFETY APPROVALS
•
CE MARKED
•
COMPLIANT TO RoHS II & REACH
APPLICATIONS
•
WIRELESS NETWORK
•
TELECOM/DATACOM
•
INDUSTRY CONTROL SYSTEM
•
DISTRIBUTED POWER ARCHITECTURES
•
SEMICONDUCTOR EQUIPMENT
3000VDC
ISOLATION
1600VDC
ISOLATION
REMOTE
CONTROL
Model
Number
PDS(H)03-12S3P3W
PDS(H)03-12S05W
PDS(H)03-12S09W
PDS(H)03-12S12W
PDS(H)03-12S15W
PDS(H)03-12D05W
PDS(H)03-12D12W
PDS(H)03-12D15W
PDS(H)03-24S3P3W
PDS(H)03-24S05W
PDS(H)03-24S09W
PDS(H)03-24S12W
PDS(H)03-24S15W
PDS(H)03-24D05W
PDS(H)03-24D12W
PDS(H)03-24D15W
PDS(H)03-48S3P3W
PDS(H)03-48S05W
PDS(H)03-48S09W
PDS(H)03-48S12W
PDS(H)03-48S15W
PDS(H)03-48D05W
PDS(H)03-48D12W
PDS(H)03-48D15W
Input Range
VDC
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
4.5 ~ 18
9 ~ 36
9 ~ 36
9 ~ 36
9 ~ 36
9 ~ 36
9 ~ 36
9 ~ 36
9 ~ 36
18 ~ 75
18 ~ 75
18 ~ 75
18 ~ 75
18 ~ 75
18 ~ 75
18 ~ 75
18 ~ 75
Output Voltage
VDC
3.3
5
9
12
15
±5
±12
±15
3.3
5
9
12
15
±5
±12
±15
3.3
5
9
12
15
±5
±12
±15
Output Current
@Full Load
mA
700
600
333
250
200
±300
±125
±100
700
600
333
250
200
±300
±125
±100
700
600
333
250
200
±300
±125
±100
Input Current
@ No Load
mA
35
35
35
35
35
40
40
45
20
20
20
20
20
20
20
20
13
13
13
13
13
13
13
13
Efficiency
%
75
81
80
82
82
79
82
81
75
80
80
82
82
79
82
81
75
80
80
83
82
79
82
81
1
www.PDUKE.com
℃
TECHNICAL SPECIFICATION
All specifications are typical at nominal input, full load and 25
：
：
：
：
SCP
otherwise noted
Maximum
Capacitor Load
µF
3300
1680
1000
820
680
±1000
±470
±330
3300
1680
1000
820
680
±1000
±470
±330
3300
1680
1000
820
680
±1000
±470
±330
2014/04/30
PDS03W
PDH03W
PART NUMBER STRUCTURE
PDS03 - 48
Series Name
PDS:
SMD type
PDH:
DIP type
Input
Voltage
(VDC)
12:
4.5~18
24:
9~36
48:
18~75
S
Output
Quantity
S:Single
05 W
Output
Voltage
(VDC)
3P3:
3.3
05:
5
09:
9
12:12
15:15
05:
5
12:
12
15:
15
±
±
±
H
Isolation
Option
:
Standard type
1600VDC isolation
H:
3000VDC isolation
Input
Range
4:1
D:
Dual

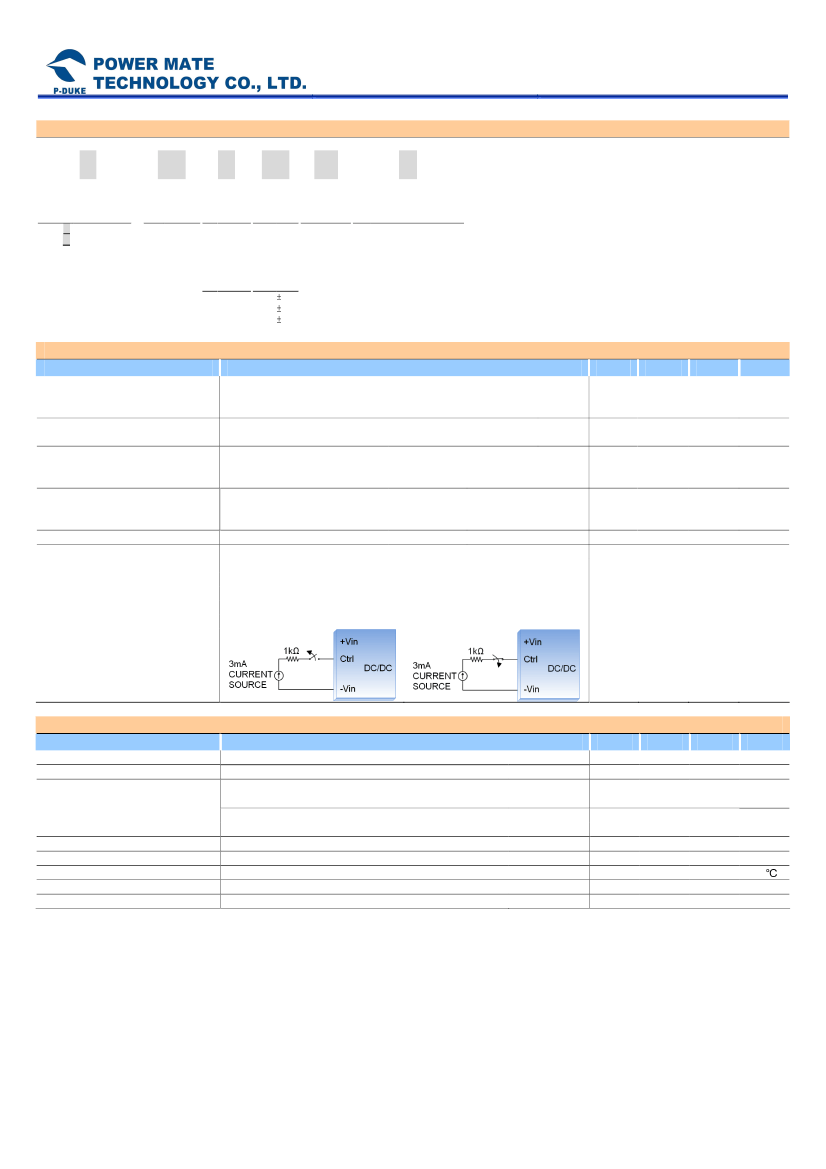

INPUT SPECIFICATIONS
Parameter
Operating input voltage range
Conditions
12Vin(nom)
24Vin(nom)
48Vin(nom)
Power up
Remote ON/OFF
12Vin(nom)
24Vin(nom)
48Vin(nom)
12Vin(nom)
24Vin(nom)
48Vin(nom)
DC-DC ON
DC-DC OFF
Remote off input current
Min.
4.5
9
18
Typ.
12
24
48
5
5
Max.
18
36
75
Unit
VDC
ms
Start up time
Input surge voltage
Constant resistive load
1 second, max.
25
50
100
VDC
Input reflected ripple current
Input filter
Remote ON/OFF
Ctrl pin applied current via 1k
2
80
40
mAp-p
30
Capacitor type
Open or high impedance
3
4
mA
2.5
mA
Application circuit
DC-DC ON
DC-DC OFF
OUTPUT SPECIFICATIONS
Parameter
Voltage accuracy
Line regulation
Load regulation
Conditions
Low Line to High Line at Full Load
No Load to Full Load
10% Load to 100% Full Load
Single
Dual
Single
Dual
Dual
Min.
-1.0
-0.2
-1.0
-1.0
-0.5
-0.8
-5.0
Typ.
Max.
+1.0
+0.2
+1.0
+1.0
+0.5
+0.8
+5.0
Unit
%
%
%
%
25% load step change
2
www.PDUKE.com
2014/04/30
℃
Cross regulation
Ripple and noise
Temperature coefficient
Transient response recovery time
Short circuit protection
Asymmetrical load 25%/100% FL
20MHz bandwidth
%
mVp-p
-0.02
+0.02
%/
250
µs
Continuous, automatics recovery
30
PDS03W
PDH03W
GENERAL SPECIFICATIONS
Parameter
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Safety approvals
1 minute
500VDC
Standard Type
Suffix ”H”
Full load to minimum load
100
Conditions
Input to Output
Standard Type
Suffix ”H”
Min.
1600
3000
1
Typ.
Max.
Unit
VDC
G
50
50
pF
Weight
MTBF
MIL-HDBK-217F
kHz
UL60950-1
EN60950-1
IEC60950-1
4.5g (0.16oz)
5.738 x 10
6
hrs
ENVIRONMENTAL SPECIFICATIONS
Parameter
Operating ambient temperature
Storage temperature range
Thermal shock
Vibration
Relative humidity
Lead-free reflow solder process
Moisture sensitivity level
Conditions
Without derating
With derating
Min.
-40
+71
-55
Typ.
Max.
Unit
MSL
+71
+85
+125
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
IPC J-STD-020D
IPC J-STD-033B Level 2a
EMC SPECIFICATIONS
Parameter
EMI
(1)
ESD
Radiated immunity
Fast transient
(2)
Surge
(2)
Conducted immunity
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Conditions
Air ± 8kV and Contact ± 6kV
10 V/m
± 2kV
±1kV
10 Vr.m.s
Level
Class A Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Note:
The standard modules meet EMI Class A or Class B with external components. For further information, please contact with P-DUKE.
An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Power Mate suggest: Nippon chemi-con KY series, 220µF/100V.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
1.
2.

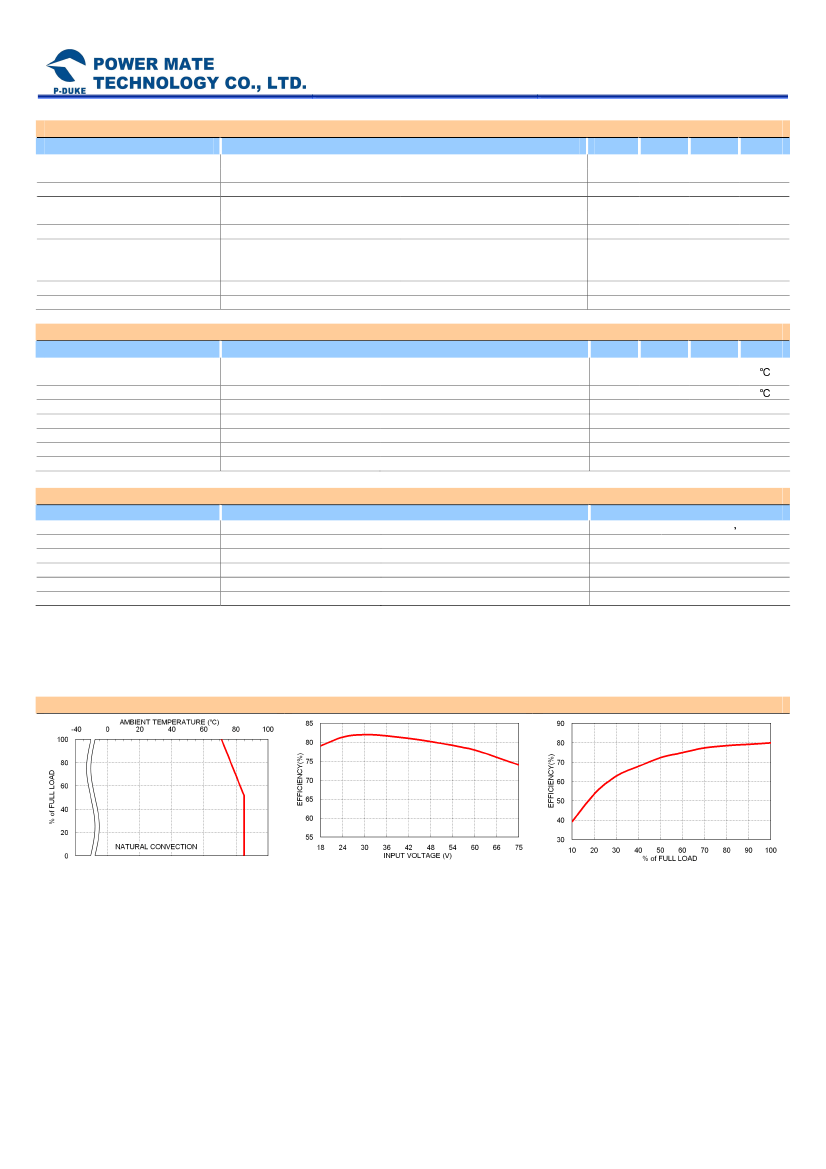

CHARACTERISTIC CURVE
PDS03-48S05W Derating Curve
PDS03-48S05W Efficiency vs. Input Voltage
PDS03-48S05W Efficiency vs. Output Load
3
www.PDUKE.com
2014/04/30
℃
℃
，
PDS03W
PDH03W

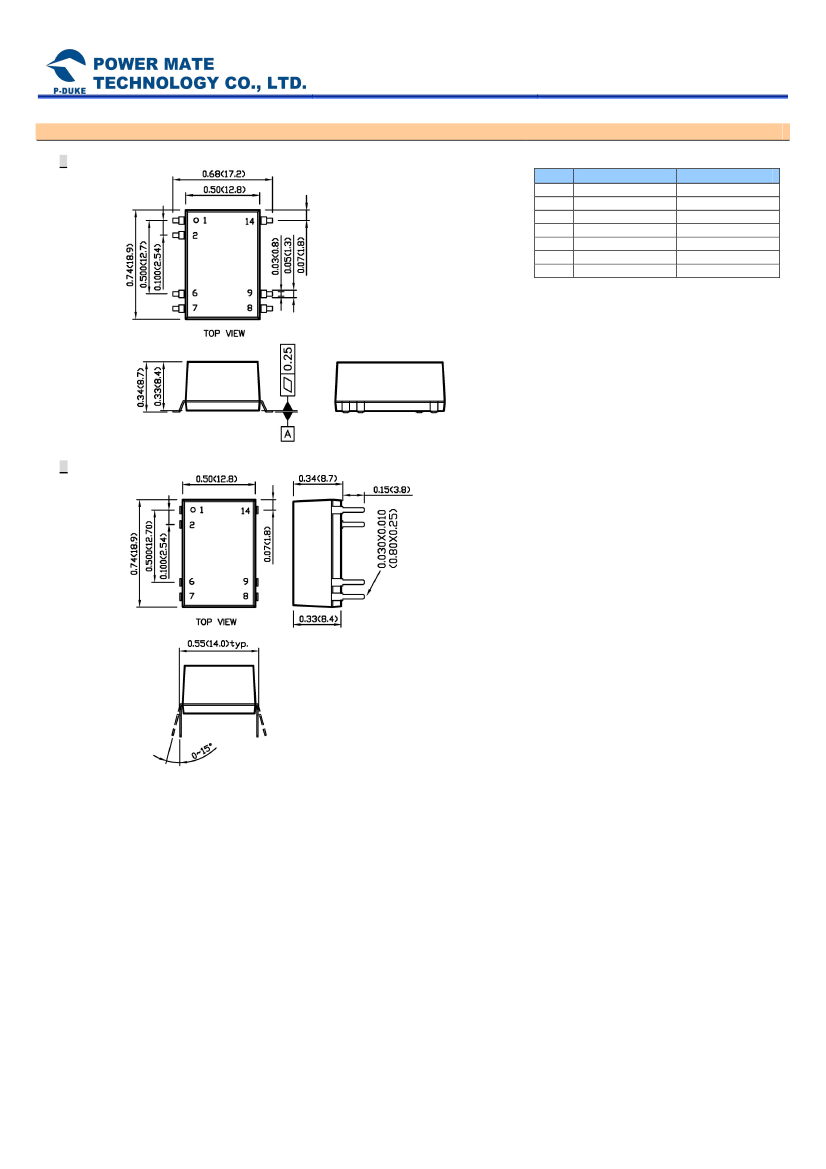

MECHANICAL DRAWING
PDS03
PIN CONNECTION
PIN
SINGLE
1
-Vin
2
Ctrl
6
NC
7
NC
8
+Vout
9
-Vout
14
+Vin
1. All dimensions in inch (mm)
2. Tolerance :x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
3. Pin pitch tolerance ±0.01 (0.25)
4. Pin dimension tolerance ±0.004(0.1)
DUAL
-Vin
Ctrl
Common
-Vout
+Vout
Common
+Vin
PDH03
4
www.PDUKE.com
2014/04/30
