DRA1-CMXE100D10 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> DRA1-CMXE100D10

DRA1-CMXE100D10: Descriptionsolid state relays - industrial mount din Mt 100 vdc/8A out 20-28 vdc input; CategoryTopical application Mechanical and electrical/engineering/automation; File Size806KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

DRA1-CMXE100D10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DRA1-CMXE100D10	-	-	View	Buy Now

DRA1-CMXE100D10 Overview

solid state relays - industrial mount din Mt 100 vdc/8A out 20-28 vdc input

DRA1-CMXE100D10 Parametric

Parameter Name	Attribute value
Manufacture	Crydom
Product Category	Solid State Relays - Industrial Mou
RoHS	Yes
Control Voltage Range	20 VDC to 28 VDC
Load Voltage Rating	1 VDC to 100 VDC
Load Current Rating	10 A
Contact Form	1 Form A (SPST-NO)
Output Device	DC Outpu
Mounting Style	DIN Rail
Factory Pack Quantity	5
Termination Style	Screw

Preview

Download Datasheet

View All

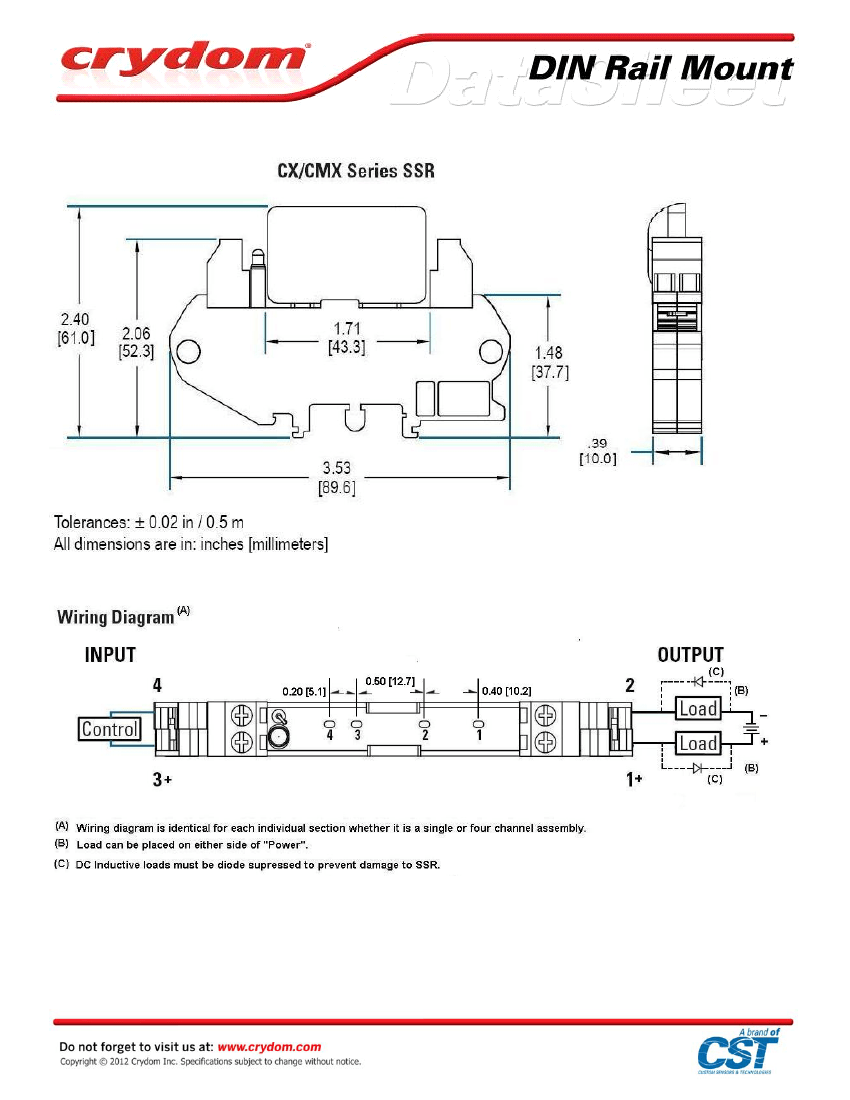

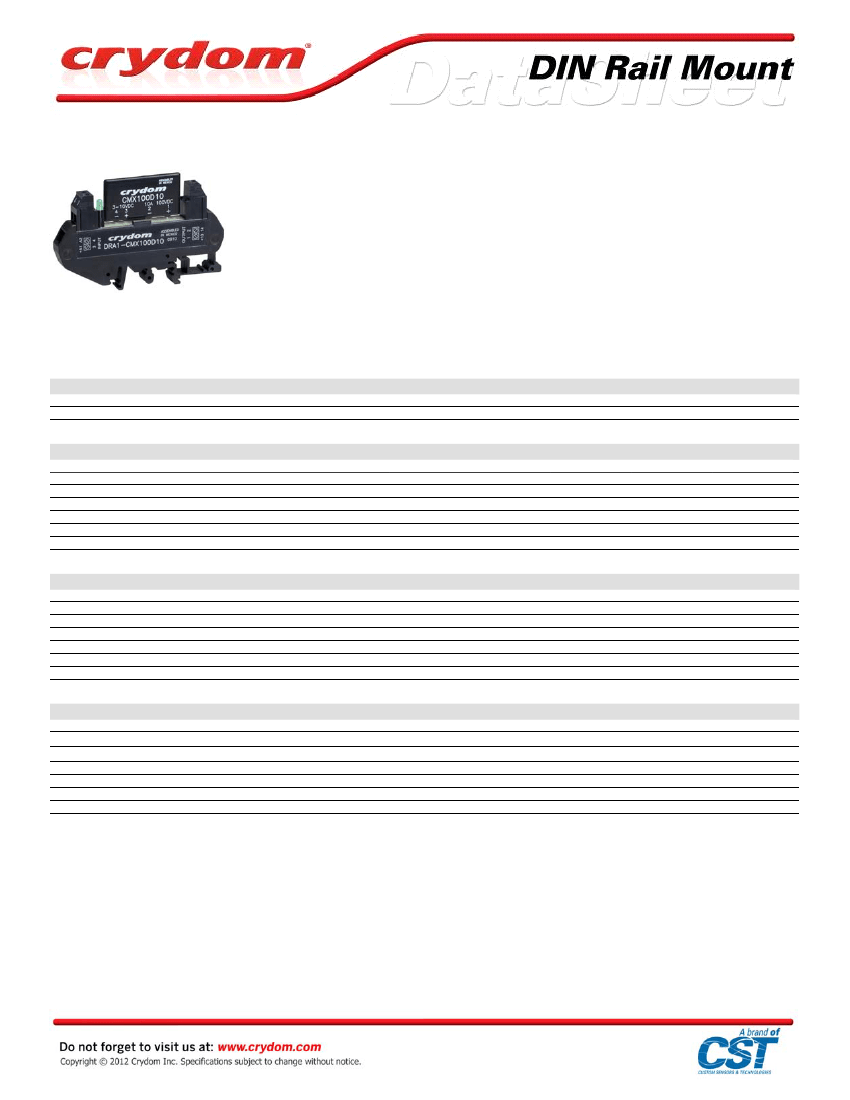

DRA1 CMX Series

• 10mm Single Channel DIN Rail Mount SSR Assembly

• DC Ratings up to 200 VDC and 10 Amps

• 3-10 and 20-28VDC control

• Cage style screw terminals for easy connection

• Fits standard 35mm DIN rail

• Includes LED Status indicator

PRODUCT SELECTION

Description

3-10 VDC Control

20-28 VDC Control

DRA1-CMX200D3

DRA1-CMXE200D3

DRA1-CMX60D5

DRA1-CMXE60D5

DRA1-CMX100D6

DRA1-CMXE100D6

10 A (5)

DRA1-CMX60D10

DRA1-CMXE60D10

10A (5)

DRA1-CMX100D10

DRA1-CMXE100D10

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage [VDC]

Maximum Off-State Leakage Current @ Rated Voltage [µAdc]

Maximum Load Current [A] (3)

Minimum Load Current [A]

Maximum On-State Resistence [Ohm]

Maximum Surge Current (10msec) [Apk]

Maximum On-State Voltage Drop @ Rated Current [VDC]

1-200

100

0.2

0.6

1-60

100

0.1

0.5

1-100

100

0.04

100

0.24

10 A (5)

1-60

100 (2)

0.018

100

0.18

10 A (5)

1-100

100

0.01

100

0.1

INPUT SPECIFICATIONS (1)

Description

Control Voltage Range

Must Turn On Voltage

Must Turn Off Voltage

Typycal Input Current

Nominal Input Impedance

Maximum Turn-On Time [msec]

Maximum Turn-Off Time [µsec]

DRA1-CMX

3.0-10.0 VDC

3.0 VDC

1 .0 VDC

15 mAdc @ 5Vdc

300 Ohm

300

DRA1-CMXE

20.0-28.0 VDC

20.0 VDC

1 .0 VDC

12 mAdc @ 20 Vdc

780 Ohm

300

GENERAL SPECIFICATIONS

Description

Dielectric Strength (4)

Minimum Insulation Resistance (@ 500 VDC)(4)

Maximum Capacitance, Input/Output

Ambient Operating Temperature Range

Ambient Storage Temperature Range

Weight (typical)

Encapsulation

Parameters

2500 Vrms

Ohms

15 pF

-30 to 80°C

-30 to 125°C

0.063 oz. (28.6g)

Thermally Conductive Epoxy

GENERAL NOTES

1) All parameters at 25°C unless otherwise specified.

2) At 55 Vdc

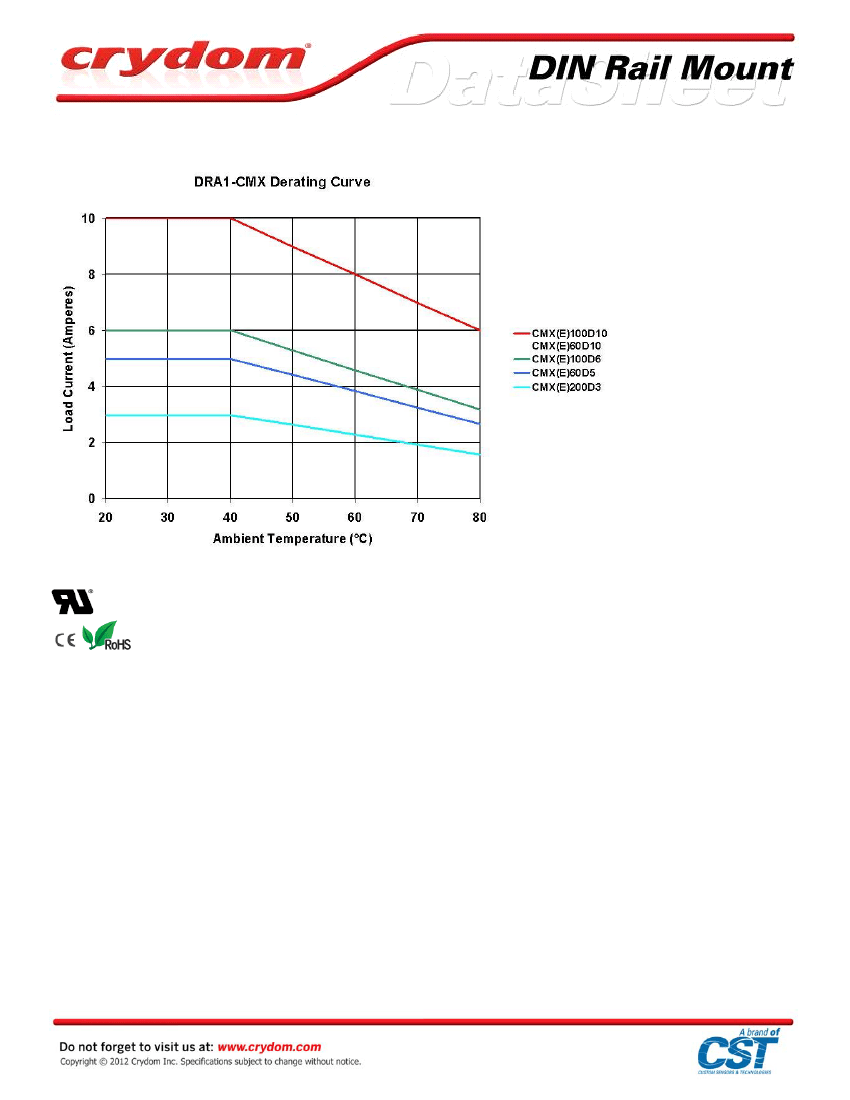

3) See derating chart on page 3

4) Dielectric and insulation resistance is measured between input and output

5) Steady state load Current exceeding 10 amps will damage socket.

DRA1-CMXE100D10 Related Products

	DRA1-CMXE100D10	DRA1-CMX100D6	DRA1-CMX60D10	DRA1-CMX60D5	DRA1-CMXE60D10	DRA1-CMXE200D3	DRA1-CMX200D3	DRA1-CMXE100D6	DRA1-CMXE60D5
Description	solid state relays - industrial mount din Mt 100 vdc/8A out 20-28 vdc input	solid state relays - industrial mount din Mt 100 vdc/6A out 3-10 vdc input	solid state relays - industrial mount din Mt 60 vdc/8A out 3-10 vdc input	solid state relays - industrial mount din Mt 60 vdc/5A out 3-10 vdc input	solid state relays - industrial mount din Mt 60 vdc/8A out 20-28 vdc input	solid state relays - industrial mount din Mt 200 vdc/3A out 20-28 vdc input	solid state relays - industrial mount din Mt 200 vdc/3A out 3-10 vdc input	solid state relays - industrial mount din Mt 100 vdc/6A out 20-28 vdc input	solid state relays - industrial mount din Mt 60 vdc/5A out 20-28 vdc input
Manufacture	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom	Crydom
Product Category	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou	Solid State Relays - Industrial Mou
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Control Voltage Range	20 VDC to 28 VDC	3 VDC to 10 VDC	3 VDC to 10 VDC	3 VDC to 10 VDC	20 VDC to 28 VDC	20 VDC to 28 VDC	3 VDC to 10 VDC	20 VDC to 28 VDC	20 VDC to 28 VDC
Load Voltage Rating	1 VDC to 100 VDC	1 VDC to 100 VDC	1 VDC to 60 VDC	1 VDC to 60 VDC	1 VDC to 60 VDC	1 VDC to 200 VDC	1 VDC to 200 VDC	1 VDC to 100 VDC	1 VDC to 60 VDC
Load Current Rating	10 A	6 A	10 A	5 A	10 A	3 A	3 A	6 A	5 A
Contact Form	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)	1 Form A (SPST-NO)
Output Device	DC Outpu	DC Outpu	DC Outpu	DC Outpu	DC Outpu	DC Outpu	DC Outpu	DC Outpu	DC Outpu
Mounting Style	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Factory Pack Quantity	5	5	5	5	5	5	5	5	5
Termination Style	Screw	Screw	Screw	Screw	Screw	Screw	Screw	Screw	Screw
