DS2217-120 datasheet, PDF - EEWORLD Datasheet

DS2217-120: DescriptionNon-Volatile SRAM, 128KX8, 120ns, CMOS, PSMA30,; Categorystorage storage; File Size501KB，7 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

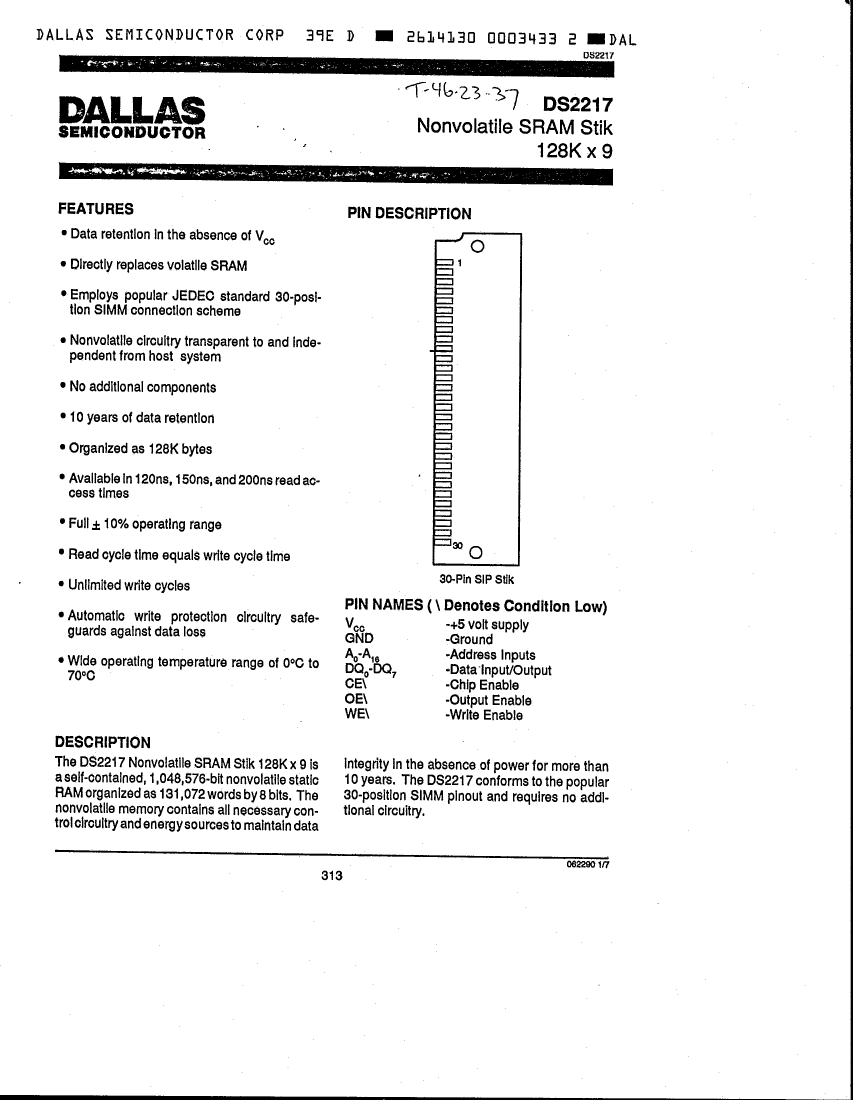

DS2217-120 Overview

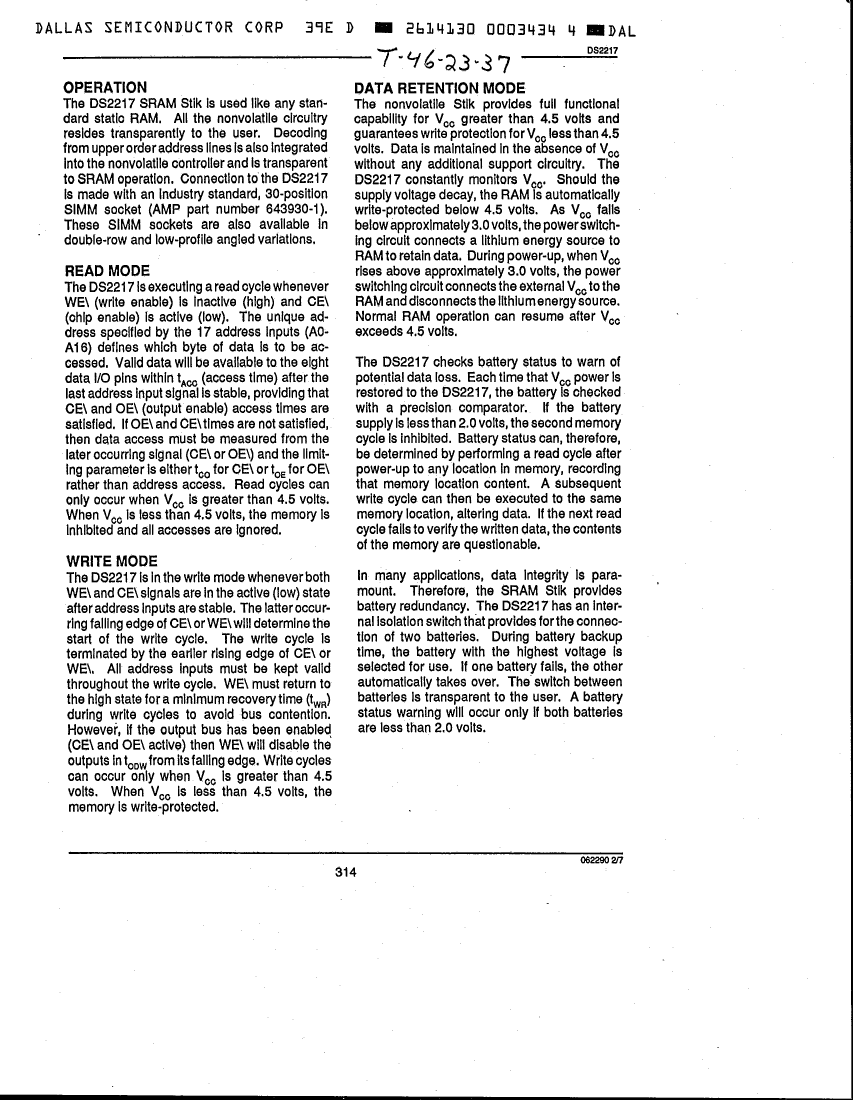

Non-Volatile SRAM, 128KX8, 120ns, CMOS, PSMA30,

Parameter Name	Attribute value
Reach Compliance Code	unknow

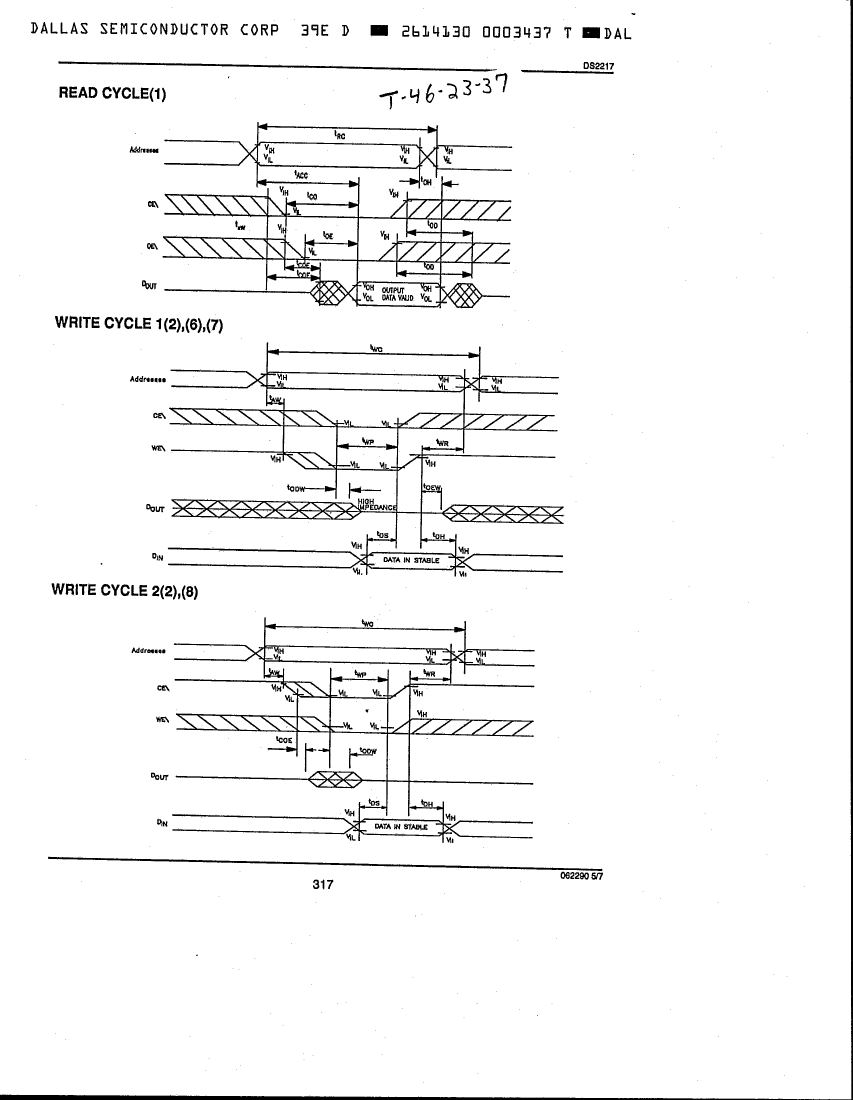

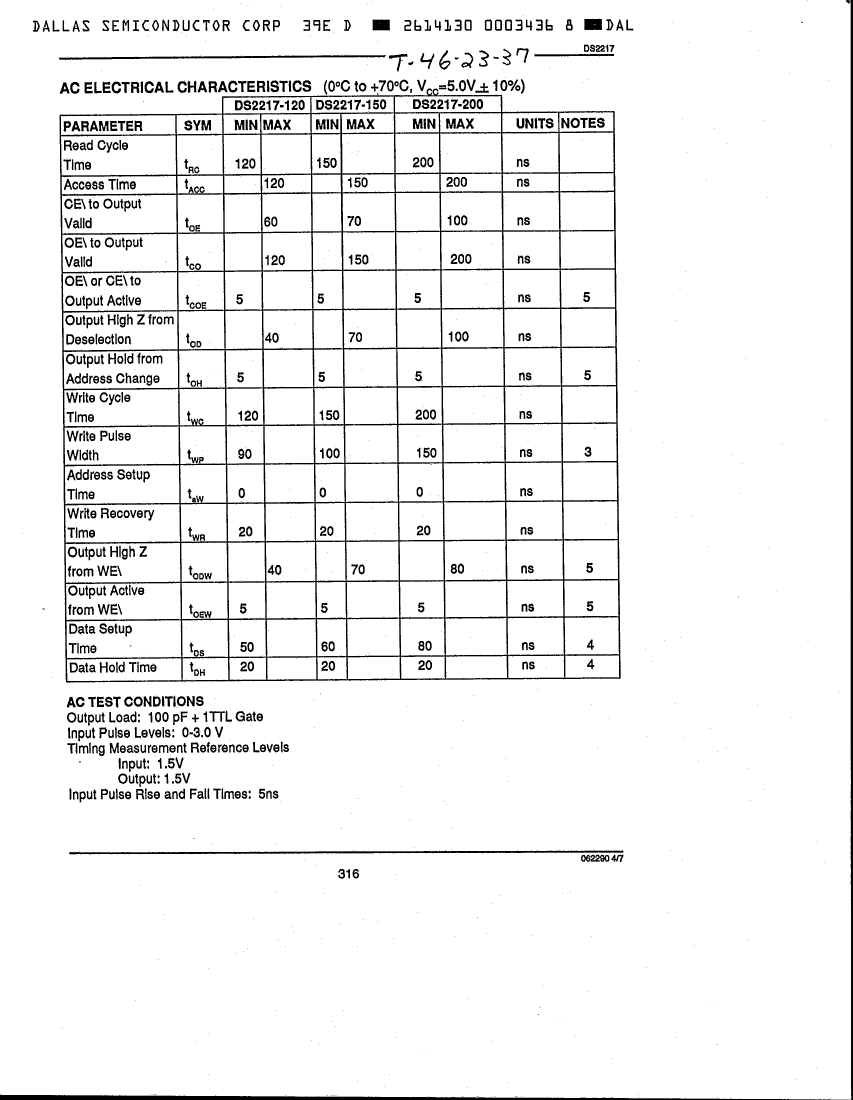

Maximum access time	120 ns
JESD-30 code	R-PSMA-N30
memory density	1048576 bi
Memory IC Type	NON-VOLATILE SRAM
memory width	8
Number of terminals	30
word count	131072 words
character code	128000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SIM30
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified

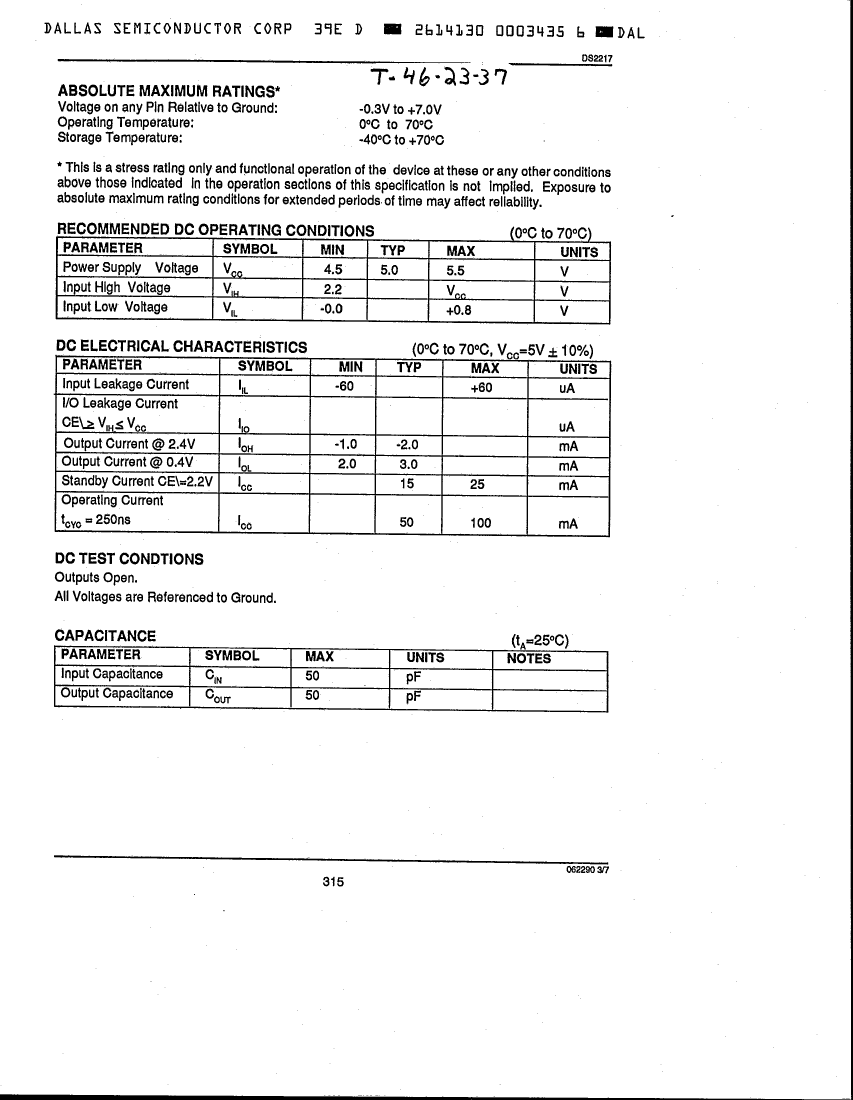

Maximum standby current	0.025 A
Maximum slew rate	0.1 mA
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	SINGLE
Base Number Matches	1

	DS2217-120	DS2217-150	DS2217-200
Description	Non-Volatile SRAM, 128KX8, 120ns, CMOS, PSMA30,	Non-Volatile SRAM, 128KX8, 150ns, CMOS, PSMA30,	Non-Volatile SRAM, 128KX8, 200ns, CMOS, PSMA30,
Reach Compliance Code	unknow	unknown	unknow
Maximum access time	120 ns	150 ns	200 ns
JESD-30 code	R-PSMA-N30	R-PSMA-N30	R-PSMA-N30
memory density	1048576 bi	1048576 bit	1048576 bi
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	8	8	8
Number of terminals	30	30	30
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Maximum operating temperature	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM
Encapsulate equivalent code	SIM30	SIM30	SIM30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.025 A	0.025 A	0.025 A
Maximum slew rate	0.1 mA	0.1 mA	0.1 mA
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	-
