SLG Series

Miniature Slide Switches

SPECIFICATIONS

Contact ratings:

300 mA at 125 VAC or 30 VDC

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

FEATURES

Wash-through open frame construction.

Panel and p.c. mounting models.

Positive spring loaded ball detent mechanism.

Initial contact resistance:

20 milliohms max.

Insulation resistance:

100 megohms min. at 500 VDC

Dielectric strength:

500 volts RMS for 1 minute

Electrical life:

10,000 cycles min.

Operating temperature range:

-20°C to +85°C

Actuation force:

200g ± 75g

Solder heat resistance:

260°C max. for 3 seconds

Solvent washing permissible

MATERIALS

Contacts & terminals:

Silver plated

Frame:

Zinc plated steel

Actuator:

Thermoplastic

Base:

Phenolic laminated sheet

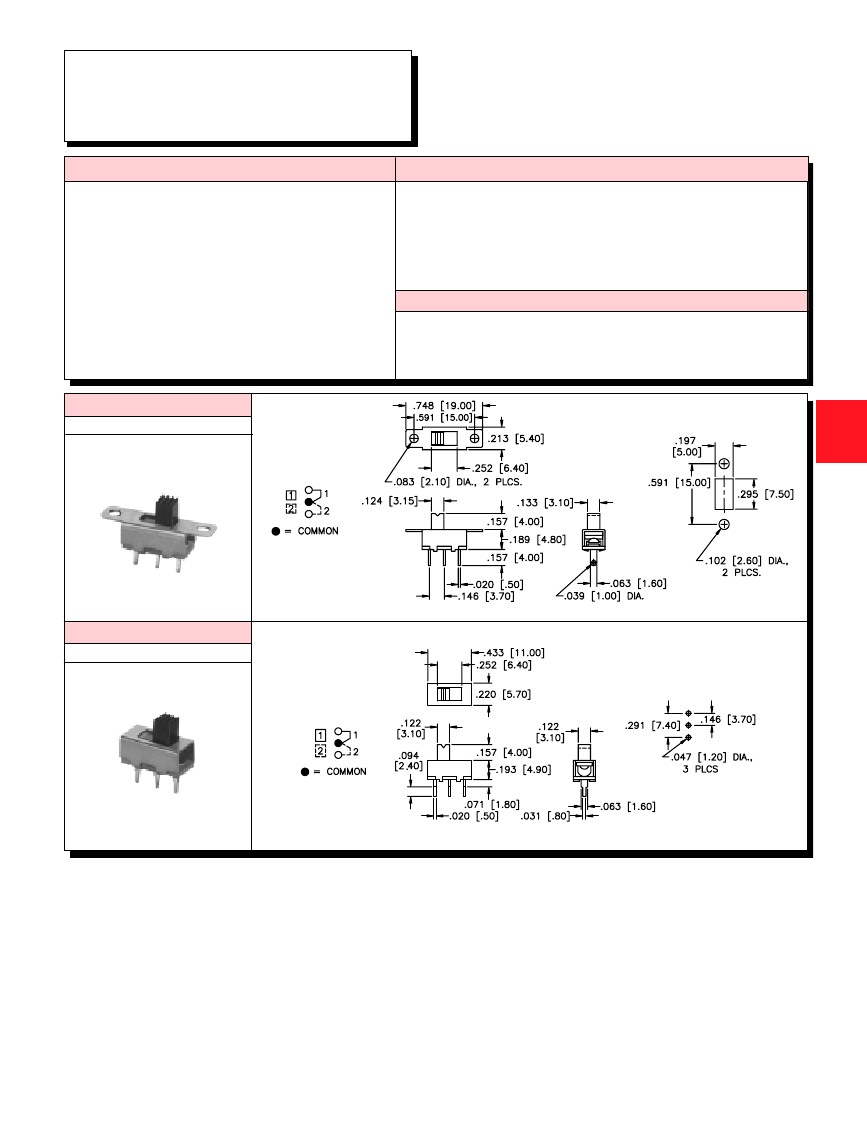

.118 (3.00) TRAVEL/THROW

MODEL NO.

SLG12004

1P2T

O

SCHEMATIC

MODEL NO.

SLG12014

MECHANICAL OUTLINE

.118 (3.00) TRAVEL/THROW

PANEL CUTOUT

1P2T

VERTICAL MOUNTING

SCHEMATIC

MECHANICAL OUTLINE

P.C. BOARD LAYOUT

APEM

, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com

O27

SLG12004 Related Products

	SLG12004	SLG12014
Description	slide switches slide 1p2t top mount	slide switches slide 1p2t
Manufacture	Apem	Apem
Product Category	Slide Switches	Slide Switches
RoHS	Yes	Yes
Contact Form	SPDT	SPDT
Switch Functi	ON - ON	ON - ON
Contact Current Rating	300 mA at 125 V	300 mA at 125 V
Voltage Rating AC	125 V	125 V
Termination Style	Solder Terminal	Solder Terminal
Actu	Extended, T	Extended, T
Mounting Style	Panel	Panel
Contact Plating	Silve	Silve
Mounting Angle	Vertical	Vertical
Operating Temperature Range	- 20 C to + 85 C	- 20 C to + 85 C
Factory Pack Quantity	500	500
Travel	3 mm	3 mm
Type	Slide Switch	Slide Switch
