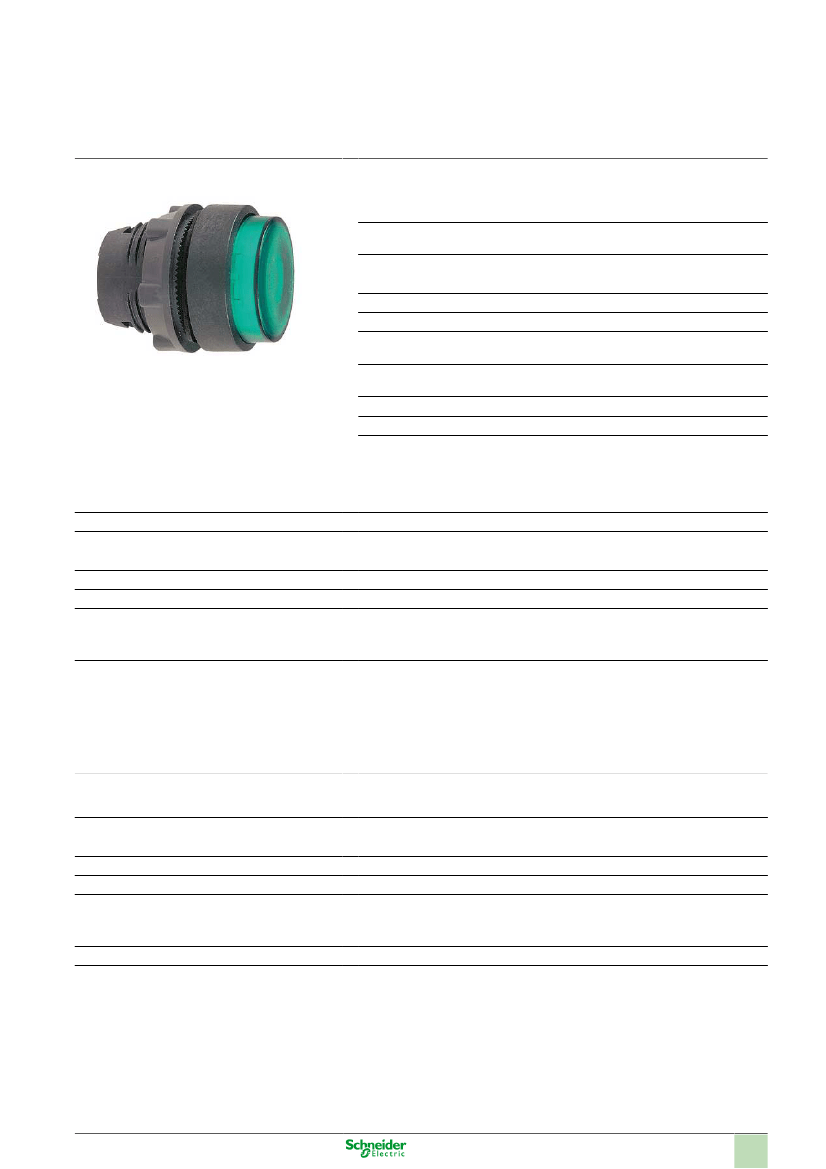

Product data sheet
Characteristics
ZB5AW133
green projecting illuminated pushbutton head
Ø22 spring return for integral LED
Main
Range of product
Product or component
type
Device short name
Product compatibility
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Operator additional in-
formation
Harmony XB5
Head for illuminated pushbutton
ZB5
Integral LED
Plastic
22 mm
1
Round
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Spring return
Green projecting unmarked
With plain lens
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Resistance to high pressure washer
Mechanical durability
Station name
Electrical composition code
29 mm
29 mm
33 mm
0.018 kg
7000000 Pa at 55 °C,distance: 0.1 m
5000000 cycles
XALK 2...5 cut-outs
XALD 1...5 cut-outs
MR1 for <= 2 contacts using single blocks in rear mounting with integral LED
MF1 for <= 2 contacts using single blocks in front mounting with integral LED
M10 for <= 2 contacts using single blocks in front mounting with integral LED
M6 for <= 2 contacts using single blocks in front mounting with integral LED and
transformer
M2 for <= 6 contacts using single and double blocks in front mounting with inte-
gral LED
M1 for <= 6 contacts using single blocks in front mounting with integral LED
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
IK degree of protection
Standards
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 60536
IP66 conforming to IEC 60529
NEMA 4X
NEMA 13
IK05 conforming to EN 50102
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
GB 14048.5
Mar 9, 2013
1
Product certifications
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance
Shock resistance
2
Product data sheet
Mounting and Clearance
ZB5AW133
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
+0.4
+0.016
Ø22.5 mm recommended (Ø22.3
0
) / Ø0.89 in. recommended (Ø0.88 in.
0
)
a in mm
40
45
30
a in in.
1.57
1.77
1.18
b in mm
30
32
30
b in in.
1.18
1.26
1.18
Connections
By screw clamp terminals or plug-in connector
By Faston connectors
On printed circuit board
Detail of Lug Recess
(1)
(2)
(3)
Diameter on finished panel or support
For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
+0.4
+0.016
Ø22.5 mm recommended (Ø22.3
0
) / Ø0.89 in. recommended (Ø0.88 in.
0
)
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board Connection
4
Panel Cut-outs (Viewed from Installer’s Side)
A:
B:
30 mm min. / 1.18 in. min.
40 mm min. / 1.57 in. min.
Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)
Dimensions in mm
A:
B:
30 mm min.
40 mm min.
5
