V-15-3A5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> V-15-3A5

V-15-3A5: Descriptionbasic / snap action switches miniature basic switch; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，16 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

V-15-3A5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	V-15-3A5	-	-	View	Buy Now

V-15-3A5 Overview

basic / snap action switches miniature basic switch

V-15-3A5 Parametric

Parameter Name	Attribute value
Manufacture	Om
Product Category	Basic / Snap Action Switches
RoHS	Yes
Type	Miniature
Contact Form	SPST
Switch Functi	ON - (OFF)
Actu	Plunger, Pi
Current Rating	15 A
Voltage Rating AC	250 V
Operating Force	2 N
IP Rating	IP 40
Termination Style	Solder Pi
Mounting	Panel
Factory Pack Quantity	100

Preview

Download Datasheet

View All

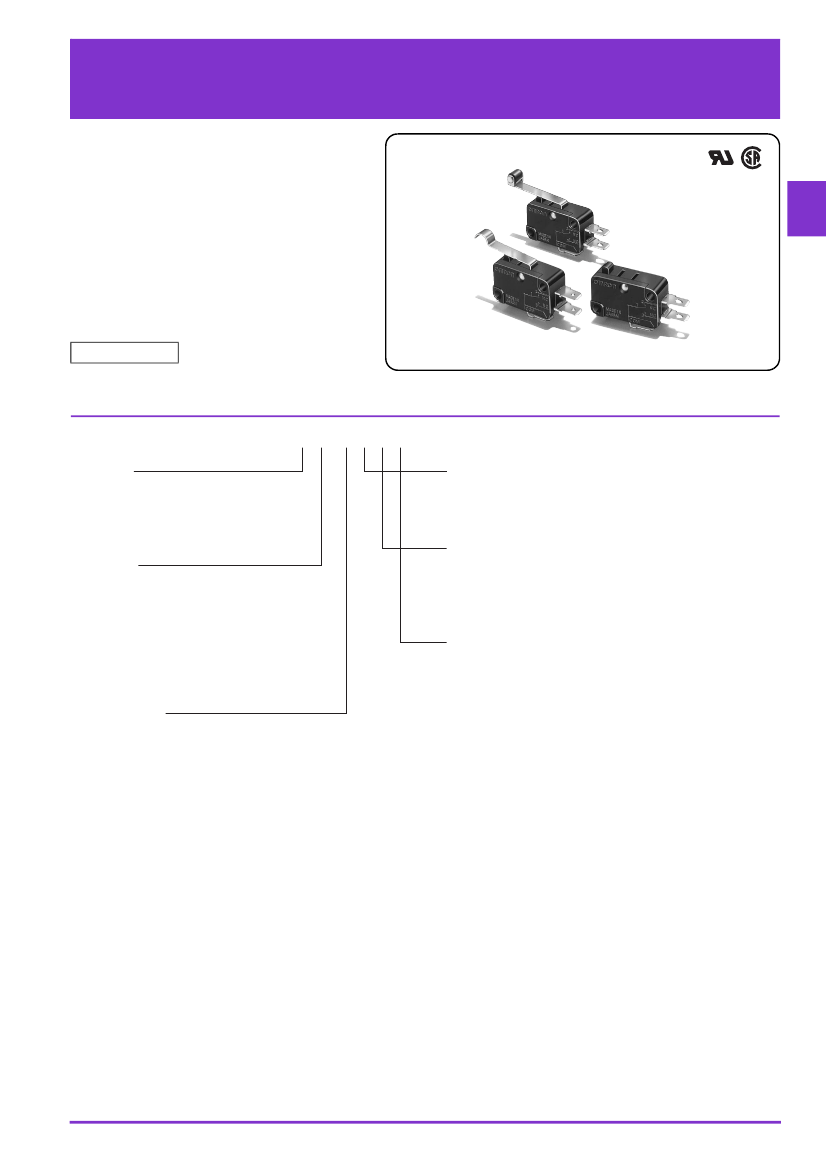

Miniature Basic Switch

Miniature Basic Switch that

Offers High Reliability and

Security

●

Wide variation of best-selling microswitches with

switching currents of 10 to 21 A.

●

Can be used for interrupting current when doors

are opened or closed.

●

Available in two types of cases: thermoplastic resin

and thermosetting resin.

RoHS Compliant

Model Number Legend

1 2

3 4 5 6

V-

@ @

@ @ @ @

1. Ratings

21: 21 A at 250 VAC

16: 16 A at 250 VAC

15: 15 A at 250 VAC

10: 10 A at 250 VAC

2. Actuator

None : Pin plunger

1 : Short hinge lever

2 : Hinge lever

3 : Long hinge lever

4 : Simulated roller lever

5 : Short hinge roller lever

: Hinge roller lever

4. Terminals

A : Solder terminals

C2 : Quick-connect terminals (#187)

C : Quick-connect terminals (#250)

5. Maximum Operating Force

6: 3.92 N {400 gf}

5: 1.96 N {200 gf}

4: 0.98 N {100 gf}

Note: These values are for the pin plunger models.

6. Heat Resistance

None : Standard (80°C)

-T : Heat-resistive (150°C)

3. Contact Form

1: SPDT

2: SPST-NC

3: SPST-NO

V-15-3A5 Related Products

	V-15-3A5	V-154-1A5	V-155-1C25	V-162-1A5	V-156-1A5-T	V-16-1C25	V-15-1E6	V-16G-1C25
Description	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic switch	basic / snap action switches miniature basic	basic / snap action switches miniature basic switch
Manufacture	Om	Om	Om	Om	Om	Om	Om	Om
Product Category	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Type	Miniature	Miniature	Miniature	Miniature	Miniature	Miniature	Miniature	Miniature
Contact Form	SPST	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Switch Functi	ON - (OFF)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)	ON - (OFF), OFF - (ON)
Actu	Plunger, Pi	Simulated Roller Leve	Roller Leve	Leve	Roller Leve	Plunger, Pi	Plunger, Pi	Plunger, Pi
Current Rating	15 A	15 A	15 A	16 A	15 A	16 A	15 A	16 A
Voltage Rating AC	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
IP Rating	IP 40	IP 40	IP 40	IP 40	IP 40	IP 40	IP 40	IP 40
Termination Style	Solder Pi	Solder Pi	Quick Connect Terminal	Solder Pi	Solder Pi	Quick Connect Terminal	Solder Pi	Quick Connect Terminal
Mounting	Panel	Panel	Panel	Panel	Panel	Panel	Panel	Panel
Factory Pack Quantity	100	100	100	100	100	100	100	100
