Data Sheet
Rev.1.0
09.04.2008
512MB DDR
– SDRAM DIMM
184PIN DIMM
SDU06464B5B61MT-50R
512MB PC-3200 in TSOP Technique
RoHS compliant
Options:
Frequency / Latency
DDR 400 MHz CL3
DDR 333 MHz CL2.5
DDR 266 MHz CL2.5
Module densities
512MB with 8 dies and 1 rank
Standard Grade
Grade E
Grade I
Grade W
(T
A
)
(T
A
)
(T
A
)
(T
A
)
0° to 70°
C
C
0° to 85°
C
C
-25° to 85°
C
C
-40° to 85°
C
C
Marking
-50
-60
-75
Features:
184-pin 64-bit Dual-In-Line module.
Double Date Rate synchronous DRAM
Module for industrial applications
DDR-SDRAM component base: MICRON
MT46V64M8P-5B-F
V
DD
2.5V ±0.2V, V
DDQ
2.5V ±0.2V
Programmable CAS Latency, Burst Length
and Wrap Sequence
Auto Refresh (CBR) and Self Refresh
8k Refresh every 64ms
2.5V I/O ( SSTL_2 compatible)
Serial Presence Detect with EEPROM
Gold-contact pad
This module family is fully pin and functional
compatible to the JEDEC PC3200 spec.
and JEDEC- Standard MO 224.
(see
www.jedec.org)
The pcb and all components are
manufactured according to the RoHS
compliance specification
[EU Directive 2002/95/EC Restriction of
Hazardous Substances (RoHS)]
Environmental Requirements:
Operating temperature (T
A
)
Standard Grade
0° to 70°
C
C
Grade E
0° to 85°
C
C
Grade I
-25° to 85°
C
C
Grade W
-40° to 85°
C
C
Operating Humidity
10% to 90% relative humidity, noncondensing
Operating Pressure
105 to 69 kPa (up to 10000 ft.)
Storage Temperature
-55° to 100°C
C
Storage Humidity
5% to 95% relative humidity, noncondensing
Storage Pressure
1682 PSI (up to 5000 ft.) at 50°
C

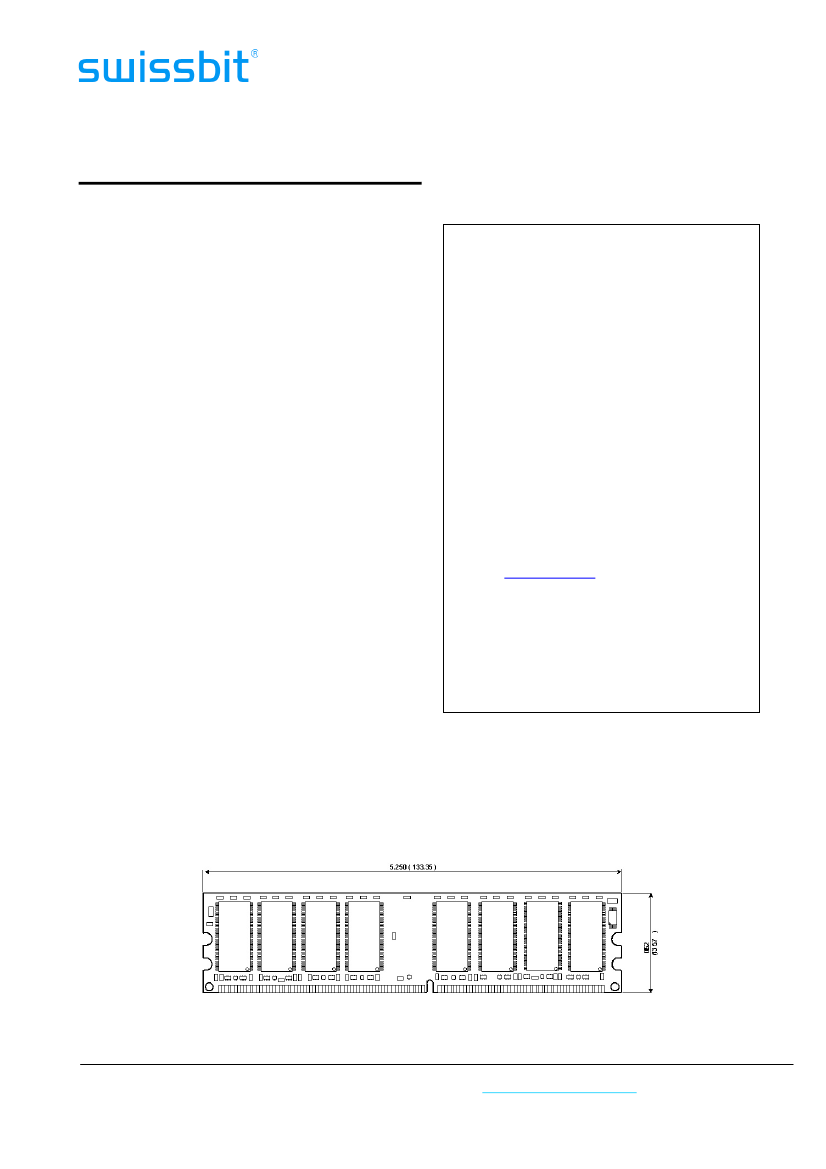

Figure1:
mechanical dimensions
Swissbit Germany AG
Wolfener Straße 36
D-12681 Berlin
Fon: +49 (0) 30 93 69 54 - 0
Fax: +49 (0) 30 93 69 54 - 55
www.swissbit-germany.com
eMail: firma@swissbit-germany.com
Page 1
of 12
Data Sheet
Rev.1.0
09.04.2008
This Swissbit module family is industry standard 184-pin 8-byte Double Date rate synchronous SDRAM Dual-In-line
Memory Modules (DIMMs), which are organized as x64 high speed memory arrays designed for use in non-parity
applications. DIMMs are assembled in TSOP Technology. The passive devices and the EEPROM are SMD
components.
The DIMM use serial presence detects (SPD) implemented via serial EEPROM using the two-pin-I
2
C protocol. The
first 128 bytes are utilized by the DIMM manufacturer and the second 128 bytes are available to the end user.
All Swissbit DIMMs provide a high performance, flexible 8-byte interface in a 133.35mm long footprint.
All modules of the extended temperature grade have seen special tests during the manufacturing process to
ensure proper operation according to the field of operation as stated in the environmental conditions.
Module Configuration
Organization
64M x 64
Product Spectrum
Part Number
SDU06464B5B61MT-50[E/I/W]R
SDU06464B5B61MT-60[E/I/W]R
SDU06464B5B61MT-75[E/I/W]R
DDR SDRAMs
used
8 x 64M x 8
Row
Addr.
13
Bank
Select
BA0, BA1
Col.
Addr.
11
Refresh
8k
Module Dimensions
in mm
133,35 max
Module Density
512MB
512MB
512MB
Transfer Rate
3.2 GB/s
2.7 GB/s
2.1 GB/s
Memory clock/Data
bit rate
5.0ns/400MT/s
6.0ns/333MT/s
7.5ns/266MT/s
Latency
3200-3033
2700-2533
2100-2533
Pin Name
A0-A12
BA0, BA1
DQ0 – DQ63
DM0-DM7
/RAS
/CAS
/WE
CKE0
CK0 – CK2
/CK0 – /CK2
DQS0- DQS7
Address Inputs
Bank Selects
Data Input/Output
Data Masks
Row Address Strobe
Column Address Strobe
Read / Write Enable
Clock Enable
Clock Inputs, positive line
Clock Inputs, negative line
Data strobes
Swissbit Germany AG
Wolfener Straße 36
D-12681 Berlin
Fon: +49 (0) 30 93 69 54 - 0
Fax: +49 (0) 30 93 69 54 - 55
www.swissbit-germany.com
eMail: firma@swissbit-germany.com
Page 2
of 12
Data Sheet
Rev.1.0
09.04.2008
/S0
V
DD
V
DDQ
V
DDSPD
V
REF
Vss
SCL
SDA
SA0 – SA2
NC
Chip Select
Power (2.5V± 0.2V)
DQ Power (2.5V±0.2V)
SPD Power
Input/Output Reference
Ground
Clock for Presence Detect
Serial Data Out for Presence Detect
Slave Address Select Bus for Presence Detect
No Connection
Pin Configuration
Front Side
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
PIN Name
V
REF
DQ0
V
SS
DQ1
DQS0
DQ2
V
DD
DQ3
NC
NC
V
SS
DQ8
DQ9
DQS1
V
DDQ
NC
NC
V
SS
DQ10
DQ11
CKE0
V
DDQ
DQ16
DQ17
DQS2
PIN #
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
PIN Name
DQS8
A0
NC
V
SS
NC
BA1
DQ32
V
DDQ
DQ33
DQS4
DQ34
V
SS
BA0
DQ35
DQ40
V
DDQ
/WE
DQ41
/CAS
V
SS
DQS5
DQ42
DQ43
V
DD
NC
PIN #
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
V
SS
DQ4
DQ5
V
DDQ
DM0
DQ6
DQ7
V
SS
NC
NC
NC
V
DDQ
DQ12
DQ13
DM1
V
DD
DQ14
DQ15
NC
V
DDQ
NC
DQ20
A12
V
SS
DQ21
Back Side
PIN Name
PIN #
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
PIN Name
V
SS
DM8
A10
NC
V
DDQ
NC
V
SS
DQ36
DQ37
V
DD
DM4
DQ38
DQ39
V
SS
DQ44
/RAS
DQ45
V
DDQ
/S0
NC
DM5
V
SS
DQ46
DQ47
NC
Swissbit Germany AG
Wolfener Straße 36
D-12681 Berlin
Fon: +49 (0) 30 93 69 54 - 0
Fax: +49 (0) 30 93 69 54 - 55
www.swissbit-germany.com
eMail: firma@swissbit-germany.com
Page 3
of 12
Data Sheet
Rev.1.0
09.04.2008
Front Side
PIN #
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
PIN Name
V
SS
A9
DQ18
A7
V
DDQ
DQ19
A5
DQ24
V
SS
DQ25
DQS3
A4
V
DD
DQ26
DQ27
A2
V
SS
A1
NC
NC
V
DD
PIN #
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
PIN Name
DQ48
DQ49
V
SS
NC
NC
V
DDQ
DQS6
DQ50
DQ51
V
SS
NC
DQ56
DQ57
V
DD
DQS7
DQ58
DQ59
V
SS
NC
SDA
SCL
PIN #
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
A11
DM2
V
DD
DQ22
A8
DQ23
V
SS
A6
DQ28
DQ29
V
DDQ
DM3
A3
DQ30
V
SS
DQ31
NC
NC
V
DDQ
CK0
/CK0
Back Side
PIN Name
PIN #
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
PIN Name
V
DDQ
DQ52
DQ53
NC
V
DD
DM6
DQ54
DQ55
V
DDQ
NC
DQ60
DQ61
V
SS
DM7
DQ62
DQ63
V
DDQ
SA0
SA1
SA2
V
DDSPD
Swissbit Germany AG
Wolfener Straße 36
D-12681 Berlin
Fon: +49 (0) 30 93 69 54 - 0
Fax: +49 (0) 30 93 69 54 - 55
www.swissbit-germany.com
eMail: firma@swissbit-germany.com
Page 4
of 12
Data Sheet
Rev.1.0
09.04.2008

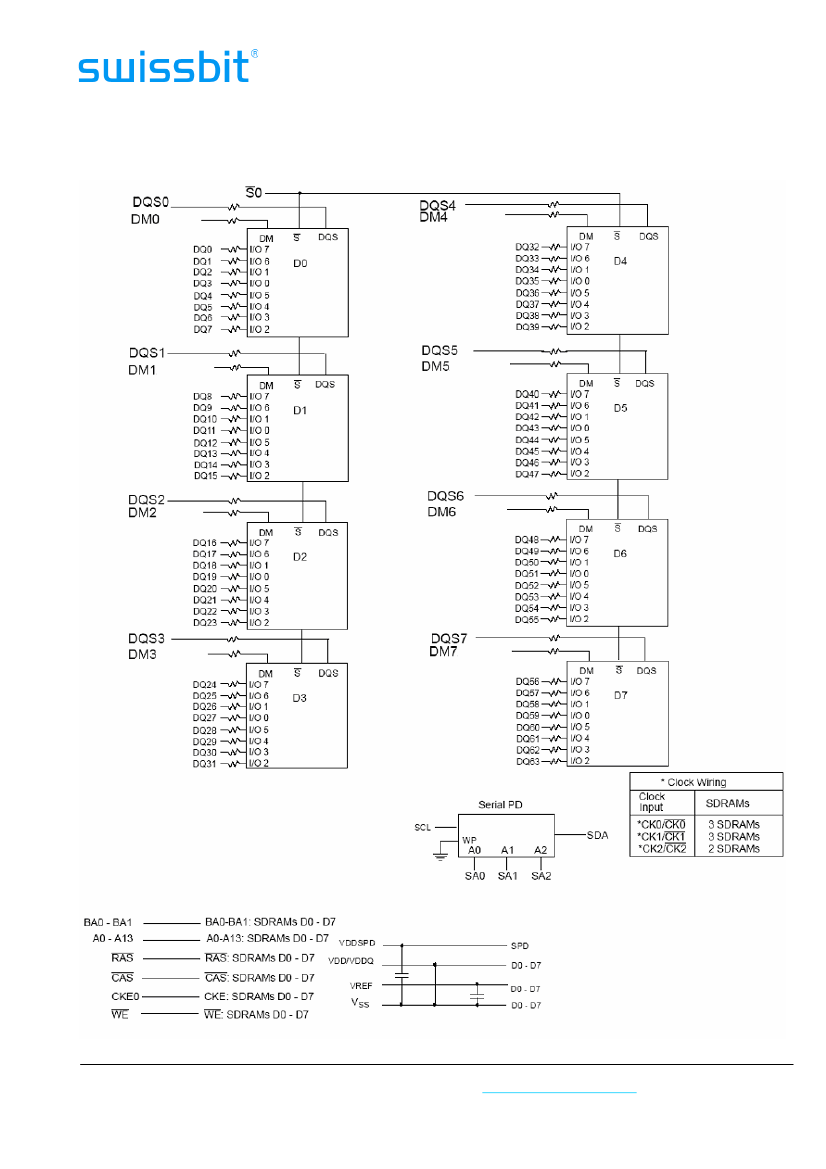

FUNCTIONAL BLOCK DIAGRAMM 512DDR SDRAM DIMM 1RANK; NON-ECC
