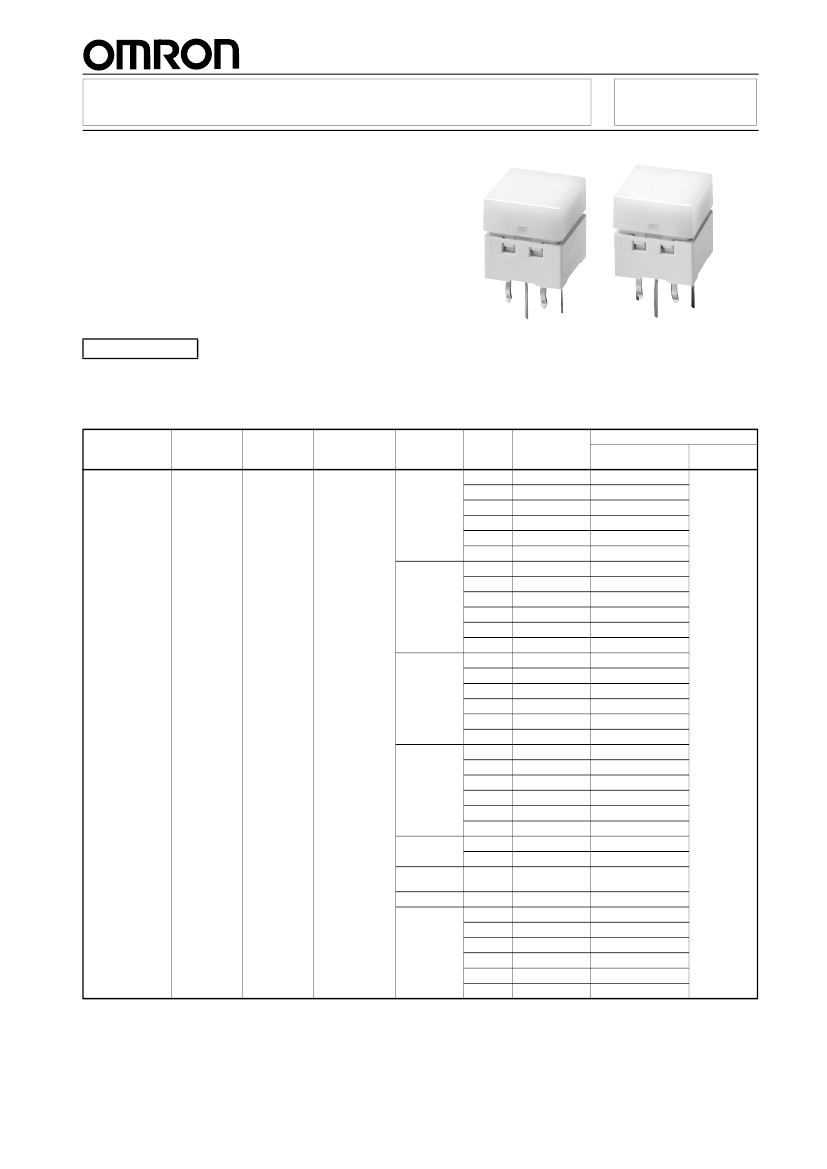

Illuminated Tactile Switches
Compact Illuminated
Through-hole-mounting Switches
with Two LEDs
• Compact construction 10
×
10
×
11 mm (W
×
D
×
H) and 12
×
12
×
11 mm (W
×
D
×
H) with bright
and uniform illumination.
• Three-color illumination (red LED + green LED =
orange).
• Standard force (1.57 N) and high-force (2.26 N)
models.
RoHS Compliant
■
B3W-9
List of Models
Operation type
Contact
material
Height
Operating force
(OF)
LED color
No. of
LEDs
1
1
1
2
2
2
Green
1
1
1
2
2
2
Green (high
brightness)
1
1
1
2
2
2
Red
1
1
1
2
2
2
Red + Green
Red + High
bright green
Red + Blue
Yellow
2
2
2
2
1
1
1
2
2
2
Cap color
Model
Blue
Transparent
Milky white
Blue
Transparent
Milky white
Transparent
Green
Milky white
Transparent
Green
Milky white
Transparent
Green
Milky white
Transparent
Green
Milky white
Transparent
Milky white
Red
Transparent
Milky white
Red
Transparent
Milky white
Transparent
Transparent
Transparent
Milky white
Yellow
Transparent
Milky white
Yellow
B3W-9000-B1B
B3W-9000-B1C
B3W-9000-B1N
B3W-9000-B2B
B3W-9000-B2C
B3W-9000-B2N
B3W-9000-G1C
B3W-9000-G1G
B3W-9000-G1N
B3W-9000-G2C
B3W-9000-G2G
B3W-9000-G2N
B3W-9000-HG1C
B3W-9000-HG1G
B3W-9000-HG1N
B3W-9000-HG2C
B3W-9000-HG2G
B3W-9000-HG2N
B3W-9000-R1C
B3W-9000-R1N
B3W-9000-R1R
B3W-9000-R2C
B3W-9000-R2N
B3W-9000-R2R
B3W-9000-RG2C
B3W-9000-RG2N
B3W-9000-RHG2C
B3W-9000-RB2C
B3W-9000-Y1C
B3W-9000-Y1N
B3W-9000-Y1Y
B3W-9000-Y2C
B3W-9000-Y2N
B3W-9000-Y2Y
300 pcs
Box
Minimum
packing unit
10
×
10 mm Models
Blue
B3W-9000 Series:
Standard force
Silver plated
11 mm
1.57 N {160 gf}
max.
1
B3W-9
■
B3W-9
Ratings/Characteristics (Same for Both Standard and High-force Switches)
1 to 50 mA, 3 to 24 VDC
10
μA
at 1 VDC (resistive load)
−25°C
to +70°C at 60% max. humidity (with no icing or condensation)
35% to 85% (at +5 to +35°C)
SPST-NO
100 mΩ max.
100 MΩ min. (at 250 VDC with insulation tester)
500 VAC, 50/60 Hz for 1 min
5 ms max.
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Destruction: 1,000 m/s
2
{approx. 100 G} max.
Malfunction: 100 m/s
2
{approx. 10 G} max.
Switch sec-
tion
IEC IP00
Not possible
1.57 N (standard force):1,000,000 operations min.
2.26 N (high-force):300,000 operations min.
Rating (resistive load)
Minimum applicable load (reference value)
Ambient operating temperature
Ambient operating humidity
Contact form
Contact resistance (initial value)
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Durability
Degree of protection
Washing
■
Operating Characteristics
Item
Standard-force
Switches (B3W-90@0)
1.57 N {160 gf} max.
0.2 N {20 gf} min.
0.25
+0.2
/
−0.1
High-force Switches
(B3W-90@2)
2.26 N {230 gf} max.
0.49 N {50 gf} min.
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
mm
■

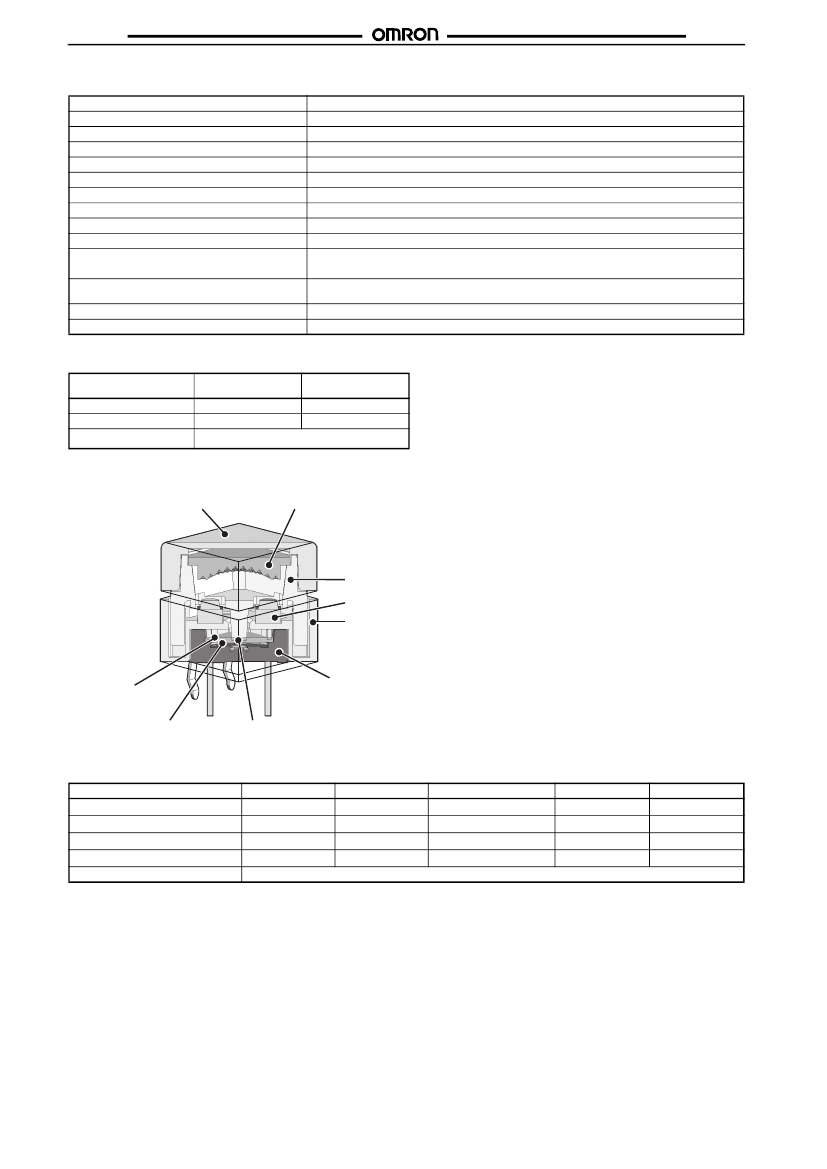

Model Structure
Cap
Filter
Button
LED
Cover
Base
Sealed rubber
Contact dome
■
Fixed contact
(Ambient temperature Ta = 25°C)
Red
27 mA
20 mA
1.8 V
5V
−25°C
to 70°C
27 mA
10 mA
2.1 V
5V
Green
Green (high brightness)
27 mA
20 mA
3.7 V
5V
45 mA
20 mA
2V
5V
Yellow
27 mA
20 mA
3.7 V
5V
Blue
LED Specifications
LED color
Maximum operating current I
FM
Recommended operating current I
F
Forward voltage (standard value) V
F
Maximum reverse voltage V
R
Ambient operating temperature
Note:
For Switches with two LEDs, red and green, the recommended operating current is 12 mA for the red and 20 mA for the green LED
for application with three-color illumination.
4
B3W-9
■
B3W-9
LEDs
current reduction curve
Yellow
40
50
●
Forward
Forward current I
F
(mA)
Red, Green
30
20
High
brightness
Green and Blue
10
0
0
20
40
60
80
Ambient temperature Ta (°C)
●
Forward
Forward current I
F
(mA)
300.0
200.0
100.0
50.0
20.0
current and forward voltage curves
Forward current I
F
(mA)
100
90
80
70
60
Green
50
40
Red
10.0
5.0
2.0
30
1.0
0.5
0.2
0.1
20
10
0
0
0.5
1
1.5
2
2.5
3
3.5
0
0.5
1
1.5
2
Forward
voltage V
F
(V)
2.5
3
3.5
Forward
voltage V
F
(V)
Forward current I
F
(mA)
Forward current I
F
(mA)
100
35
30
80
25
Green (High
brightness),
Blue
20
60
Yellow
40
15
10
20
5
0
1.0
1.5
2.0
2.5
3.0
Forward
voltage V
F
(V)
0
0
1
2
3
4
5
Forward
voltage V
F
(V)
Note:
1.
Make sure that the polarity of the LEDs is correct. The polarity is not indicated on the Switch, but the positive pole is located on
the back surface of the Switch on the side with the OMRON mark.
2.
Connect limiting resistors to the LEDs. The Switch does not have built-in limiting resistors, so satisfy the LED characteristics by
obtaining the limiting resistance according to the following formula based on the voltage to be used.
Limiting resistance (R)=
(Voltage
used
(E) – LED forward
voltage
(VF))
(
Ω
)
LED forward current (IF)
E
V
F
R
I
F
5
