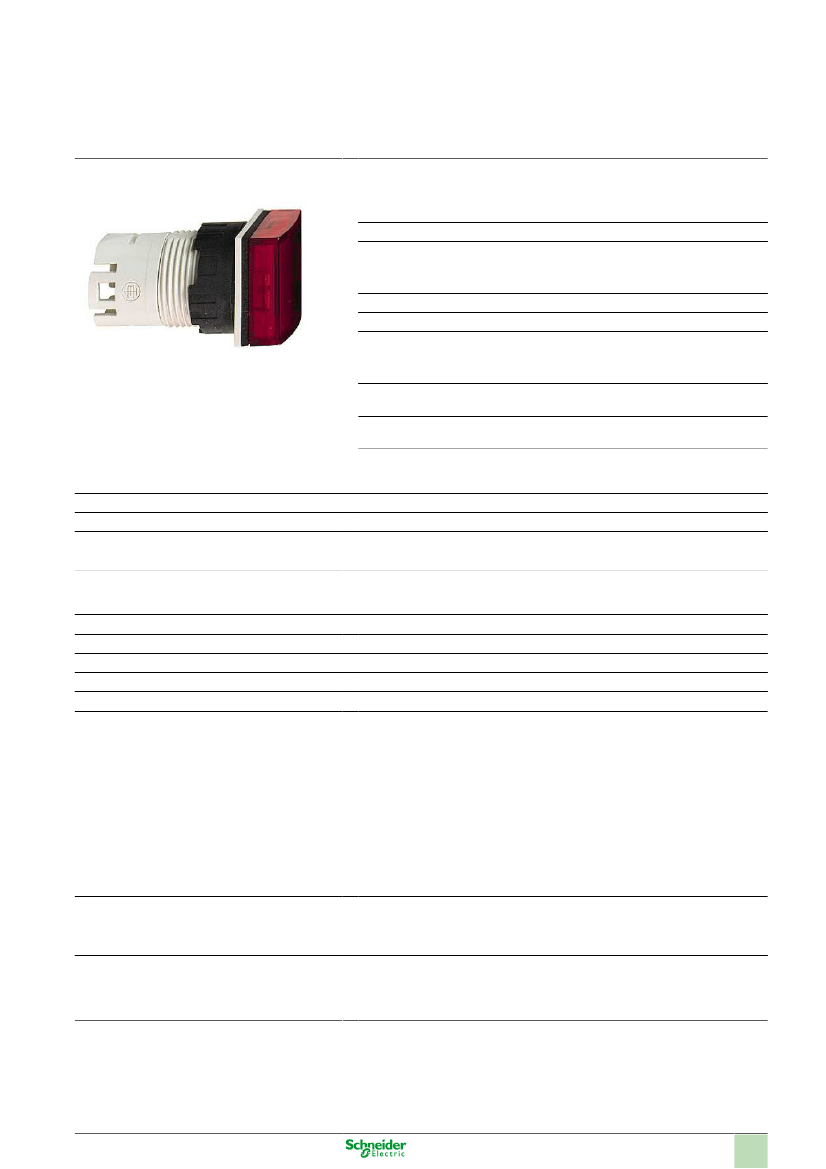

Product data sheet
Characteristics
ZB6CV4
square red pilot light head Ø16 for integral LED
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Product compatibility
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Cap/Operator or lens
colour
Commercialised
Harmony XB6
Head for pilot light
Integral LED
ZB6
Plastic
0.63 in (16 mm)
1
Square
Red
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
0.71 in (18 mm)
0.71 in (18 mm)
1.3 in (33 mm)
0.03 lb(US) (0.015 kg)
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
TC
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class II
IP65 conforming to IEC 60529
NEMA 4X conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4X conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 13 conforming to UL 50
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
CCC
CSA
GOST
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
+/- 3 mm (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Standards
Product certifications
Vibration resistance
Shock resistance
Oct 30, 2013
1
