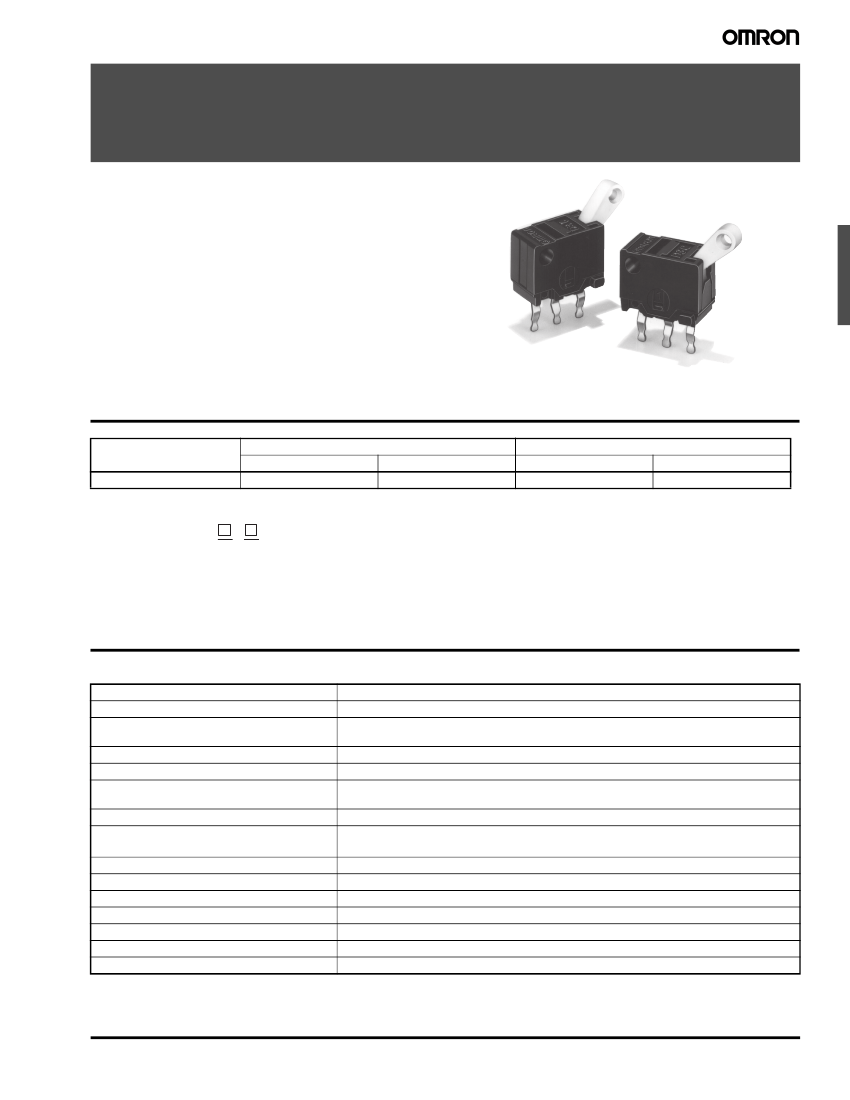

Detection Switch
D3C
Subminiature Detection Switch
• Built-in slide mechanism provides reliable contact
• Choose from shorting or non-shorting switch timing models
• PCB mount switch with 100 milliamp capacity
• Ideal for household appliances, sound equipment, office
equipment, communications equipment, etc.
• Compact size
• RoHS Compliant
Ordering Information
Actuator
Pivoting Hinge lever
General Purpose
Non-shorting Model
D3C-1210
Shorting Model
D3C-2210
Low Operating Force
Non-shorting Model
D3C-1220
Shorting Model
D3C-2220
Model Number Legend
D3C-
1
2
2
0
1.
Switching Timing
1:
Non-shorting
(Break-before-make)
2:
Shorting
(Make-before-break)
2.
Maximum Oprating Force
1: 130 gf
2: 40 gf
Specifications
■
Characteristics
Electrical rating
Operating speed
Operating frequency
Contact resistance
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Degree of protection against electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Service life
Weight
100 mA, 30 VDC (resistive load)
1 to 500 mm/s
Mechanical: 200 operations per minute, max.
Electrical: 30 operations per minute, max.
50 mΩ max.
100 MΩ min. at 250 VDC
250 VAC, 50/60 Hz for 1 minute between terminals of same polarity
250 VAC, 50/60 Hz for 1 minute between current-carrying metal parts and ground
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Destruction: 1,000 m/s
2
(approx 100G) max.
Malfunction: 300 m/s
2
(approx. 30G) max.
IEC IP00
Class III
175
-20° to 80°C (at 60% RH max) with no icing
85% max. (for 5° to 35°C)
50,000 operations min. at 30 operations per minute
Approx. 0.3 g
Note: 1.
Data shown are of initial value.
2.
The electrical rating applies under the following test conditions:
Ambient Temperature = 20±2°C, Ambient Humidity = 65±5%, Operating frequency = 30 operations/min.
Detection Switch
D3C
45
Engineering Data
■
Contact Specifications
Item
Specification
Material
Minimum applicable load
(see note)
Slide
Silver plated
1 mA at 5 VDC
Specification
■
Mounting
All D3C switches may be panel mounted using M1.6 mounting
screws with plane washers or spring washers to securely mount the
switch. Tighten the screws to a torque of 4.9 to 9.8 x 10
-2
N·m.
M1.6 tap
Note:
Minimum applicable loads are indicated by
N
standard
reference values. This value represents the failure rate at a
60% (λ
60
) reliability level (JIS C5003).
The equation
λ
60
=0.5 x 10
-6
/operations indicates that a failure
rate of 1/2,000,000 operations can be expected at a reliability
level of 60%.
4±0.1
5.7±0.1
1.6 dia
■
PCB Layout
(reference)
2.54
Three, 1 dia. hole
2.54
4.2
■
Switching Timing
Non-shorting Model
(2) (NC) FP
(1)
(3) (NO)
OP1
OP2
TTP
Shorting Model
(2) (NC) FP
(1)
(3) (NO)
OP1
OP2
TTP
8
■
Contact Form
SPDT
NO COM NC
(3) (1) (2)
Dimensions
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±0.4
mm applies to all dimensions.
D3C-1210/-2210
D3C-1220/-2220
Operating direction (B)
8.7
+0.12
6.7
1.6
0
dia. hole
5.7±0.15
6
Operating
direction (A)
1-dia. hole
1R
OP FP
4±0.15
5.6
4.2
1.6
Model
OF max.
RF min.
FP max.
OP1
1
Non-shorting Model
D3C-1210
130 gf (100 gf)
10 gf (15 gf)
D3C-1220
40 gf (30 gf)
3 g (5 gf)
Shorting Model
D3C-2210
10 gf (15 gf)
D3C-2220
3 g (5 gf)
130 gf (100 gf) 40 gf (30 gf)
4.8 mm
3.4 ± 0.3 mm
2.6 ± 0.3 mm
1.3 ± 0.4 mm
4.8 mm
3.5 ± 0.3 mm
2.5 ± 0.3 mm
1.3 ± 0.4 mm
4.7
4.6 max.
0
1.5
–0.15
dia.
OP2
TTP
3.5
2.5 2.5
4
8
0.8
0.3
0.9
Note:
The values for operating characteristics apply for operation in the
A direction ( ). The values in parentheses indicate those for
operation in the B direction ( ).
46
Detection Switch
D3C
Precautions
Be sure to read the precautions and information common to all Snap Action and Detection Switches, contained in the Technical User’s Guide,
“Snap Action Switches, Technical Information” for correct use.
■
Correct Use
Mounting
Turn off the power supply before mounting or removing the switch,
wiring or performing maintenance or inspection. Failure to do so may
result in electric shock or burning.
Mount the switch onto a flat surface. Mounting on an uneven surface
may cause deformation of the switch, resulting in faulty operation or
breakage in the housing.
■
Cautions
Terminal Connection
When soldering the lead wire to the terminals, first bind the lead wire
to the terminal and then apply the 60(Sn):40(Pb) solder to the termi-
nals. Complete soldering within 5s at a soldering iron temperature of
260°C. Soldering at a temperature exceeding 260°C, soldering for
more than 5 s, or repeated soldering will degrade the switch charac-
teristics.
When soldering the lead wire to the PCB terminal, pay careful atten-
tion so that the flux and solder liquid level does not exceed the PCB
level.
It is also recommended that you apply flux guard to the mounting sur-
face of the switch.
Application of Operation Force to the Lever
Apply operation forces to the lever in its operating direction. Applying
operating force to the lever in any other directions will damage the
switch or cause malfunction.
Incorrect
Incorrect
Incorrect
Switch mounting surface
Correct
Mounting Plate
Use materials other than ABS or polycarbonate for the mounting
plate. Since grease is used within the switch, cracks may be caused
if grease from the switch comes in contact with such materials.
Using Microloads
Using a model for ordinary loads to switch microloads may result in
faulty operation. Instead, use the models that are designed for
microloads and that operate in the following range;
Voltage
(V)
30
0.16 mA
100 mA
24
Operating range
12
Inoperable
range
5
0
0.1
1
10
100
1,000
1mA
Current (mA)
However, even when using microload models within the operating
range shown above, if inrush current or inductive voltage spikes
occur when the contact is opened or closed, then contact wear may
increase and so decrease the service life. Therefore, insert a contact
protection circuit where necessary.
Detection Switch
D3C
47
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at
http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
847-882-2288
Cat.
No.
X303-E-1
11/10
Specifications subject to change without notice
Printed in USA
