MDS6500AL02PS Overview

detector switches switch detect snapact spdt T/H

MDS6500AL02PS Parametric

Parameter Name	Attribute value
Manufacture	C&K Components
Product Category	Detector Switches
RoHS	Yes
Operation Directi	Vertical
Contact Rating	0.3 A at 6 V
Operating Force	65 g
ON Travel	7.7 mm
Termination Style	PCB
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

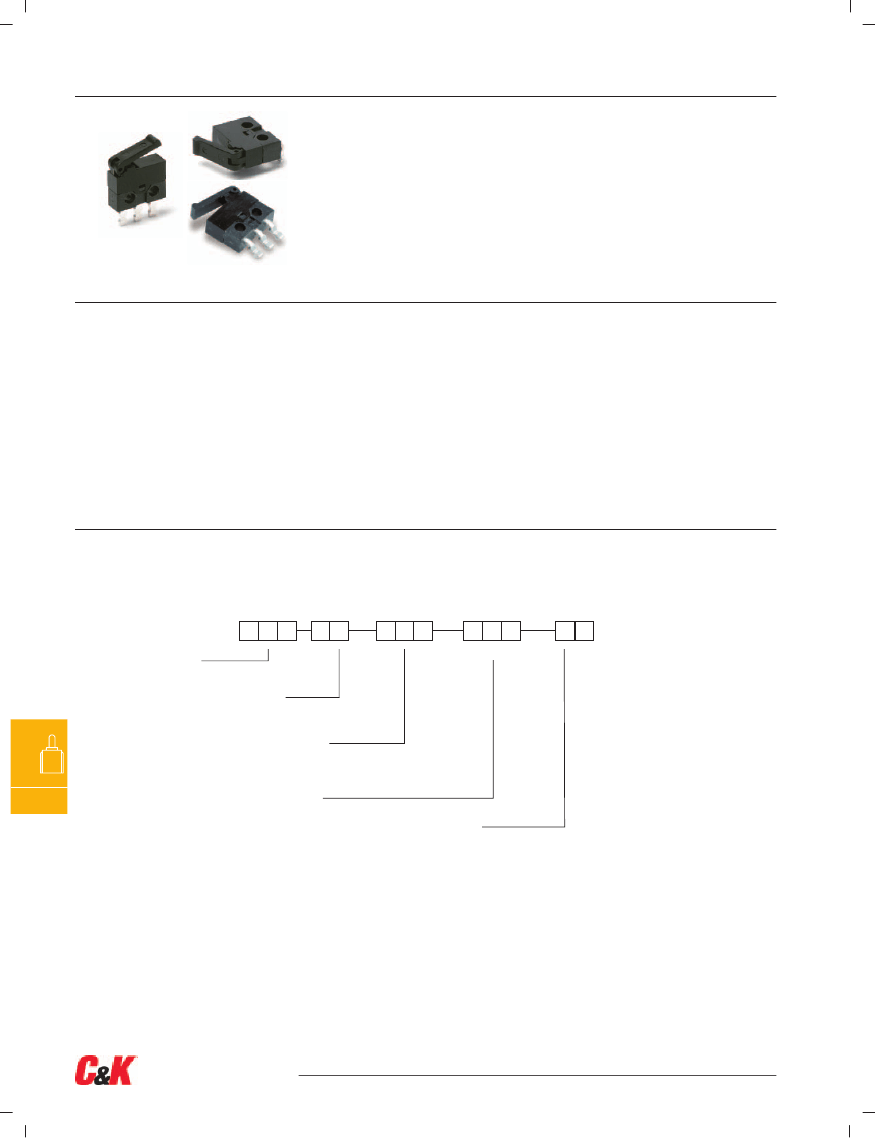

MDS Series

Micro Snap-acting Detect Switches

Features/Benefits

•

Snap-acting tactile feel

•

Small package size

•

Available in vertical or

right angle PCB mount

Typical Applications

•

Detect the presence of

a mechanical device

•

Medical devices

•

Consumer electronic

devices

•

RoHS compliant and

compatible

•

ATCA or MicroTCA devices

Specifications

CONTACT RATING: 300mA @ 30 VDC.

MECHANICAL & ELECTRICAL LIFE: 30,000 operations.

CONTACT RESISTANCE: 100 m

Ω

max.

OPERATING TEMPERATURE: –25ºC to +70ºC.

SOLDERABILITY: According to lead free solder profiles.

PACKAGING: Available in bulk or tape and reel.

OPERATING FORCE: 50 g Max.

RELEASE FORCE: 3g Min.

Materials

BASE: PA9T

COVER & ACTUATOR: PA9T

MOVABLE CONTACT: Copper alloy, silver plated.

STATIONARY CONTACTS: Copper alloy, silver plated.

TERMINALS: Copper alloy, silver plated.

NOTE:

MDS series is RoHS compliant, and compatible. See technical data section of

this catalog for RoHS compliant and compatible definitions and specifications.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages E-11 and E-15. For additional options not shown in catalog, consult Customer Service Center.

M D

Series

MDS

SPDT

Operating Force

50 grams

Electrical Rating

00A

300mA @ 30 VDC

Detect

Actuator

L02

Standard lever

L03

Higher OP lever

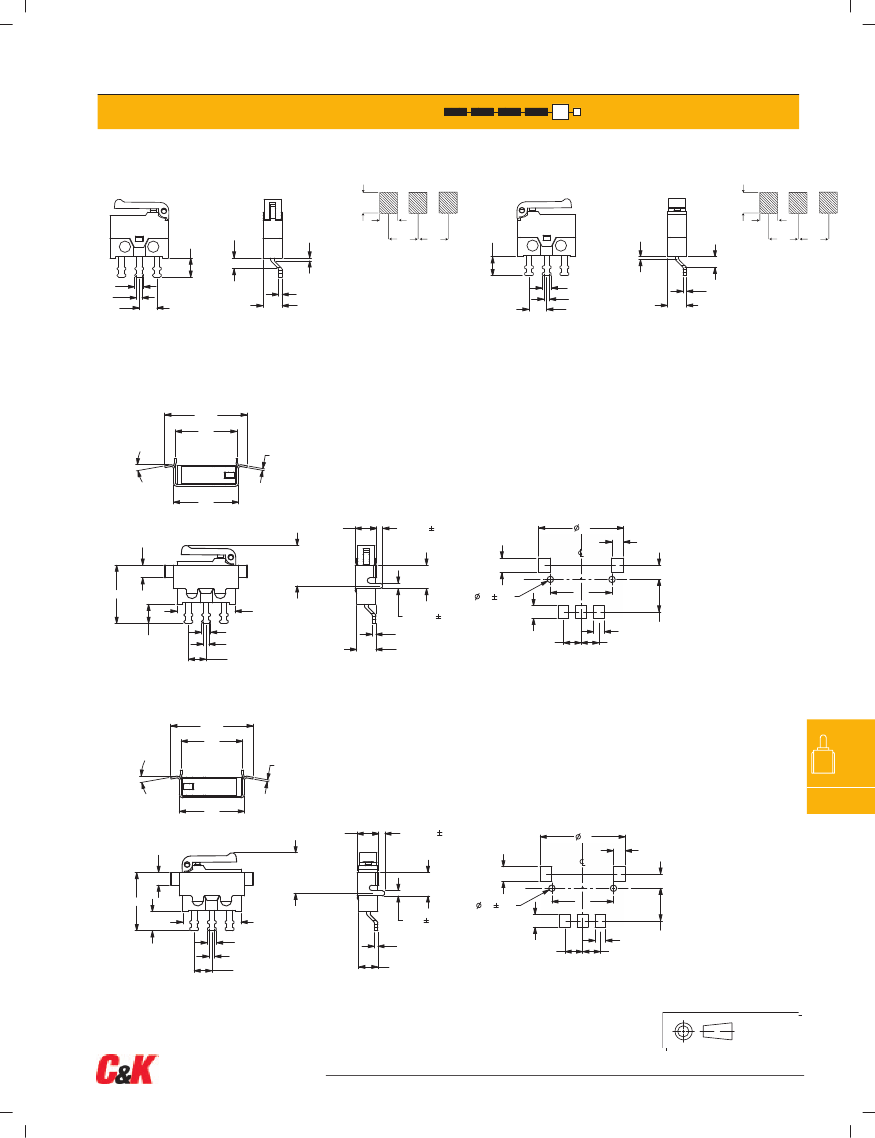

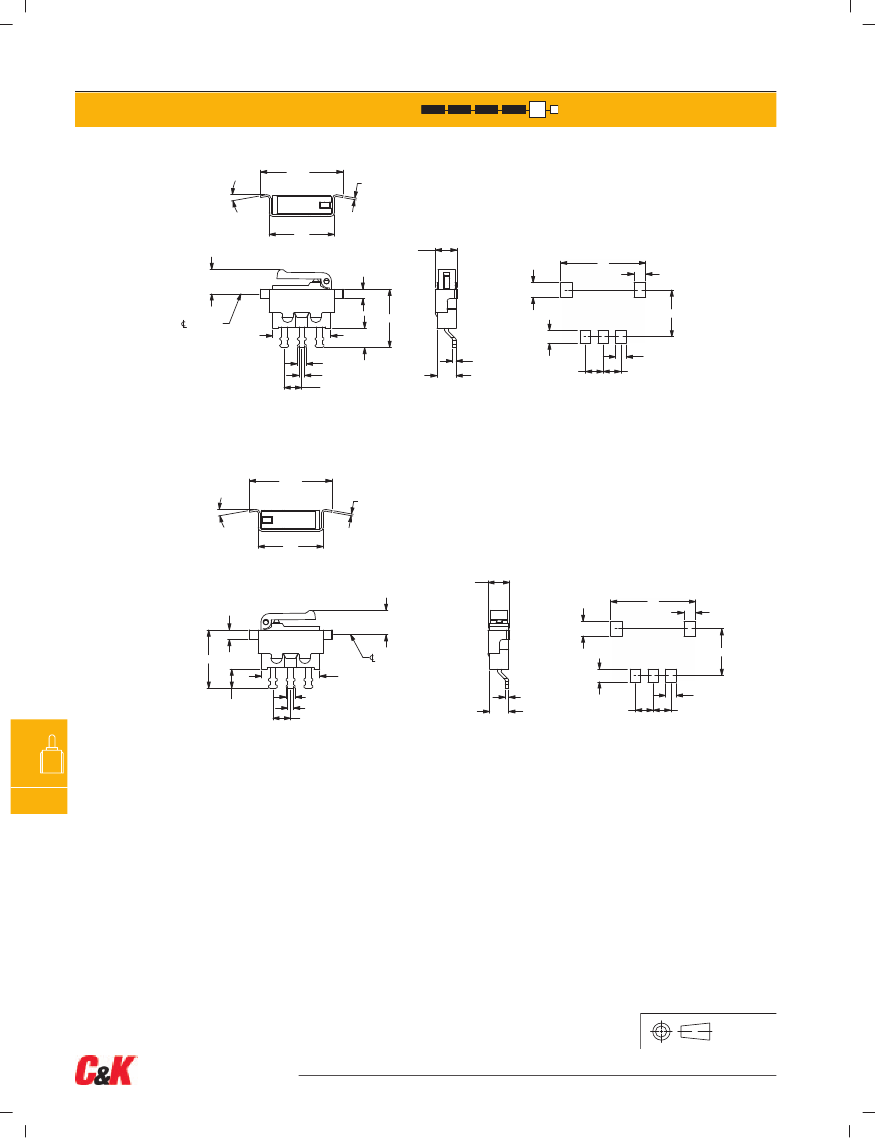

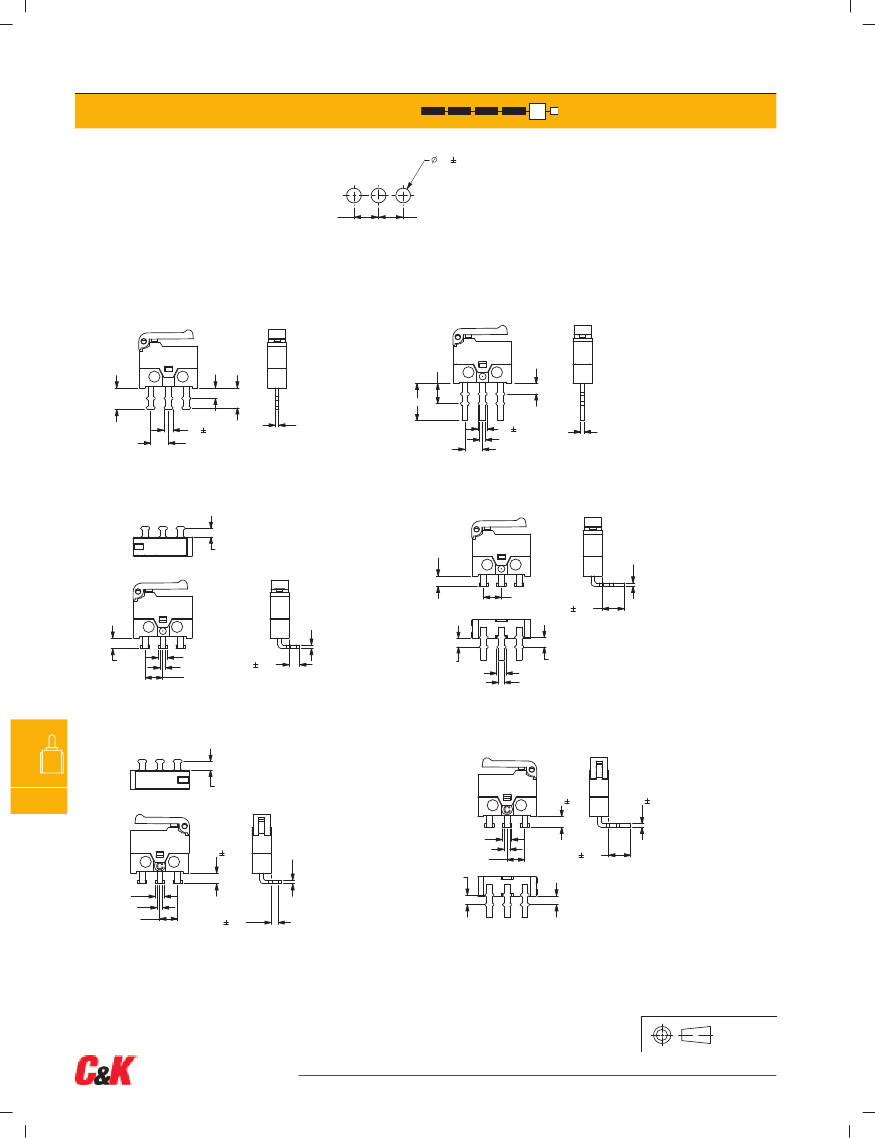

Termination Style

PC Thru-hole, Short

PC Thru-hole, Long

PC Thru-hole, Short, Right bend

PC Thru-hole, Long, Right bend

PC Thru-hole, Short, Left bend

PC Thru-hole, Long, Left bend

SMT, Left

SMT, Right

SMT, Left bracket with pins

SMT, Right bracket with pins

SMT, Left bracket no pins

SMT, Right bracket no pins

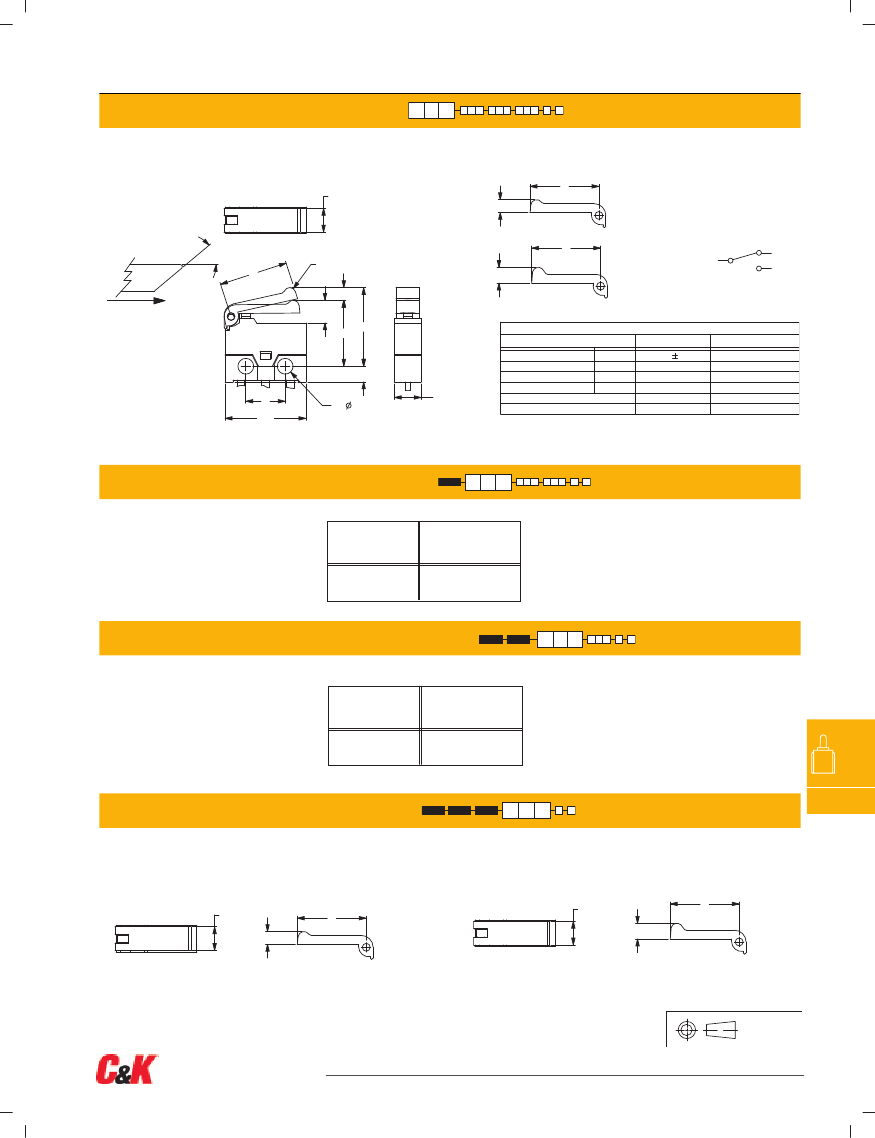

Dimensions are shown: mm

Specifications and dimensions subject to change

13 Feb 14

E–12

www.ck-components.com
