83241213 Overview

basic / snap action switches pbx4n ip67 0.1A 1/4" 0deg QC + lvr

83241213 Parametric

Parameter Name	Attribute value
Manufacture	Crouze
Product Category	Basic / Snap Action Switches
RoHS	Yes
Type	Standard
Contact Form	DPST
Switch Functi	ON - (OFF), OFF - (ON)
Actu	Roller Leve
Voltage Rating AC	250 V
Voltage Rating DC	250 V
Operating Force	4.5 N
IP Rating	IP 67
Termination Style	Quick Connect Terminal
Mounting	Panel
Factory Pack Quantity	10

Preview

Download Datasheet

View All

18/06/2013

www.crouzet.com

PBX Secure Low level83241 Part number made to order

Dimensions according to standard DIN 41 636 type F

Positive break operation mechanism according to IEC 60947-5-1 Annex K

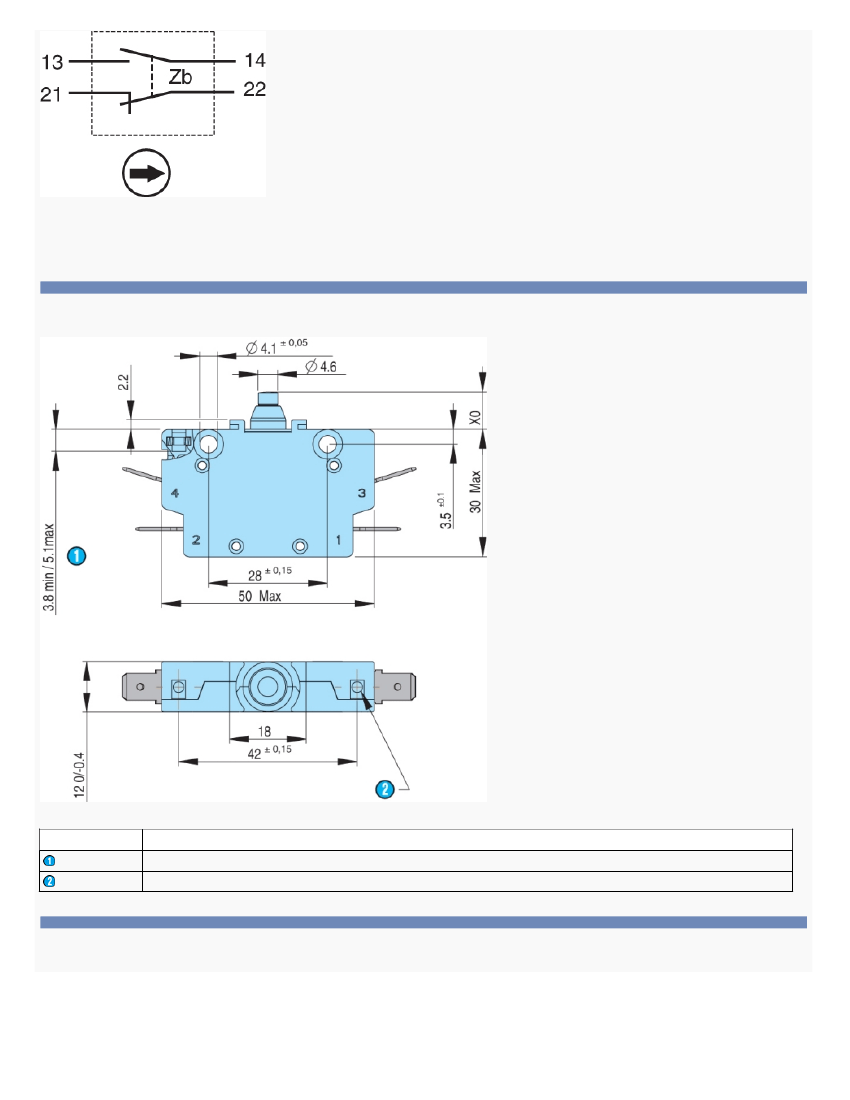

Double break changeover switch with electrically separated circuits (form Zb)

IP 40 or IP 67 / IP 65 versions

Operating temperature between -50 and +85 °C

Long overtravel

Standard or Low level version

Part numbers

Type

83241213

Low level83241

Degree of protection mechanism - connection

IP 67 / IP 65 - IP 00

Connections / Accessories

W3 with 90° angle + Lever

Specifications

Electrical characteristics

Direct opening action

Rating nominal / 250 VAC (A)

Rating nominal / 250 VDC (A)

Rating thermal (A)

Operating range / 4 →30 VDC/AC (A)

0,001 →0,1

Mechanical characteristics

Minimum operating force (Nm)

Minimum positive opening force (N)

Maximum rest position (mm)

Operating position (mm)

Positive opening position (mm)

Maximum end of travel position (mm)

Differential travel (mm)

Operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Max. tightening torque (Nm)

Weight (g)

4,5

8,9

6,6

±0.25

4,4 *

3,4 *

±0,3

-50 →+85

(IP40)

4 x 10

(IP67)

2x1

1.3 on Ø 4.1 holes

22 *

Comments

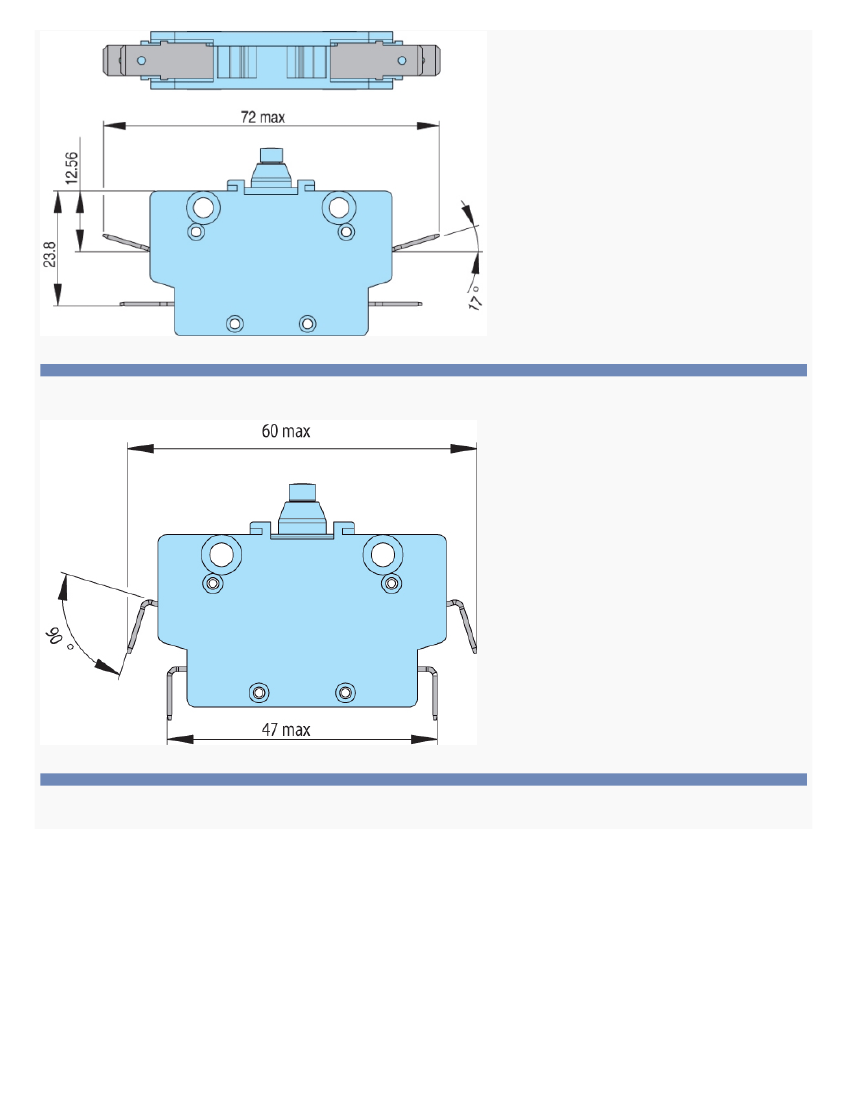

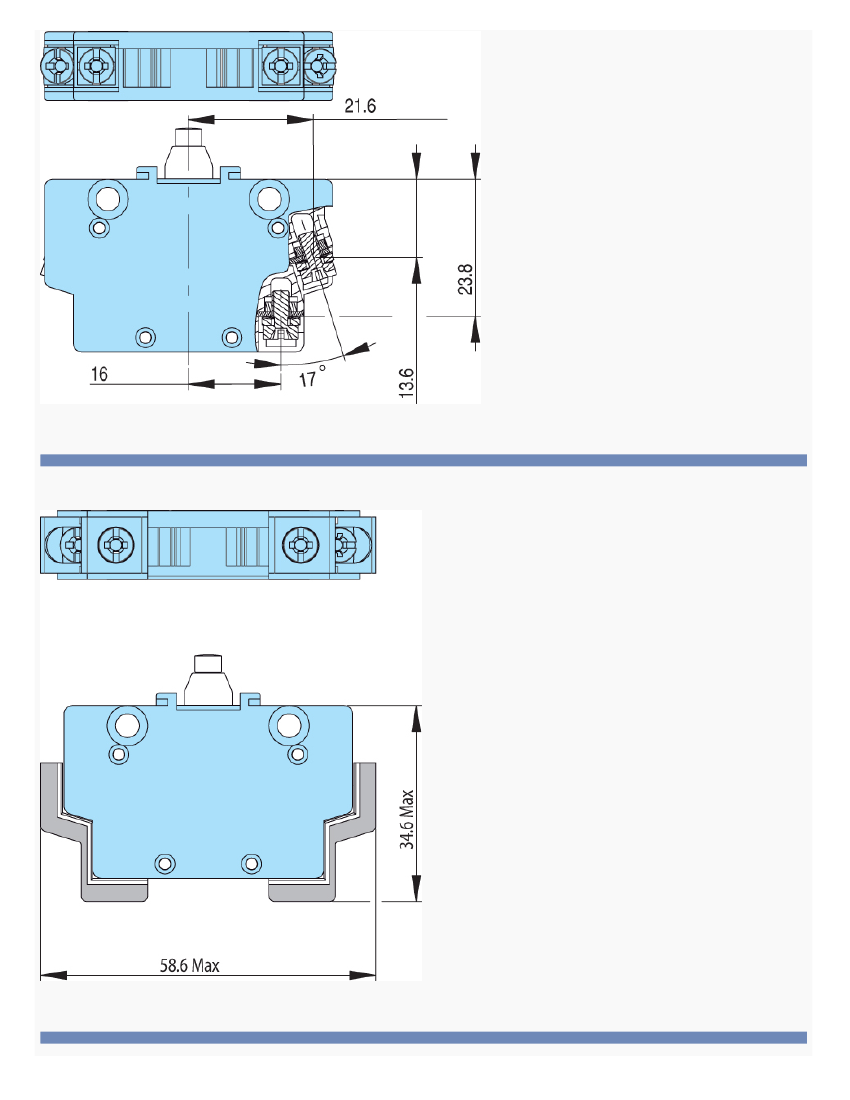

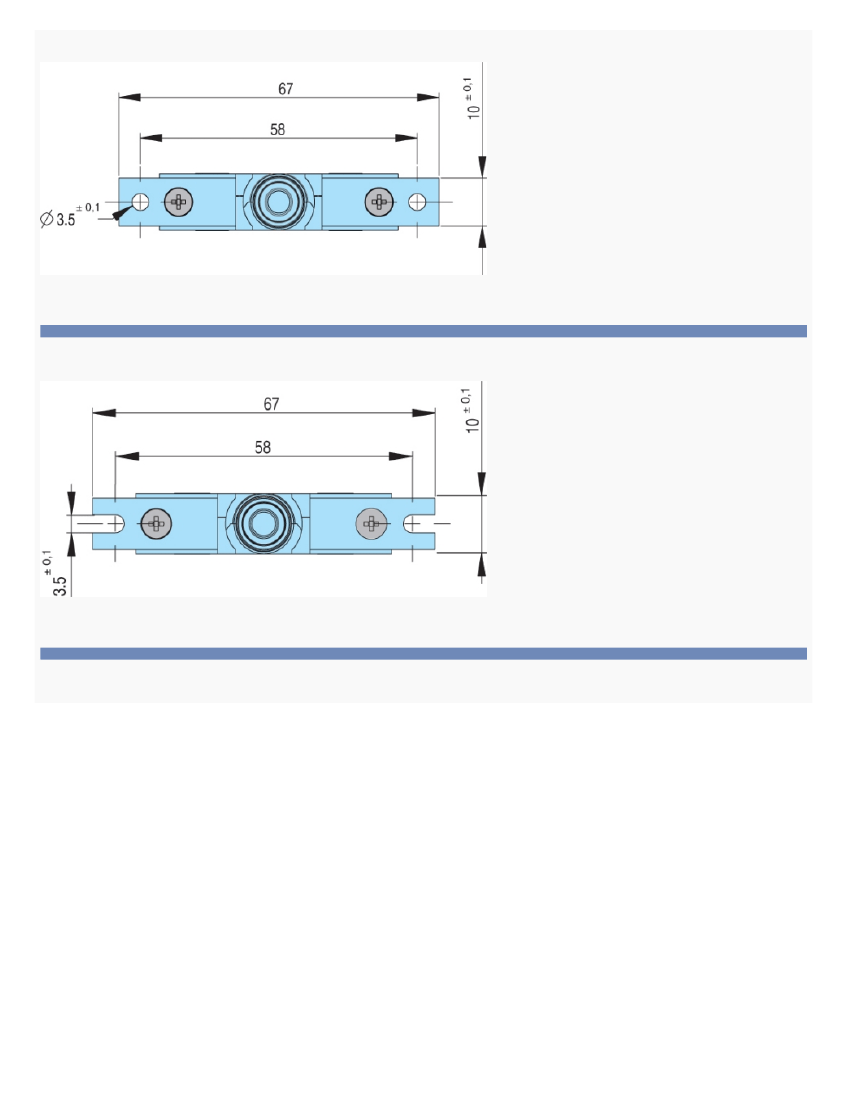

* Values given for versions without lever (in relation to the reference dimension X0 - See Dimensions section).

Additional characteristics

Components

Material

- Case/cover : PC GF 20 FR. (UL 94-V0, GWFI 960 °C, NFF 16-101/102 I2F1)

- Contacts : AgNi for Standard version and AgPd for low level version

- Terminals : Brass

- Button membrane : Silicone

- Screws : zinc protected steel (stainless steel on request)

Conformity to standards

- Construction and performance according to IEC 60947-5-1

- Positive opening operation according to IEC 60947-5-1 Annex K

- Dimensions conforming to standard DIN 41 636 type F

- Insulation characteristics according to standard IEC 60947-5-1

* Impulse withstand voltage : Uimp = 4 KV

* Rated insulation voltage : Ui = 400 V

* Pollution degree = 3

- Insulation characteristics according to standard EN 50124-1

* Impulse withstand voltage : Uimp = 2.5 KV

* Rated insulation voltage : Ui = 150 V

* Pollution degree = PD3A

Principles

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
