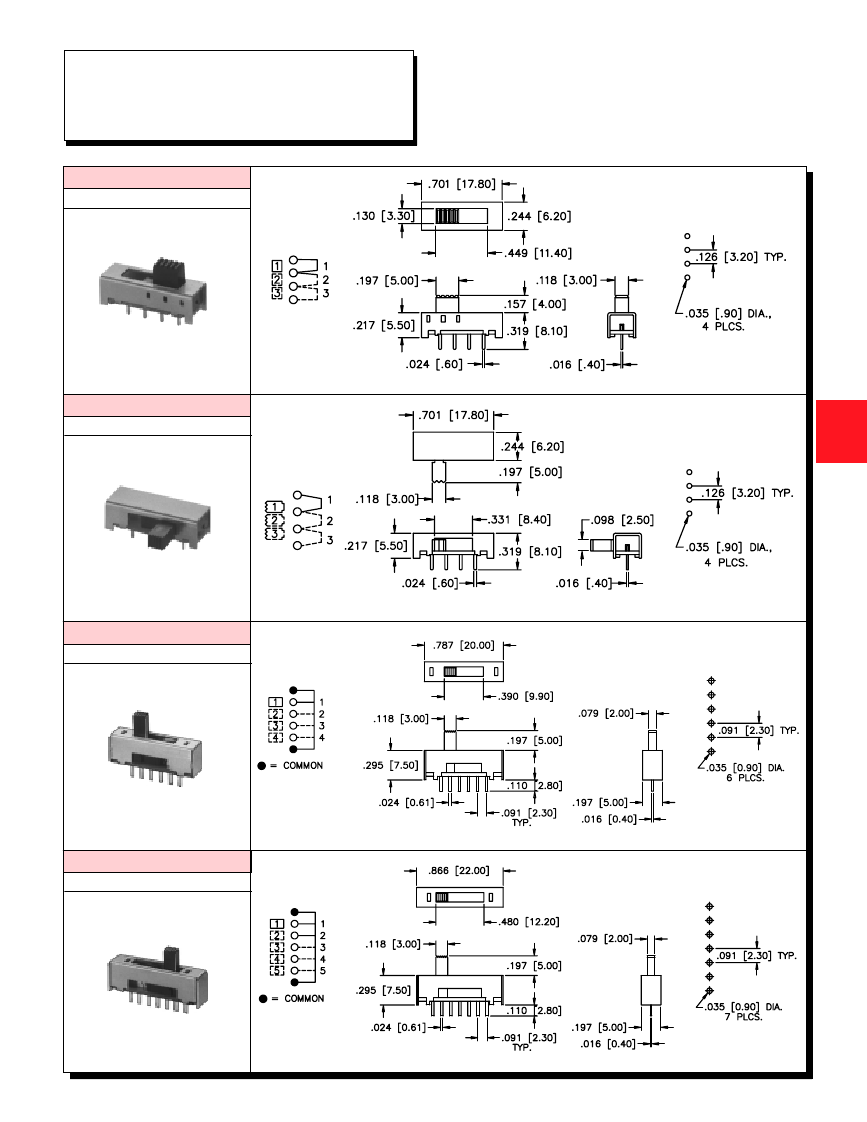

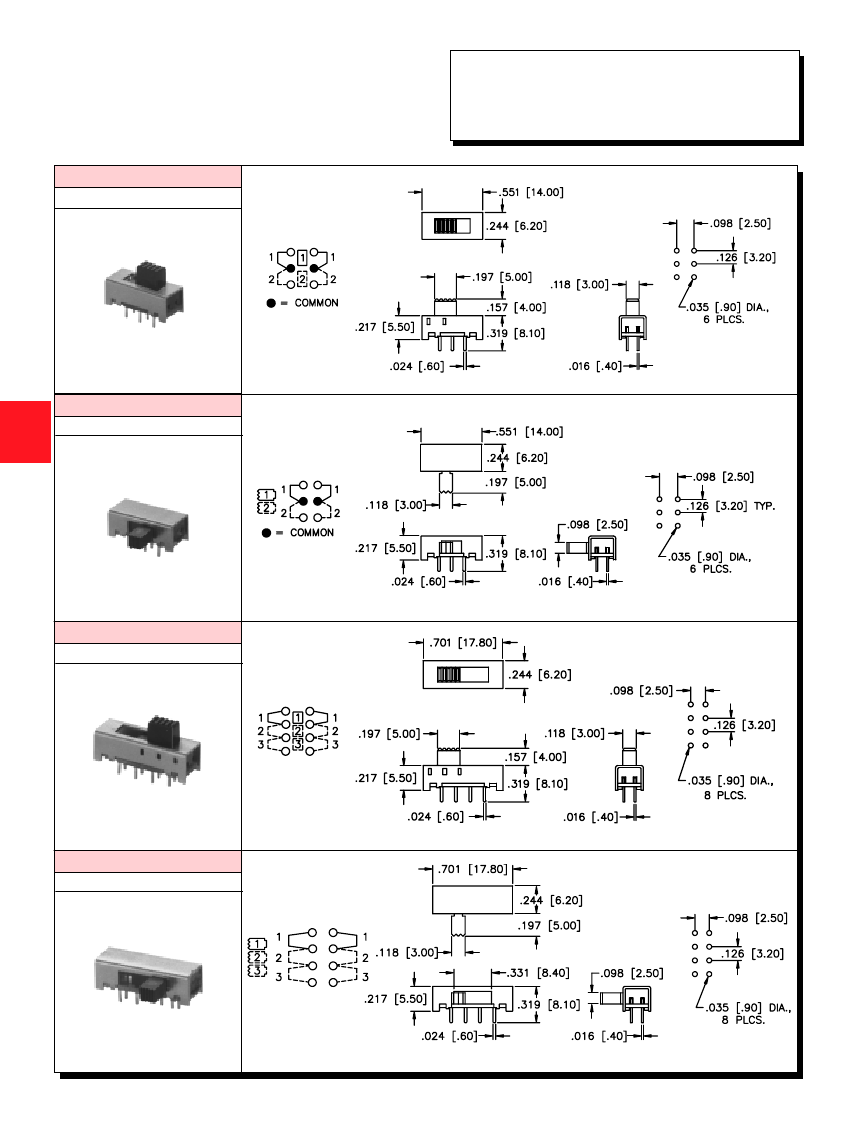

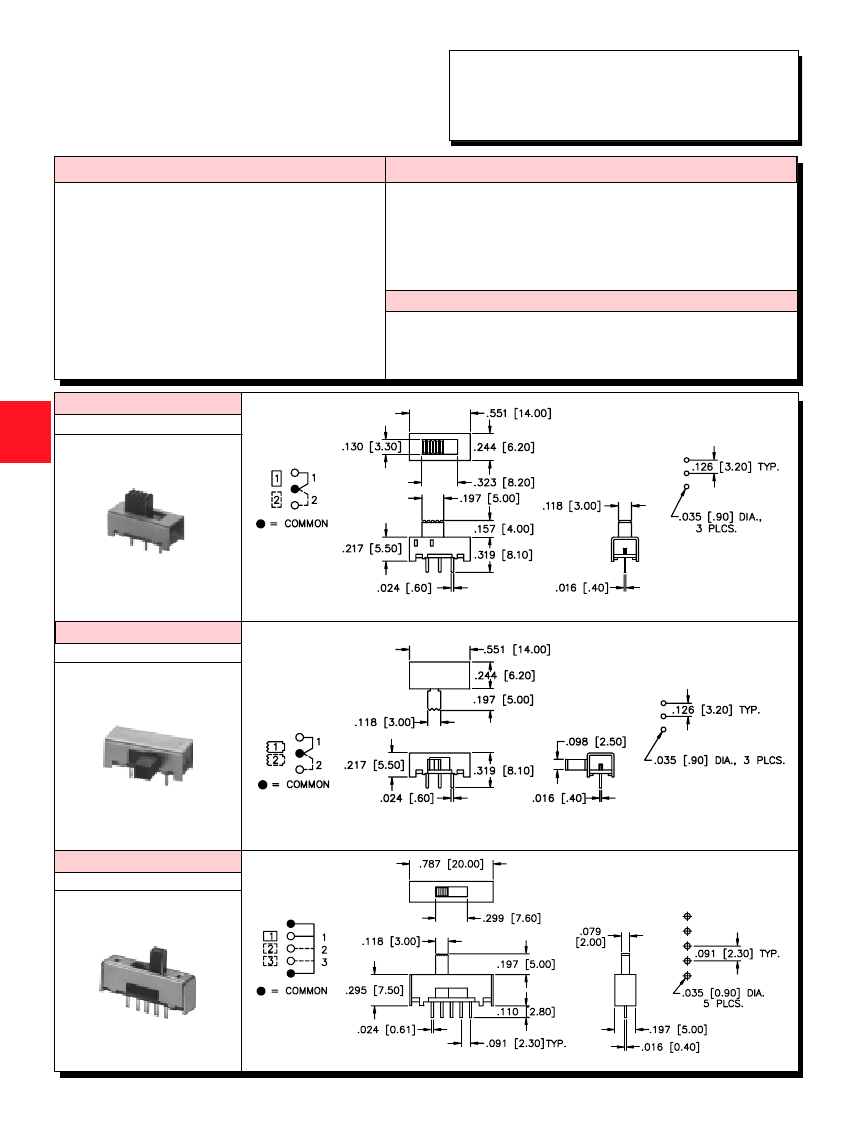

SLB Series
(with p.c. board stand-off bracket)
Miniature Slide Switches

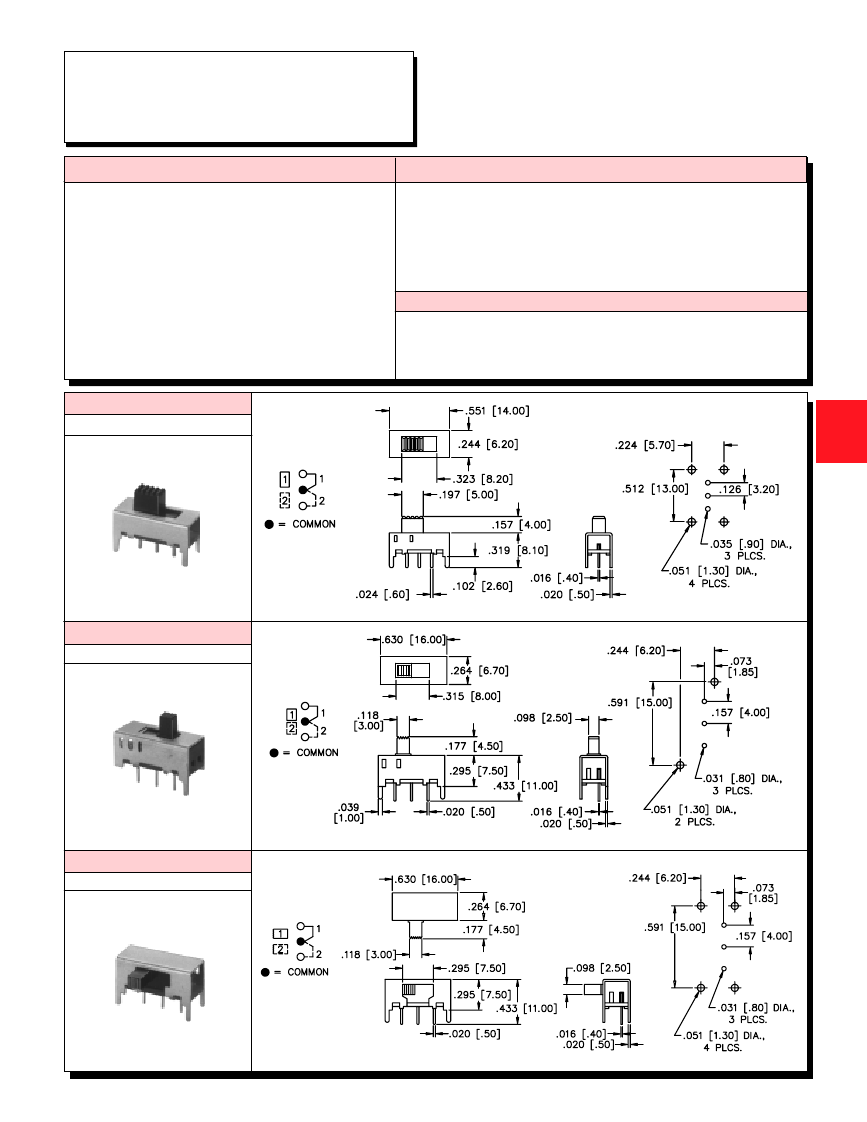

SPECIFICATIONS
Contact ratings:
300 mA at 125 VAC or 30 VDC
Initial contact resistance:
20 milliohms max.
Insulation resistance:
100 megohms min. at 500 VDC
Dielectric strength:
500 volts RMS for 1 minute
Electrical life:
10,000 cycles min.
Operating temperature range:
-20°C to +85°C
Actuation force:
220g ± 100g
Solder heat resistance:
260°C max. for 3 seconds
Solvent washing permissible
FEATURES
Miniature compact size.
Positive spring loaded ball detent mechanism.
Epoxy sealed terminals.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Wash-through open frame construction.
MATERIALS
Contacts & terminals:
Silver plated
Frame:
Zinc plated steel
Actuator:
Thermoplastic
Base:
Phenolic laminated sheet
Terminal seal:
Epoxy
MODEL NO.
.126 (3.20) TRAVEL/THROW
O
SLB12814
1P2T
VERTICAL ACTUATOR
MODEL NO.
SLB1281R5
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
.126 (3.20) TRAVEL/THROW
1P2T
RIGHT ANGLE ACTUATOR
MODEL NO.
SLB1370
SCHEMATIC
MECHANICAL OUTLINE
.090 (2.30) TRAVEL/THROW
P.C. BOARD LAYOUT
1P3T
VERTICAL ACTUATOR
O18
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SLB Series
(with p.c. board stand-off bracket)
Miniature Slide Switches
MODEL NO.
SLB13814
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
1P3T
.126 (3.20) TRAVEL/THROW
VERTICAL ACTUATOR
MODEL NO.
SLB1381R5
SCHEMATIC
MECHANICAL OUTLINE
.126 (3.20) TRAVEL/THROW
P.C. BOARD LAYOUT
1P3T
O
RIGHT ANGLE ACTUATOR
MODEL NO.
SLB1470
SCHEMATIC
MECHANICAL OUTLINE
.090 (2.30) TRAVEL/THROW
P.C. BOARD LAYOUT
1P4T
VERTICAL ACTUATOR
MODEL NO.
SLB1570
SCHEMATIC
MECHANICAL OUTLINE
.090 (2.30) TRAVEL/THROW
P.C. BOARD LAYOUT
1P5T
VERTICAL ACTUATOR
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
O19
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SLB Series
(with p.c. board stand-off bracket)
Miniature Slide Switches
MODEL NO.
SLB22814
.126 (3.20) TRAVEL/THROW
2P2T
VERTICAL ACTUATOR
MODEL NO.
SCHEMATIC
MECHANICAL OUTLINE
.126 (3.20) TRAVEL/THROW
P.C. BOARD LAYOUT
O
SLB2281R5
2P2T
RIGHT ANGLE ACTUATOR
MODEL NO.
SLB23814
SCHEMATIC
MECHANICAL OUTLINE
.126 (3.20) TRAVEL/THROW
P.C. BOARD LAYOUT
2P3T
VERTICAL ACTUATOR
MODEL NO.
SLB2381R5
SCHEMATIC
MECHANICAL OUTLINE
.126 (3.20) TRAVEL/THROW
P.C. BOARD LAYOUT
2P3T
RIGHT ANGLE ACTUATOR
O20
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

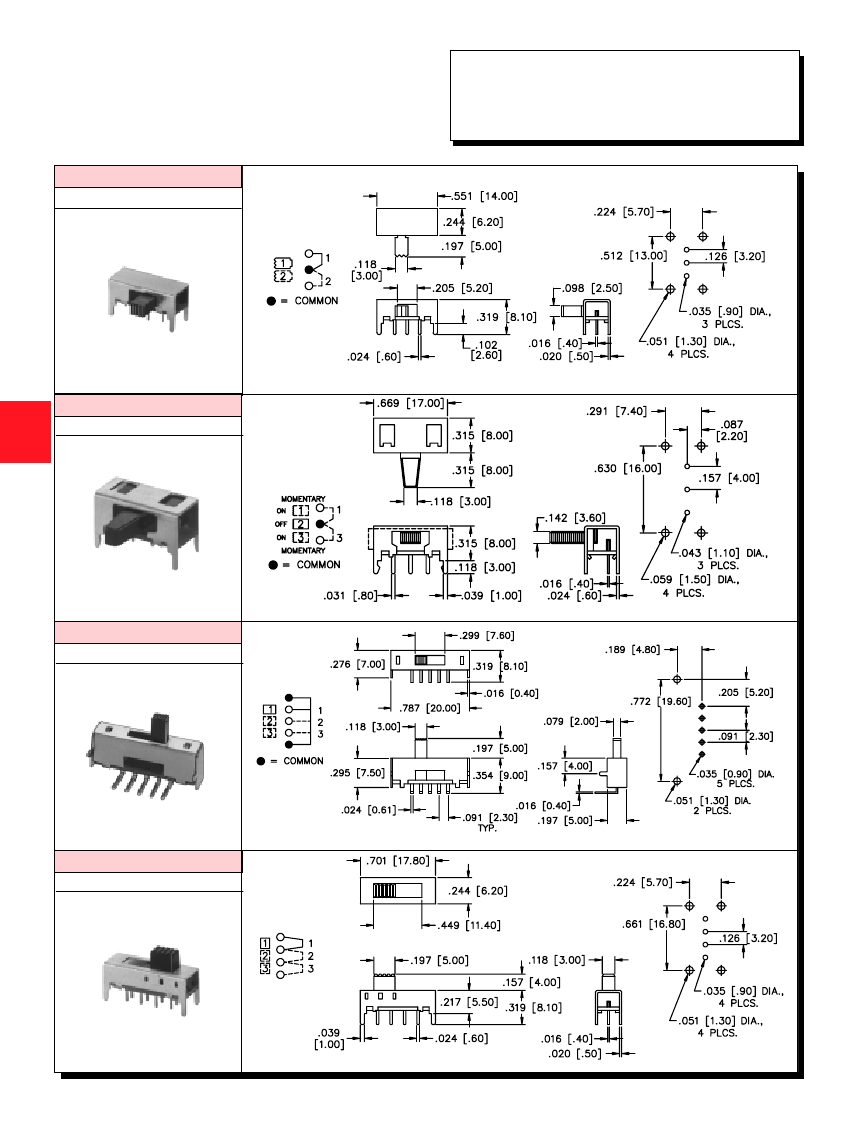

SLB Series
(with thru- p.c. board hole mounting bracket)
Miniature Slide Switches
SPECIFICATIONS
Contact ratings:
300 mA at 125 VAC or 30 VDC
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
FEATURES
Miniature compact size.
Wash-through open frame construction.
Positive spring loaded ball detent mechanism.
Epoxy sealed terminals.
Initial contact resistance:
20 milliohms max.
Insulation resistance:
100 megohms min. at 500 VDC
Dielectric strength:
500 volts RMS for 1 minute
Electrical life:
10,000 cycles min.
Operating temperature range:
-20°C to +85°C
Actuation force:
220g ± 100g
Solder heat resistance:
260°C max. for 3 seconds
Solvent washing permissible
MATERIALS
Contacts & terminals:
Silver plated
Frame:
Zinc plated steel
Actuator:
Thermoplastic
Base:
Phenolic laminated sheet
Terminal seal:
Epoxy
MODEL NO.
SLB12804
.126 (3.20) TRAVEL/THROW
1P2T
O
VERTICAL ACTUATOR
MODEL NO.
SLB124145
SCHEMATIC
MECHANICAL OUTLINE
.157 (4.00) TRAVEL/THROW
P.C. BOARD LAYOUT
1P2T
VERTICAL ACTUATOR
MODEL NO.
SLB1240R45
SCHEMATIC
MECHANICAL OUTLINE
.157 (4.00) TRAVEL/THROW
P.C. BOARD LAYOUT
1P2T
RIGHT ANGLE ACTUATOR
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
O21
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SLB Series
(with thru- p.c. board hole mounting bracket)
Miniature Slide Switches
MODEL NO.
SLB1280R5
.126 (3.20) TRAVEL/THROW
1P2T
RIGHT ANGLE ACTUATOR
MODEL NO.
SCHEMATIC
MECHANICAL OUTLINE
.098 (2.50) TRAVEL/THROW
P.C. BOARD LAYOUT
O
SLB1250R8
1P2T
RIGHT ANGLE ACTUATOR
MODEL NO.
SLB1370R
SCHEMATIC
MECHANICAL OUTLINE
.090 (2.30) TRAVEL/THROW
P.C. BOARD LAYOUT
1P3T
RIGHT ANGLE ACTUATOR
MODEL NO.
SLB13804
SCHEMATIC
MECHANICAL OUTLINE
.126 (3.20) TRAVEL/THROW
P.C. BOARD LAYOUT
1P3T
VERTICAL ACTUATOR
O22
SCHEMATIC
MECHANICAL OUTLINE
P.C. BOARD LAYOUT
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
