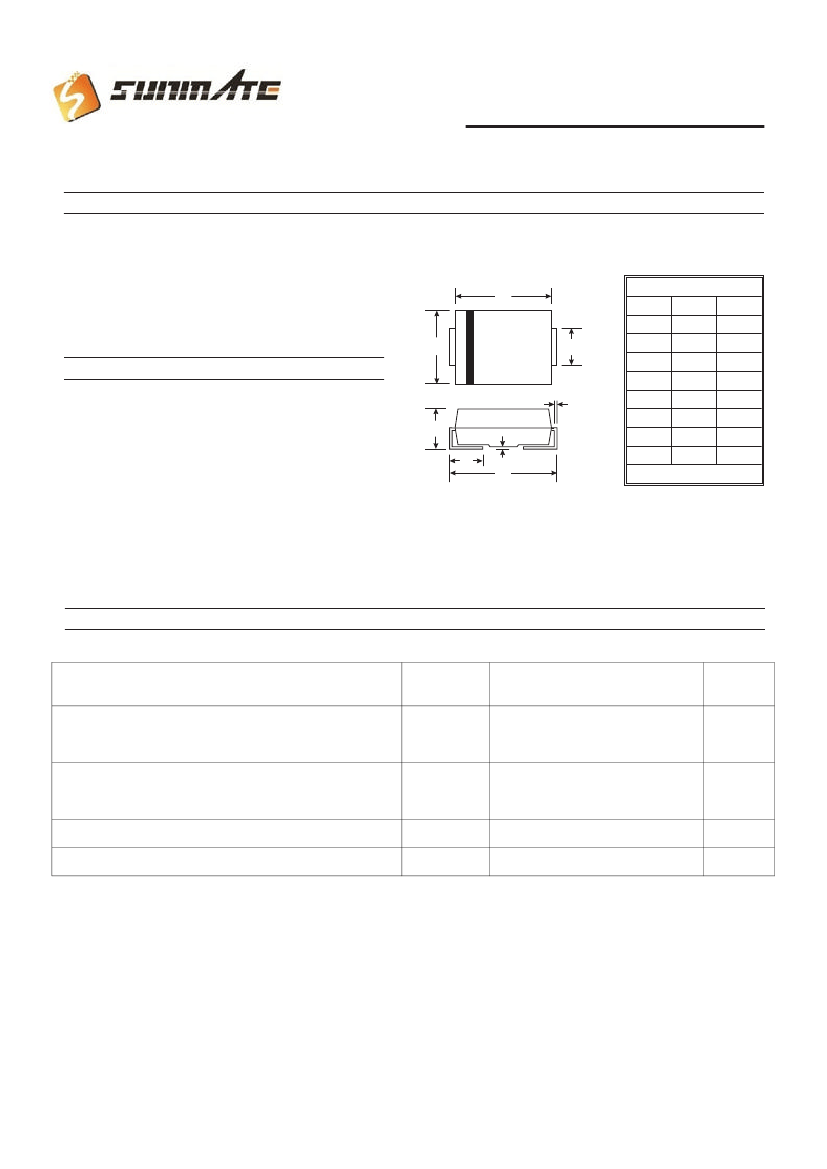

SMCJLCE Series

1500 Watts Surface Mount Low Capacitance

Transient Voltage Suppressor

Features

1500 Watts of Peak Pulse Power Dissipation

Available in stand-off voltage range of 6.5 to 170 V

Low Capacitance of 100 pF or less

Molding compound flammability rating : UL94V-O

Pb / RoHS Free

SMC

Dim

Min

5.59

6.60

2.75

0.15

7.75

0.10

0.76

2.00

Max

6.22

7.11

3.18

0.31

8.13

0.20

1.52

2.62

Mechanical Data

Case : SMC Molded plastic

Epoxy : UL94V-O rate flame retardant

Lead : Lead Formed for Surface Mount

Polarity : Color band denotes cathode end

except Bipolar.

Mounting position : Any

Weight : 0.21 gram

All Dimensions in mm

Maximum Ratings

@ T

= 25°C unless otherwise specified

Rating

Peak Pulse Power Dissipation on 10/1000μs

waveform (Note 1, Figure 1)

Steady State Power Dissipation at T

= 75 °C

Lead Lengths 0.375", (9.5mm) (Note 2)

Thermal Resistance (Junction to Lead)

Operating and Storage Temperature Range

Symbol

Value

1500

Unit

ӨJL

, T

STG

5.0

- 65 to + 175

°C/W

°C

Notes :

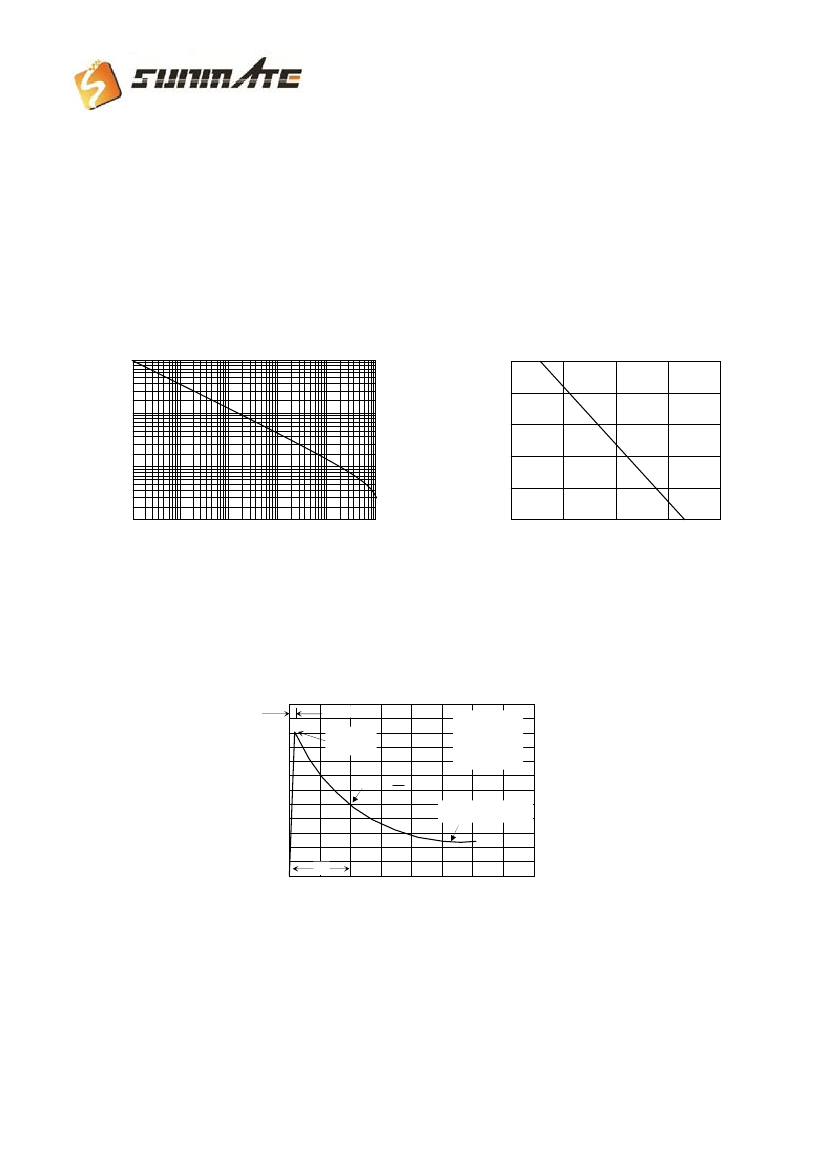

(1) Non-repetitive Current pulse, per Fig. 3 and derated above Ta = 25 °C per Fig. 2

(2) 8.3 ms single half sine-wave, duty cycle = 4 pulses per minutes maximum.

1of4
