22-02-2109 datasheet, PDF - EEWORLD Datasheet

22-02-2109: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

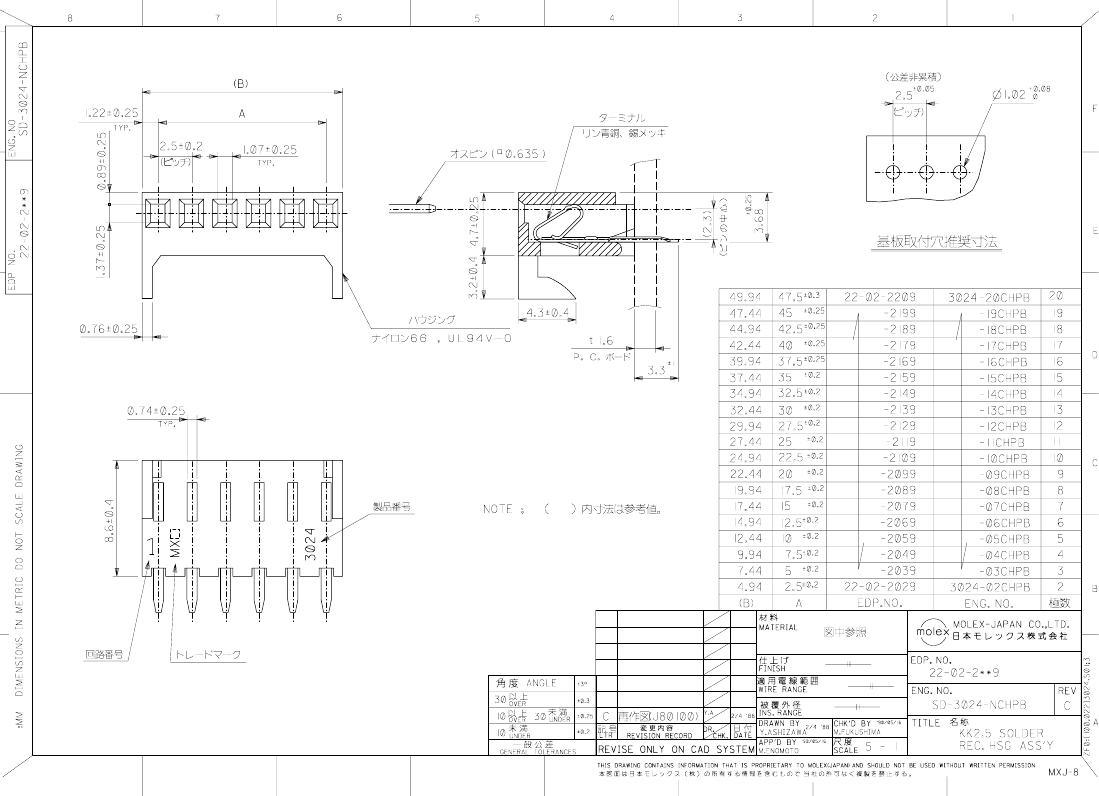

Download Datasheet Parametric Compare View All

22-02-2109 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3024
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

	22-02-2109	22-02-2049	22-02-2089	22-02-2119	22-02-2129
Description	Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Solder Terminal
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	3024	3024	3024	3024	3024
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	10	4	8	11	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
