8D711W05AN

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size332KB,2 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric Compare View All

8D711W05AN Overview

MIL Series Connector,

8D711W05AN Parametric

Parameter NameAttribute value
MakerEsterline Technologies Corporation
Reach Compliance Codeunknow
Connector typeMIL SERIES CONNECTOR
Base Number Matches1
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Olive drab Cadmium
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
A
34.9±0.3
B
19.07+0.1/-0.15
R
32.5Max
S
31.8±0.4
W
2.2+0.9/-0.1
VV THREAD
M15x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +175°C
: 500 hours
: 19.48 g ± 10%
PN: 8D711W05AN
A
ISS
01-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°

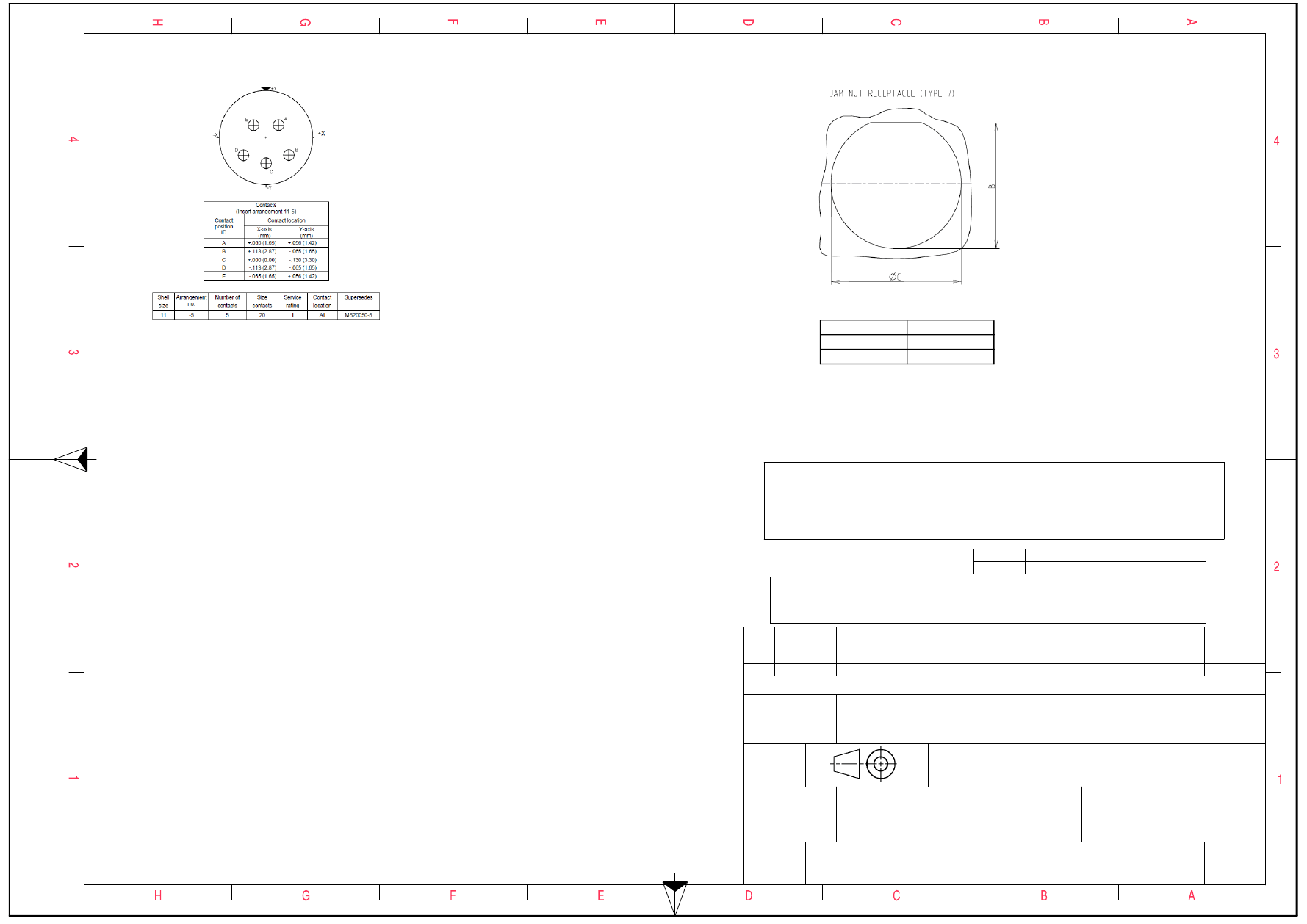

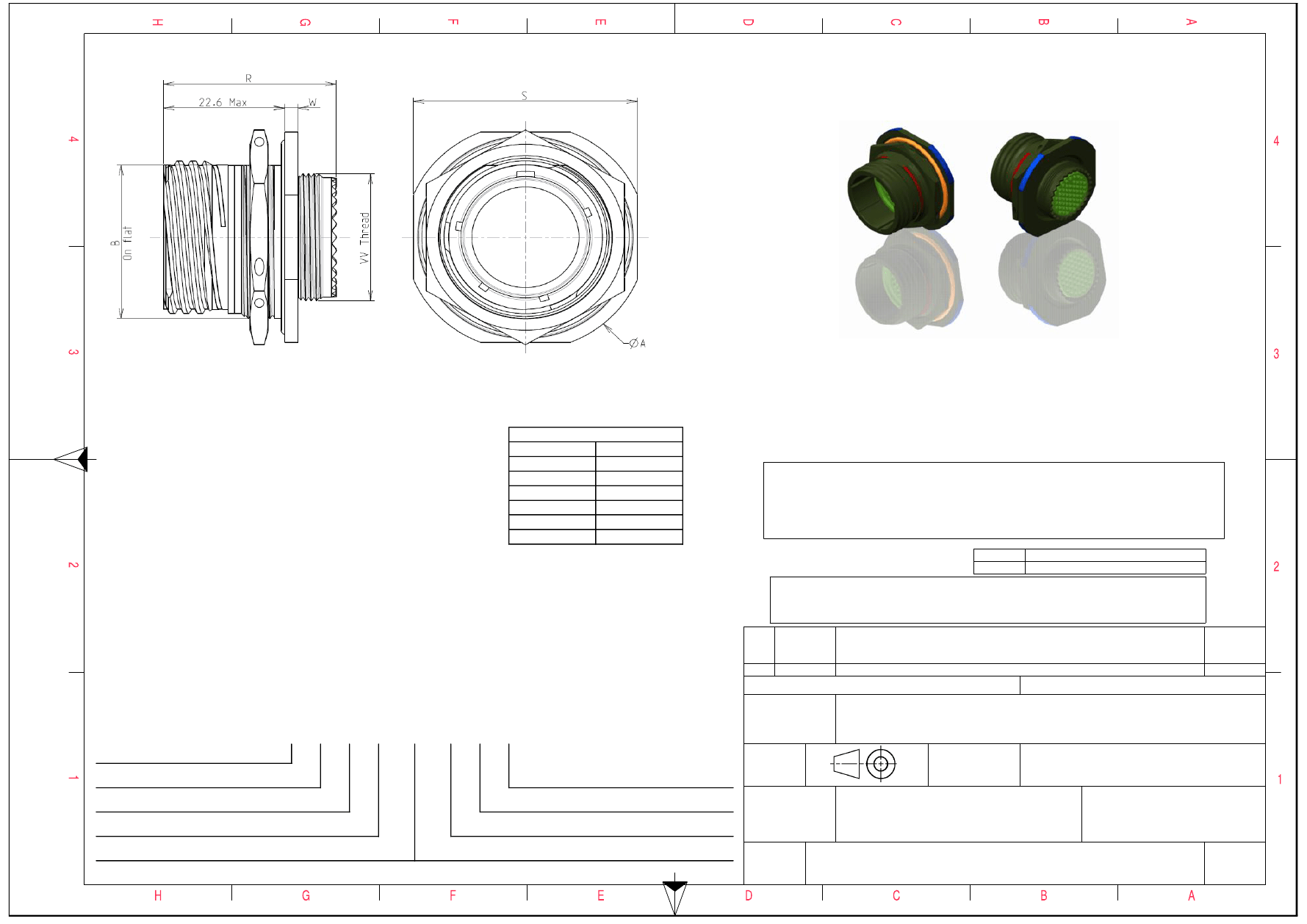

CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Jam nut Receptacle
CONTACT TYPE
SHELL SIZE : 11
PLATING
: W =
Olive drab Cadmium
: Standard Crimp Contact
ORIENTATION : N
CONTACT TYPE : PIN(500 Matings)
CONTACT LAYOUT : 11-05
FORMAT
Aluminium Receptacle 8D series
General linear
Tolerances:
±--
8D
7
-
11
W
05
A
N
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D711W05AN-C
SHEET
1/2
